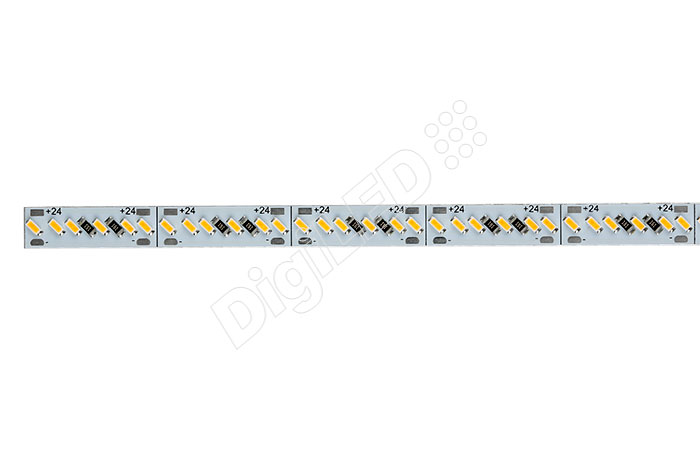

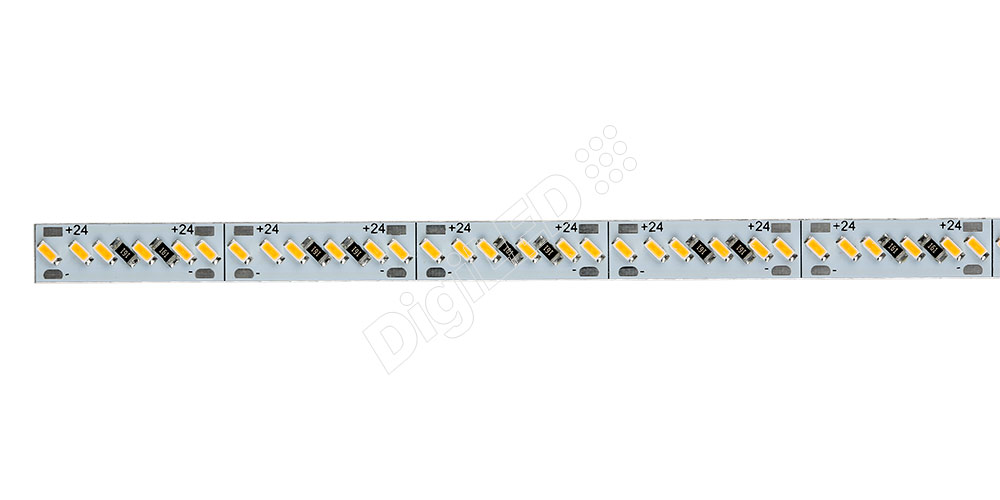

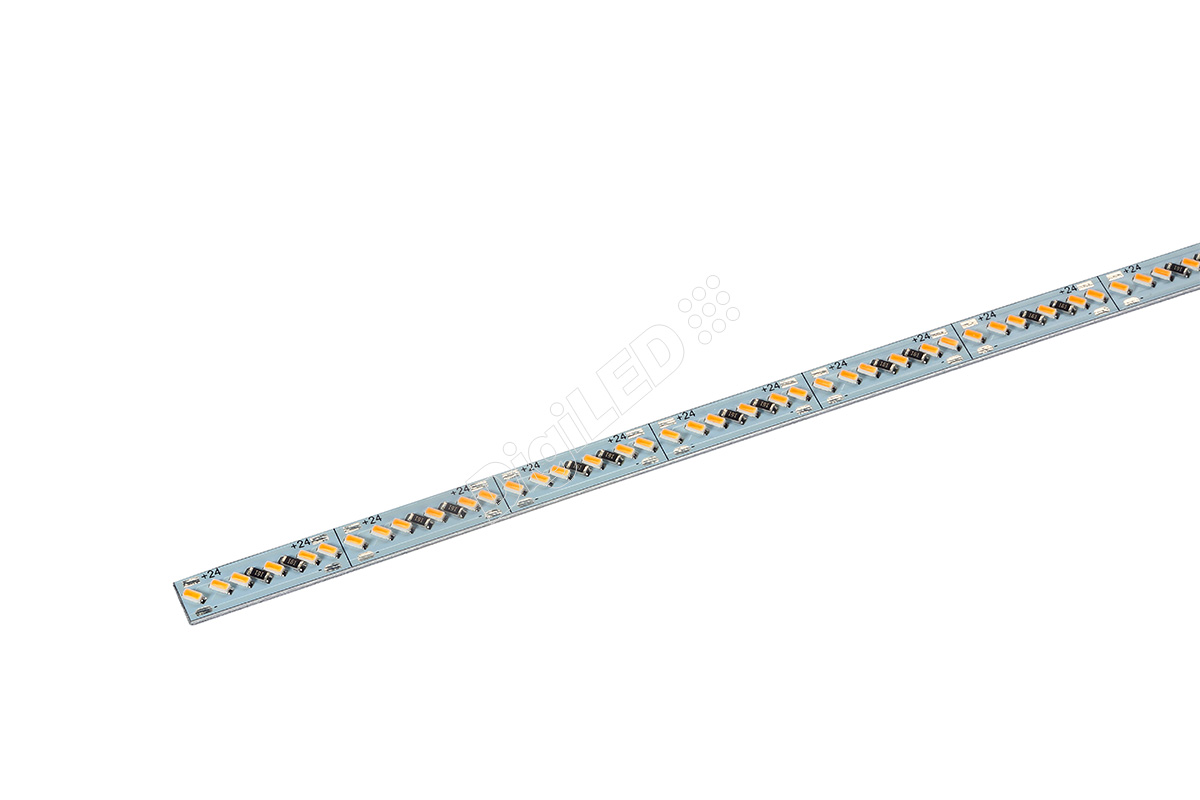

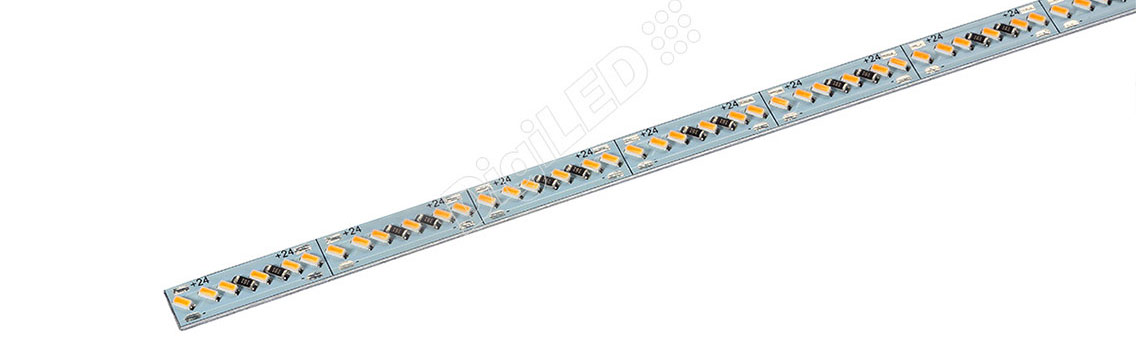

DGST-3014E3-240L-24V STRIP

Item Code : DGST-3014E3-240L-24V

24 Watt/Meter | 240 LED/Meter | 19.2 Volt DC

Advantages

  • High brightness single color led strip
  • 3014 SMT package
  • High luminous intensity
  • Slim design
  • High reliability
  • Solid state, high shock, vibration resistant
  • Maintenance free, easy installation, long life
  • Very low power consumption and low heat
  • Good thermal conductivity
  • Easy to pack, ship and install

LED SPECIFICATIONS

  • 25-31 Lm
  • Package size: 3.0 X 1.4 X 0.8 mm
  • High brightness 1 chip LED
  • SMD (top view) type
  • High luminous intensity

Note: This LED strip is must be used with proper heat sink.

Specifications

LED COLORS SIZE INPUT VOLTAGE CURRENT BEAM ANGLE OPERATING TEMPERATURE CUTTABLE SIZE PCB POWER

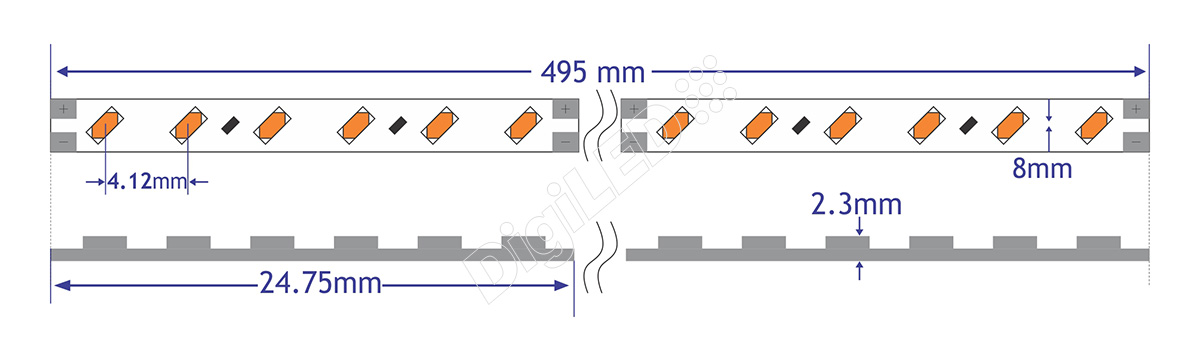

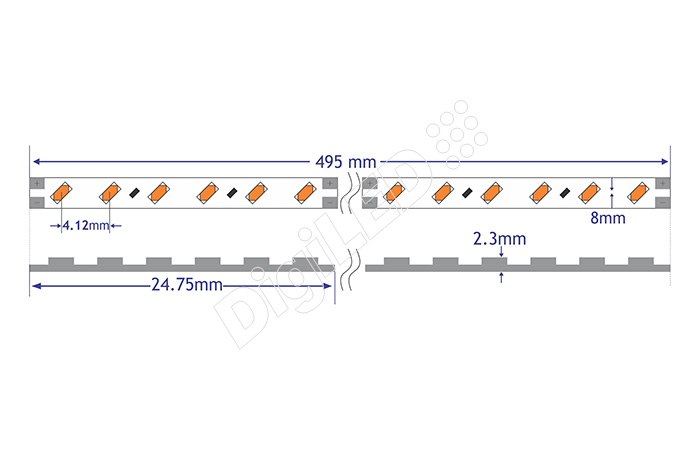

120 LED / module CW/ NW/ WW 8 mm W x 495 mm L x 1.6 mm H DC 24 VOLT 0. 4 A 1200 -200~ +600 24.75 mm ALU 9.6 Watt / Module
