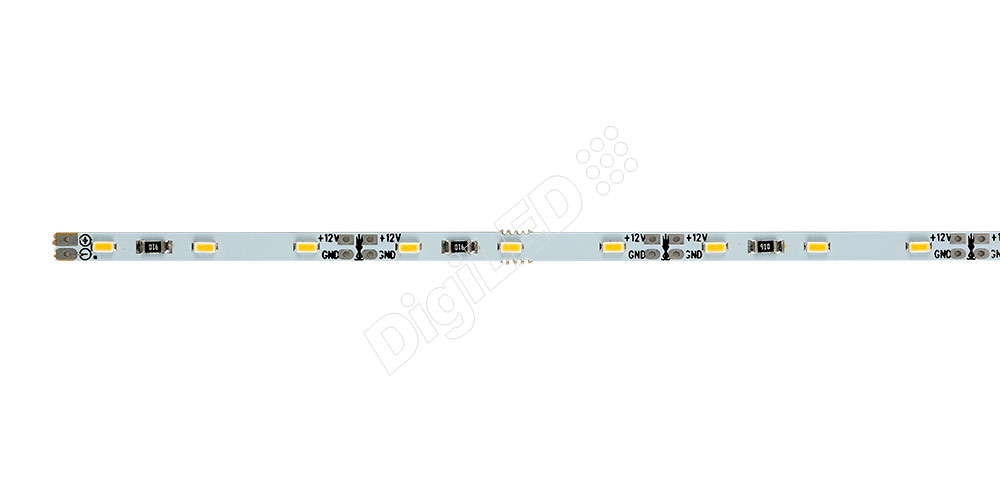

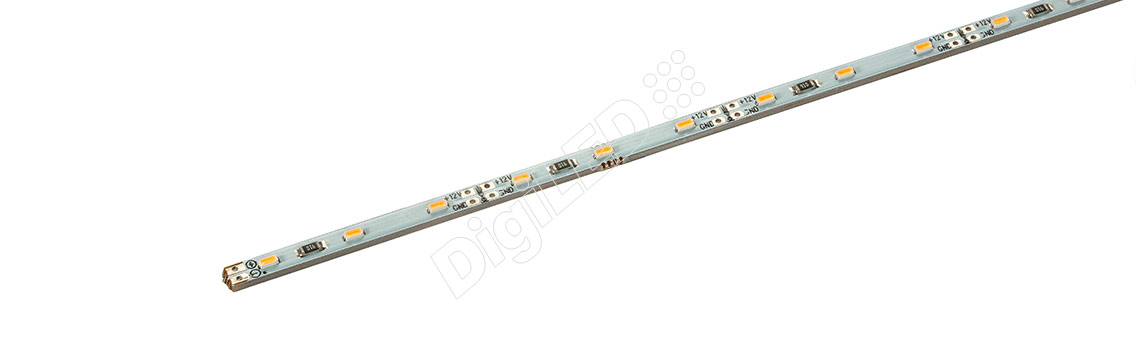

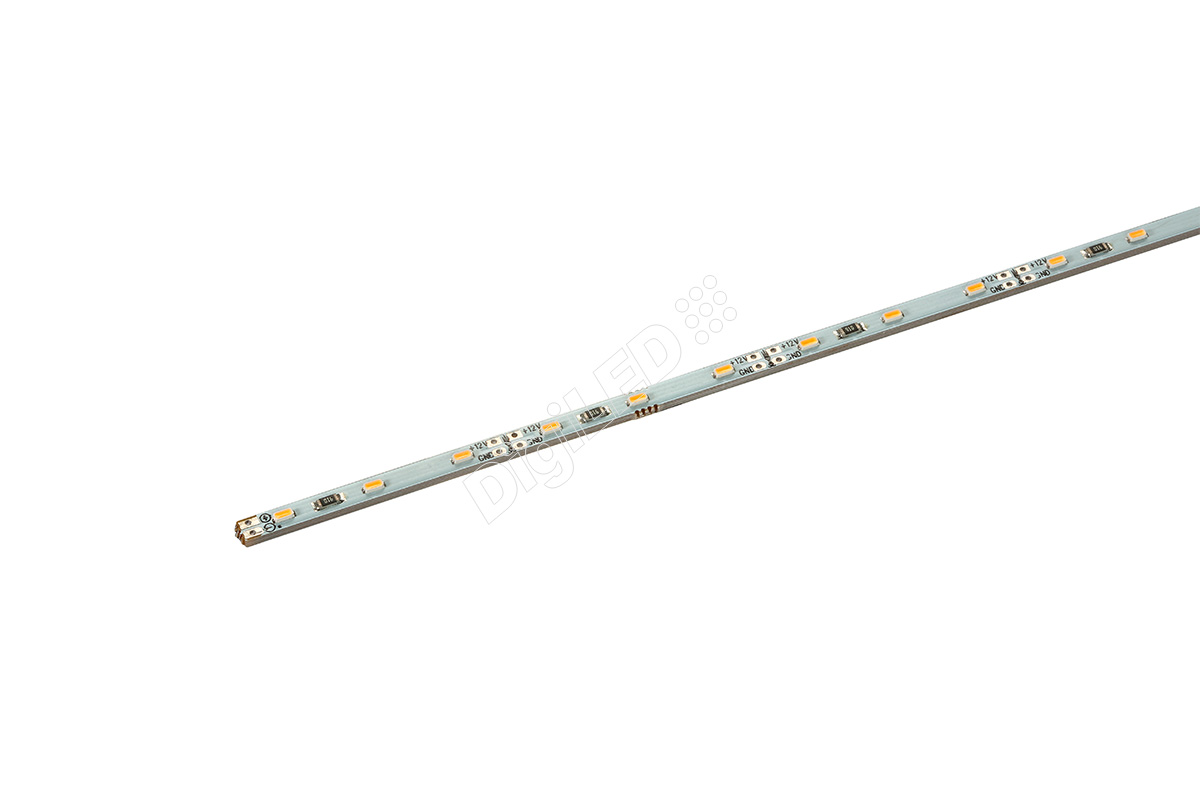

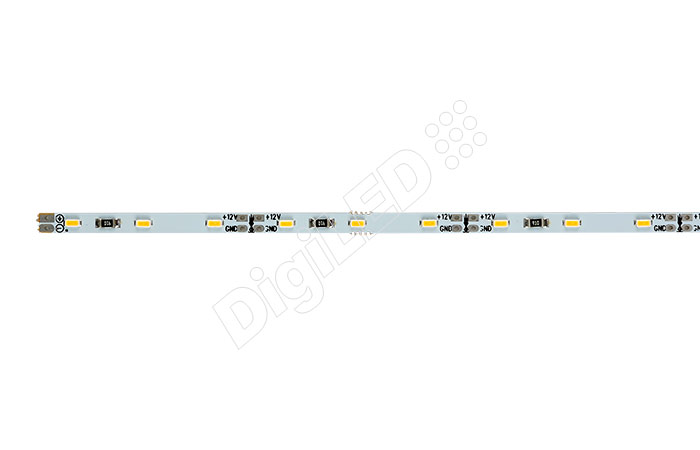

3014-V7-36 STRIP

Item Code : 3014-V7-36

5.76 Watt/Meter | 72 LED/Meter | 12 Volt DC

Advantages

  • High brightness single color led strip
  • 3014 SMT package [30mA]
  • High luminous intensity
  • Slim design
  • High reliability
  • Solid state, high shock, vibration resistant
  • Maintenance free, easy installation, long life
  • Very low power consumption and low heat
  • Good thermal conductivity
  • Easy to pack, ship and install

LED SPECIFICATIONS

  • 9-12 Lm
  • Package size: 3.0 X 1.4 X 0.70 mm
  • High brightness
  • SMD (top view) type
  • High luminous intensity

Specifications

LED COLORS SIZE INPUT VOLTAGE CURRENT BEAM ANGLE OPERATING TEMPERATURE CUTTABLE SIZE PCB POWER

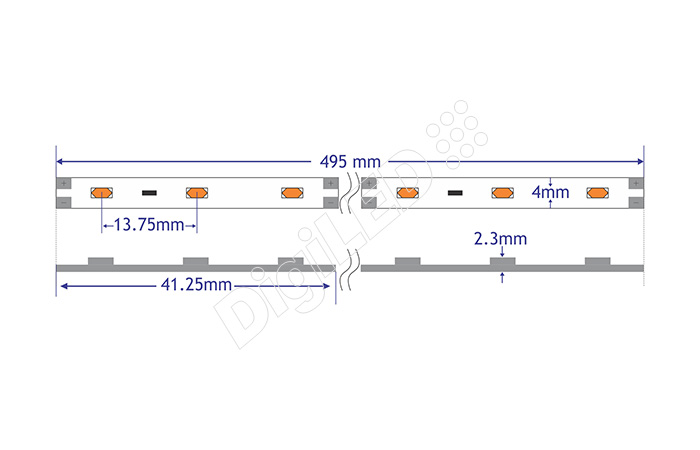

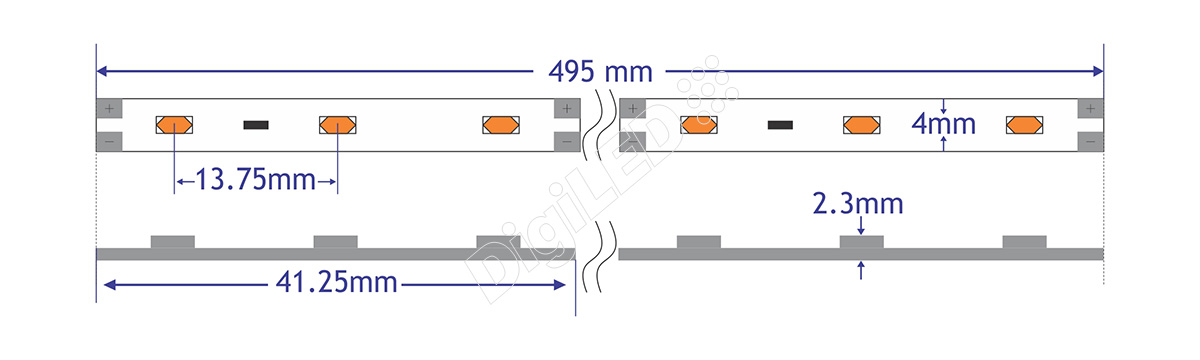

36 LED / module CW/ NW/ WW 4 mm W x 495 mm L x 1.6 mm H DC 12 VOLT 0.24 A 1200 -200~ +600 41.25 mm FR4 2.88 Watt / Module
