Moon Line

Standard Specifications : CV 19.2 W/ METER

Note

  • Standard Sizes : 500 MM, 1000 MM, 2000 MM
  • WATTS/ M : 4.8/ 7.2/ 11.52/ 14.4/ 19.2

Applications

  • Suspended
  • Wall Mounted
  • Office
  • Retail
  • Store
  • Residence etc.

Specifications

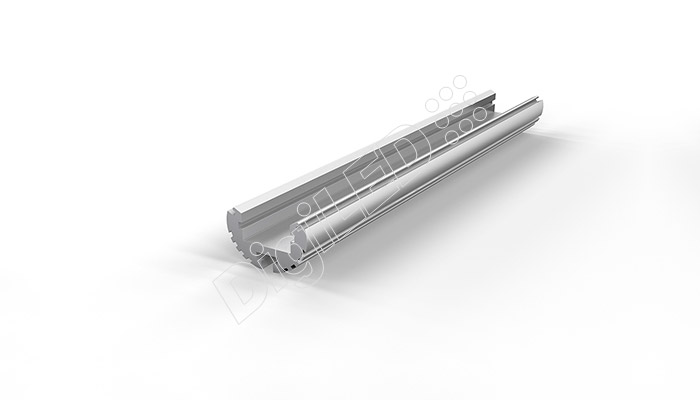

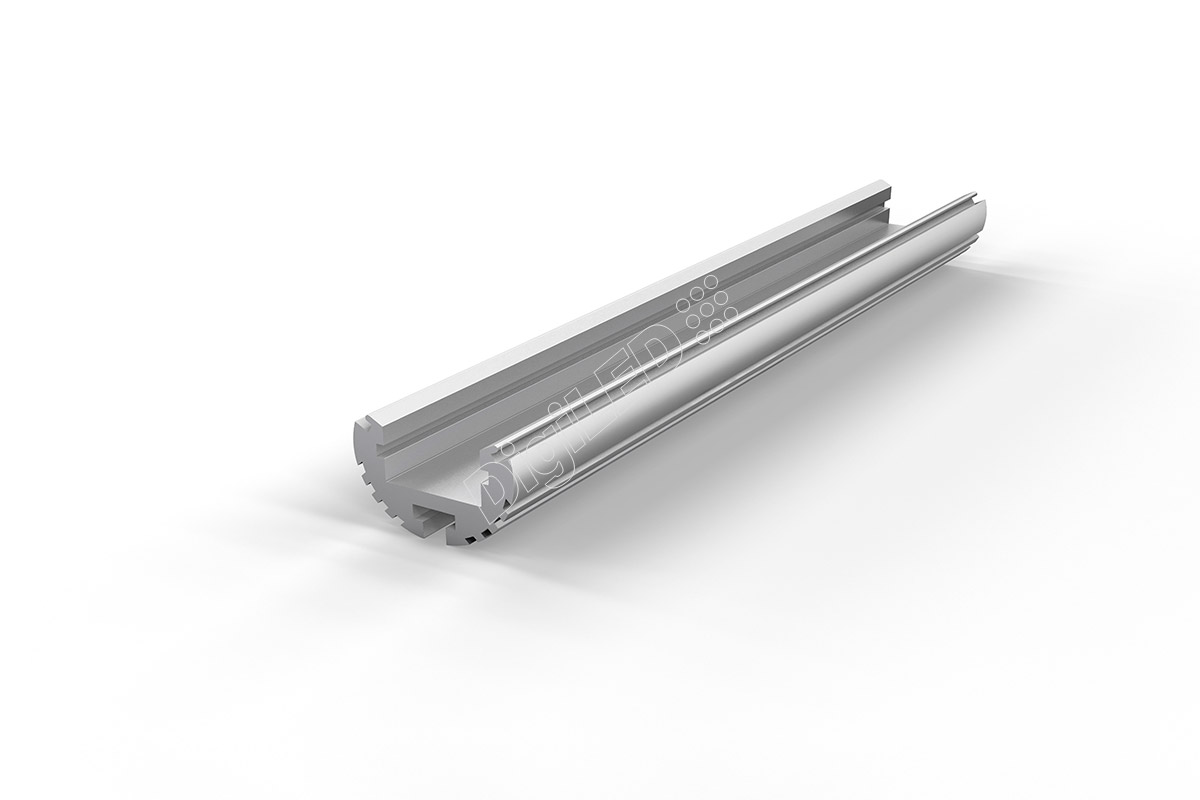

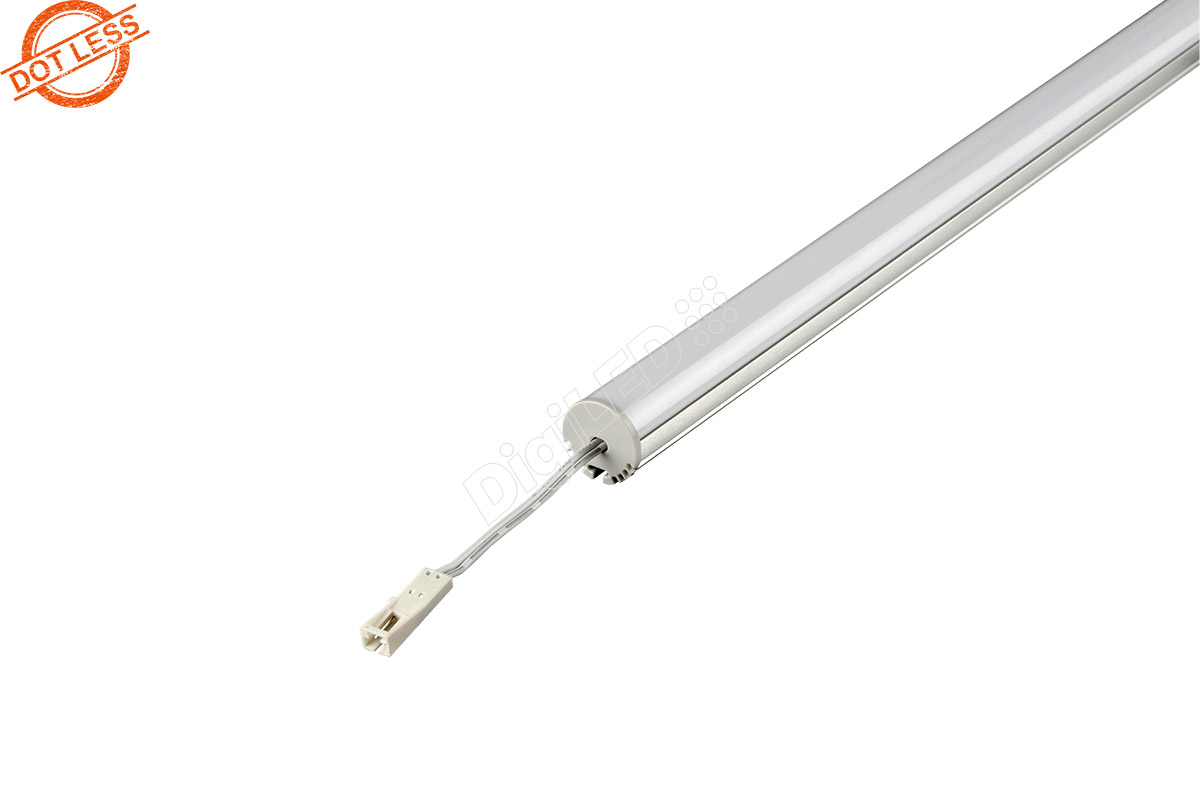

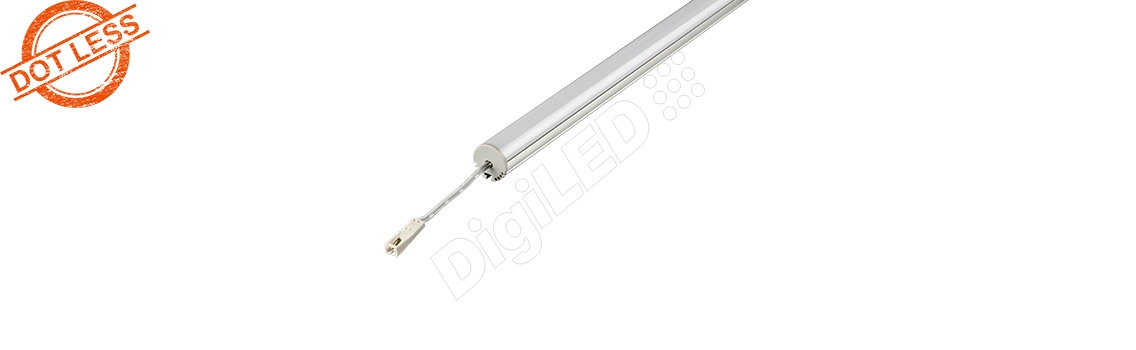

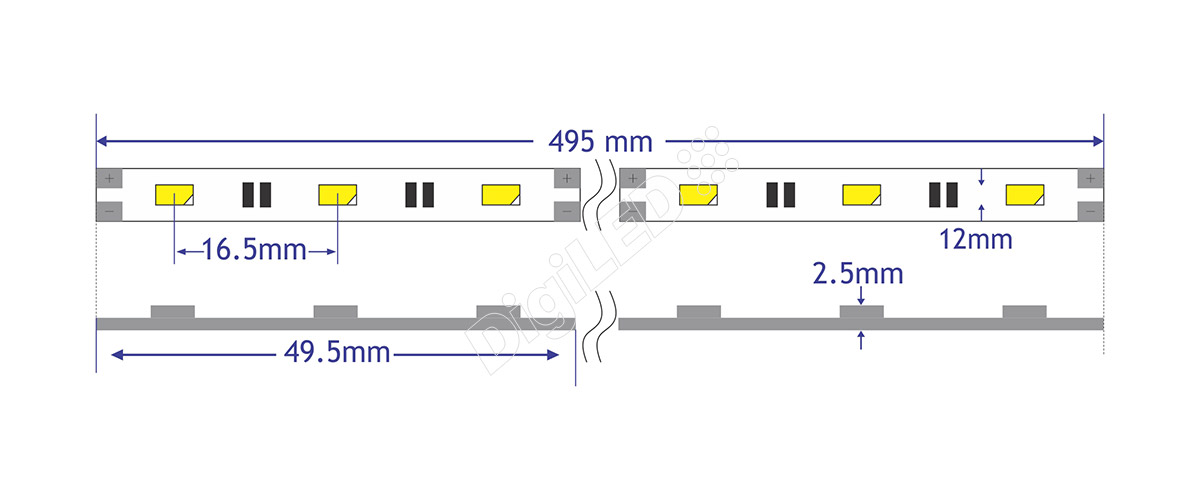

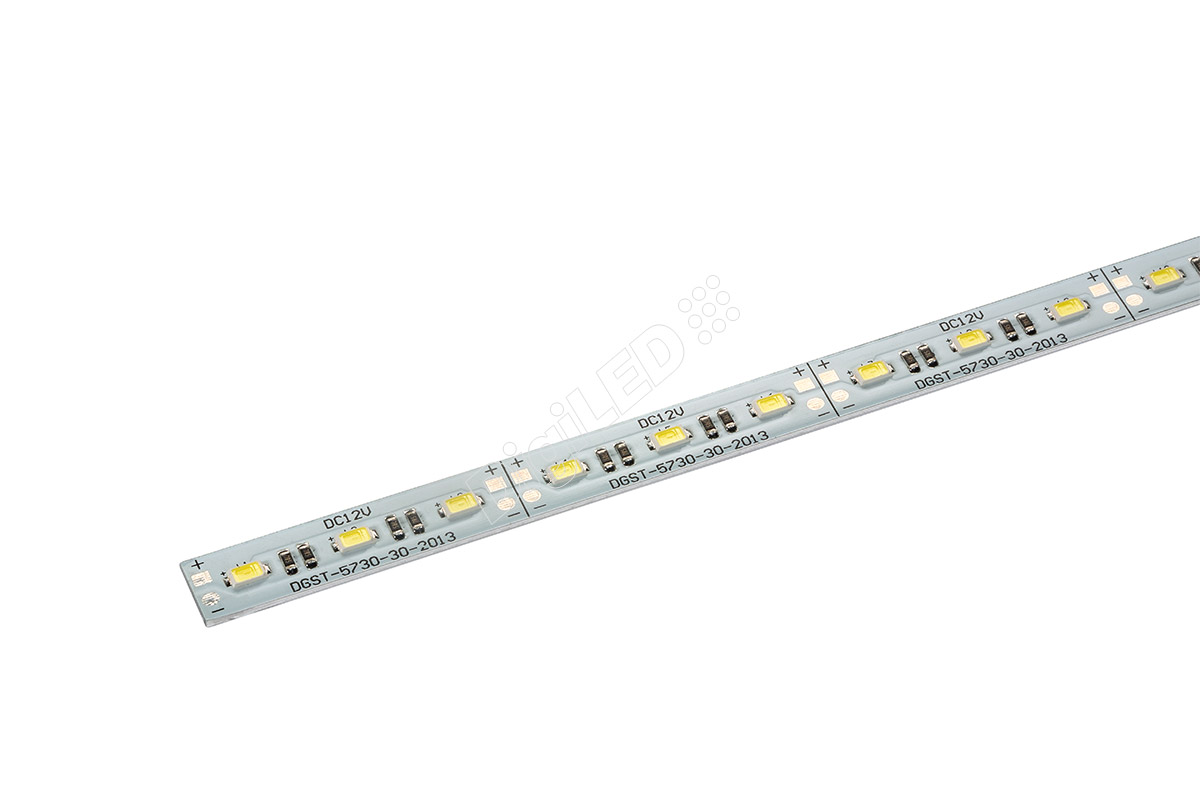

Moon Line SUSPENDED LINEAR LIGHT
Profile Size [W X H] Led package CRI LM/LED Input Power Maximum Watt/m Apx. Weight Kg /m Coating

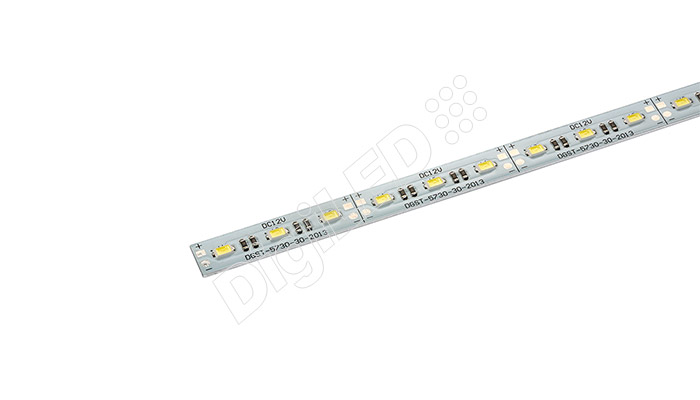

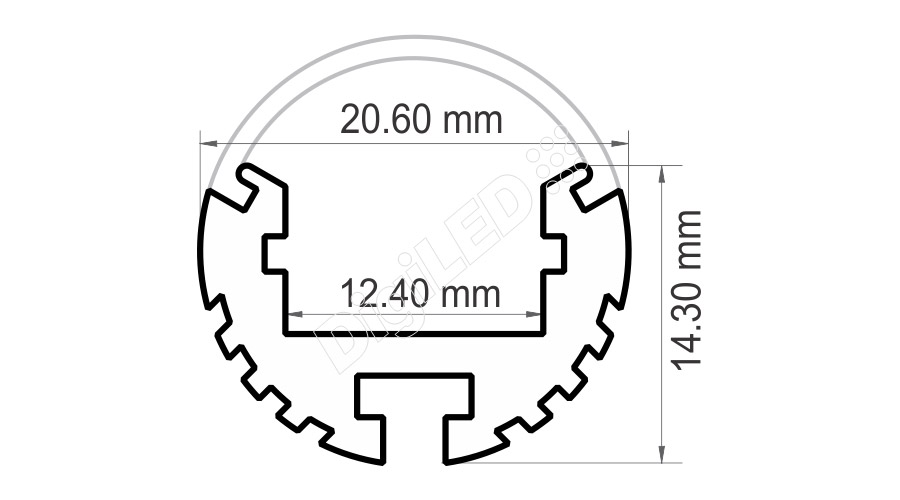

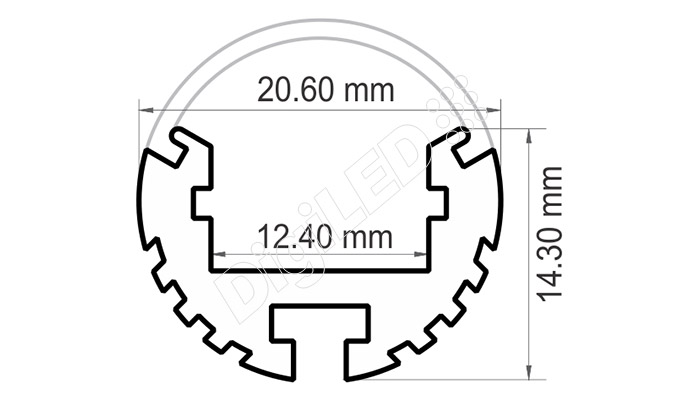

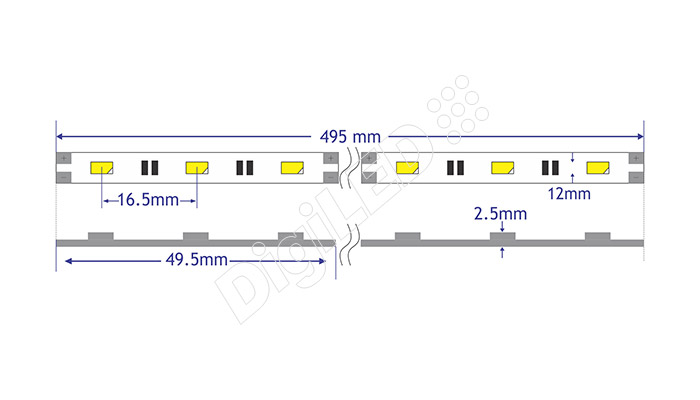

MOON 20.60 X 14.30 2835/ 3528/ 3014/
2016/ 5630/ 5730
70 - 85 9 - 31 CV = 12 V DC
CV = 24 V DC
19.2 00 KG IP30/ IP65

Accessories For Moon Line Profile

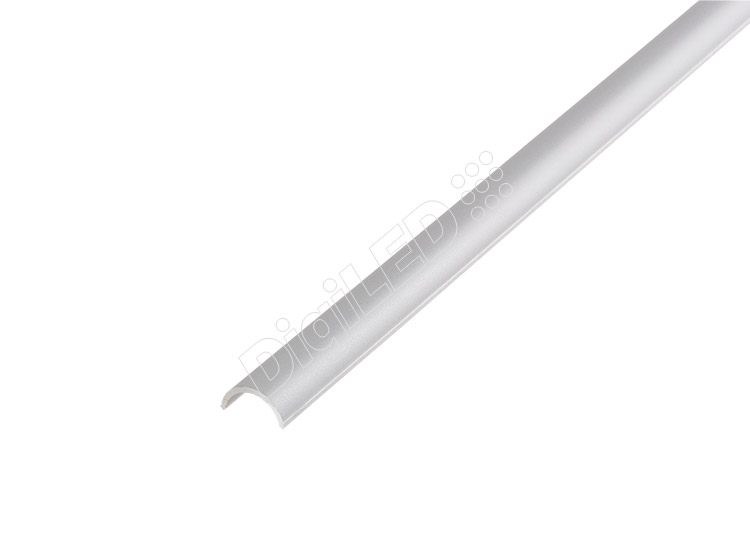

Diffuser

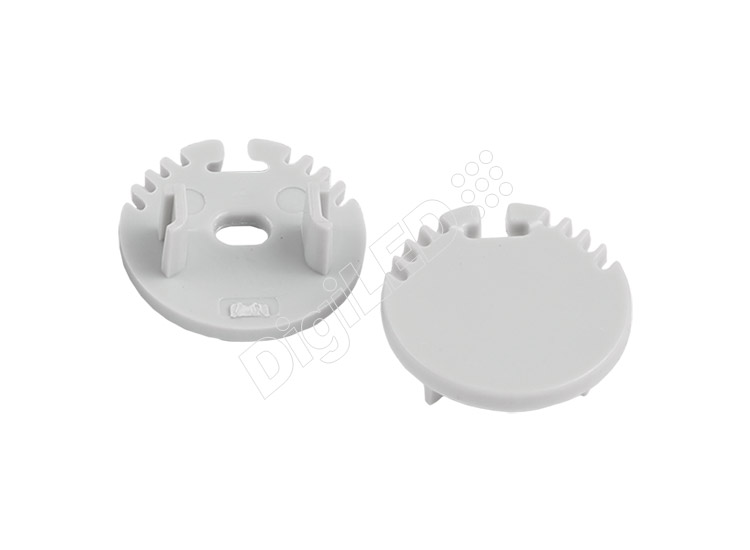

End Caps

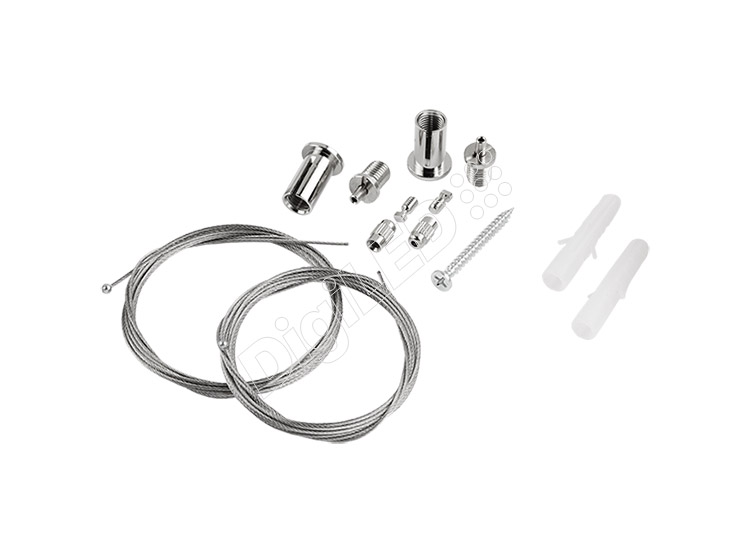

Hanging Rope

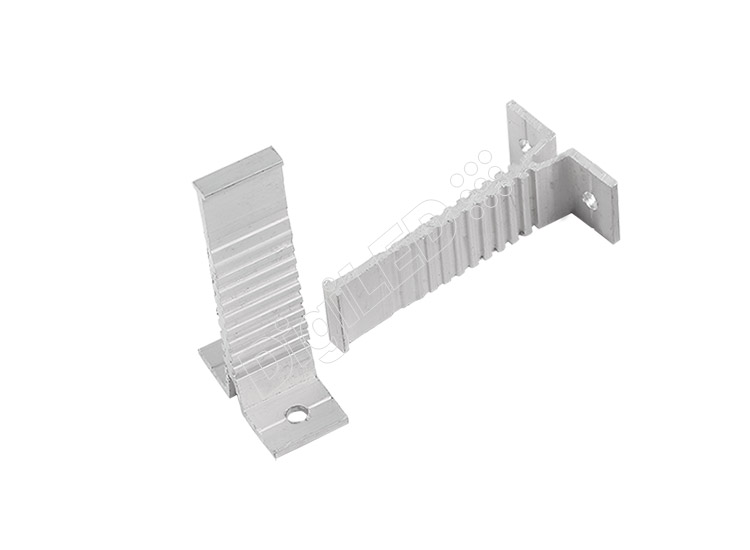

Stand
