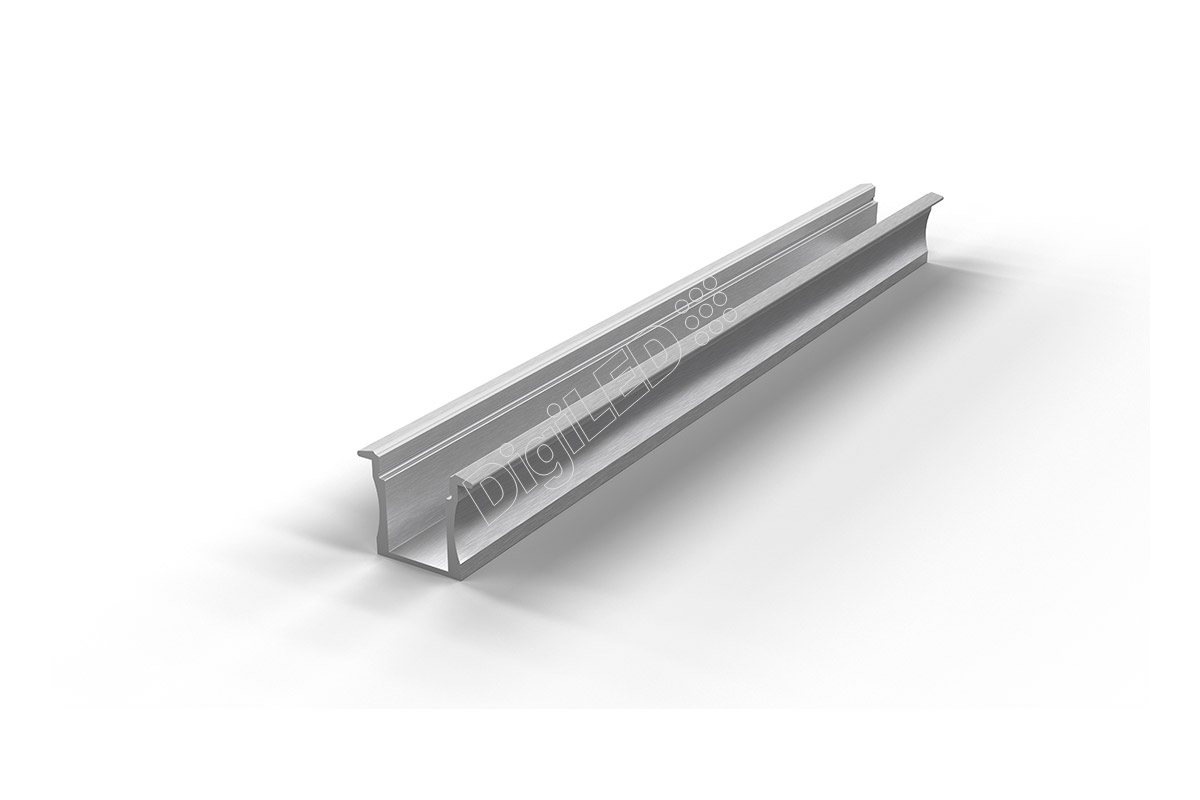

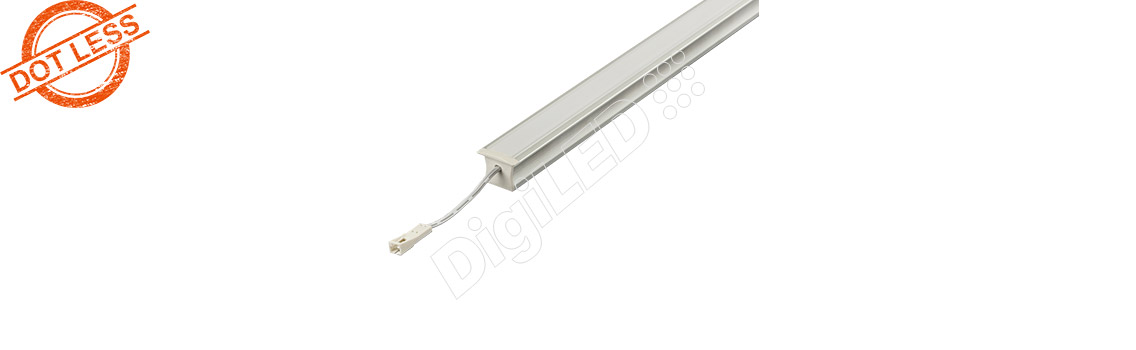

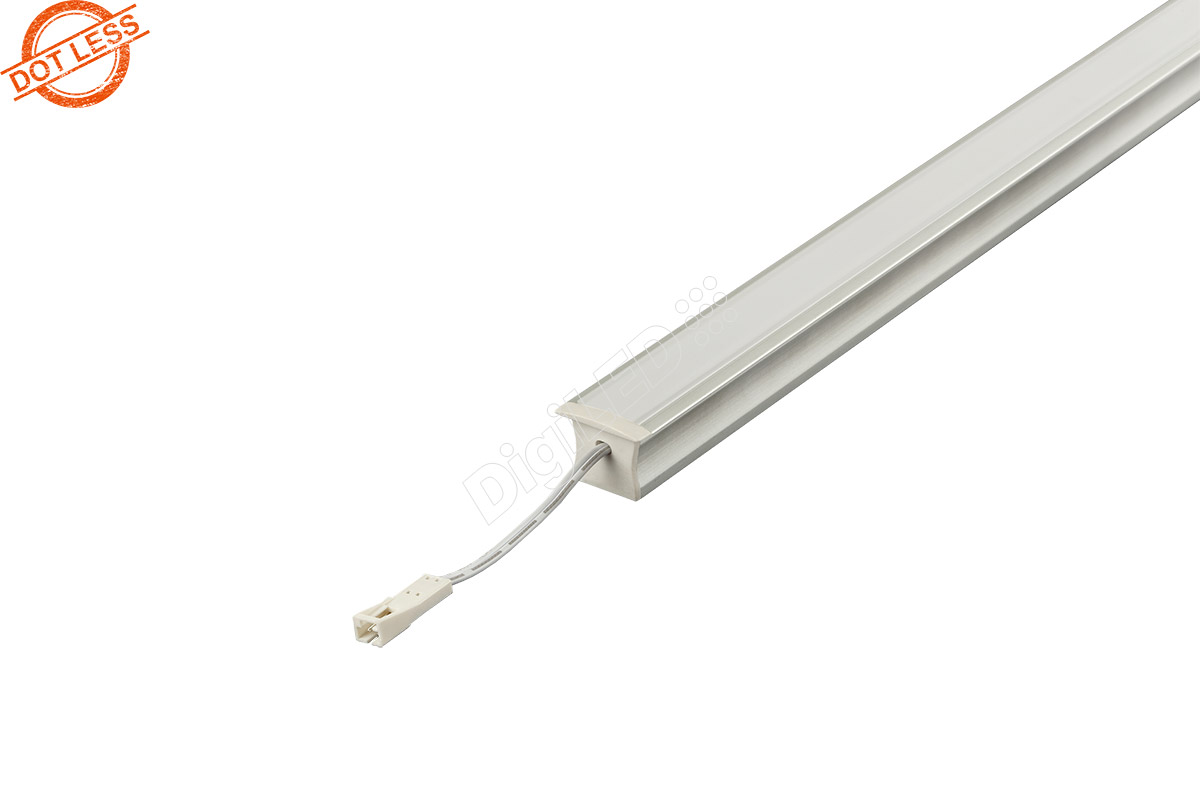

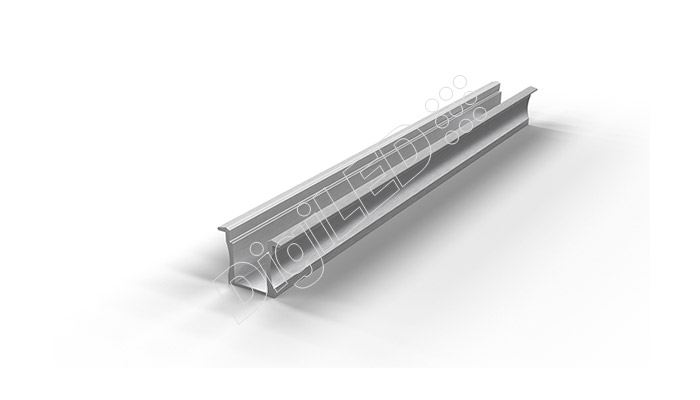

Tub Line

Standard Specifications : CV 19.2 W/ METER

Note

  • Standard Sizes : 500 MM, 1000 MM, 2000 MM
  • WATTS/ M : 4.8/ 9.6/ 14.4/ 19.2

Applications

  • Recessed Linear Lighting
  • Under Cabinet
  • Kitchen
  • Furniture etc.

Specifications

Tub Line RECESSED LINEAR LIGHT

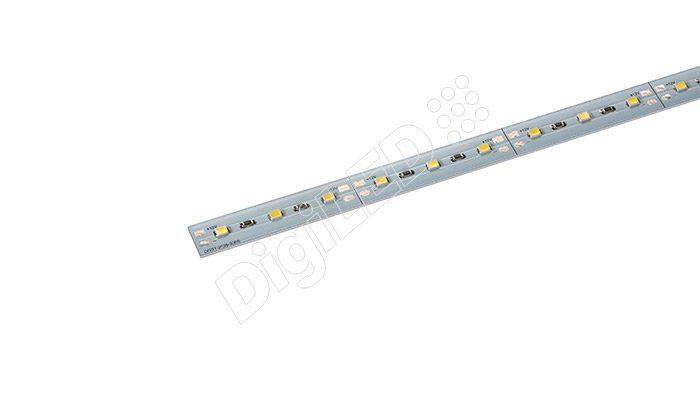

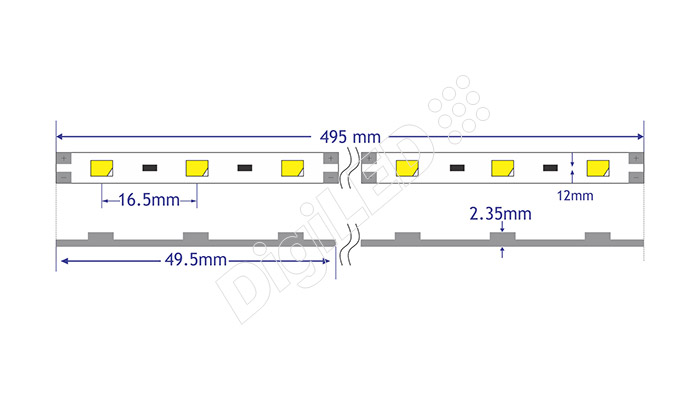

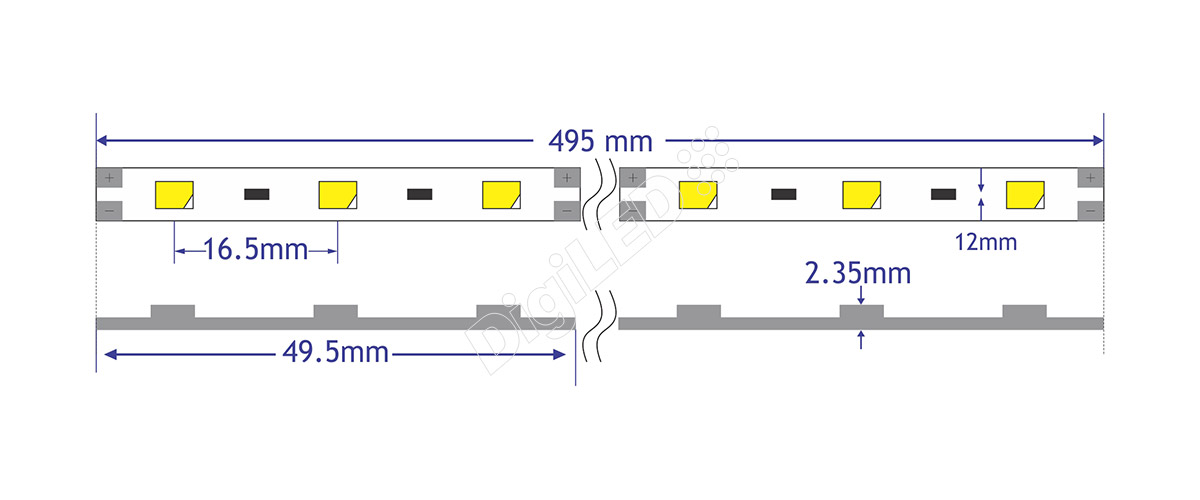

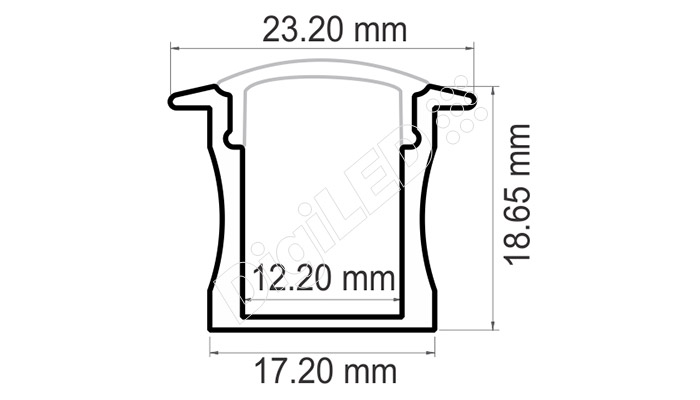

Profile Size [W X H] Led package CRI LM/LED Input Power Maximum Watt/m Apx. Weight Kg /m Coating

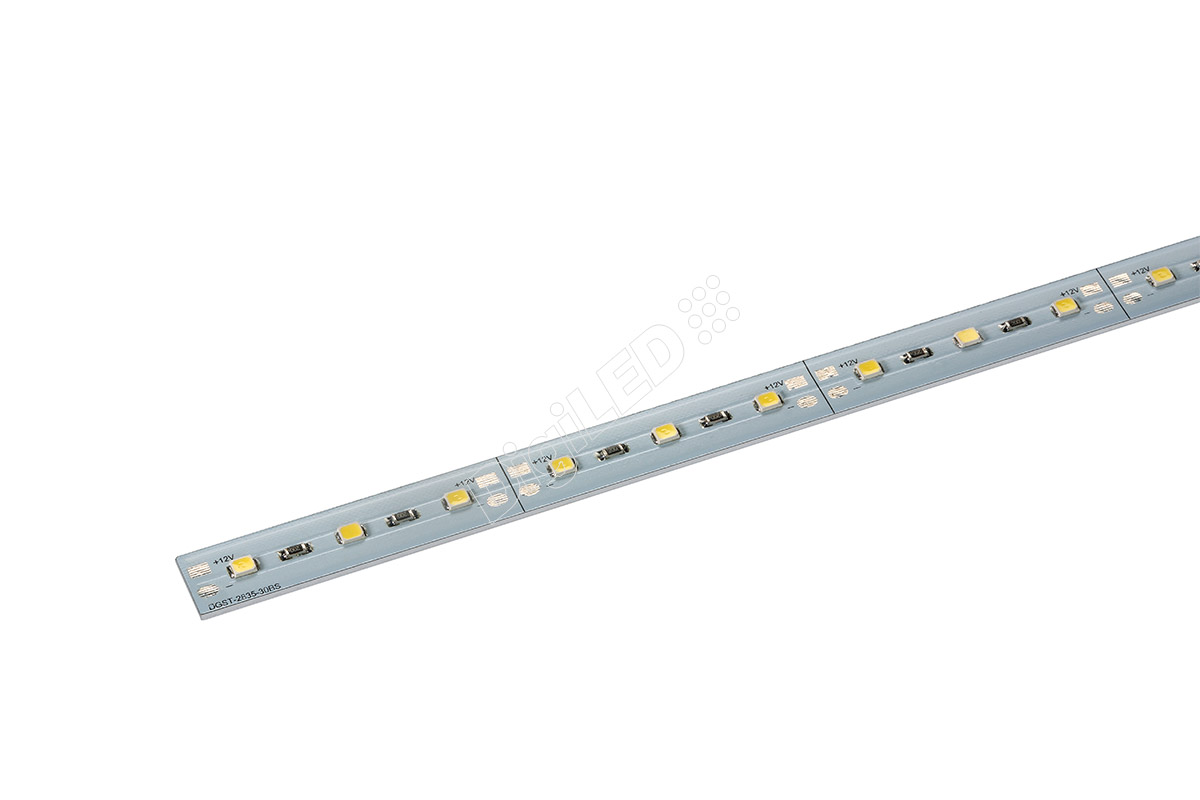

TUB 23.20 X 18.65 2835/ 3528/ 3014/ 2016/ 5630 70 - 85 9 - 31 CV = 12 V DC
CV = 24 V DC
19.2 00 KG IP30/ IP65

Accessories For Tub Line Profile

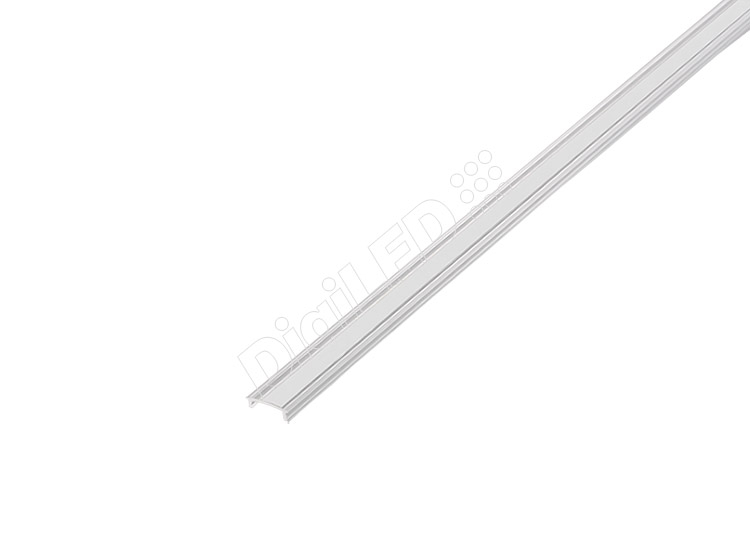

Clear Diffuser

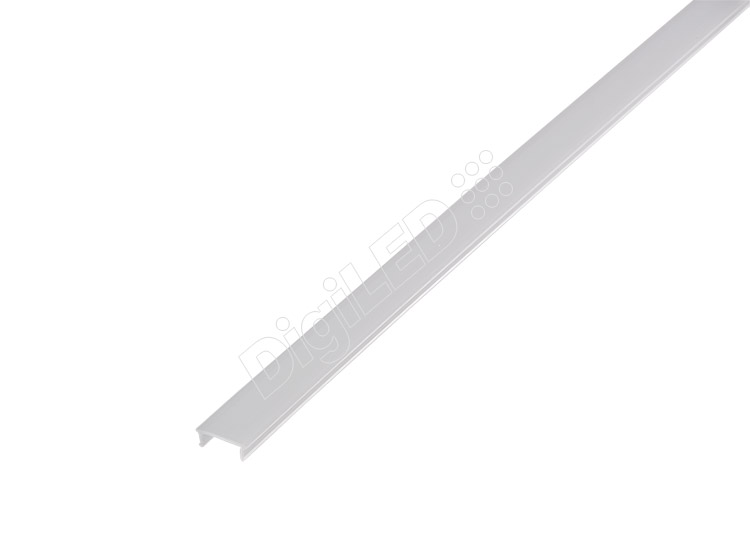

Milky Diffuser

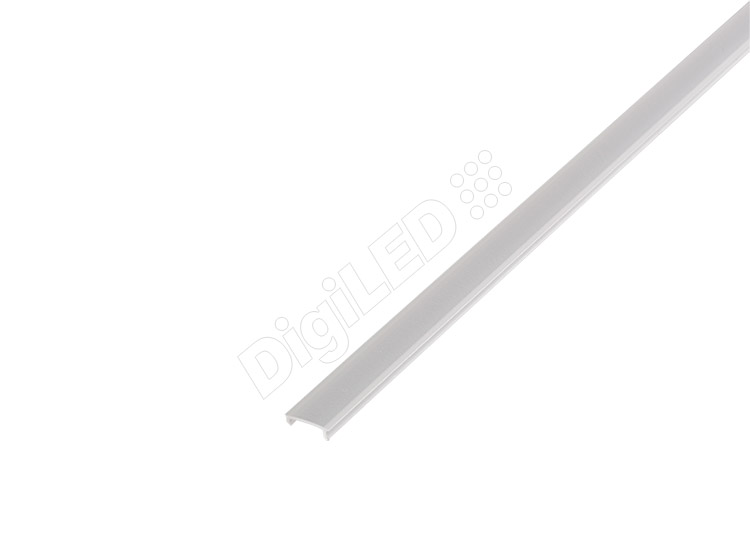

Frosted Diffuser

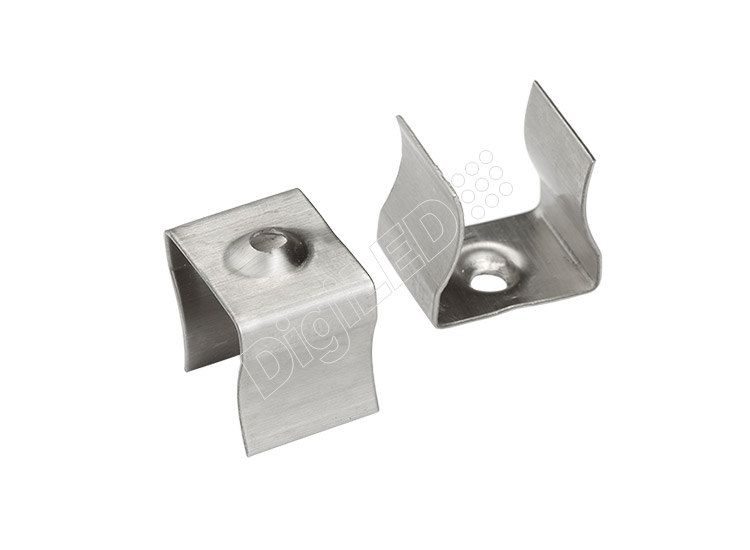

Mounting Clip

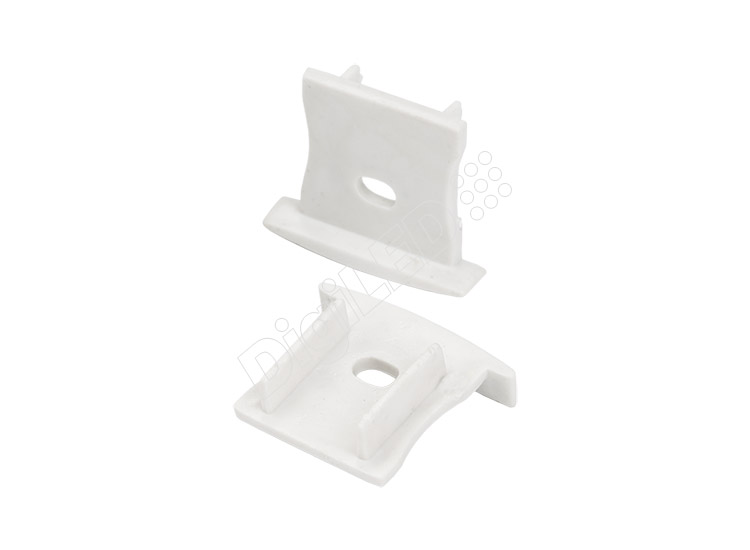

End Caps
