Arclit

Standard Specifications : CV 19.2 W/Meter

Note

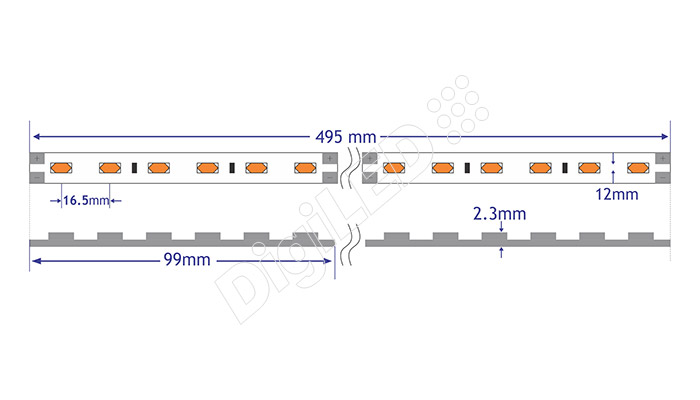

  • Standard Sizes : 500MM, 1000 MM, 2000 MM
  • WATTS/ M : 4.8/ 7.2/ 11.52/ 14.4/ 19.2

Applications

  • Under Cabinet
  • Kitchen
  • Furniture

Specifications

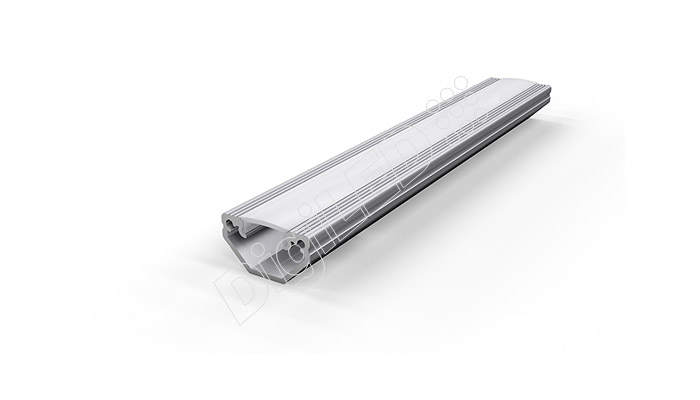

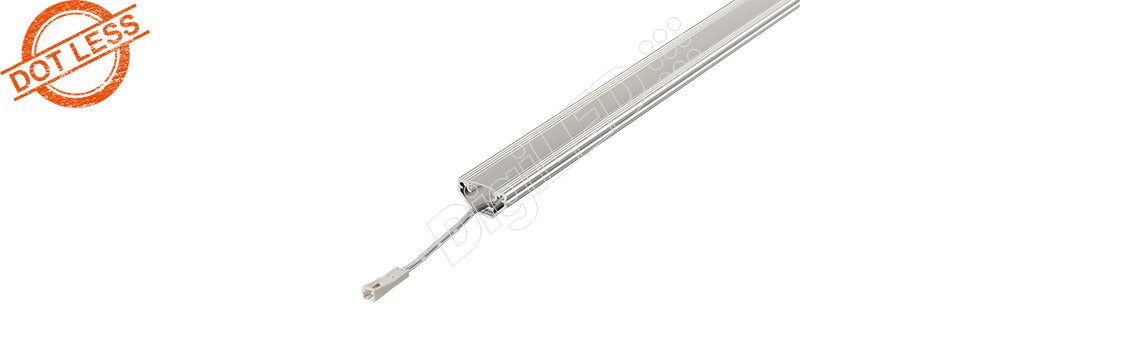

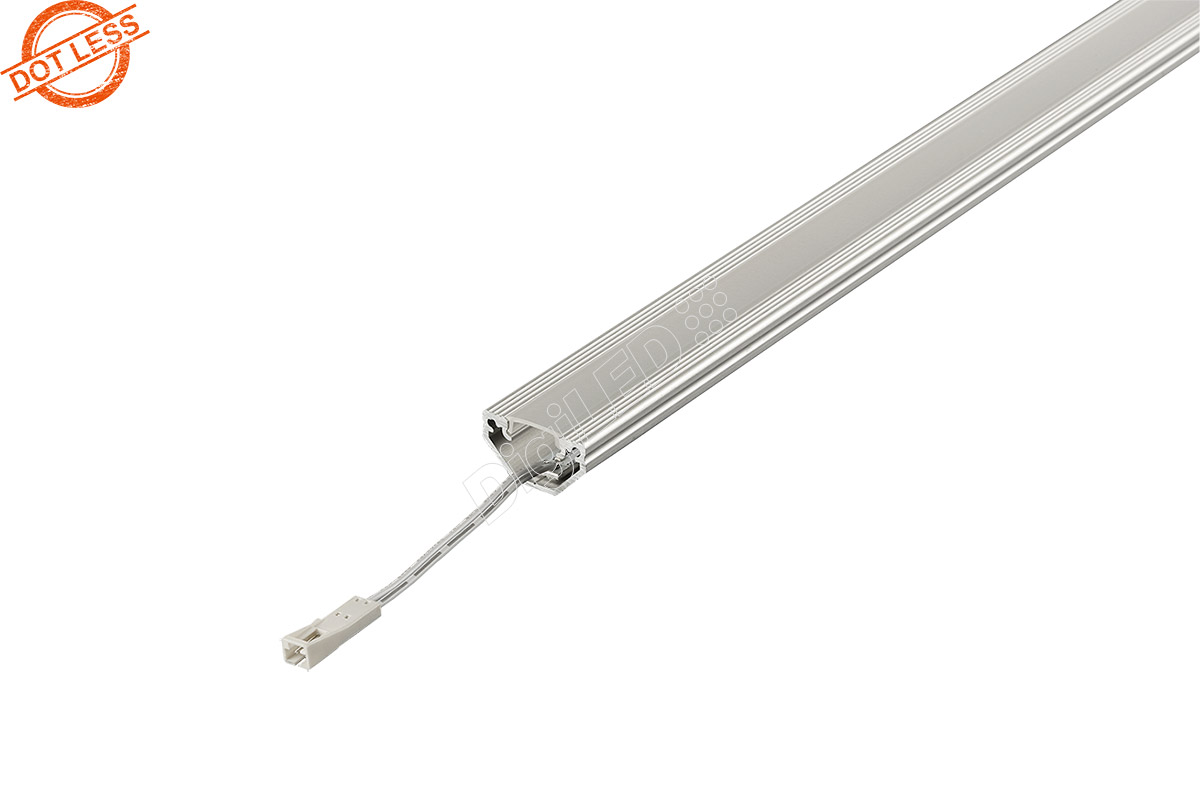

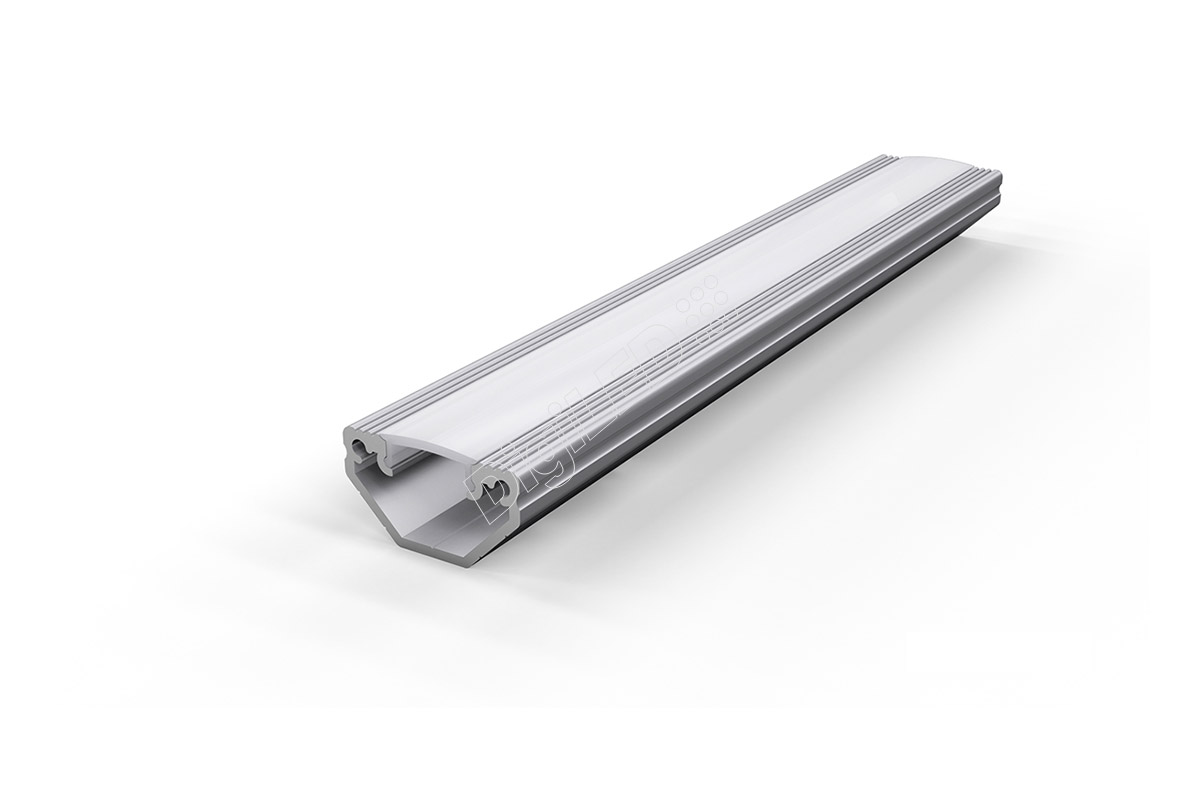

Arclit CORNER LINEAR LIGHT

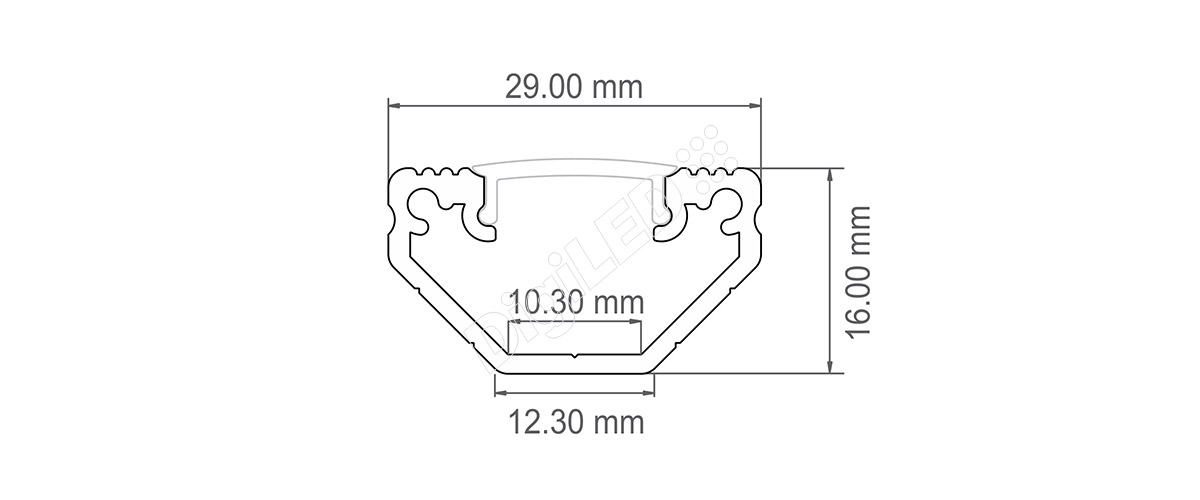

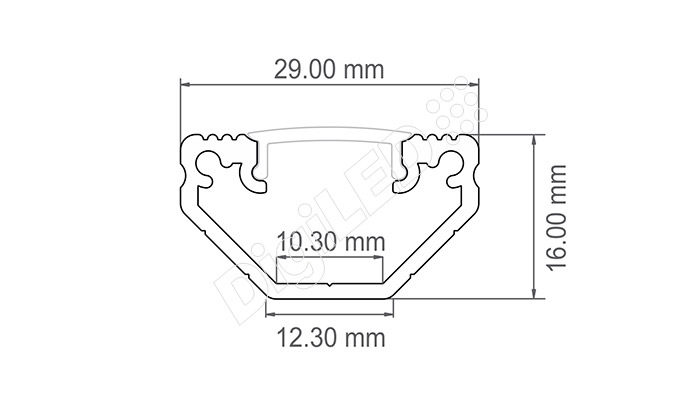

Profile Size [W X H] Led package CRI LM/LED Input Power Maximum Watt/m Apx. Weight Kg /m Coating
ARC 29 X 16 2835/ 3014/ 2016/ 3528 70 - 85 9 - 31 CV = 12V DC
CV = 24V DC
19.2 00 KG IP30/ IP65

Accessories For Arclit Profile

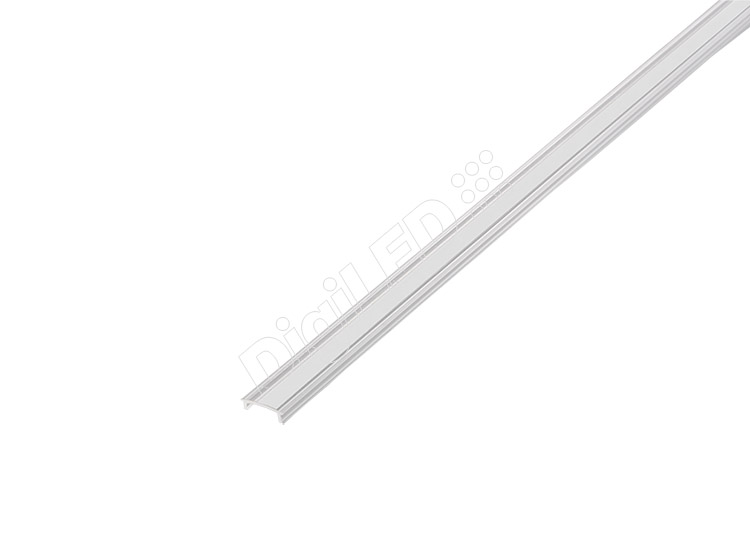

Clear Diffuser

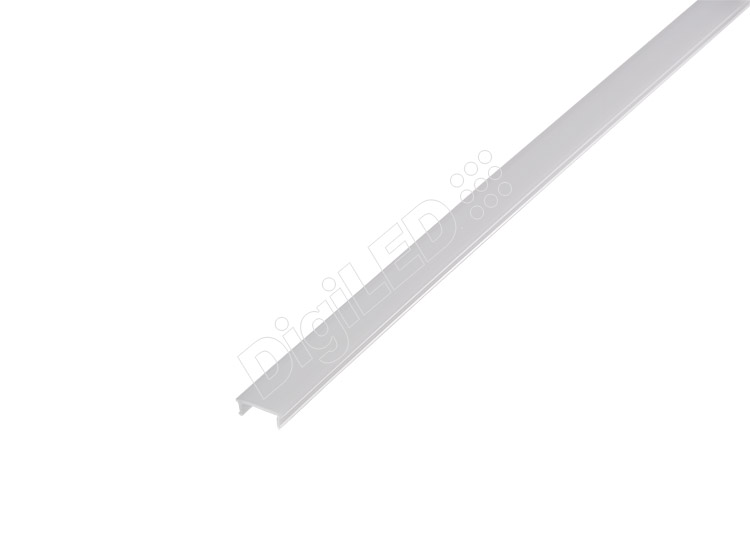

Milky Diffuser

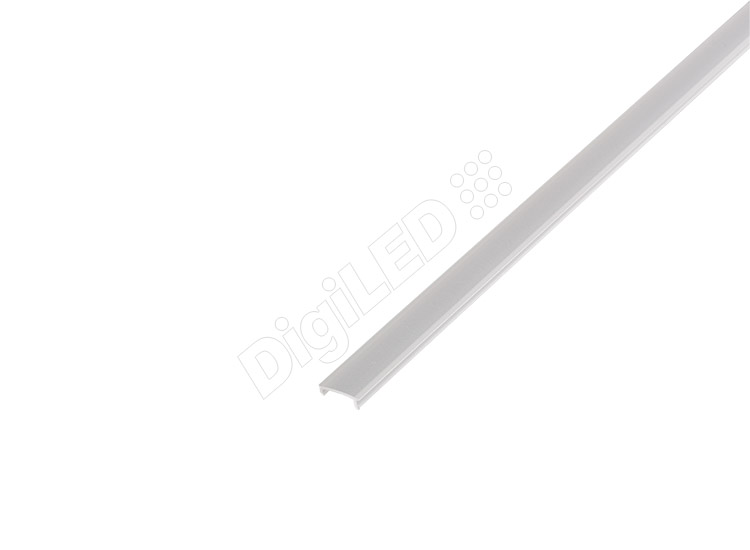

Frosted Diffuser

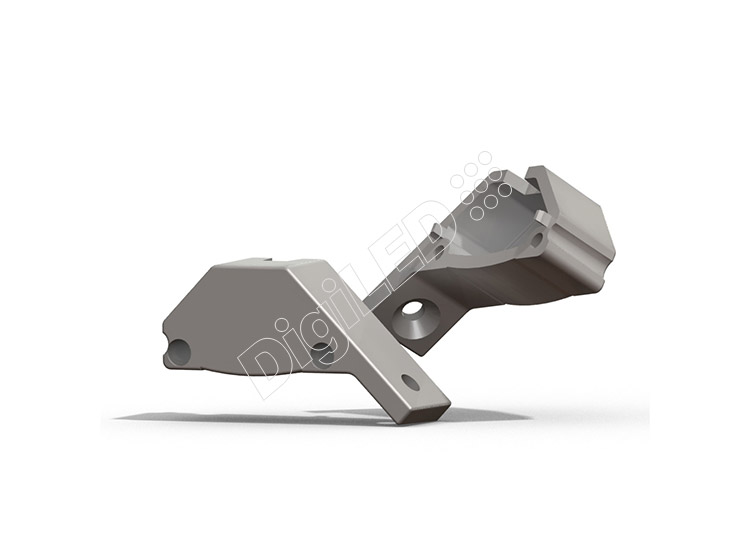

End Caps
