Batty

Standard Specifications : CV 11.52 W/METER

Note

  • Standard Sizes : 500 MM, 1000 MM, 2000 MM
  • Watts / M : 6.72/ 7.2/11.52

Applications

  • Under Cabinet
  • Kitchen
  • Furniture
  • Decorative

Specifications

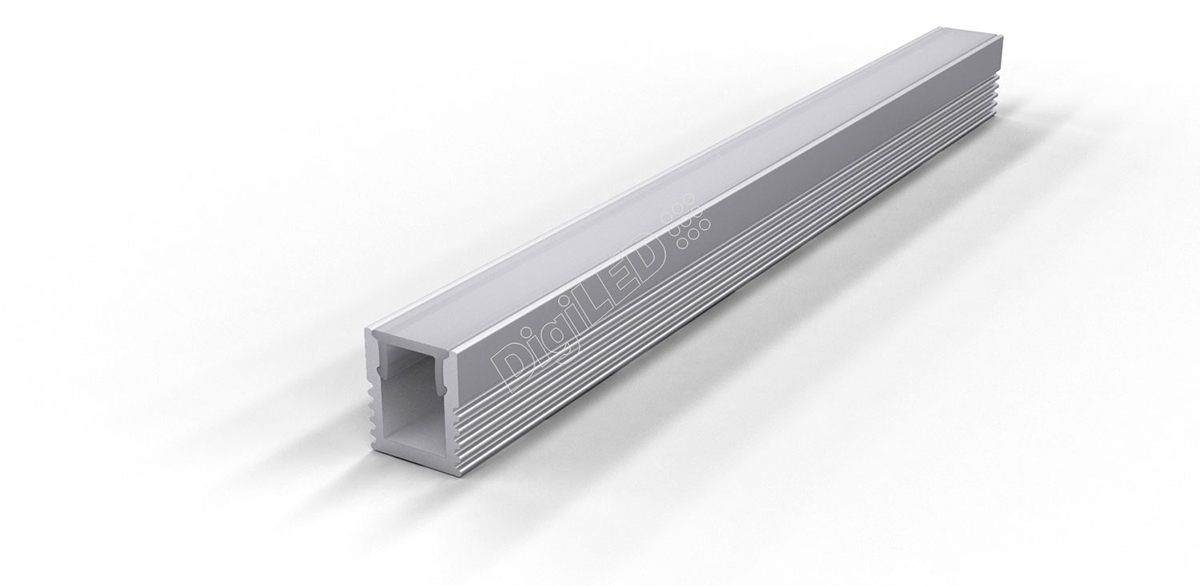

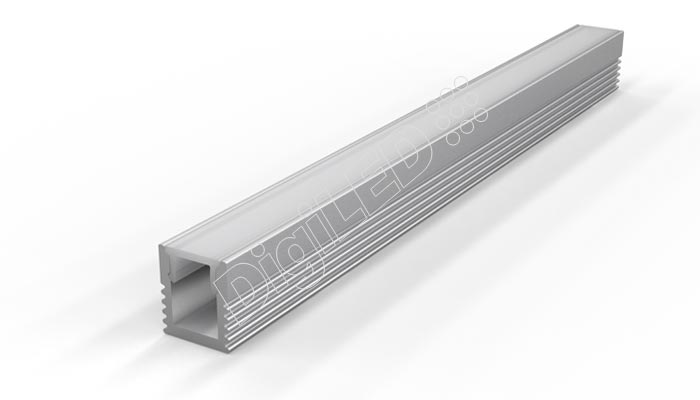

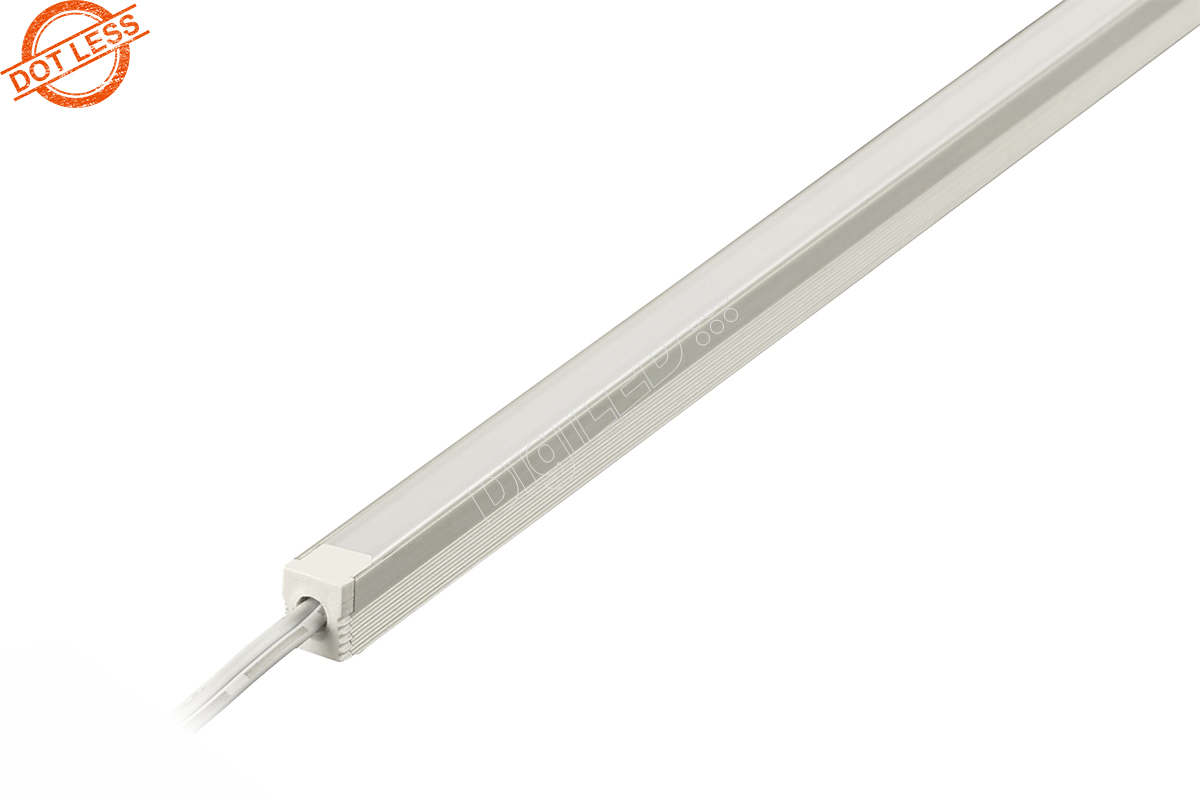

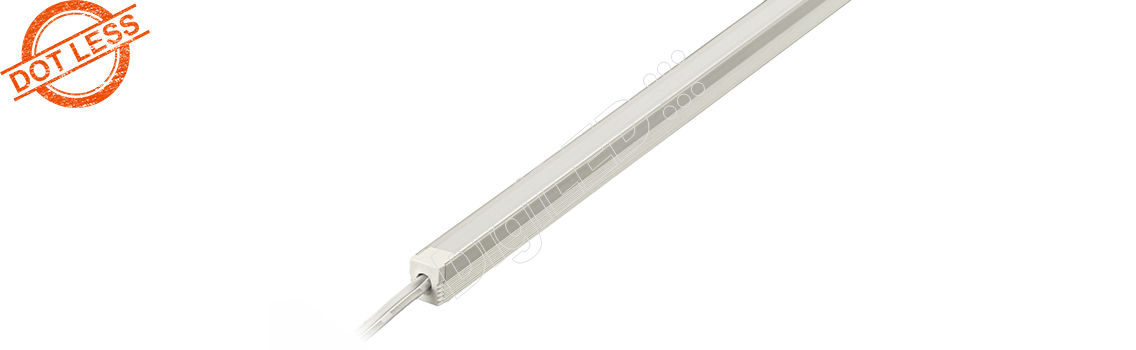

Batty SURFACE LINEAR LIGHT

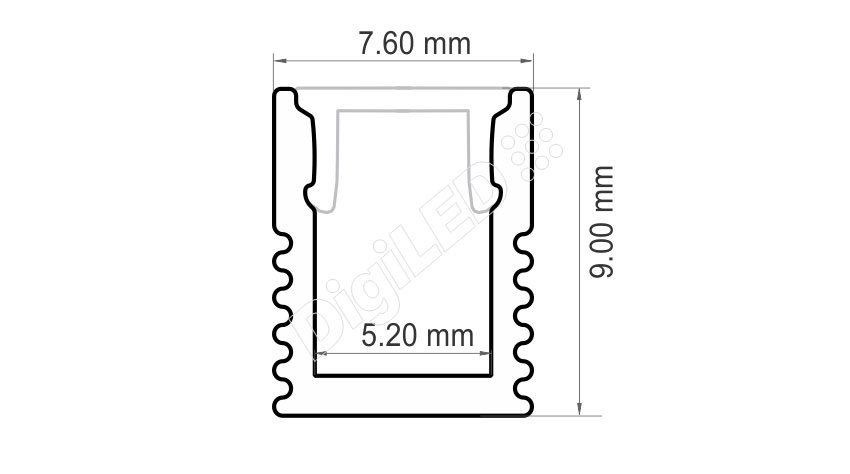

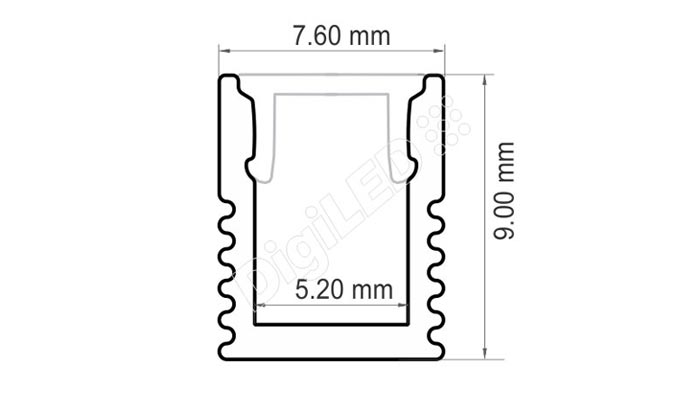

Profile Size [W X H] Led package CRI LM/LED Input Power Maximum Watt/m Apx. Weight Kg /m Coating

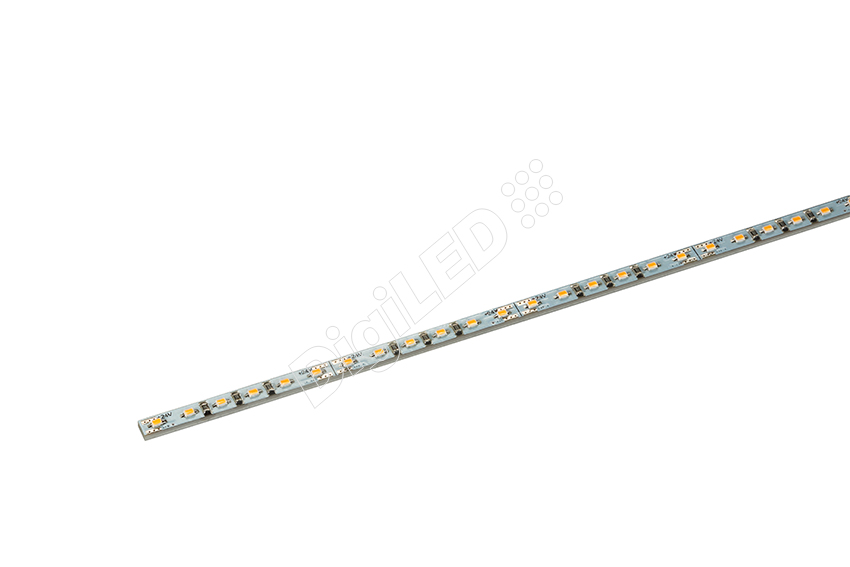

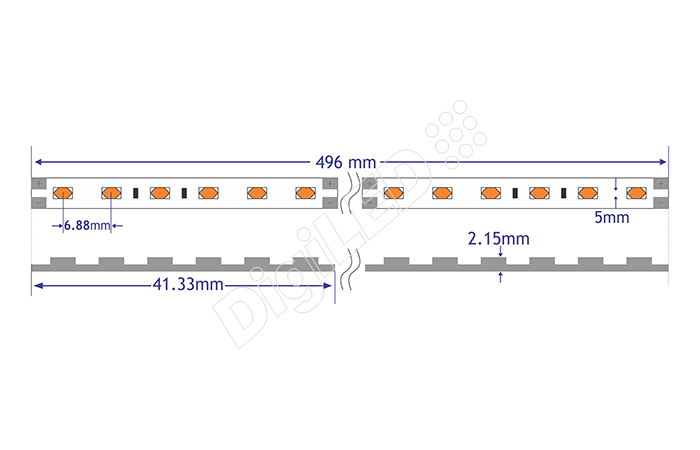

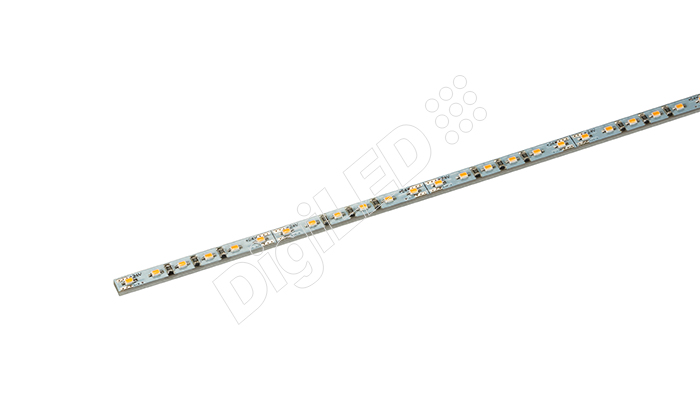

Baton 7.60 mm x 9.00 mm 2835/ 3014/ 2016 70-85/ 94 9-26 CV = 12 V DC
CV = 24 V DC
11.52 00 KG IP30

Accessories For Batty Profile

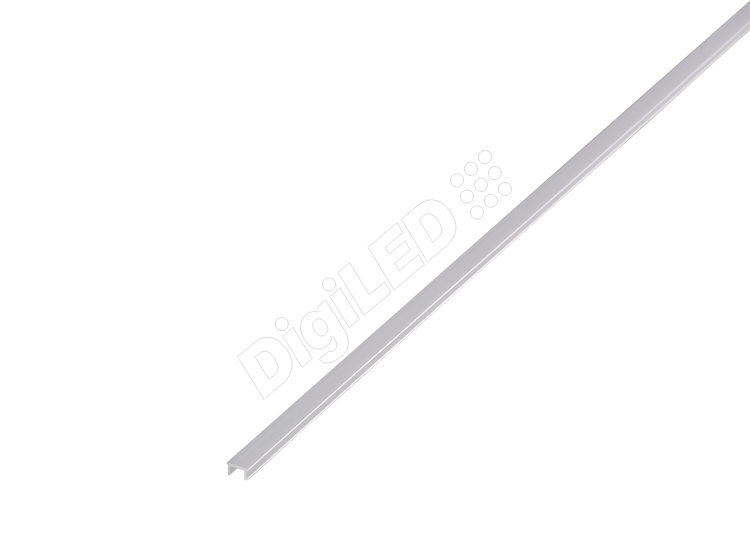

Diffuser

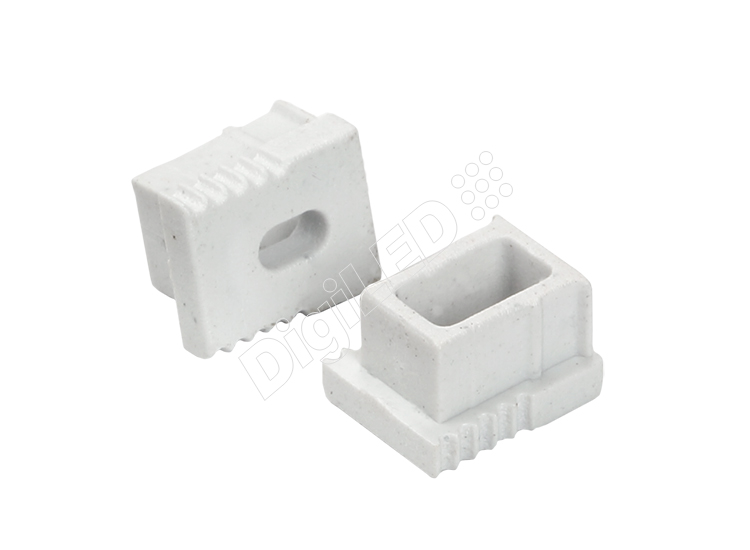

End Caps

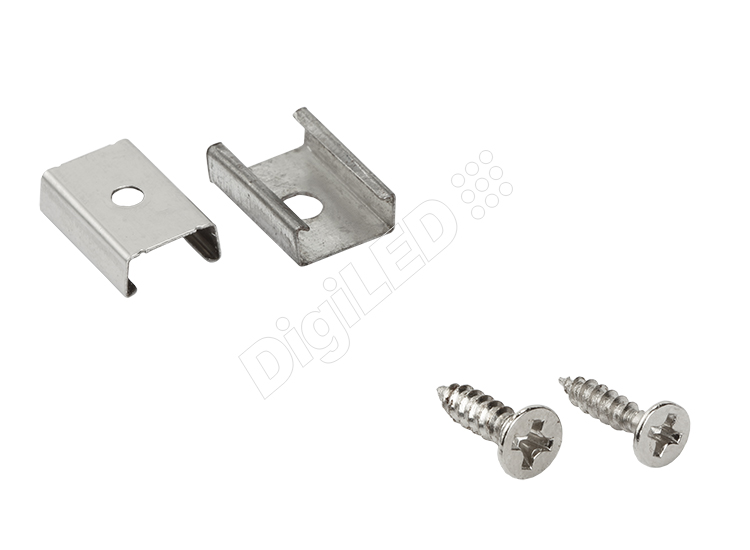

Mounting Clip

Mounting Clip
