DGST-3014-TWIN STRIP

Item Code : DGST-3014-TWIN

9.6 Watt/Meter | 120 LED/Meter | 12 Volt DC

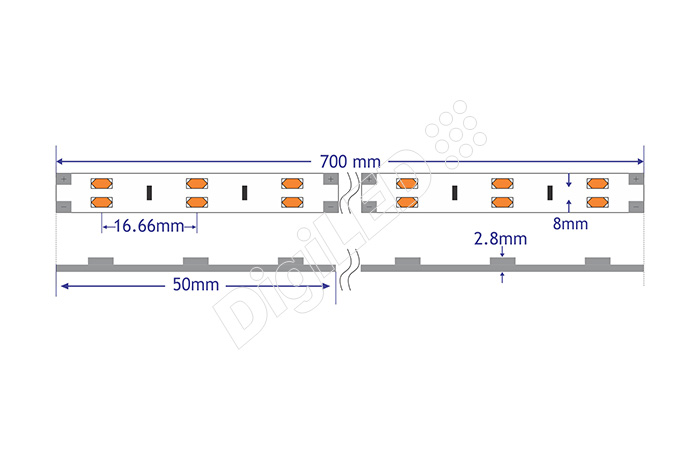

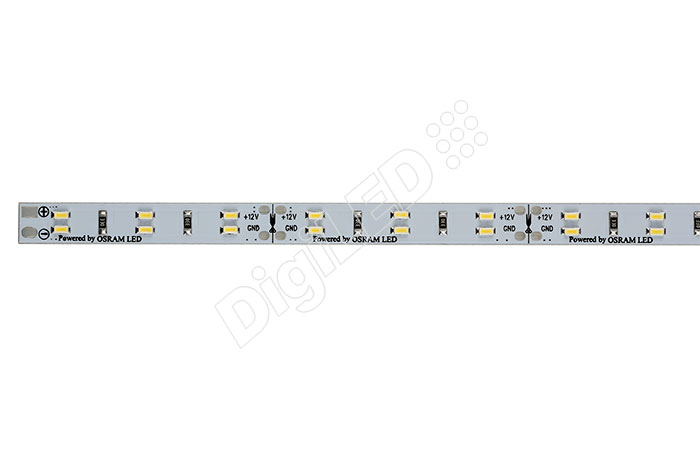

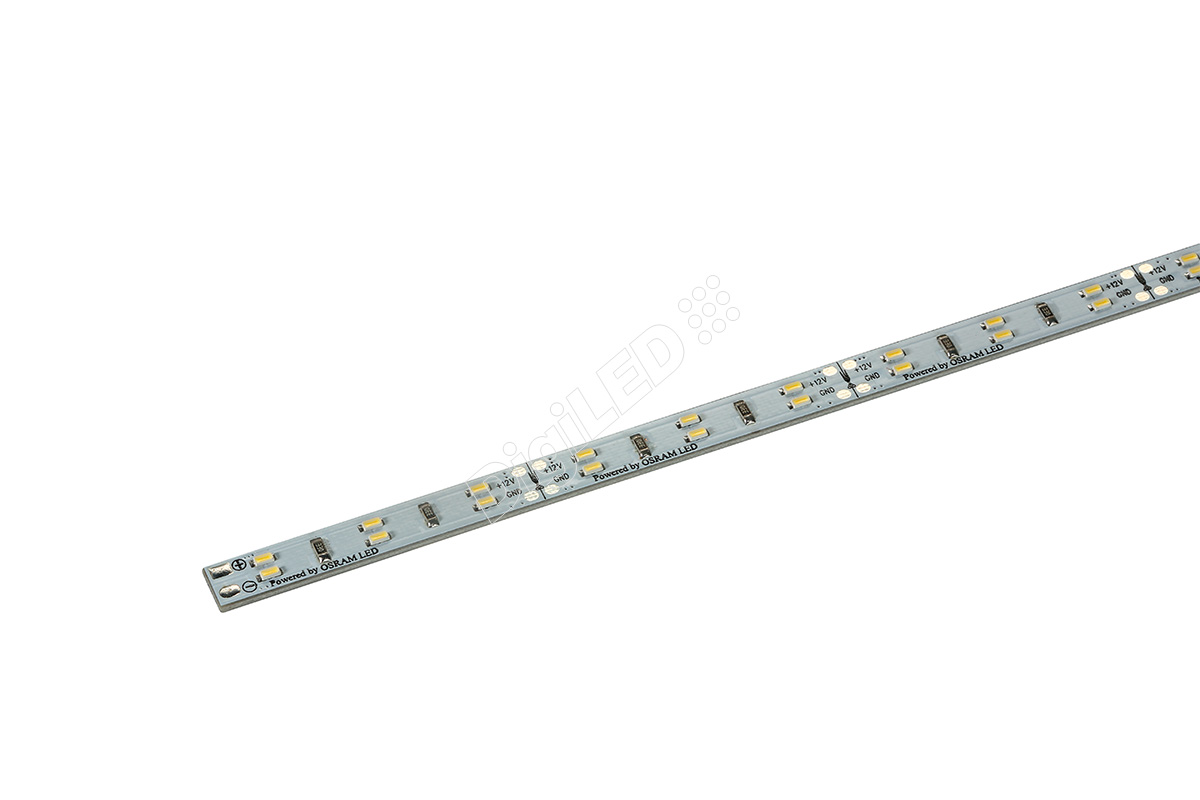

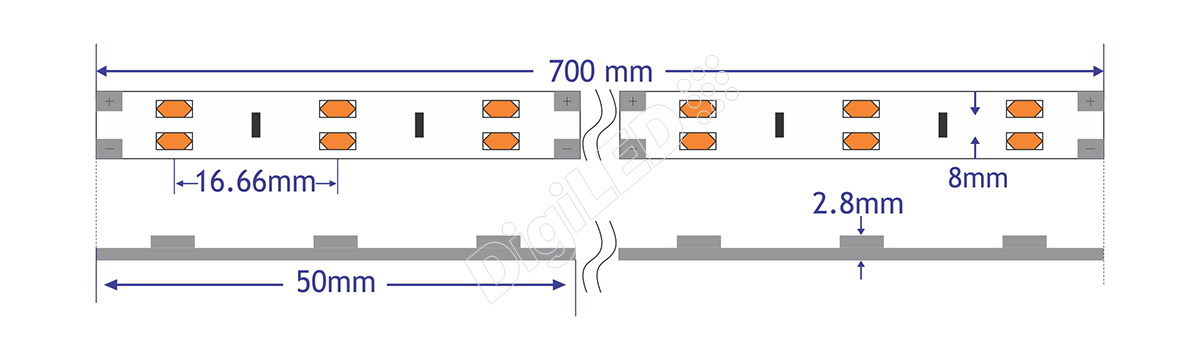

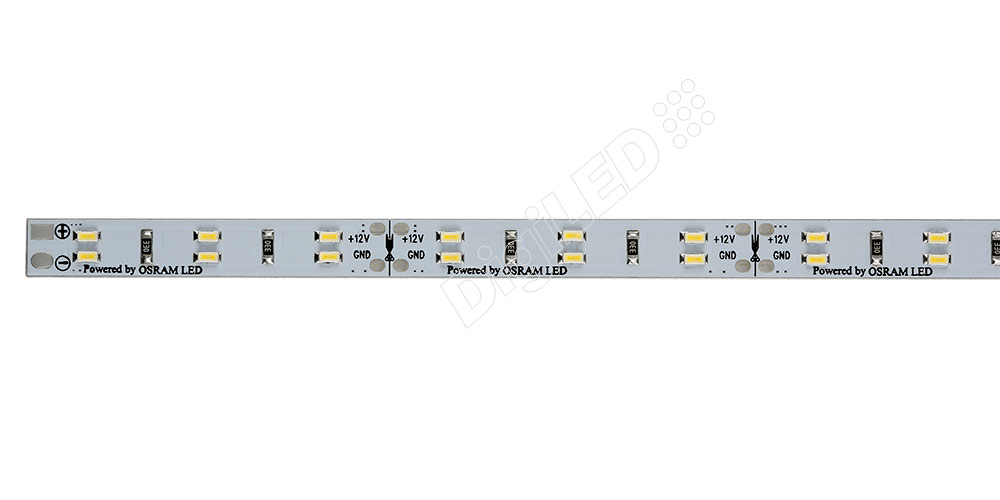

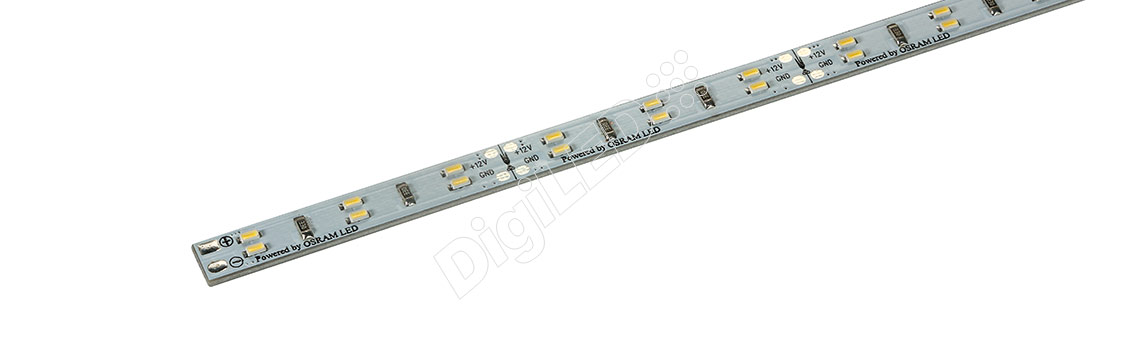

LED Rigid Strip Strip Top View Strip Diagram

Advantages

  • High brightness single color dual line led strip
  • 3014 OSRAM DURIS E3 SMT package
  • High luminous intensity
  • Slim design
  • High reliability
  • Solid state, high shock, vibration resistant
  • Maintenance free, easy installation, long life
  • Very low power consumption and low heat
  • Good thermal conductivity
  • Easy to pack, ship and install

LED SPECIFICATIONS

  • 9-12 Lm
  • Package size: 3.0 X 1.4 X 1.2 mm
  • High brightness 1 chip LED
  • SMD (top view) type
  • High luminous intensity

Specifications

LED COLORS SIZE INPUT VOLTAGE CURRENT BEAM ANGLE OPERATING TEMPERATURE CUTTABLE SIZE PCB POWER
84 LED / module CW/ NW/ WW 8 mm W x 700 mm L x 1.6 mm H DC 12 VOLT 0.56 A 1200 -200~ +600 50 mm FR4 6.72 Watt / Module
