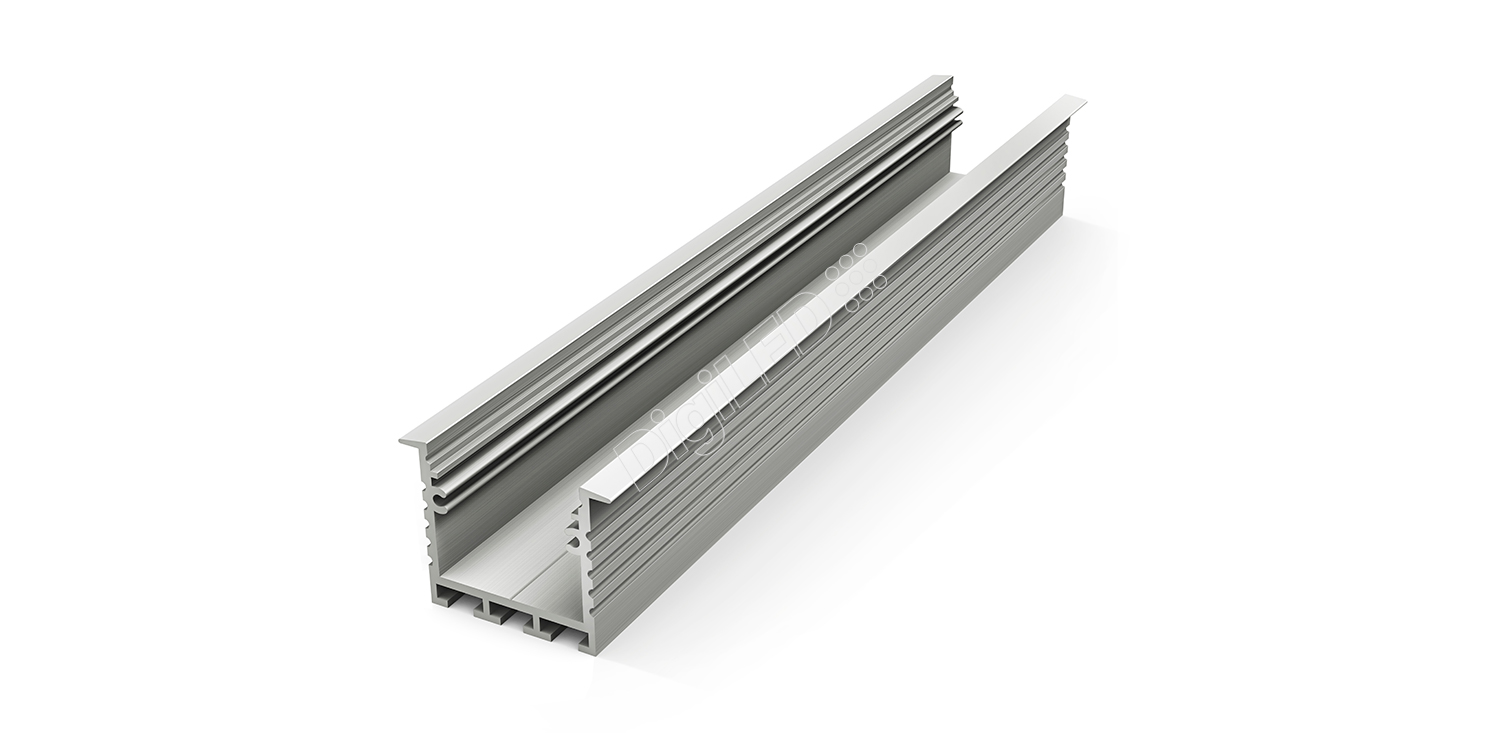

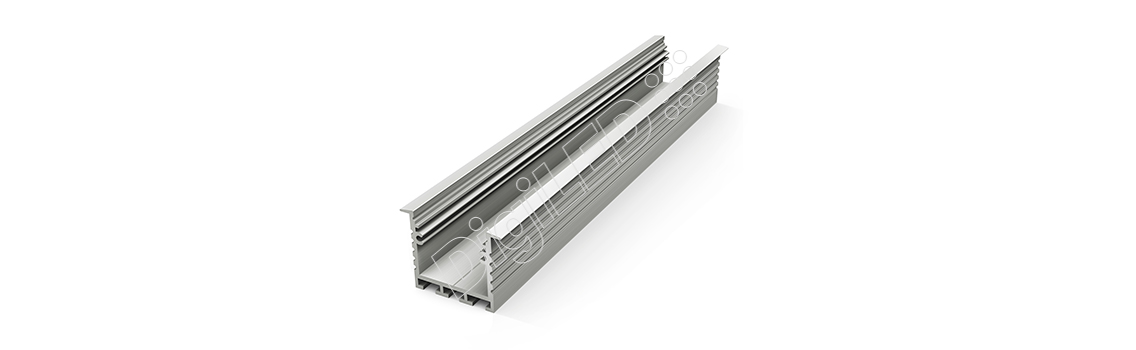

Vessel

Vessel provides commercial recessed lighting as well as new decorative concept and alternative to traditional panel lighting. This is very elegant and efficient profile by DigiLED, designed for celling and wall recessed applications. Vessel offers excellent heat sink medium for High Power LED strip lights. It can be customized for linear or square or other shapes for office and other commercial areas. Press fit diffuser offers versatile fallibility during maintenance and installation. The aluminum profiles protect the lights from being damaged or broken. They also protect from moisture and from unwanted handling of the lights.

Advantages

  • Recessed profile
  • Excellent heat sink providing long life and reliability for LED
  • Milky diffuser available
  • Easy installation of the LED strips
  • Easy and fast mounting using spring bracket
  • 3 years Warranty

Application Areas

  • Office Lighting
  • Decorative lighting
  • Edge Lighting
  • Residential lighting

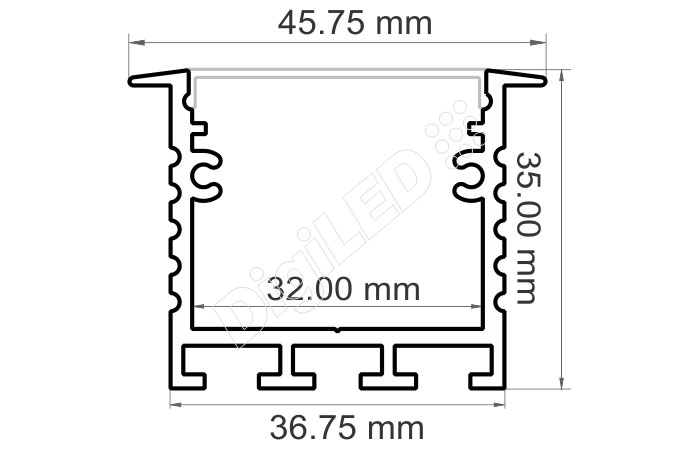

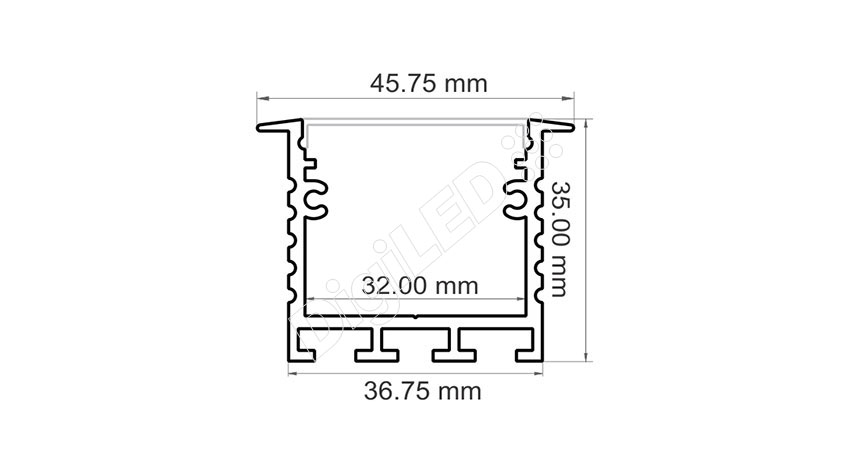

Specifications

Material Size Max PCB size possible Max length Diffuser Recommended watts/meter Finish
Aluminum 45.75 mm x 35 mm Up to 30mm 2500 mm Press fit [optional] 15 - 25w max Raw/anodized or Powder coated

Accessories For Vessel Profile

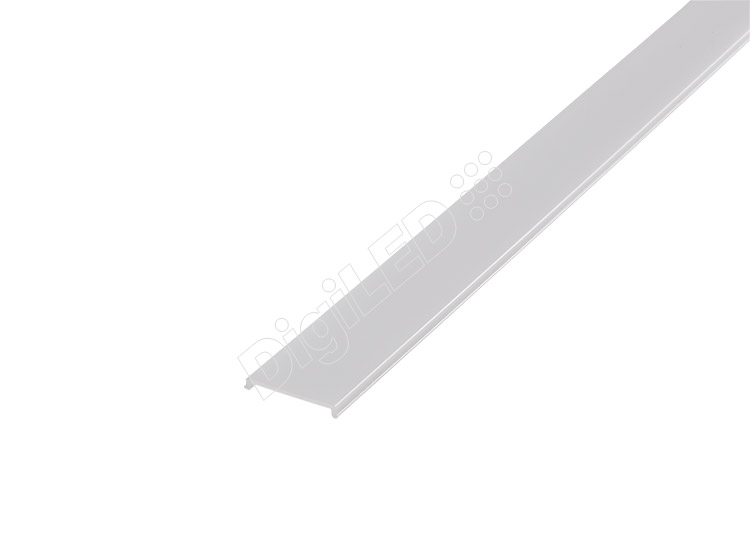

Diffuser

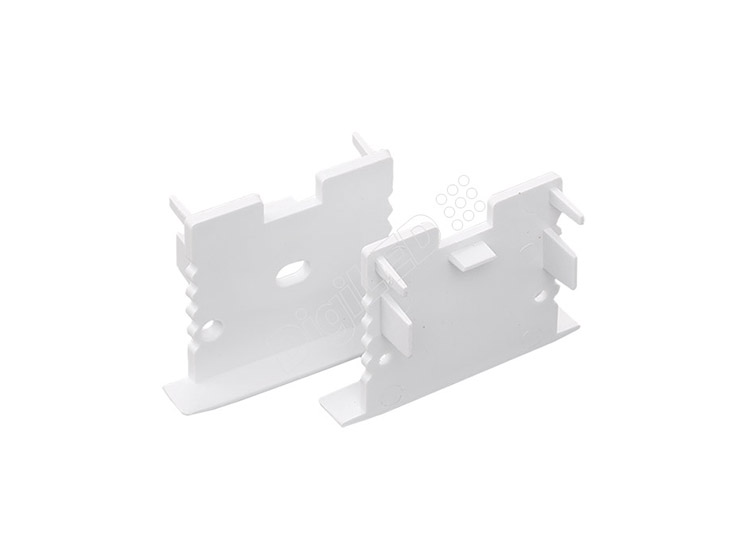

End Caps

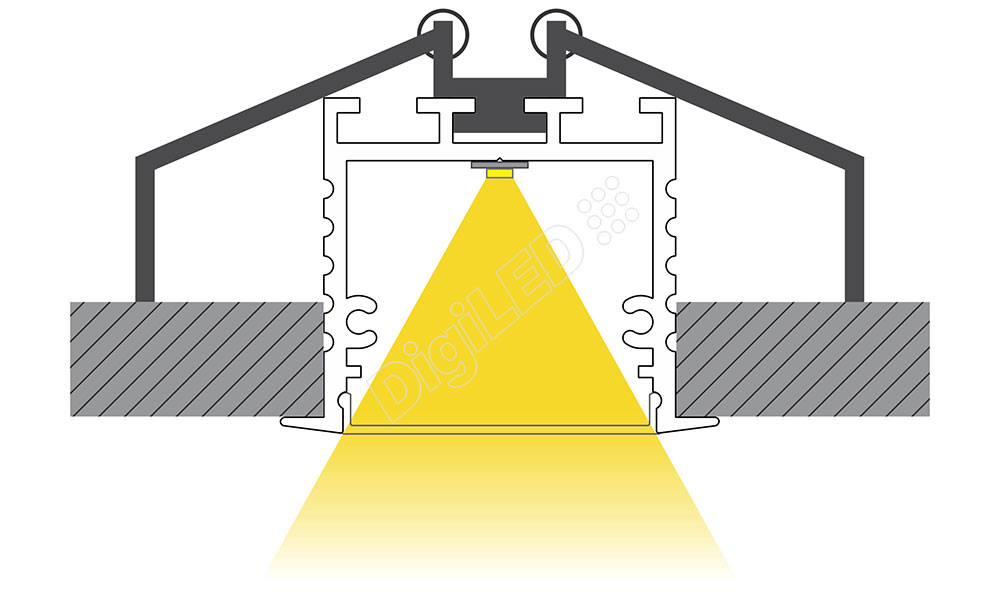

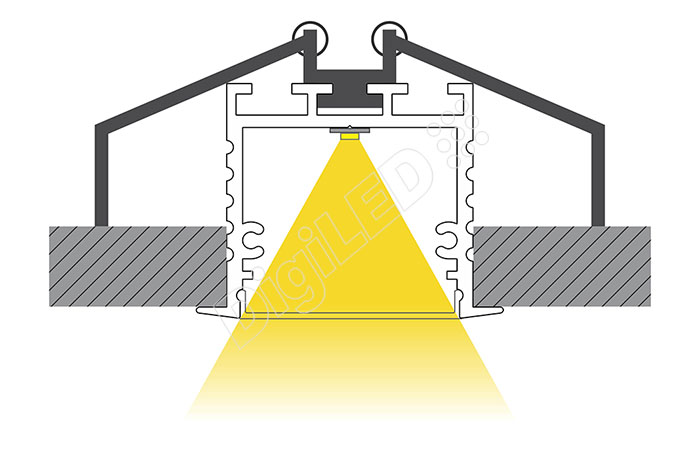

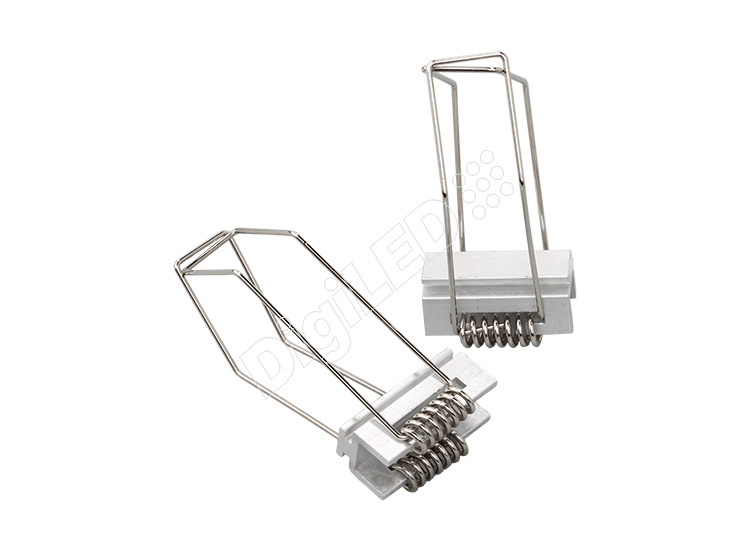

Mounting

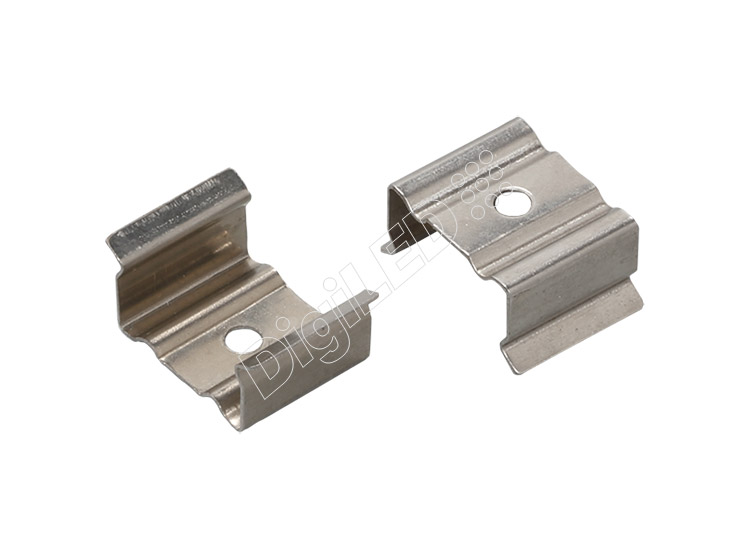

Mounting

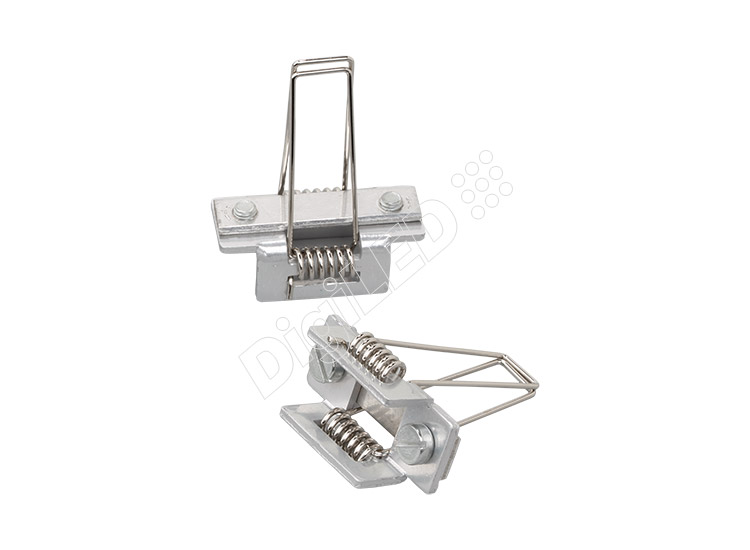

Mounting

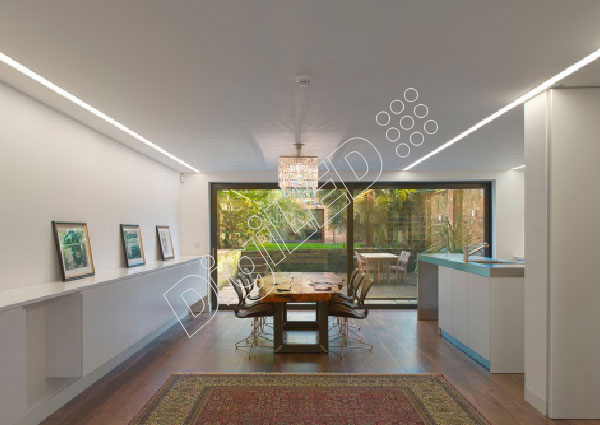

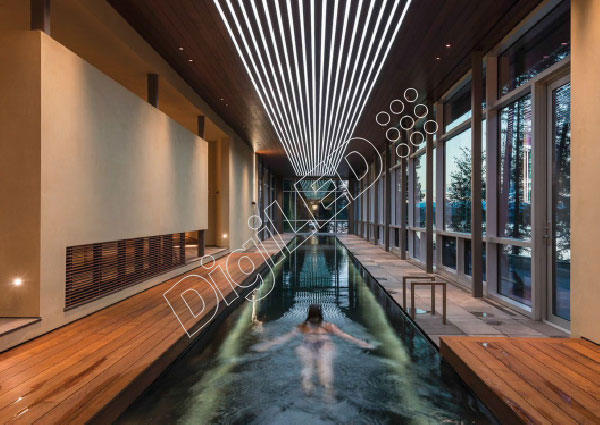

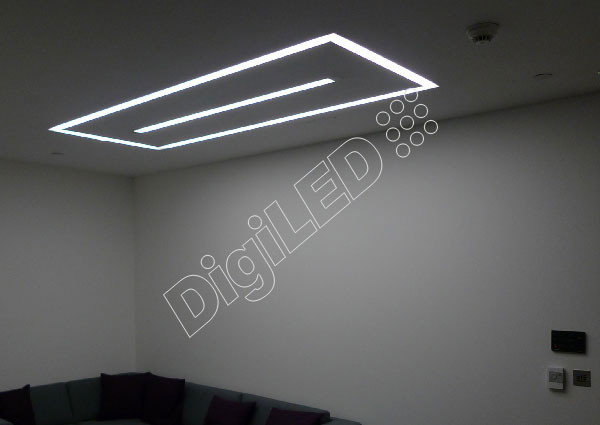

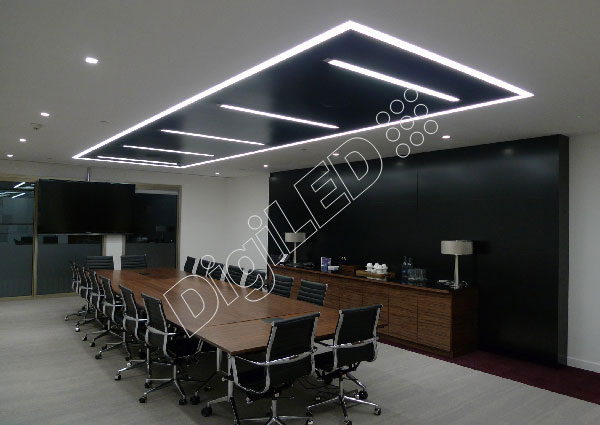

Application

Application Name
Application Name
Application Name
Application Name
