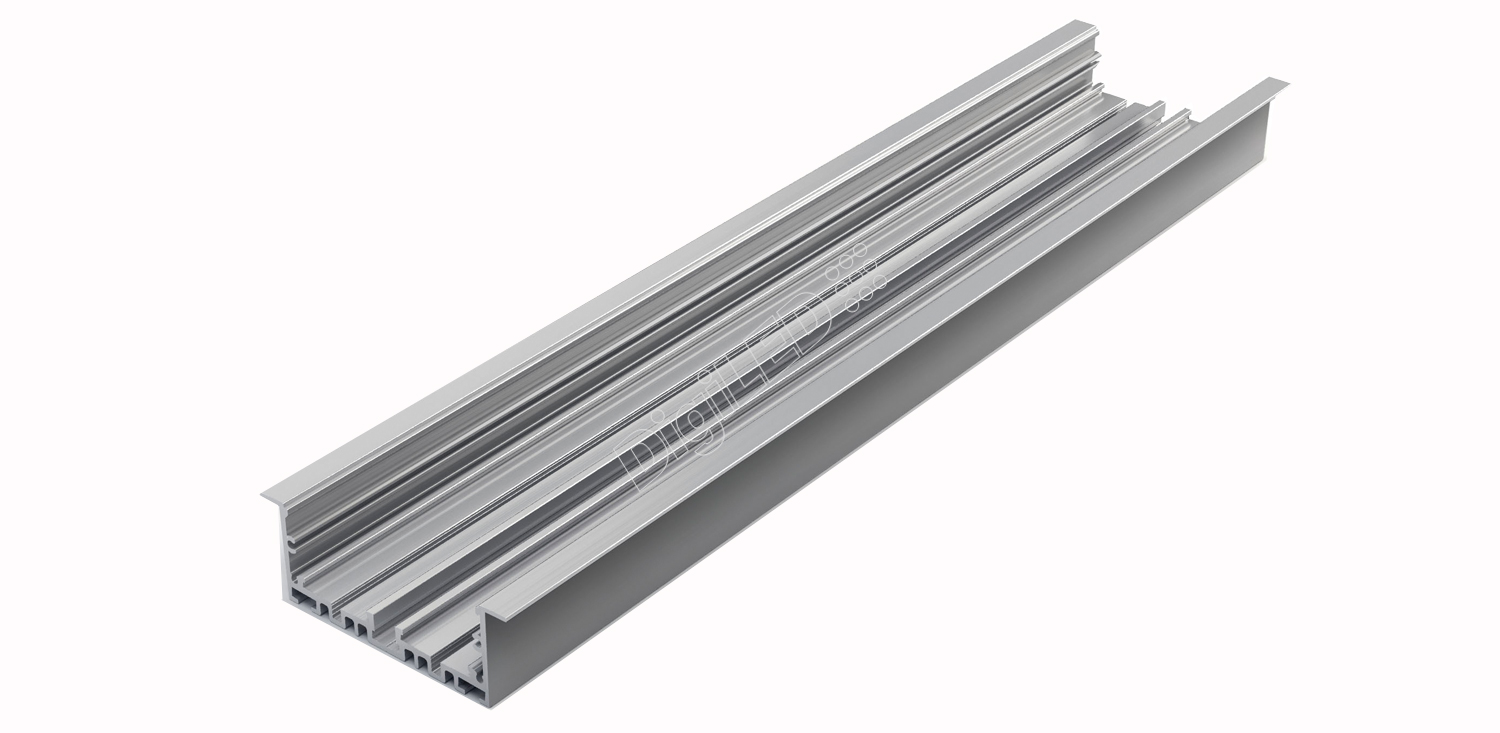

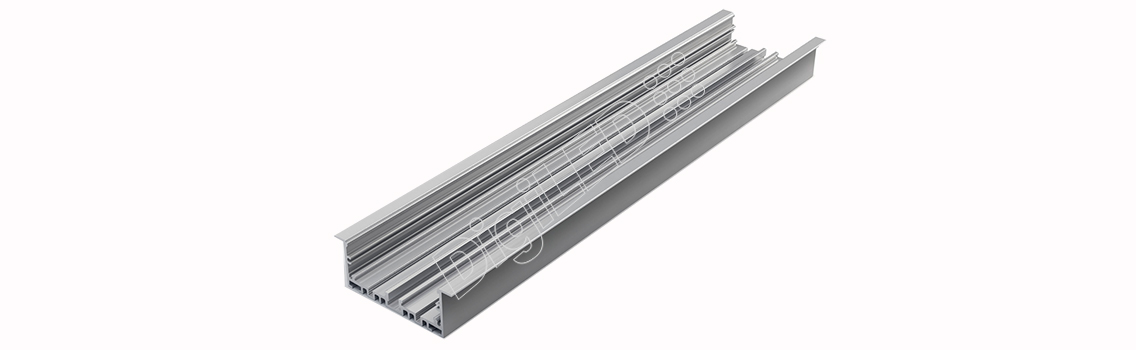

Apollo

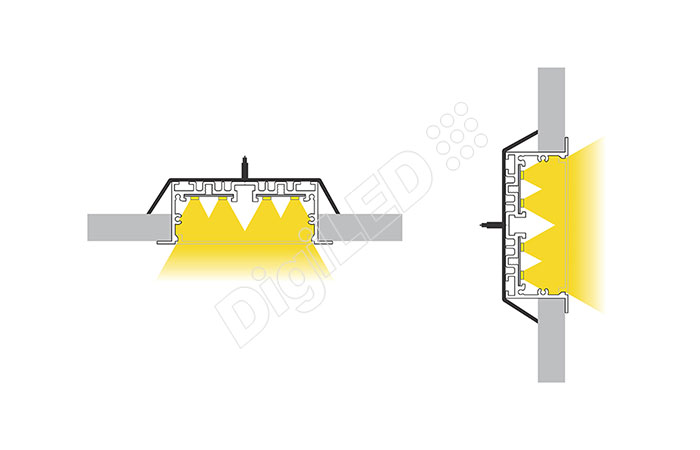

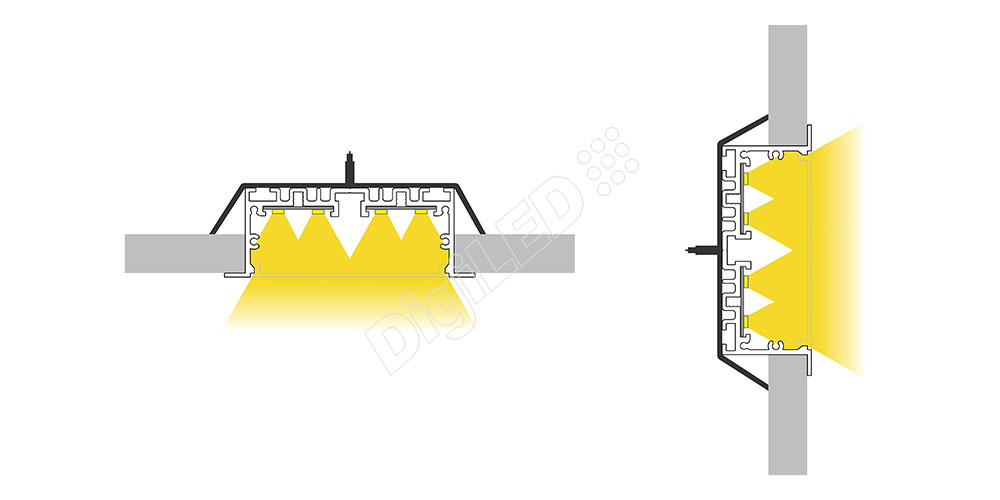

It is mainly designed for celling and wall recessed applications for high bright indoor lighting such as offices, residence, mall, retail shops etc. Apollo is excellent heat sink medium for LED strip lights. It can be customized for linear or square or other shapes for offices and other commercial applications. The aluminum profiles protects the LED lights from being damaged or broken and gives clean and neat look. They also protect from moisture and from unwanted handling of the lights.

Advantages

  • Recessed engineered profile
  • Excellent heat sink providing long life and reliability for LED
  • Extruded Milky PC diffuser with homogenous illumination properties
  • Slots to fix LED PCB easily
  • Easy and fast mounting using special brackets and Mounting clip
  • 3 years Warranty

Application Areas

  • Office Lighting
  • Decorative lighting
  • General Lighting
  • Residential lighting

Specifications

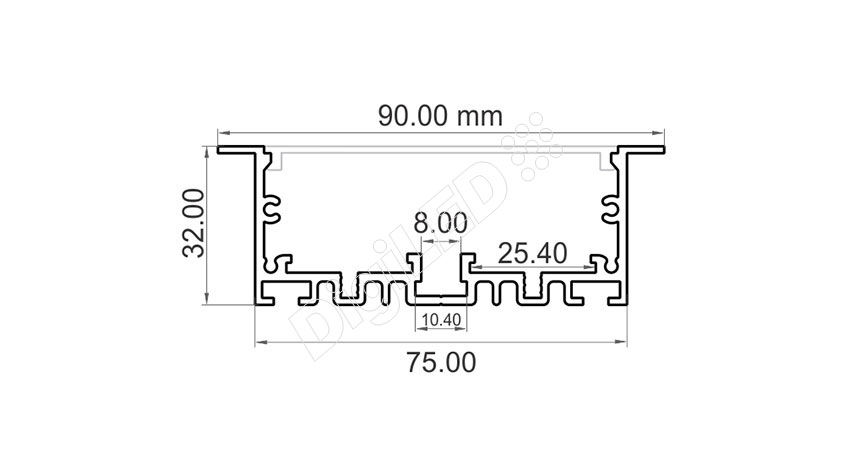

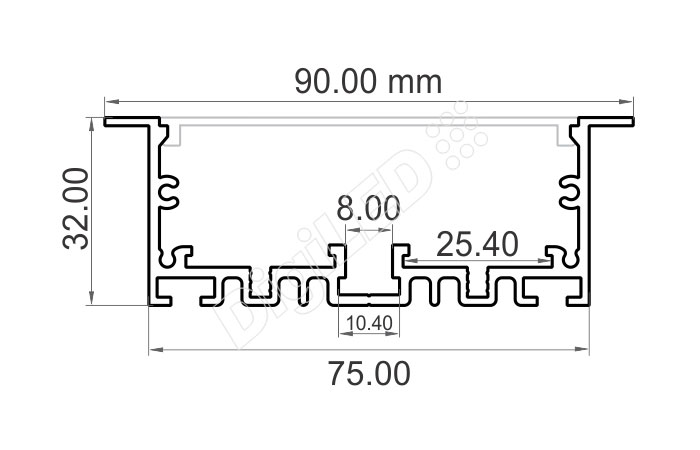

Material Size Max PCB size possible Max length Diffuser Recommended watts/meter Finish
Aluminum 90 mm x 32 mm 25mm x 2 rows 2400 mm Press fit [optional] 60w Raw/anodized or Powder coated

Accessories For Apollo Profile

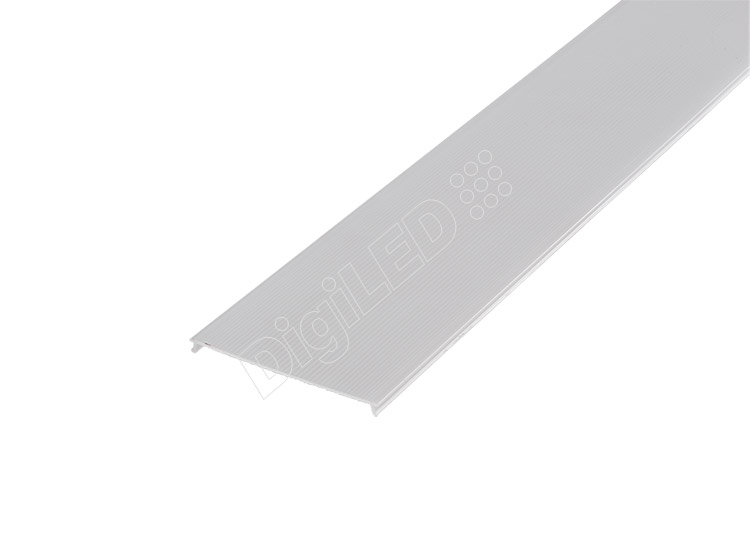

Diffuser

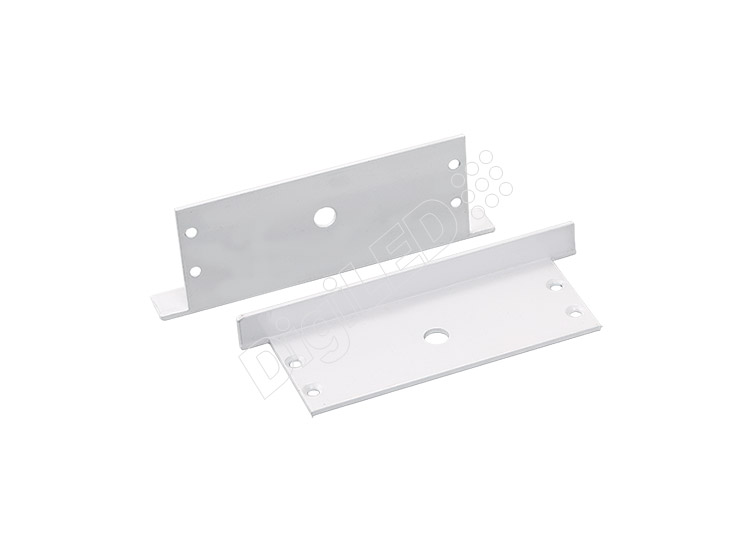

End Caps

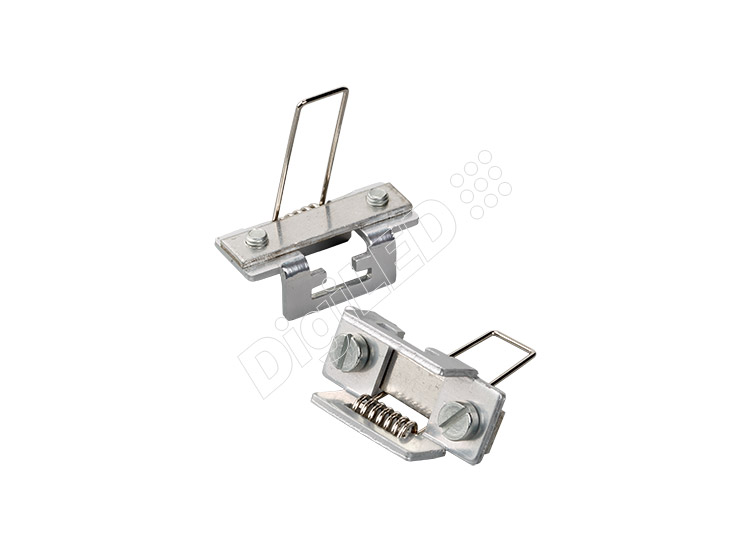

Mounting Clip

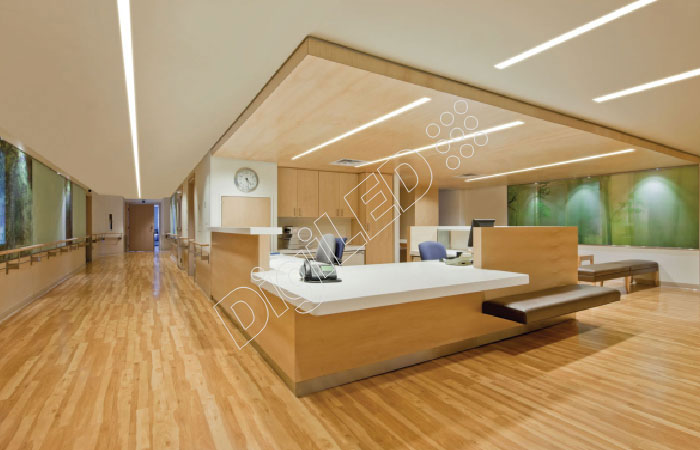

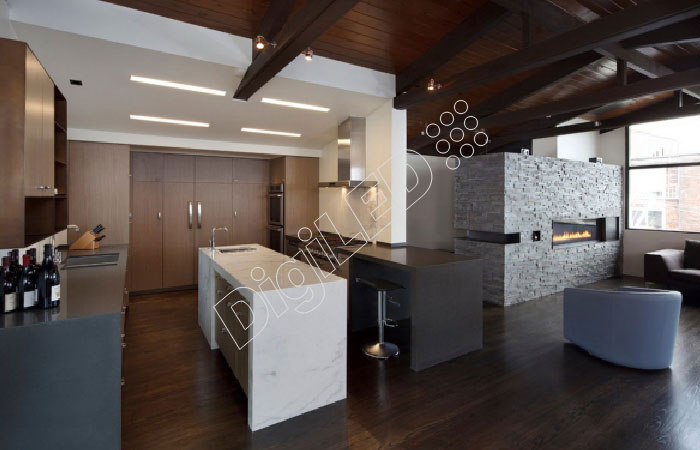

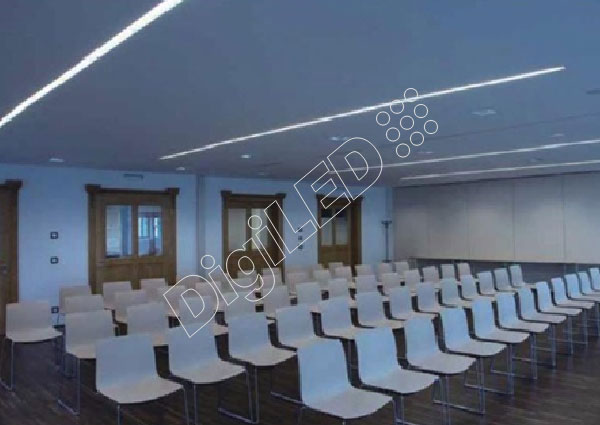

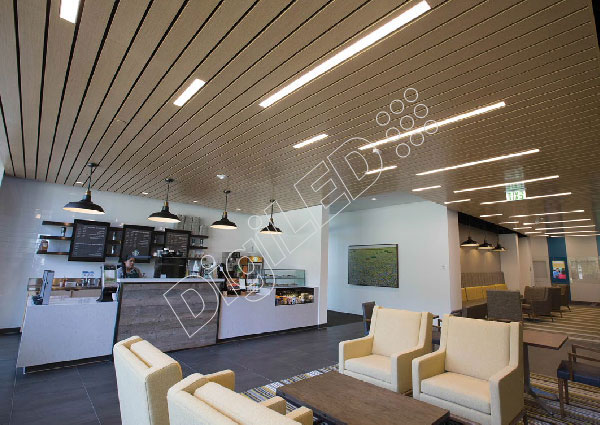

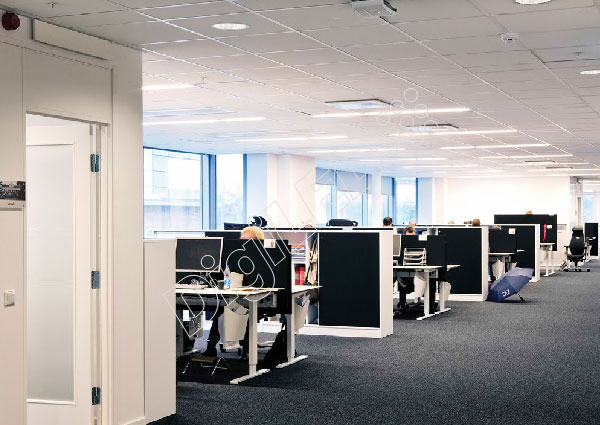

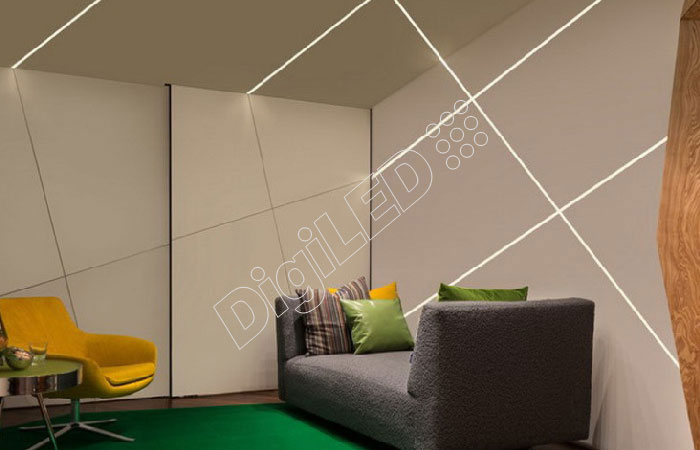

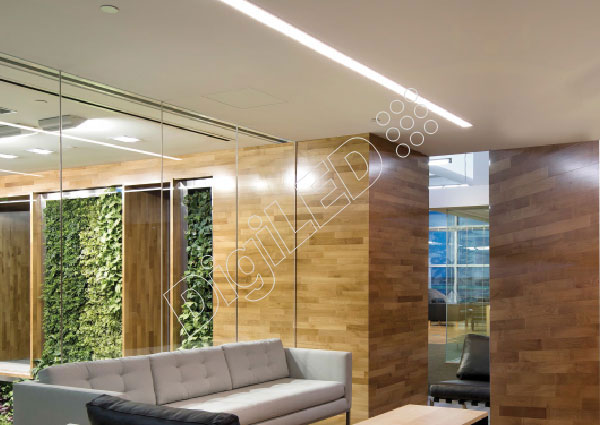

Application
