Groovy

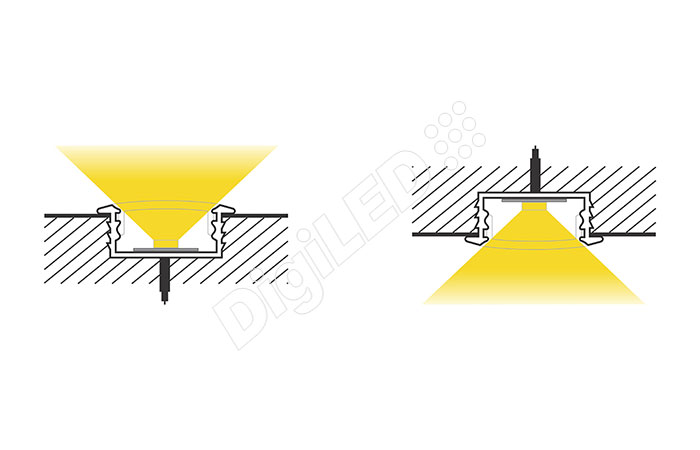

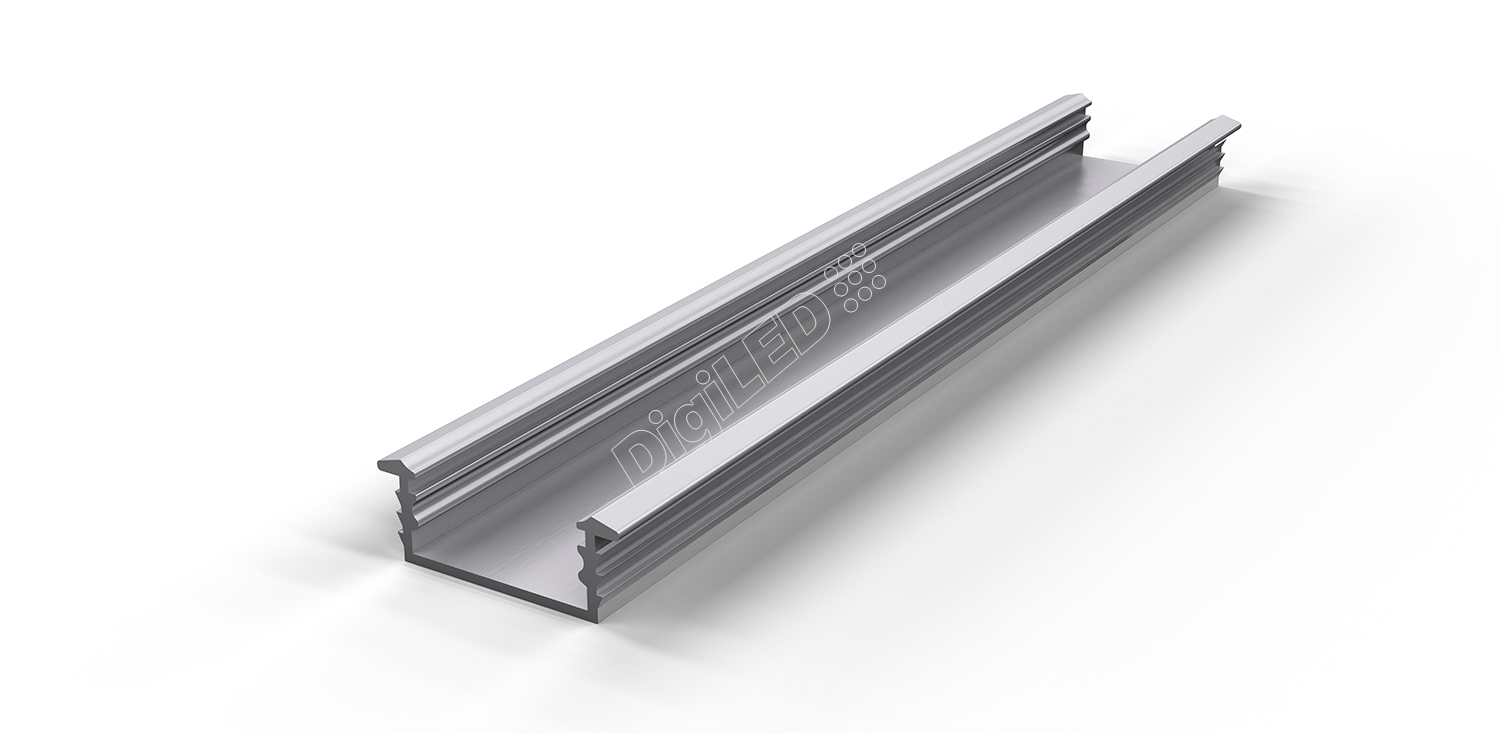

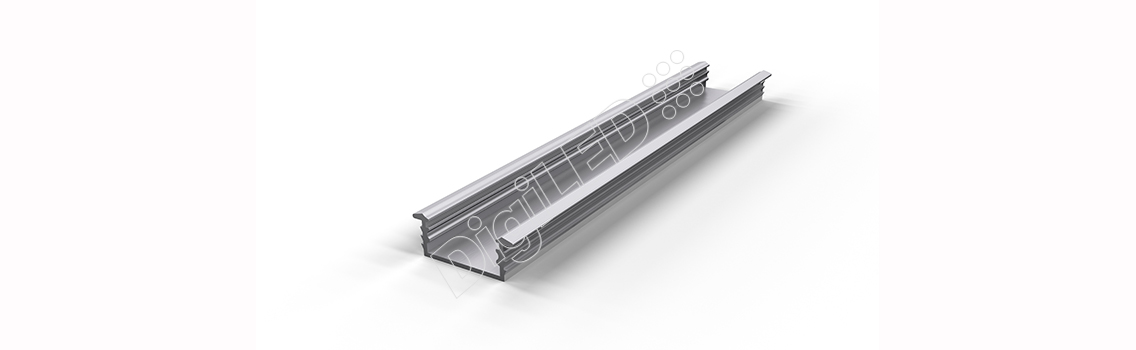

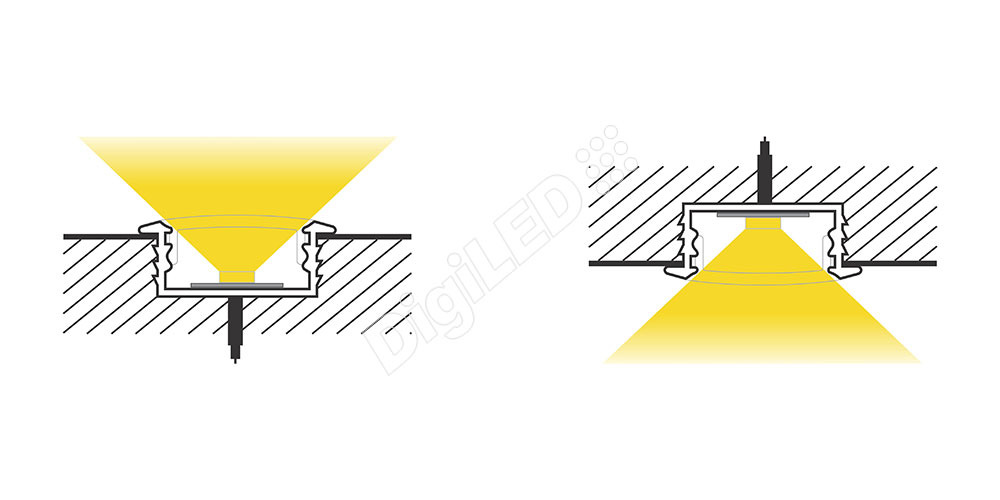

Recessed type of aluminum LED profi¬le; dedicated for build-in into material as MDF or other. The profi¬le can be also recessed into floor; wall or ceiling and the wide edges of the profi¬le will cover the edges of insertion row completely. Frosted/milky or clear diffusers will help to deliver soft smooth light on the whole surface. This type of profile is often use for build in underneath kitchen cabinets led lighting, retail store shelf lighting and many other applications. It’s especially design teeth’s enables it to remain fixed in the groves without any special efforts or arrangements.

Advantages

  • Profile with flange
  • Perfect heat dissipation providing long life and reliability for LED
  • Milky, Frosted or Clear diffusers available
  • Easy installation in wood, and other materials used in furniture industry.
  • 3 years Warranty
  • Hidden appearance

Application Areas

  • Under cabinet lighting
  • Retail furniture lighting
  • Decorative lighting
  • Kitchen and bedroom lighting
  • Indirect light source
  • Flush Mount lighting

Specifications

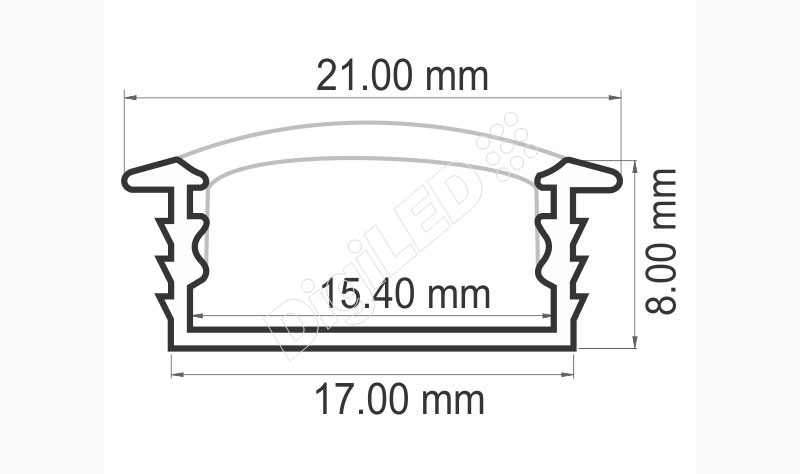

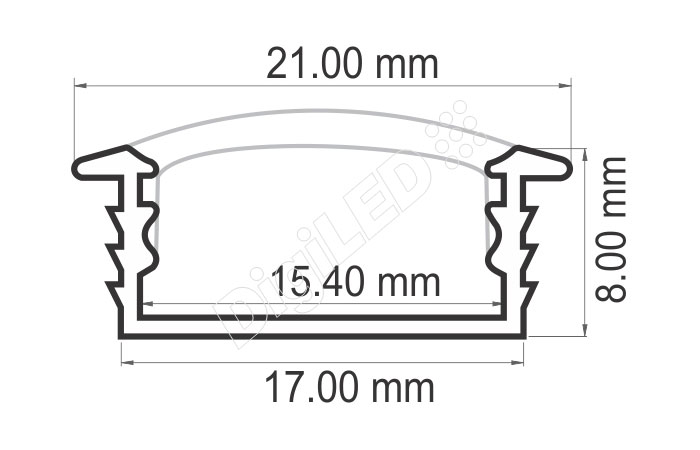

Material Size Max PCB size possible Max length Diffuser Recommended watts/meter Finish
Aluminum 21 mm x 8 mm 15mm 2000 mm Press fit [optional] 15w Raw/anodized

Accessories For Groovy Profile

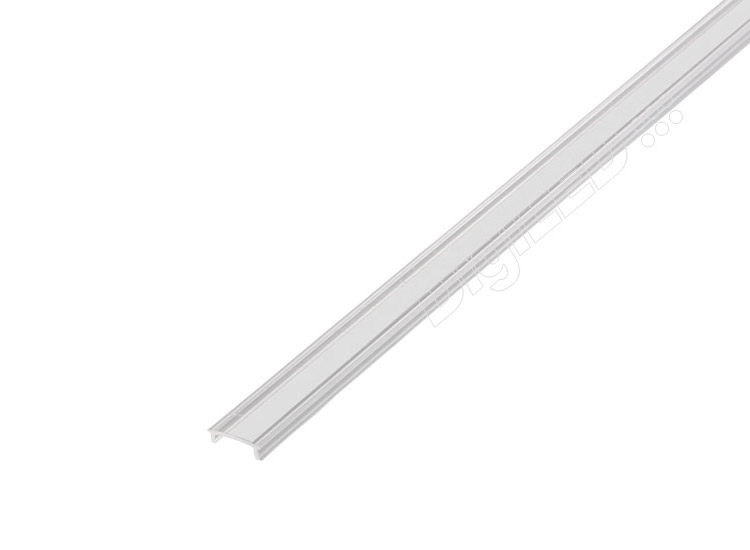

Diffuser

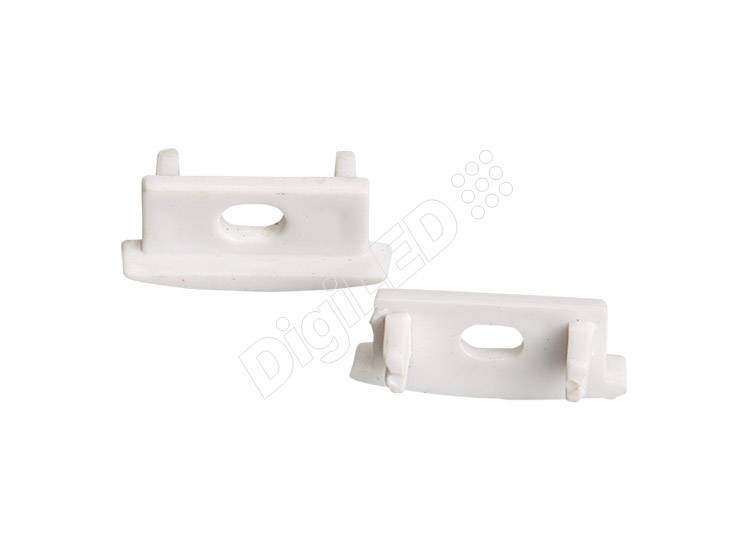

End Caps

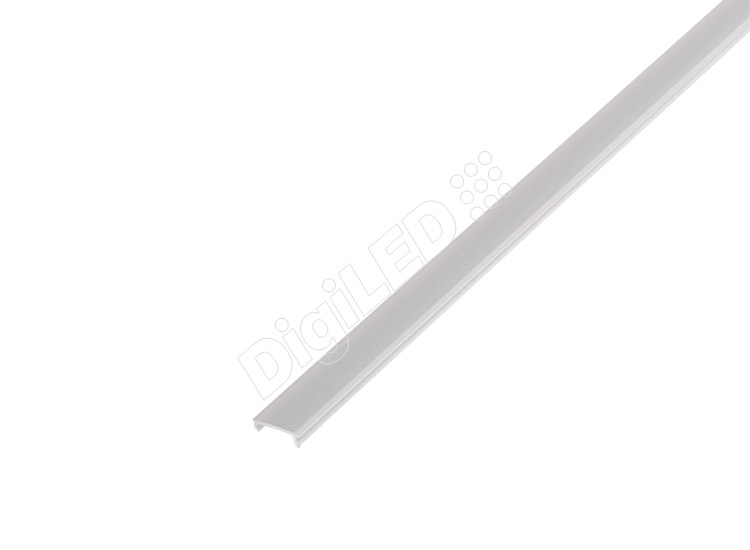

Frosted Diffuser

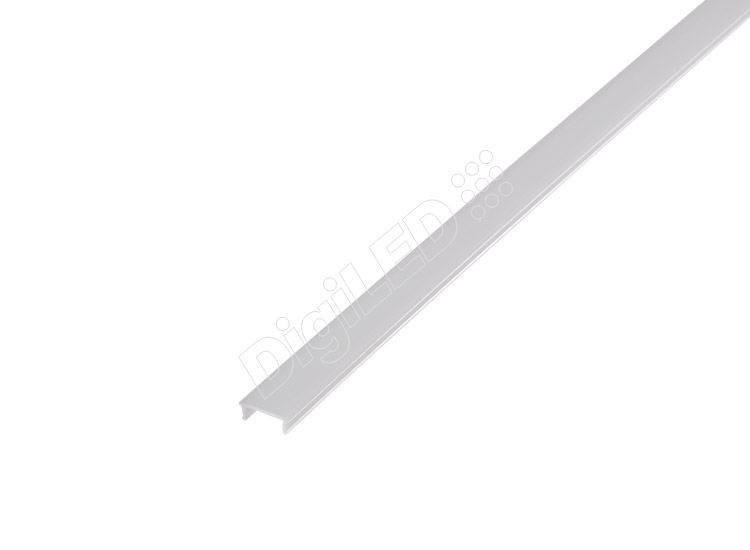

Milky Diffuser

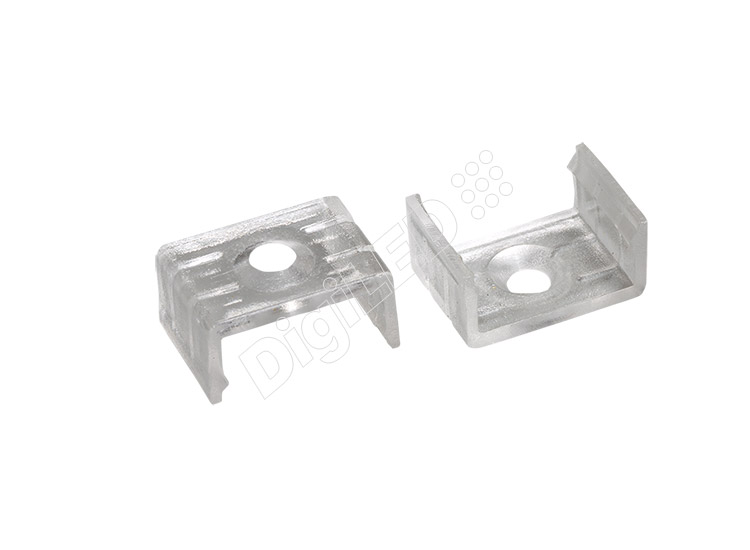

Mounting Clip

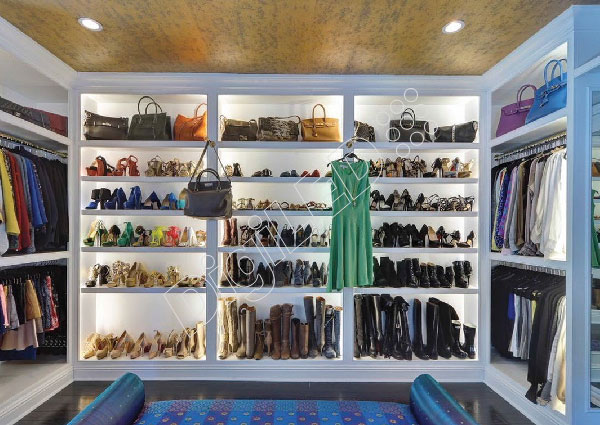

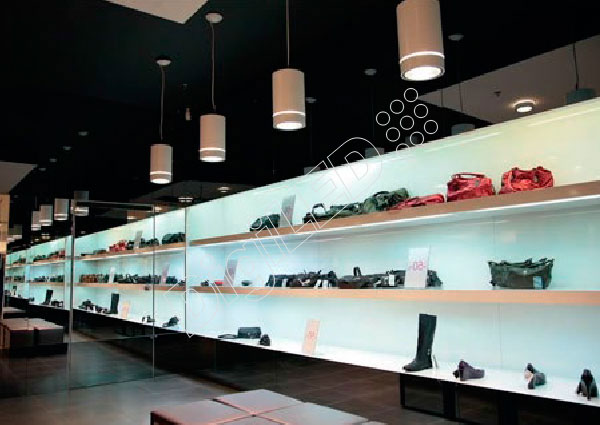

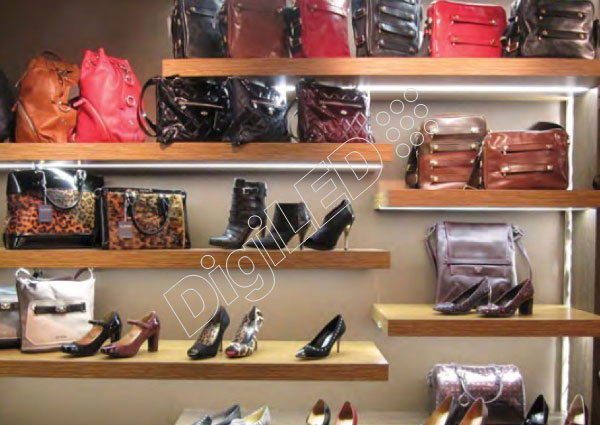

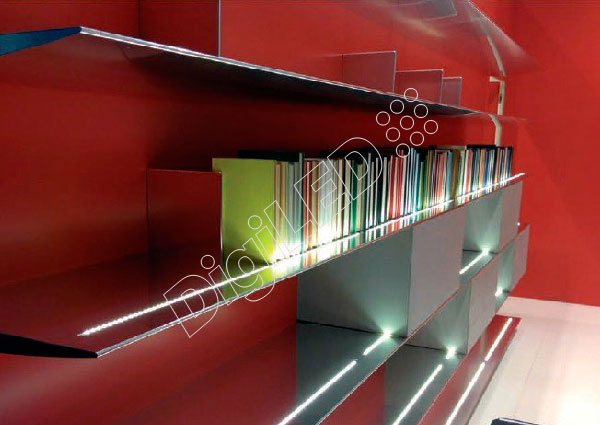

Application

Application Name
Application Name
Application Name
Application Name
