DT5050L18-DC24 STRIP

Item Code : DT5050L18-DC24

8.64 Watt/Meter | 36 LED/Meter | 24 Volt DC

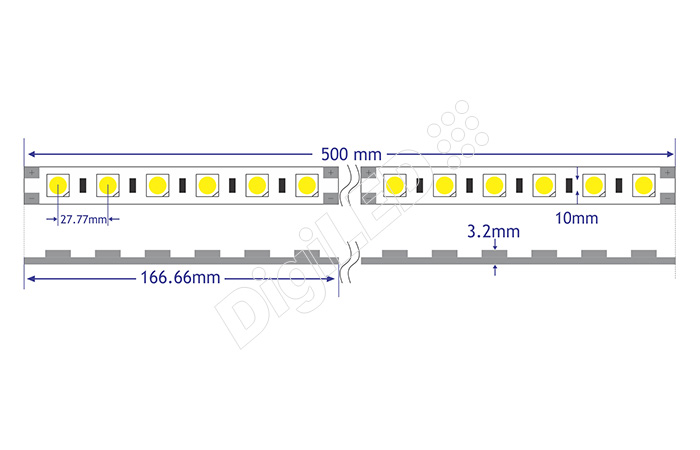

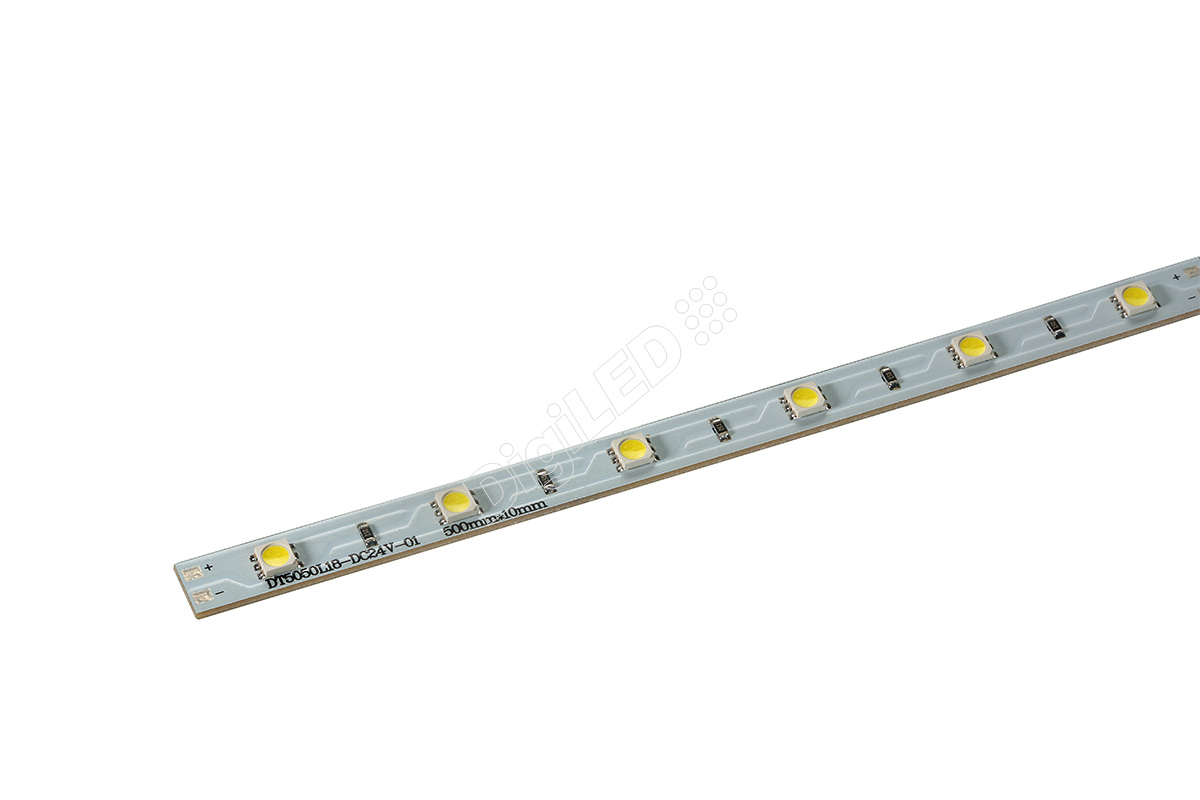

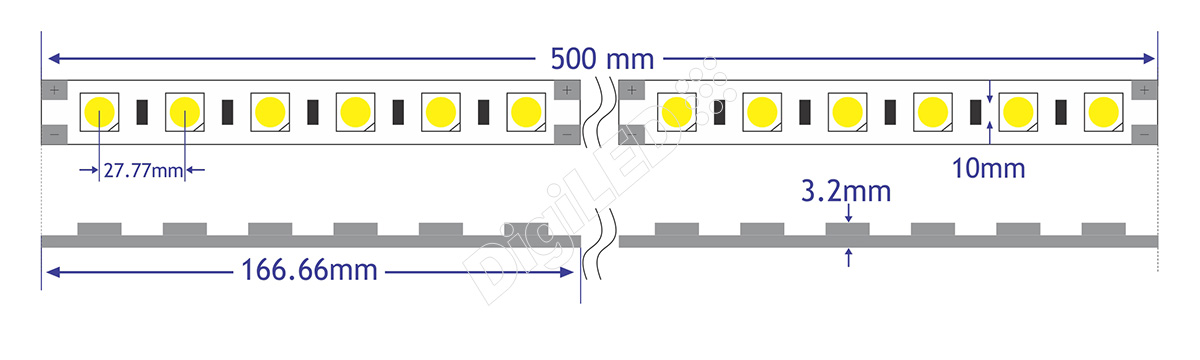

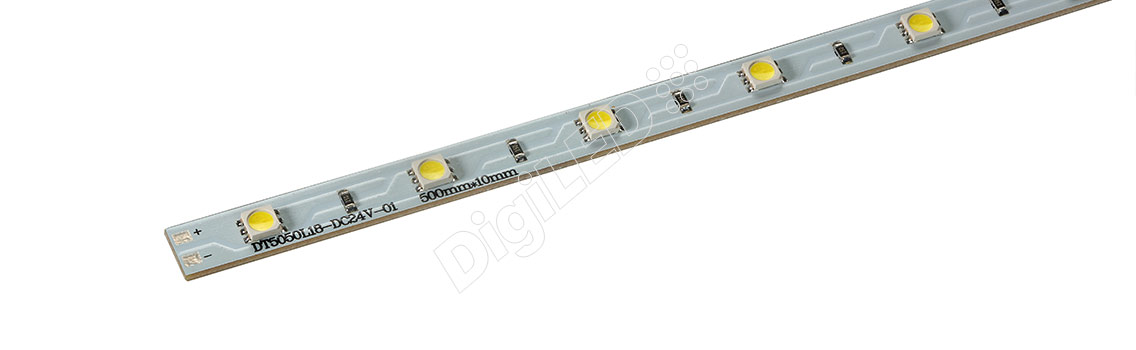

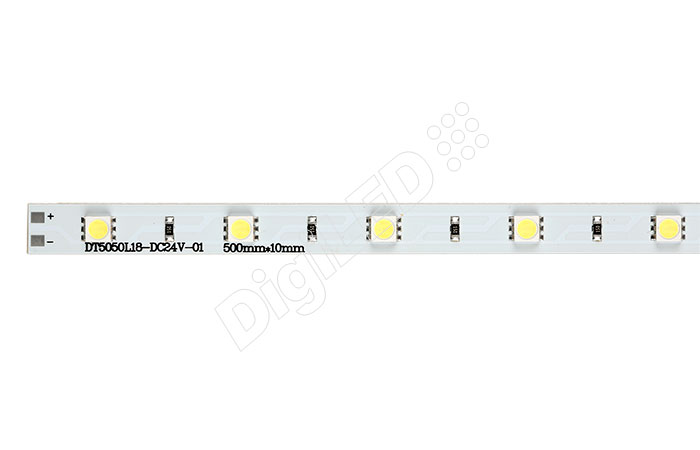

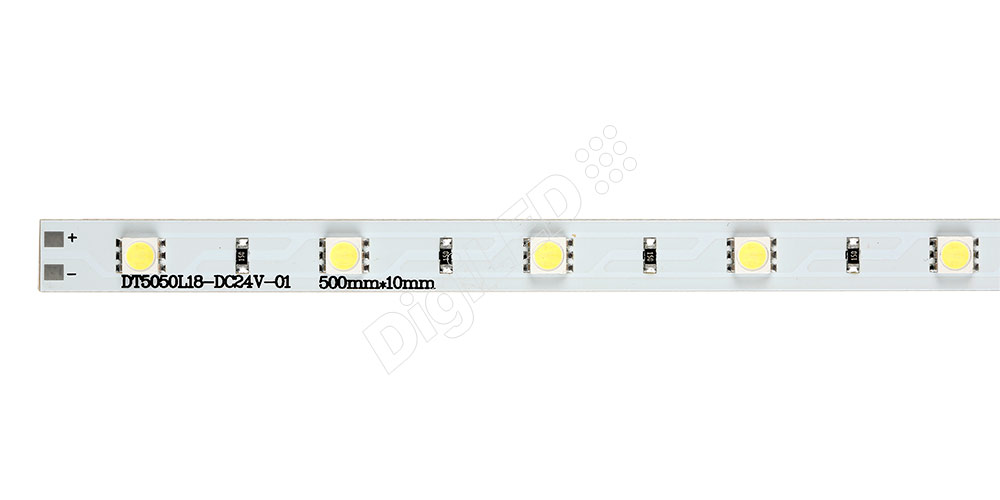

LED Rigid Strip Strip Top View Strip Diagram

Advantages

  • High brightness single color led strip
  • 5050 SMT package [60mA]
  • High luminous intensity
  • Slim design
  • High reliability
  • Solid state, high shock, vibration resistant
  • Maintenance free, easy installation, long life
  • Very low power consumption and low heat
  • Good thermal conductivity
  • Easy to pack, ship and install

LED SPECIFICATIONS

  • 18-20 Lm
  • Package size: 5.0 X 5.0 X 1.4 mm
  • High brightness 3 chip LED SMD (top view) type
  • High luminous intensity

Specifications

LED COLORS SIZE INPUT VOLTAGE CURRENT BEAM ANGLE OPERATING TEMPERATURE CUTTABLE SIZE PCB POWER
18 LED / module CW/ NW/ WW/ R/ G/ B/ A 10 mm W x 500 mm L x 1.6 mm H DC 24 VOLT 0.18 A 1200 -200~ +600 166.66 mm FR4 4.32 Watt / Module
