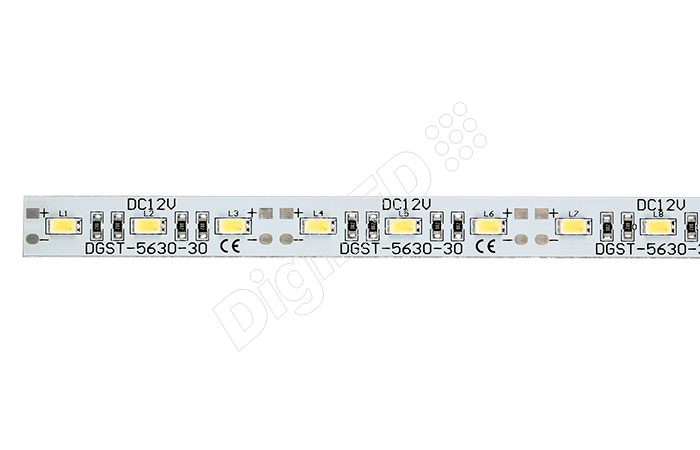

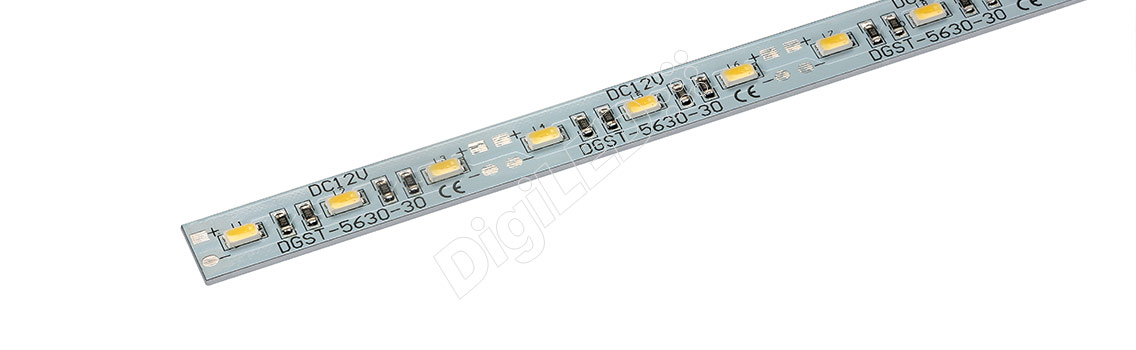

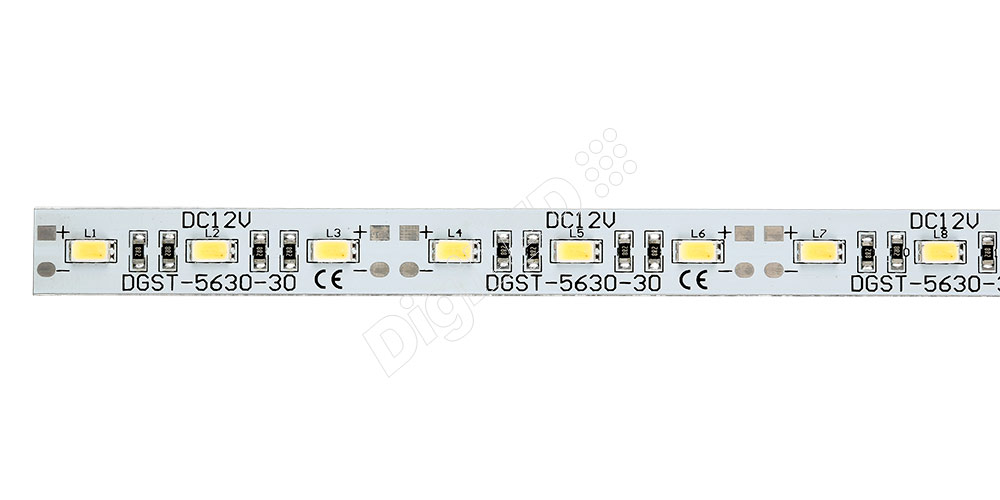

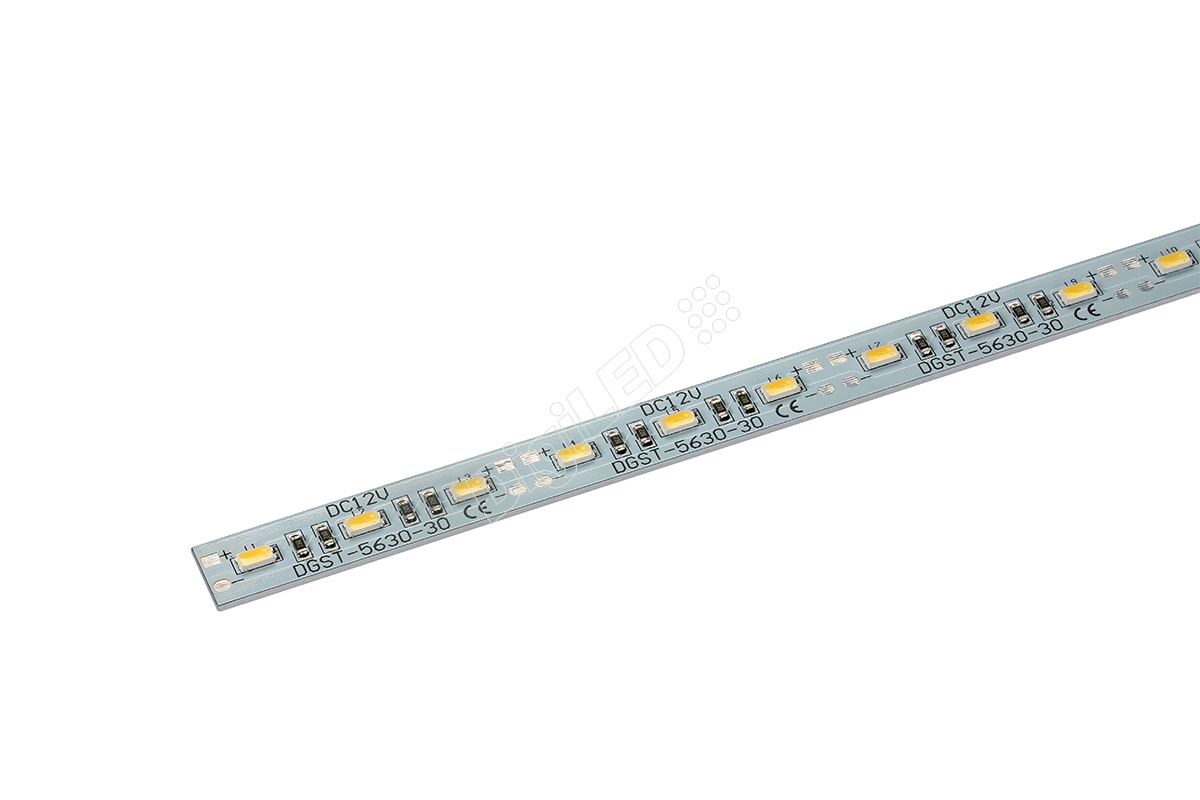

DGST-5630-30 STRIP

Item Code : DGST-5630-30

19.2 Watt/Meter | 60 LED/Meter | 12 Volt DC

Advantages

  • High brightness single color led strip
  • 5630 OSRAM SMT package
  • High luminous intensity
  • Slim design
  • High reliability
  • Solid state, high shock, vibration resistant
  • Maintenance free, easy installation, long life
  • Very low power consumption and low heat
  • Good thermal conductivity
  • Easy to pack, ship and install

LED SPECIFICATIONS

  • 38-45 Lm
  • Package size: 5.6 X 3.0 X 0.87 mm
  • High brightness chip LED SMD (top view) type
  • High luminous intensity

Note: This LED strip is must be used with proper heat sink.

Specifications

LED COLORS SIZE INPUT VOLTAGE CURRENT BEAM ANGLE OPERATING TEMPERATURE CUTTABLE SIZE PCB POWER

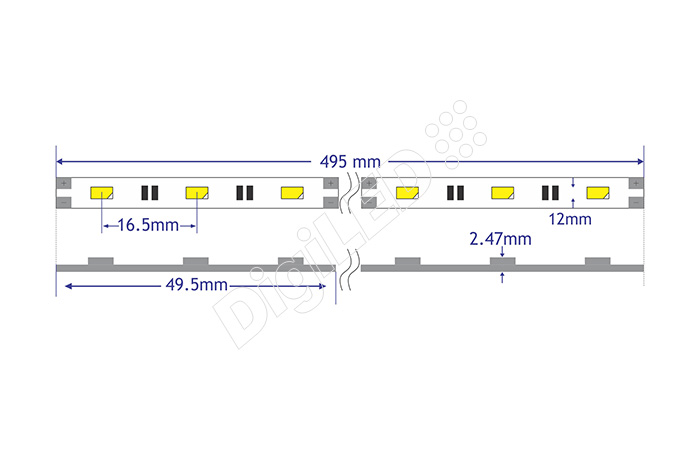

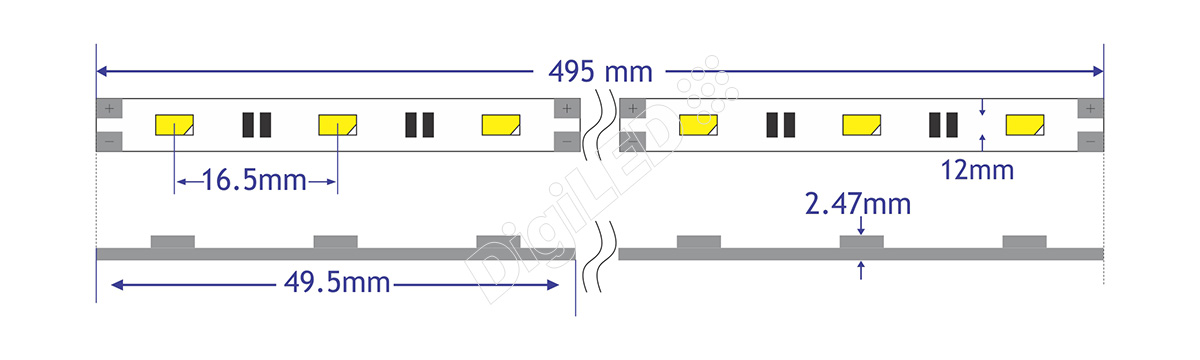

30 LED / module CW/ NW/ WW 12 mm W x 495 mm L x 1.6 mm H DC 12 VOLT 0.8 A 1200 -200~ +600 49.5 mm Aluminum 9.6 Watt / Module
