DGST-2835-24AL STRIP

DGST-2835-24AL

11.52 Watt/Meter | 48 LED / Meter | 12 Volt DC

Advantages

  • High brightness single color led strip
  • 2835 SMT package [60 mA]
  • High luminous intensity
  • Slim design
  • High reliability
  • Solid state, high shock, vibration resistant
  • Maintenance free, easy installation, long life
  • Very low power consumption and low heat
  • Good thermal conductivity
  • Easy to pack, ship and install

LED SPECIFICATIONS

  • 25-28 Lm
  • Package size: 2.8 X 3.5 X 0.75 mm
  • High brightness 1 chip LED
  • SMD (top view) type
  • High luminous intensity

Specifications

LED COLORS SIZE INPUT VOLTAGE CURRENT BEAM ANGLE OPERATING TEMPERATURE CUTTABLE SIZE PCB POWER

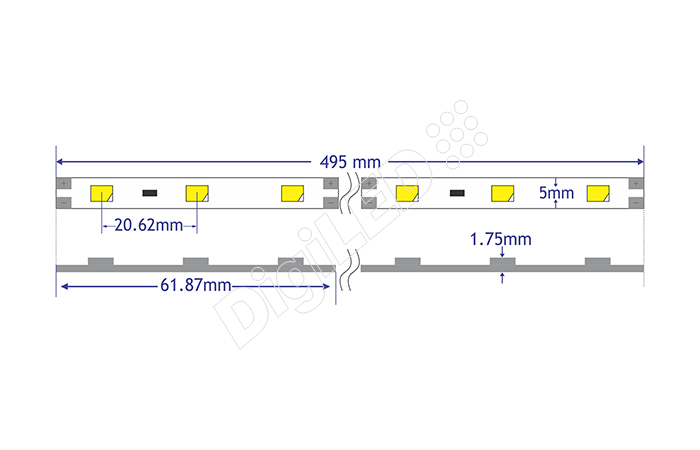

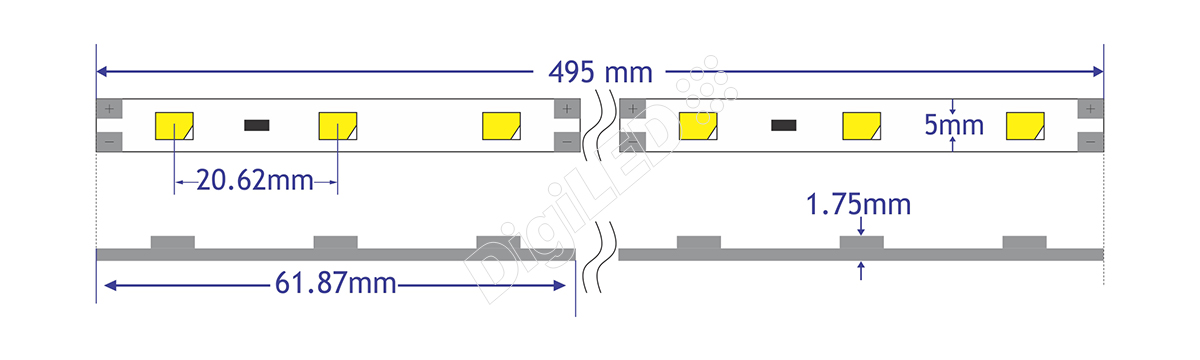

24 LED / module CW/ NW/ WW 5 mm W x 495 mm L x 1.6 mm H DC 12 VOLT 0.48 A 1200 -200~ +600 61.87 mm ALU 1 MM 11.52 Watt / Module
