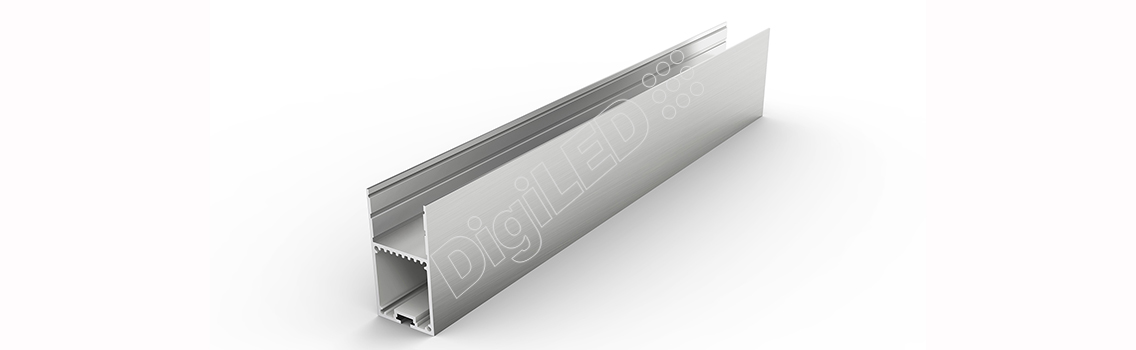

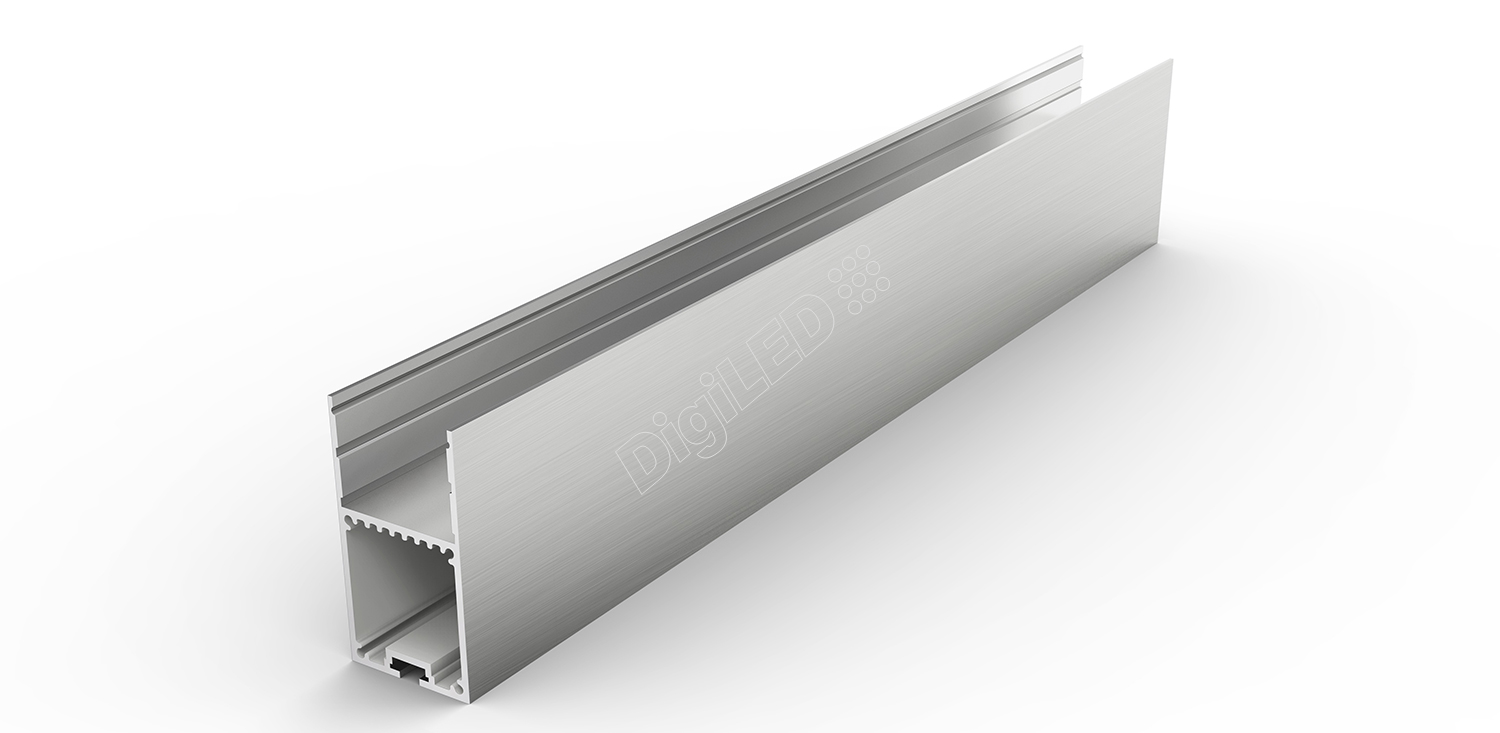

TOP 3567

Top3567 profile is designed for high heights and suspended use. The driver can be installed inside the profile and can be accessed easily for maintenance. This profile is design to give down as well as up light with diffusers. LED Profiles protect the LED strip while also acting as a heat sink to help maintaining the LED life. For customers who require longer lengths than 2.4, simply join the aluminum channels to each other to the required length by its special clamps. Installation is designed to be as simple as possible.

Advantages

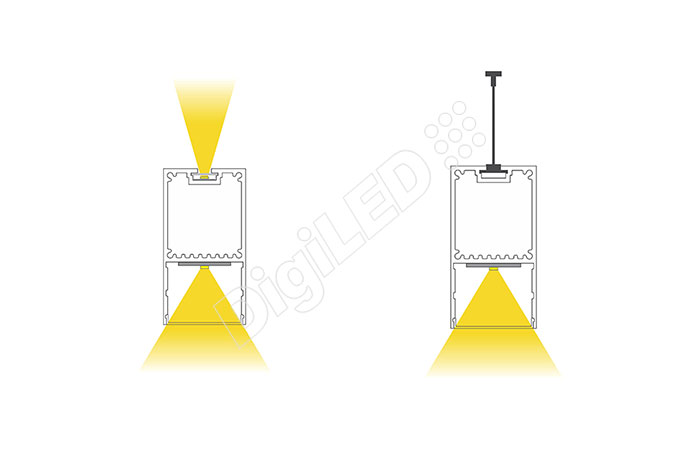

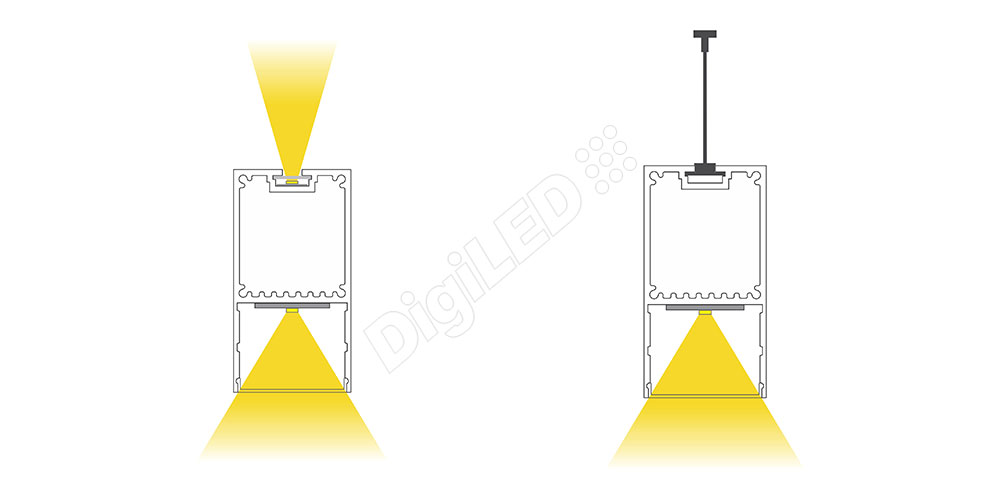

  • Up and down light
  • Extendable by clamps
  • Inbuilt driver provision
  • Frosted satin finish diffuser from Germany
  • Easy maintenance due to press-fit diffuser
  • Suspended lighting applications possible
  • 3 years Warranty

Application Areas

  • Office Lighting
  • Retail lighting
  • Store interior lighting
  • Conference rooms
  • Decorative lighting
  • Warehouse lighting

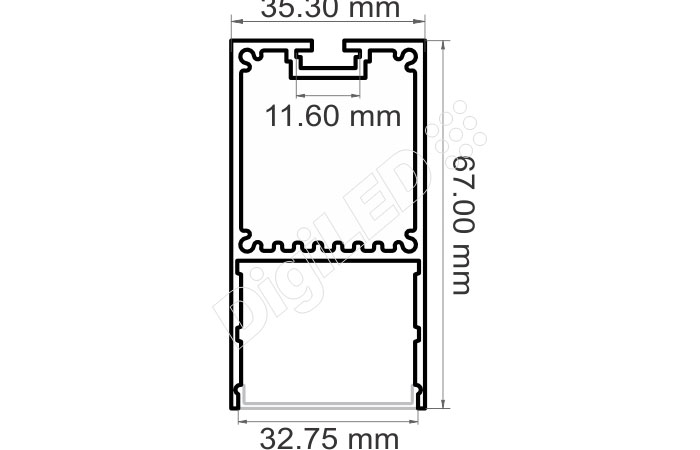

Specifications

Material Size Max PCB size possible Max length Diffuser Recommended watts/meter Finish

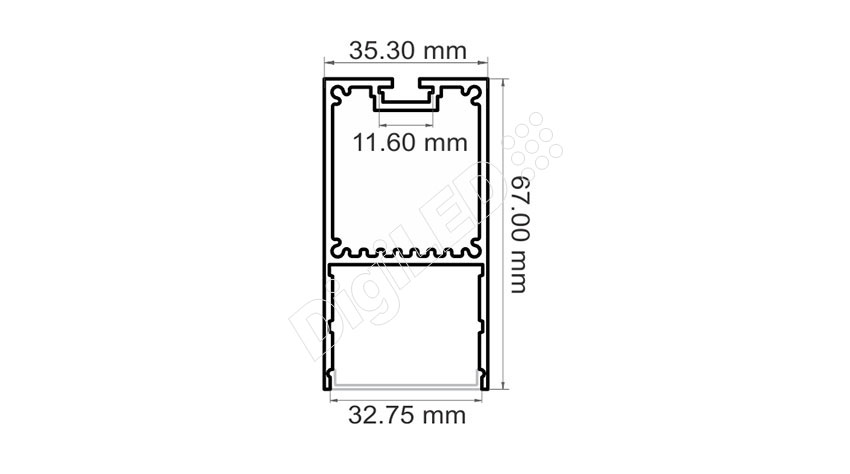

Aluminum 35.30mm x 67mm Upto 26mm 2500 mm Press fit [optional] 20-25w Raw/anodized or Power Coated

Accessories For TOP 3567 Profile

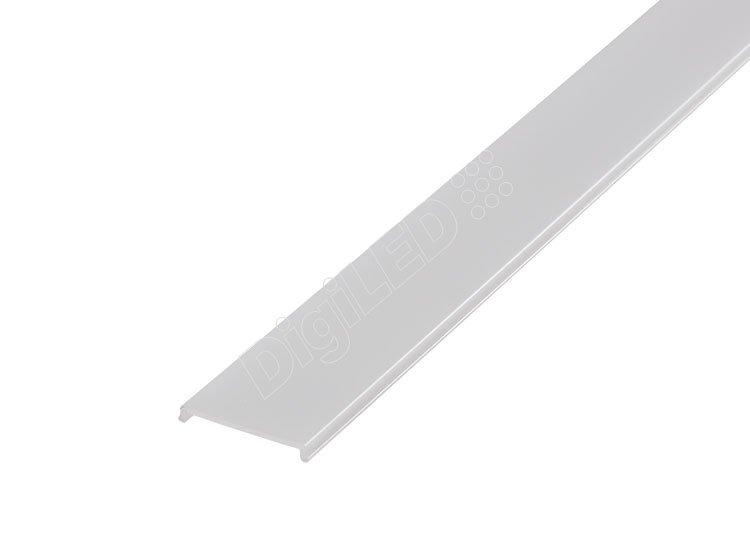

Diffuser

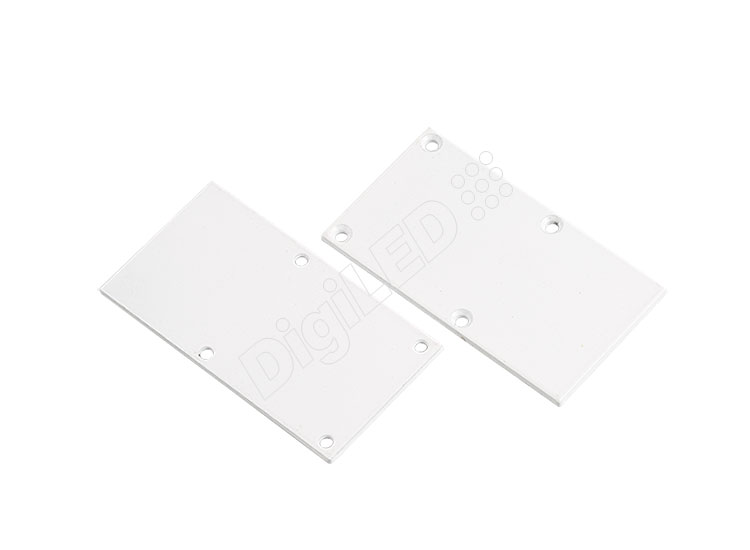

End Caps

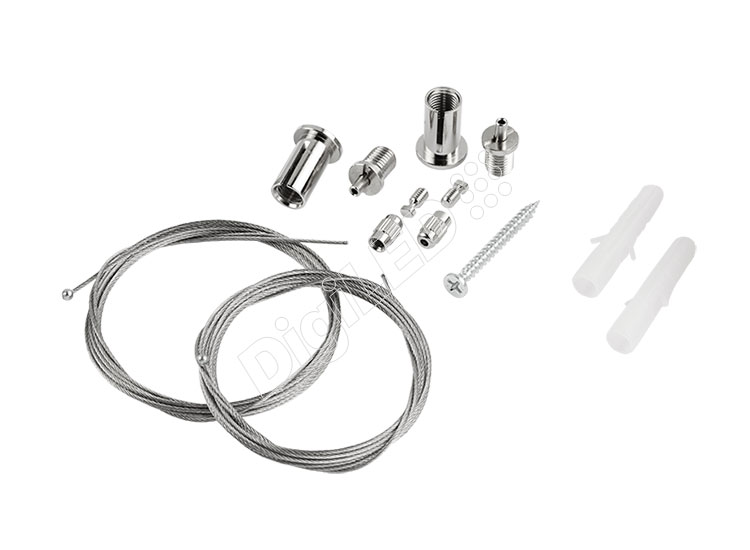

Hanging

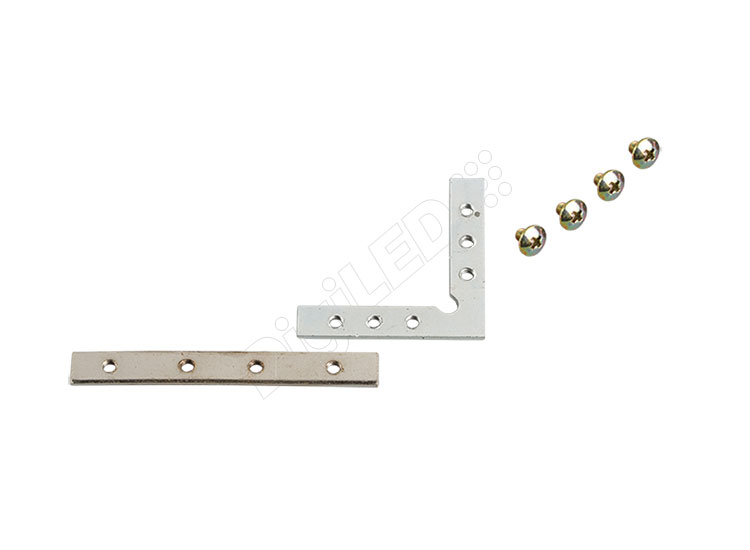

Jointer

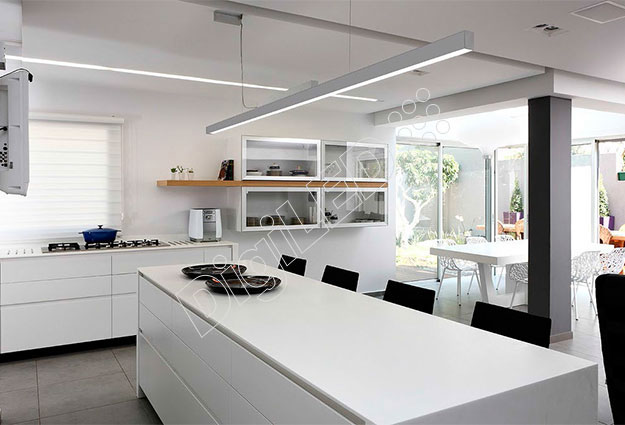

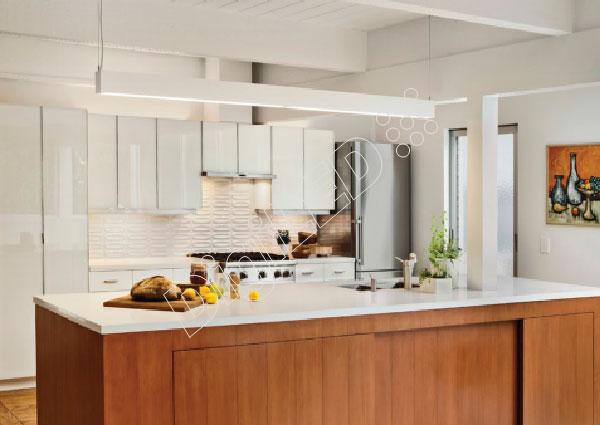

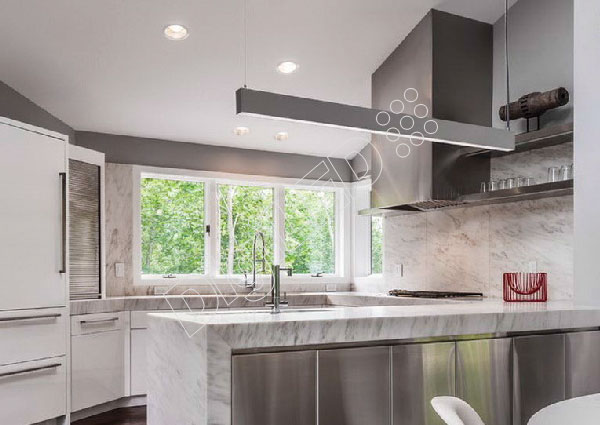

Application

Application Name
Application Name
Application Name
