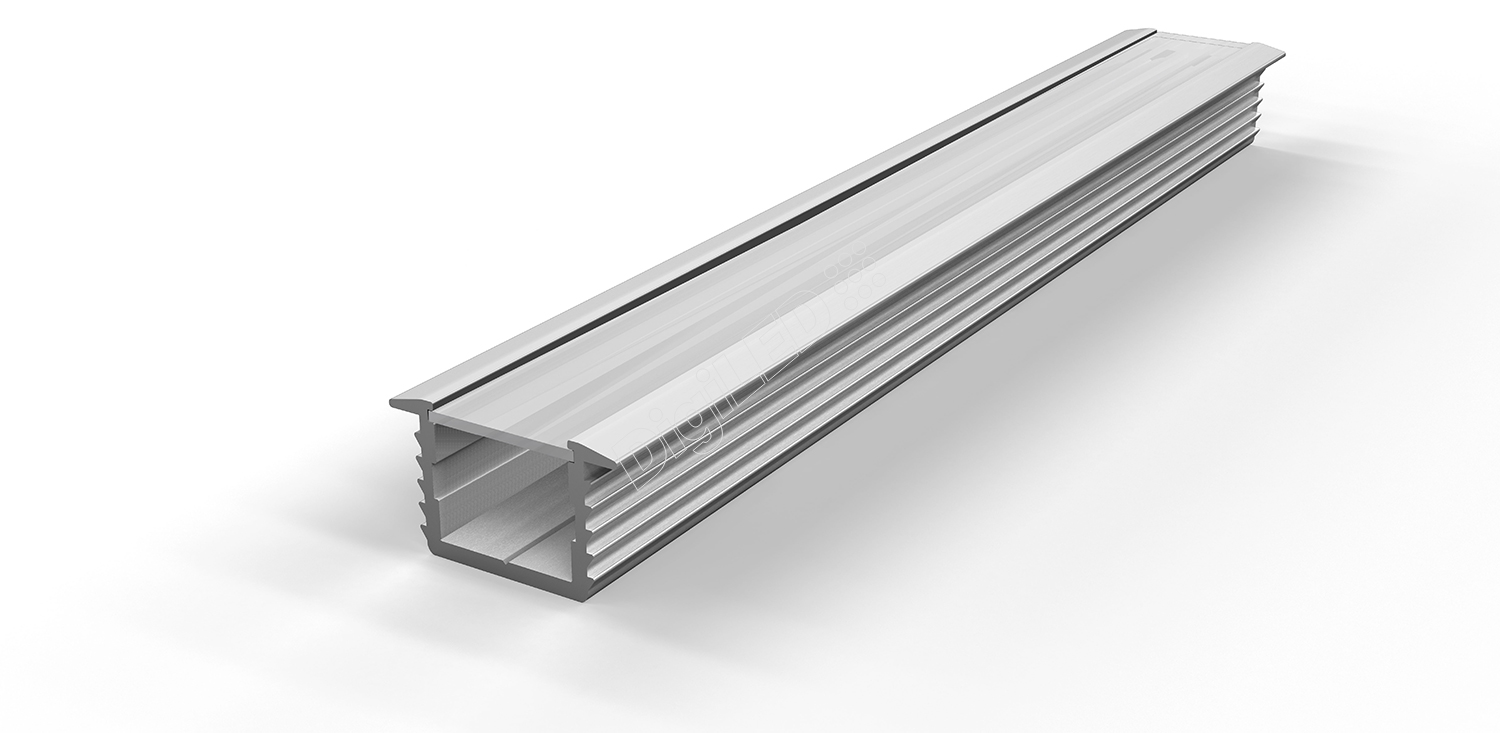

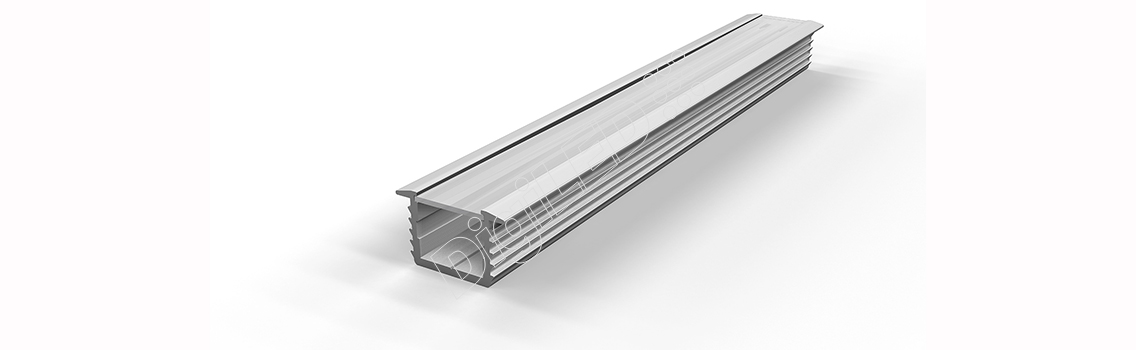

Oriel

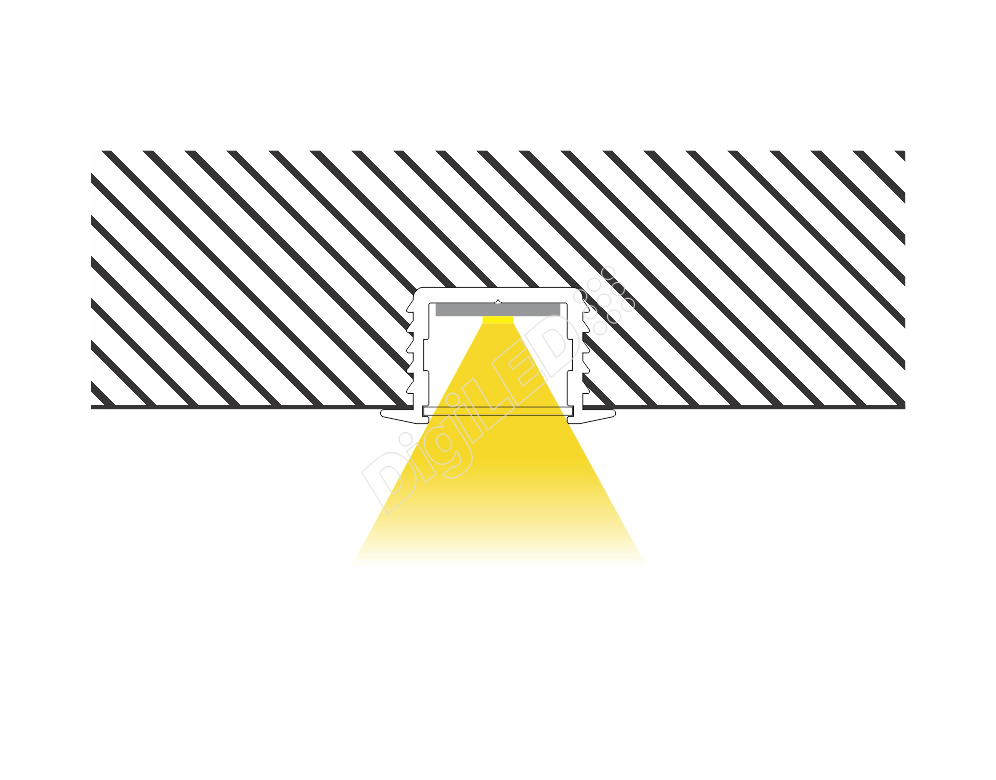

Especially designed for the applications where narrow beam linear lighting demanded. This special lens incorporate special strip molded lens with very narrow beam which can focus strong light on products / objects displayed in shelves and counters. It can fairly replace spotlights of narrow beam for linear applications with a very low cost of product and drivers. Symmetric LENSE is designed and optimized to suit most of the SMD LEDs used to build long strips, as well as High Brightness LEDs of latest generation from the most popular LEDs references. Also, STRIP LENSE delivers excellent lighting results either with white or color LEDs. STRIP LENSES are TIR Lenses manufactured in Italy through High Precision Injection Molding Process from optical grade PMMA and reaching a Lighting Efficiency of 89%. This profile permits the best dissipation of heat and good thermal stability. It is the perfect solution narrow linear illumination.

Advantages

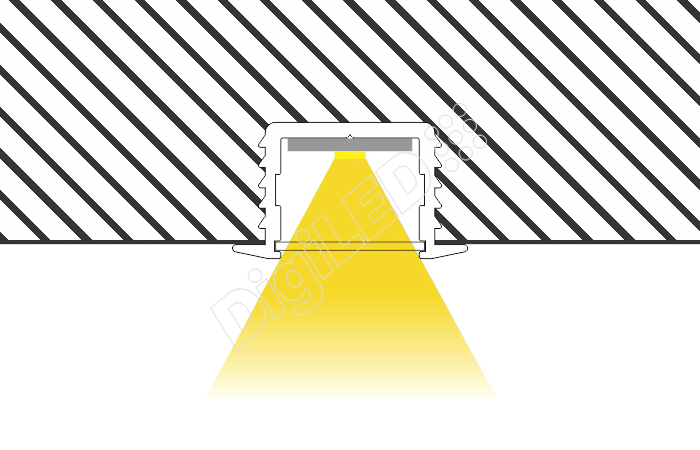

  • Directional recessed furniture profile
  • Can be used with Khatod strip lens for narrow beam angle
  • Excellent heat sink providing long life and reliability for LED
  • Easy installation of the LED strips
  • 3 years Warranty
  • Easy and fast mounting

Application Areas

  • Recessed Furniture lighting
  • Under cabinet lighting
  • POP counter lighting
  • Architectural & Decorative
  • Retail & Museum
  • Aircraft Interior
  • Under Cabinet
  • Under Stairs
  • Closets
  • Shop Windows

Specifications

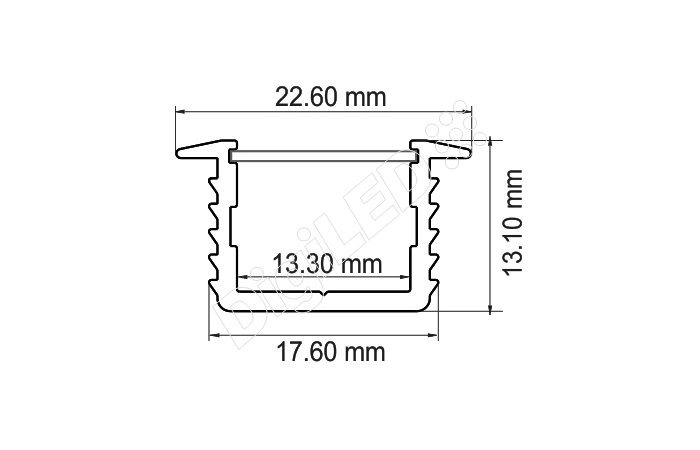

Material Size Max PCB size possible Max length Diffuser Recommended watts/meter Finish
Aluminum 22.60 x 13.10 mm 12mm 2000 mm Narrow beam symmetric lens can be installed 20 watts Raw / Anodized

Accessories For Oriel Profile

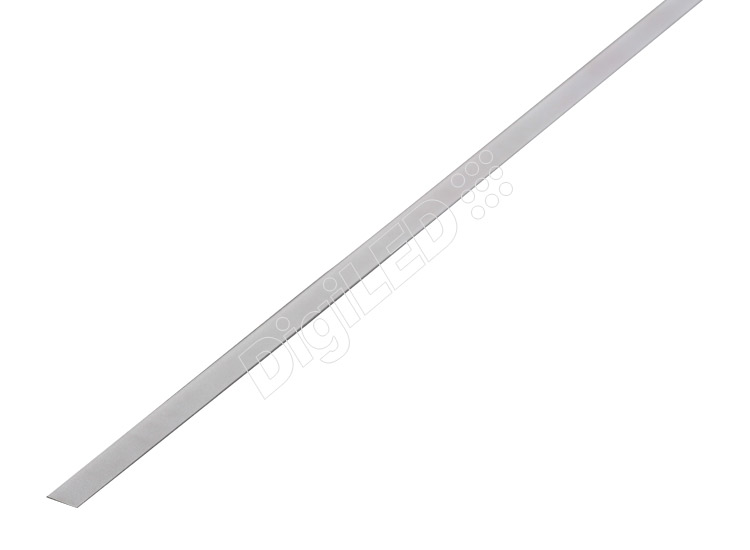

Diffuser

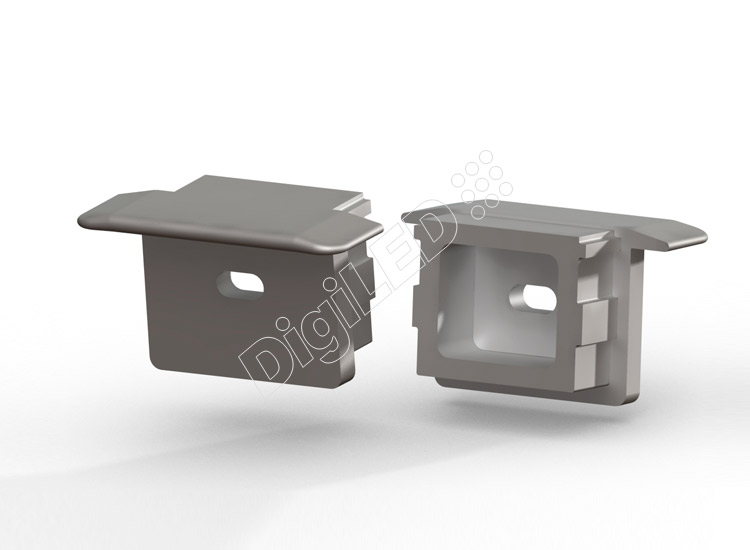

End Cap

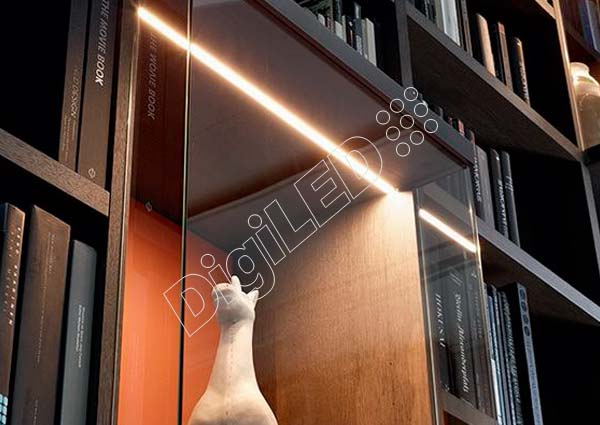

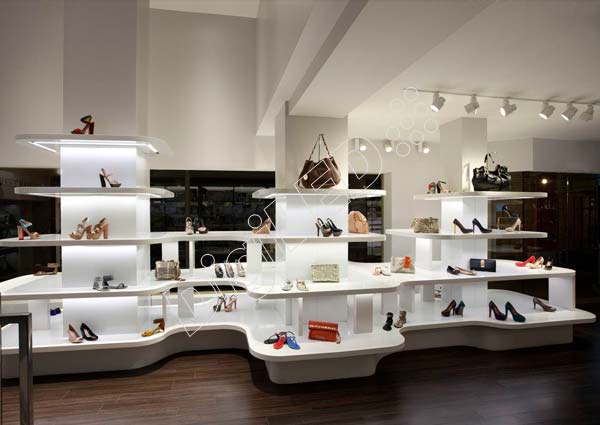

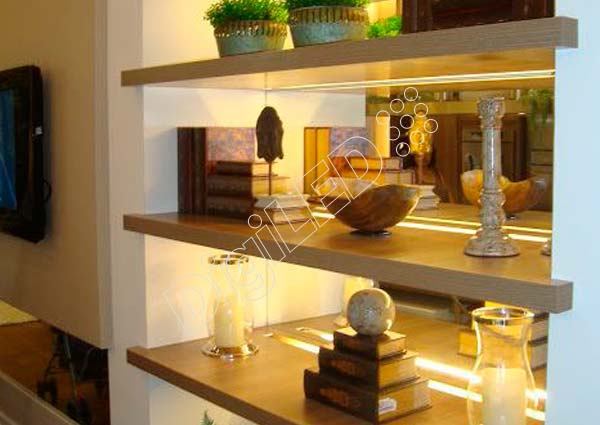

Application
