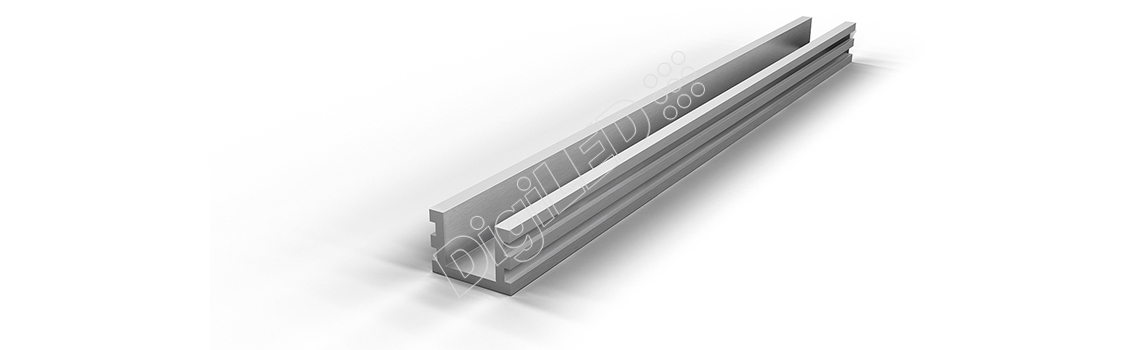

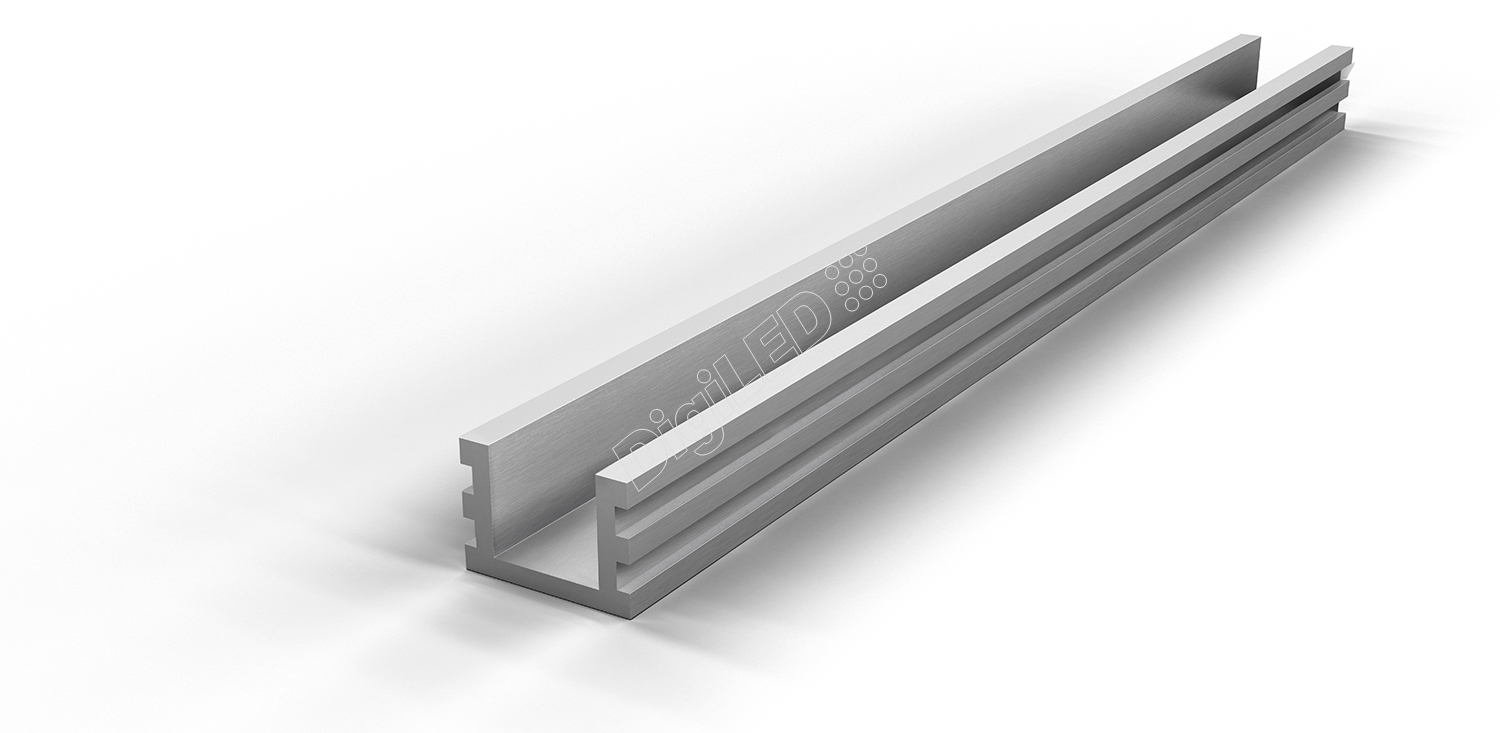

Nano

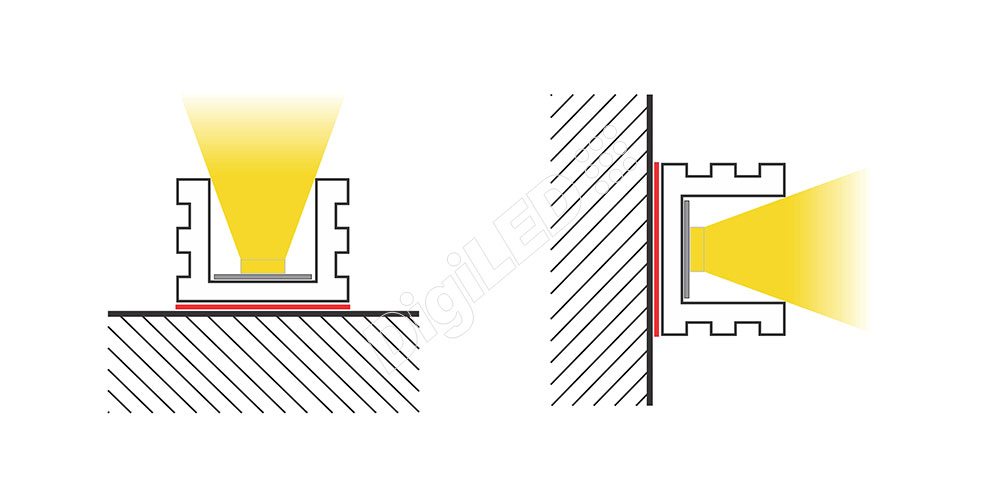

Extremely slim, one of the slickest profile in our range used for areas where size is a big constrain. Nano takes very less space and can be used with maximum of 4 mm LED strip light. It can be easily mounted by clip or tape to any surface. It provides very good strength to the LED strips with good thermal properties. This profile is designed for 4 mm LED strip applications such as Slim Light box, edge lighting etc.

Advantages

  • Ultra Slim design
  • excellent heat sink providing long life and reliability for LED
  • Easy installation of the LED strips
  • 3 years Warranty
  • Easy and fast mounting

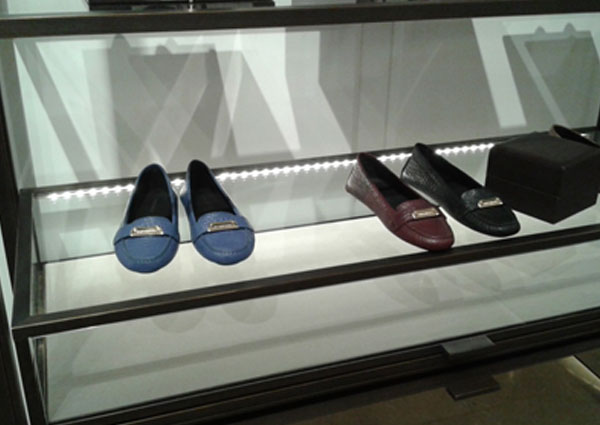

Application Areas

  • Slim Light box
  • low wattage Ceiling cove lighting

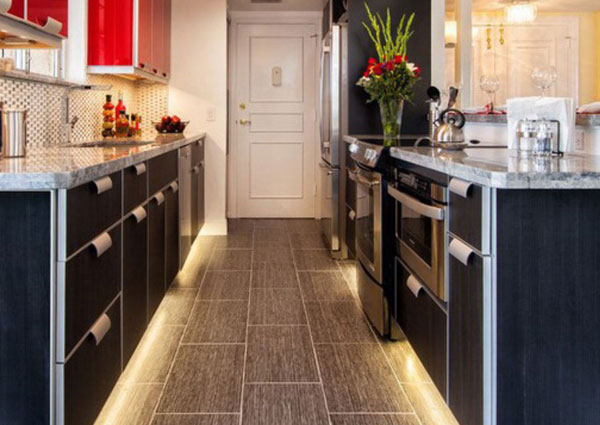

  • Under cabinet lighting
  • Kitchen and bedroom lighting
  • Edge Lighting

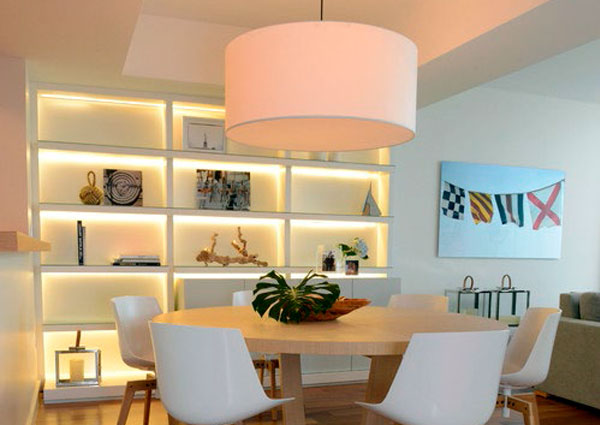

  • Accent interior lighting

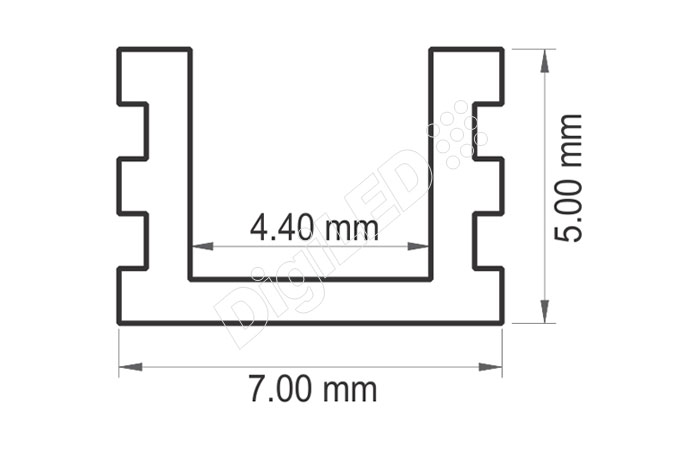

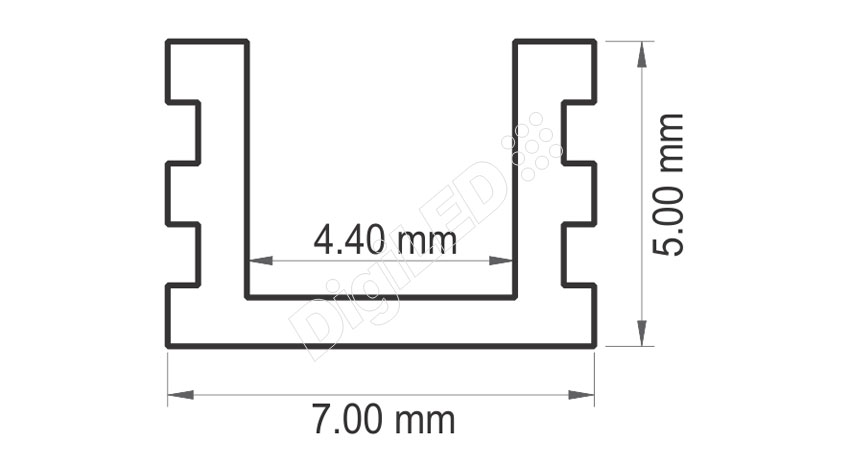

Specifications

Material Size Max PCB size possible Max length Diffuser Recommended watts/meter Finish
Aluminum 7 mm x 4.2 mm 4 mm 2000 mm Not Applicable 6w Raw/anodized

Accessories For Nano Profile

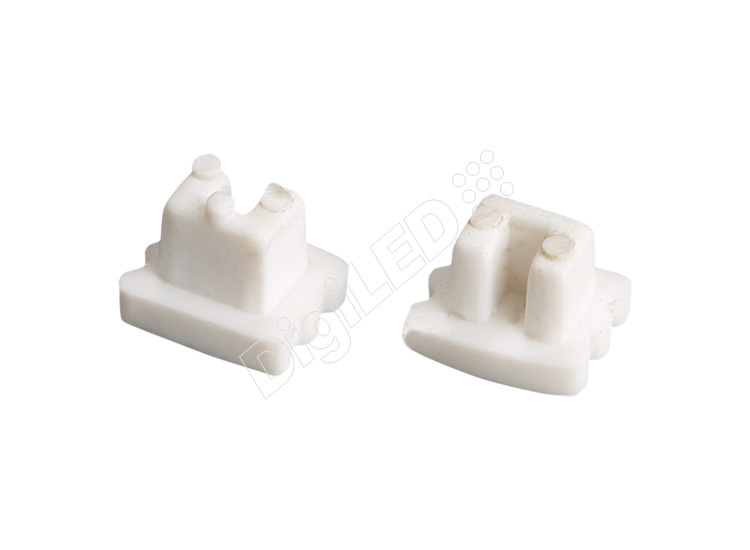

End Caps

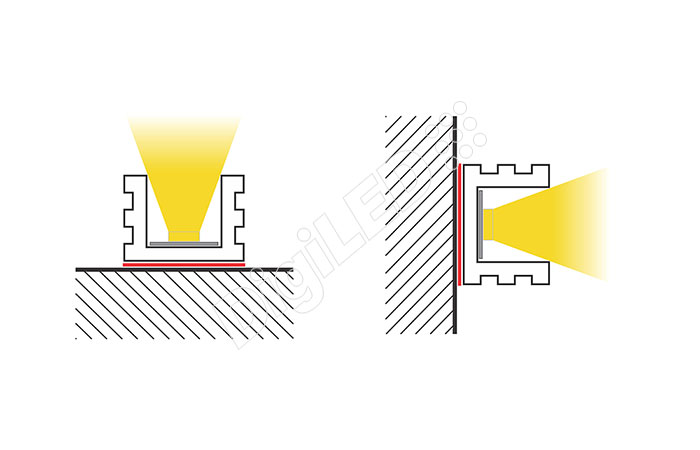

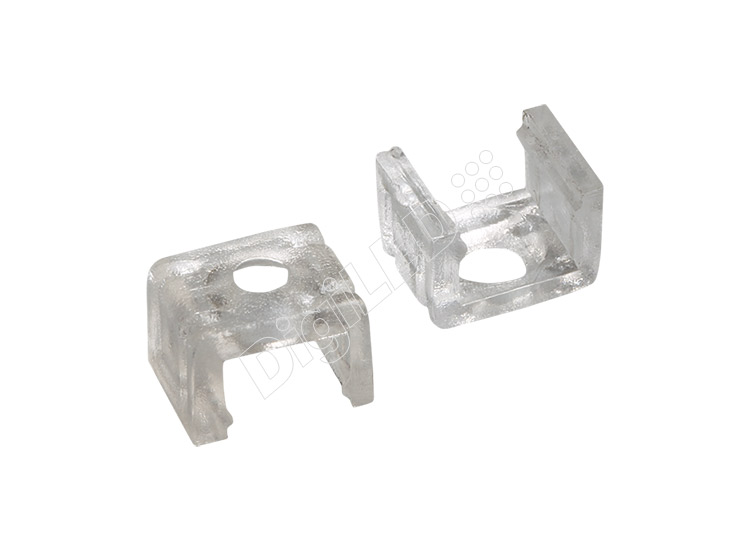

Mounting

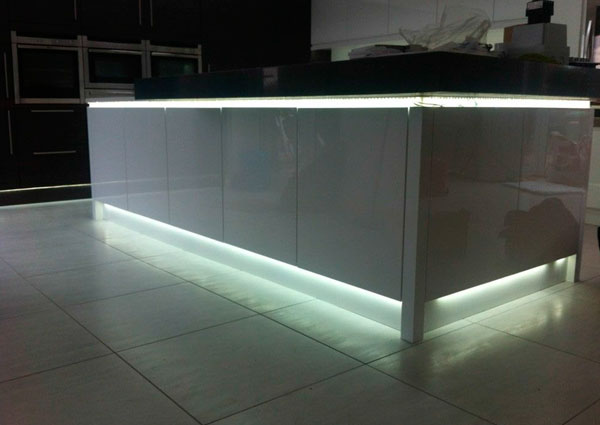

Application

Application Name
Application Name
Application Name
Application Name
