Edge

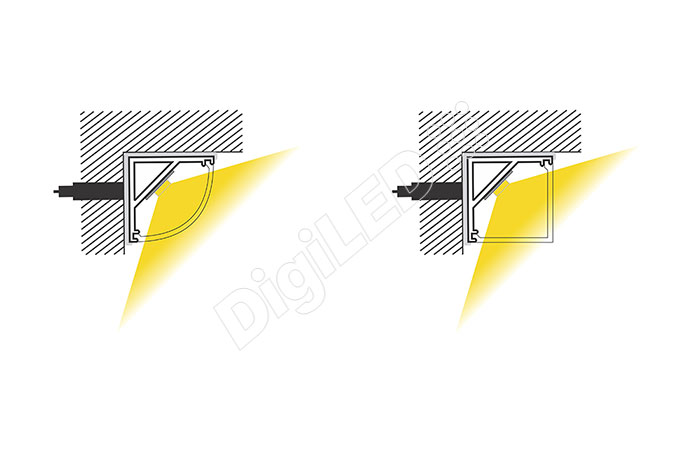

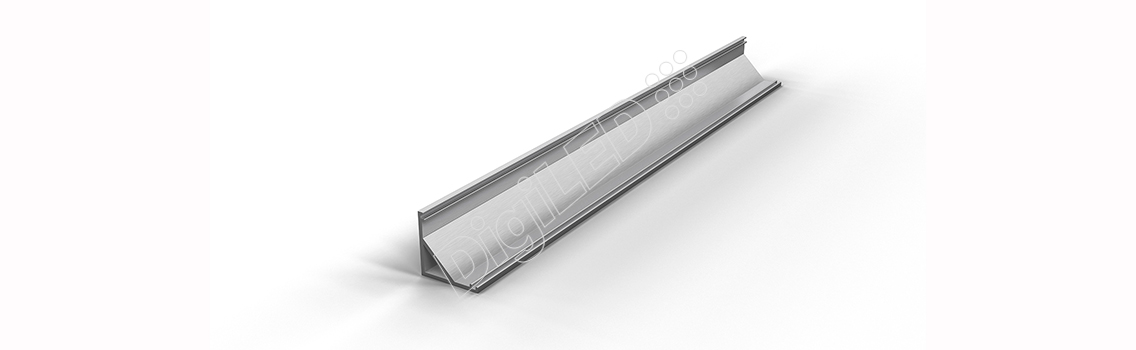

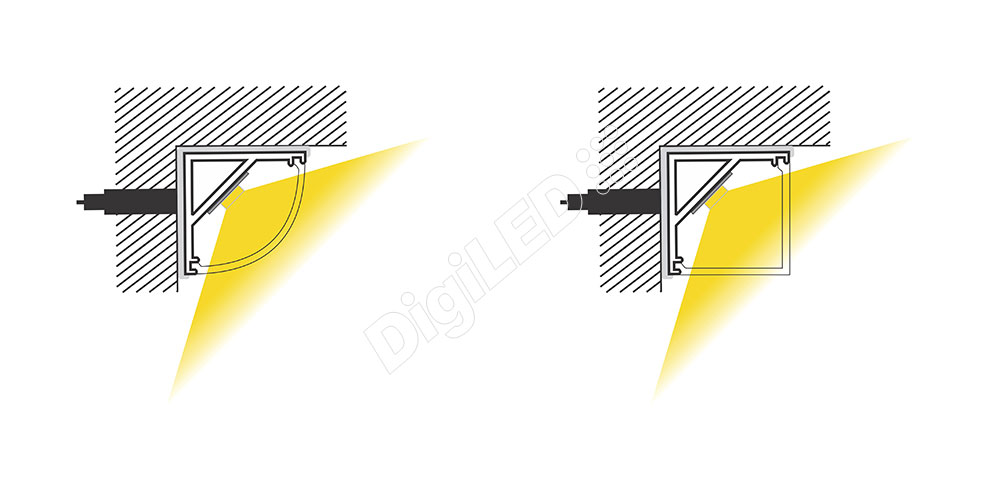

Edge aluminum profile especially designed to house any LED light strips that have a width of 12mm or less. The shape is designed to discretely mount in a corner, and provide maximum lighting for a variety of applications. The anodized finish provides maximum protection against the elements, preventing rust and corrosion, and making them perfectly suitable for rough indoor or outdoor use. Mounting brackets are available to make installation easy, and create a solid fixture for any Corner to mount to. Two types of Diffusers [round and rectangular] are also available to maximize protection of the strip and to control the diffusion of light from the strip. End Caps are also available to fully enclose the profile and also cleanly direct the wiring to the strip.

Advantages

  • Mounts to All 90 degree Corners
  • Protects LED Light Strips
  • 3 different diffusers available
  • Excellent heat sink
  • 3 years Warranty
  • Easy and fast mounting in corners by tape or bracket

Application Areas

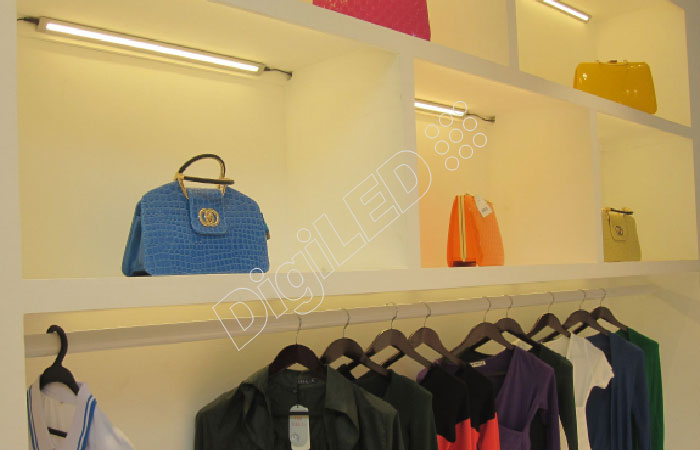

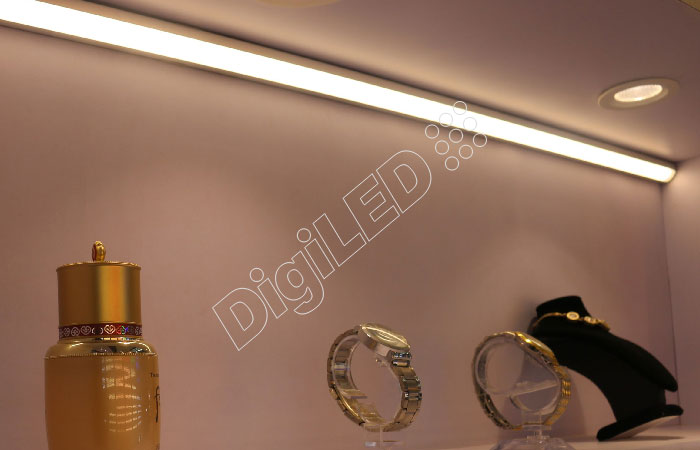

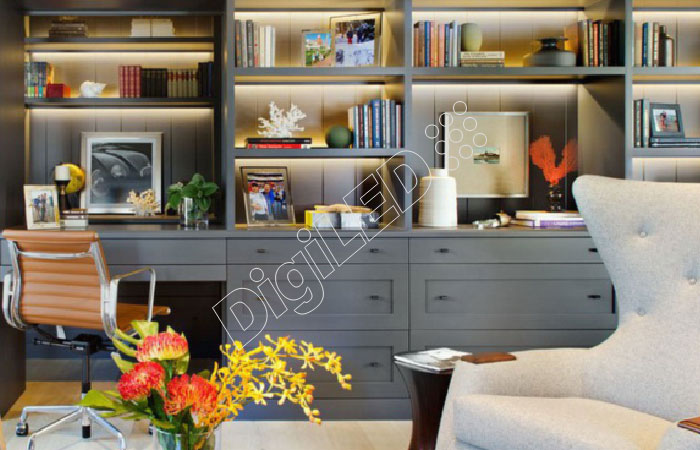

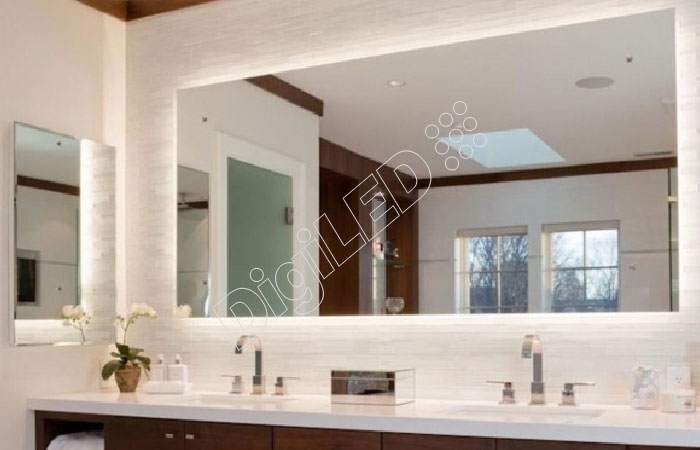

  • Display lighting
  • Ceiling cove lighting
  • Closet lighting
  • Under cabinet lighting
  • Decorative lighting
  • Kitchen and bedroom lighting
  • Edge Lighting

Specifications

Material Size Max PCB size possible Max length Diffuser Recommended watts/meter Finish

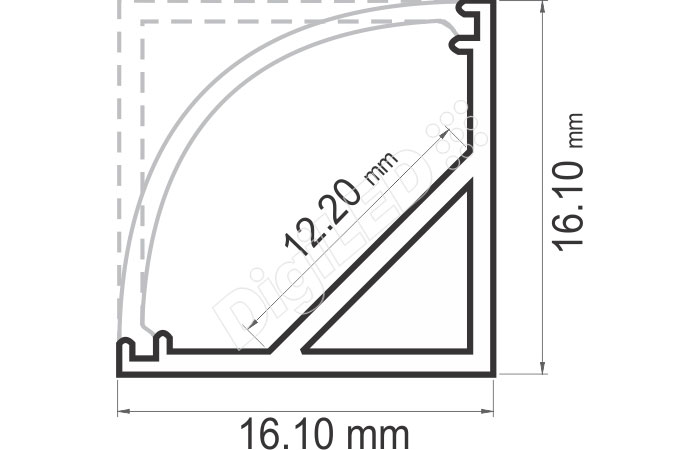

Aluminum 16.10mm x 16.10mm 12mm 2000 mm Press fit [optional] 15w Raw/anodized

Accessories For Edge Profile

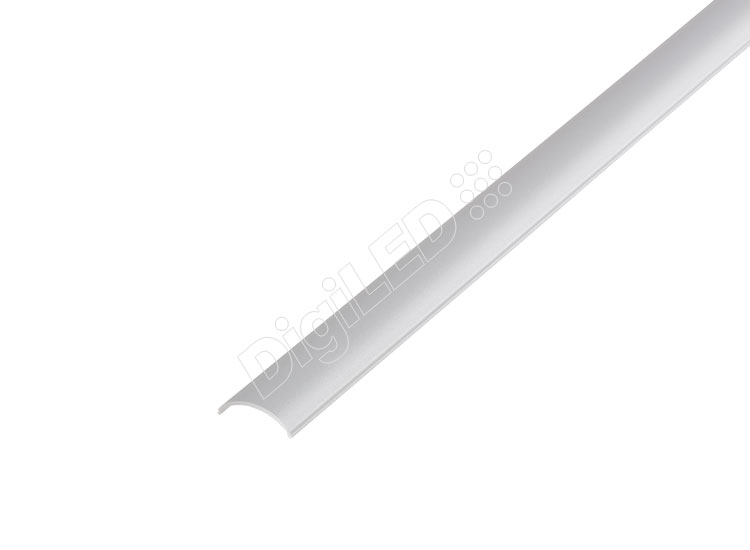

Diffuser

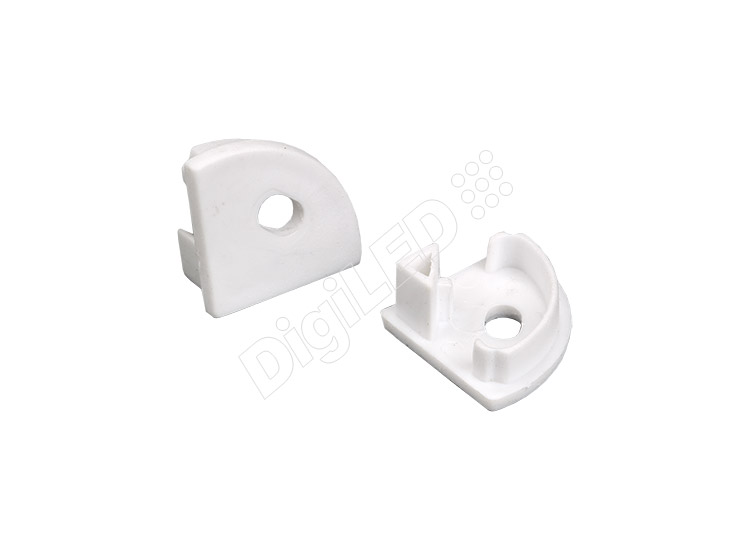

End Caps

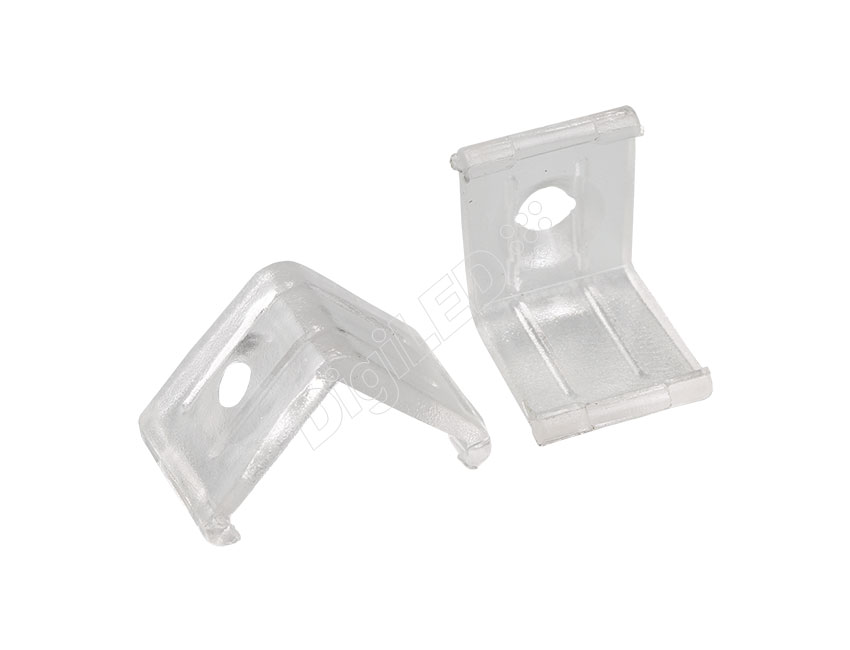

Mounting Caps

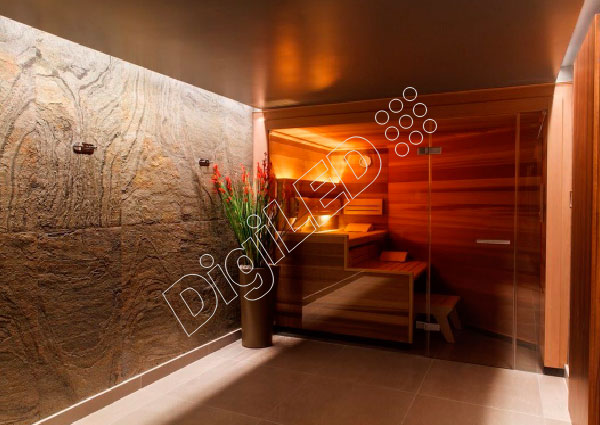

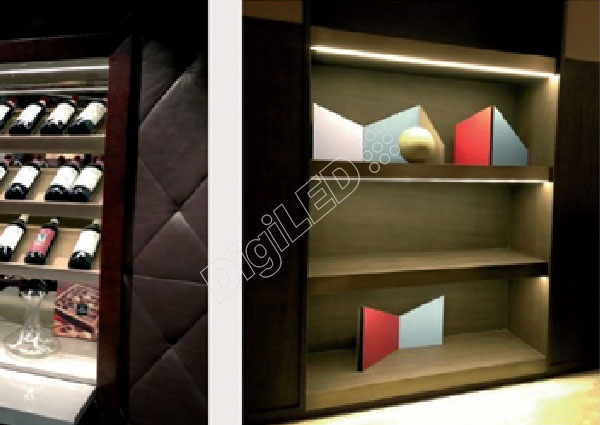

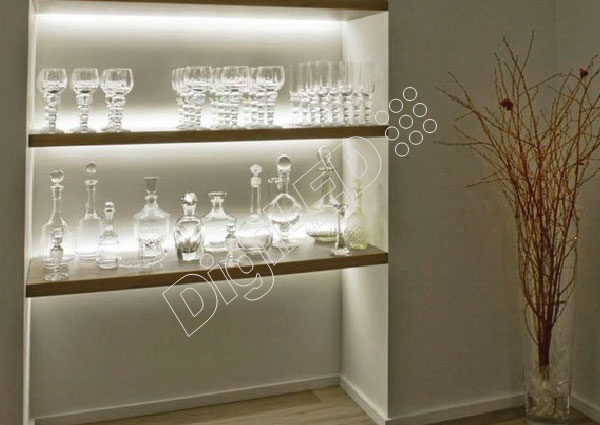

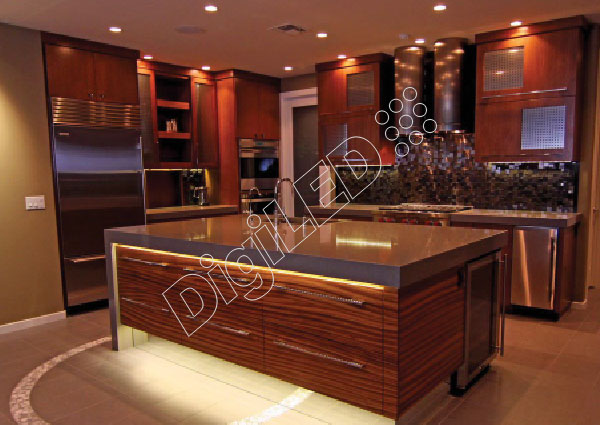

Application
