Features

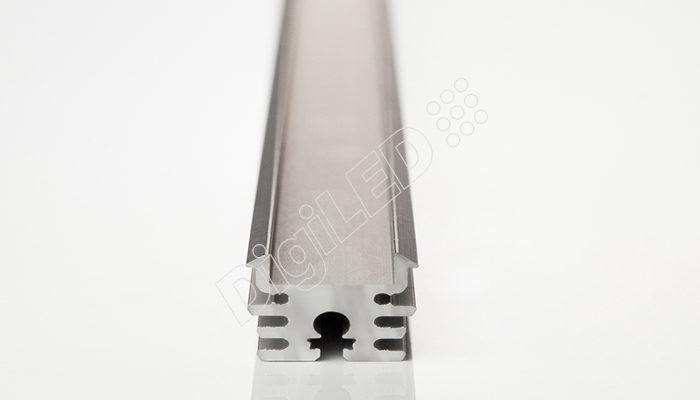

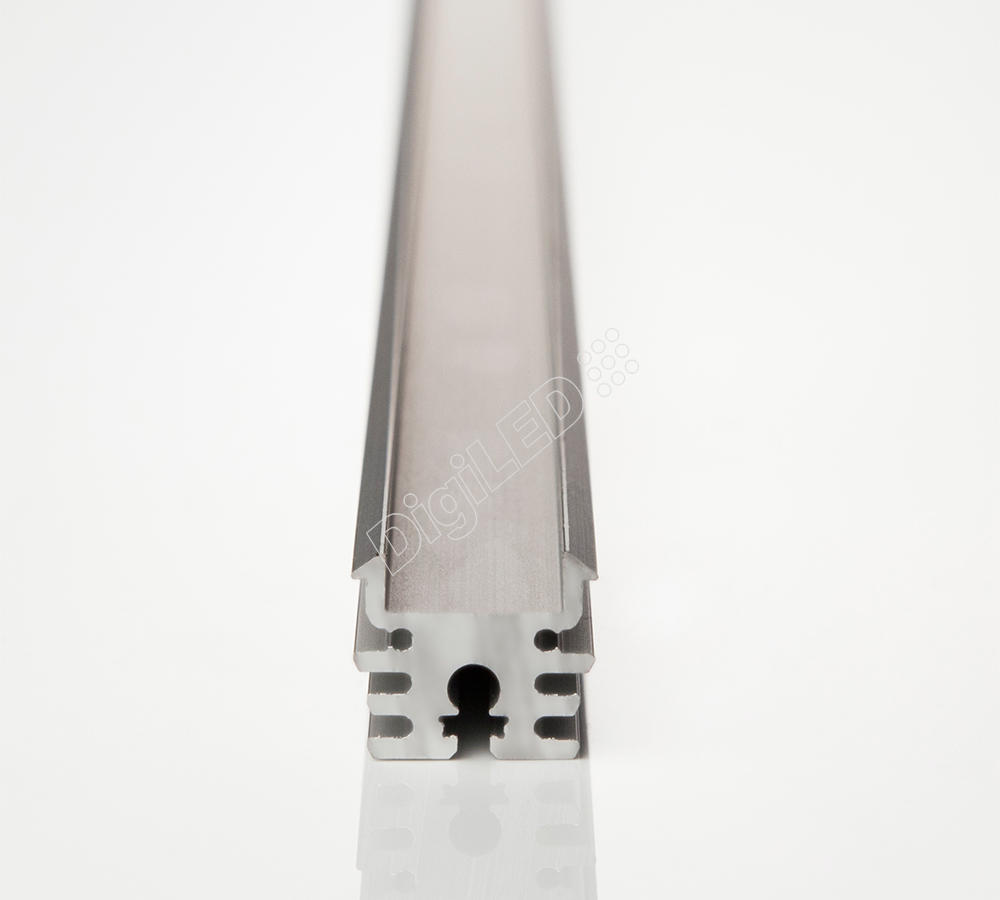

  • Aluminium mounting plate for LED modules up to a width of 12 mm

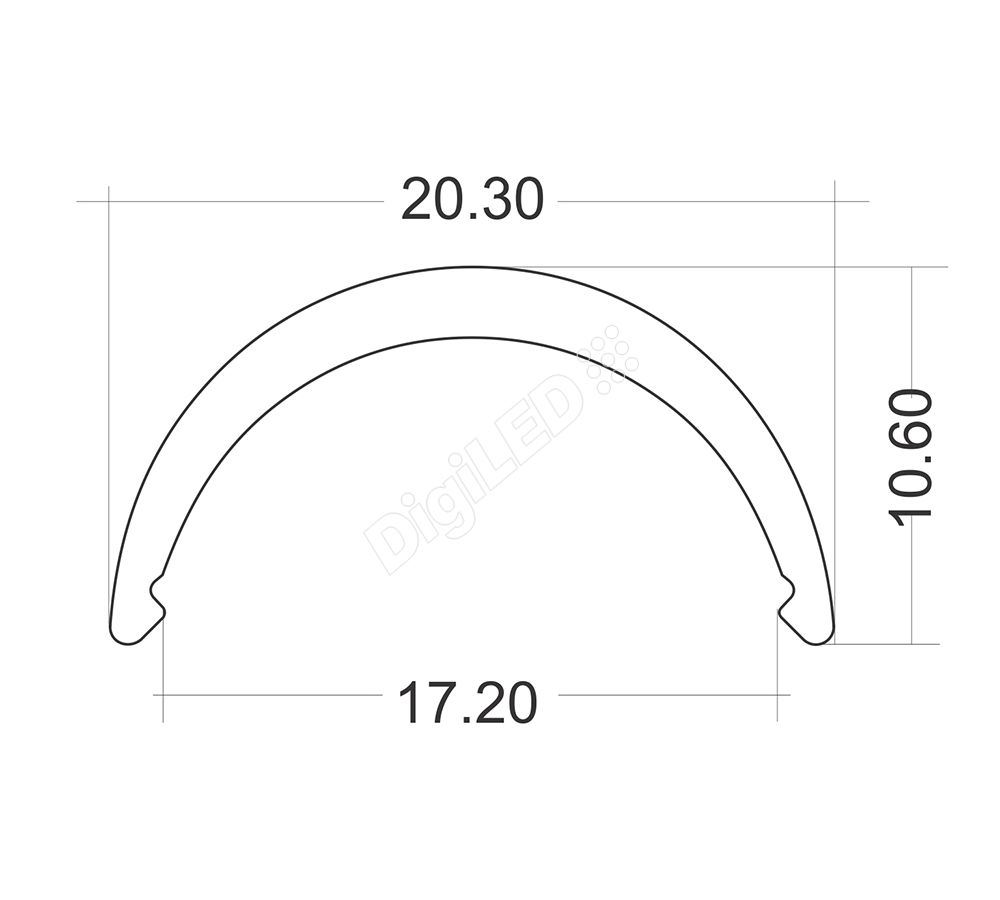

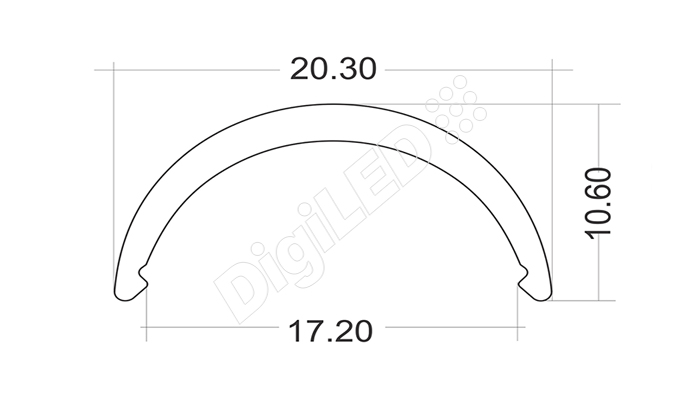

  • Use in combination with different lenses is possible
  • Aluminium, anodised natural

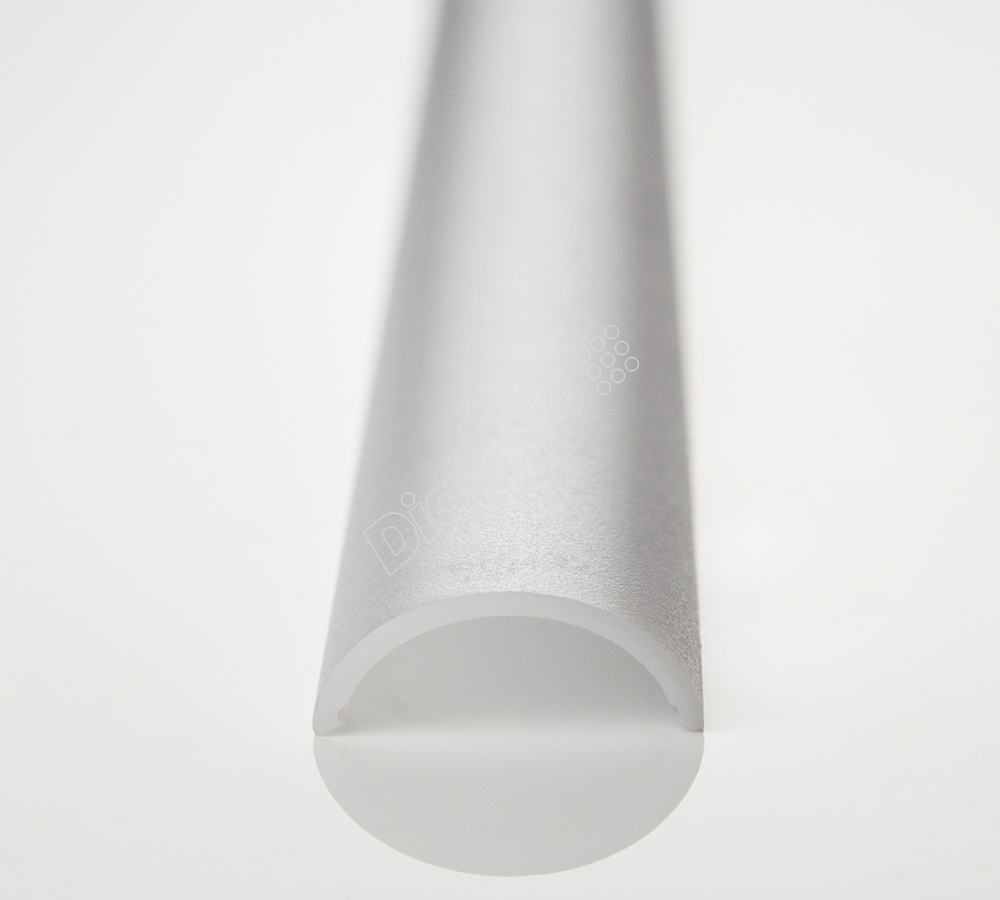

  • Mounting unit for plastic cover
  • Installation with Fixing Plates

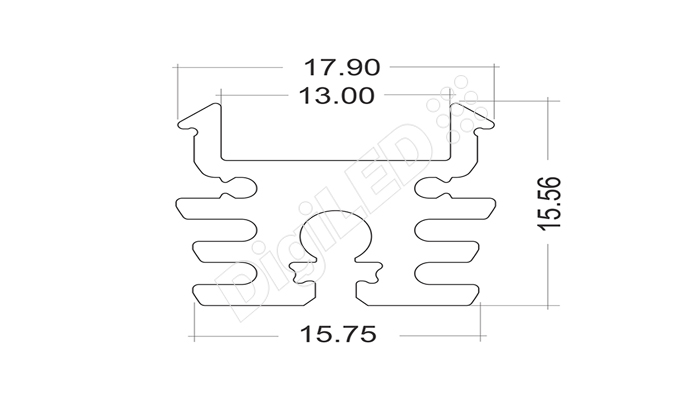

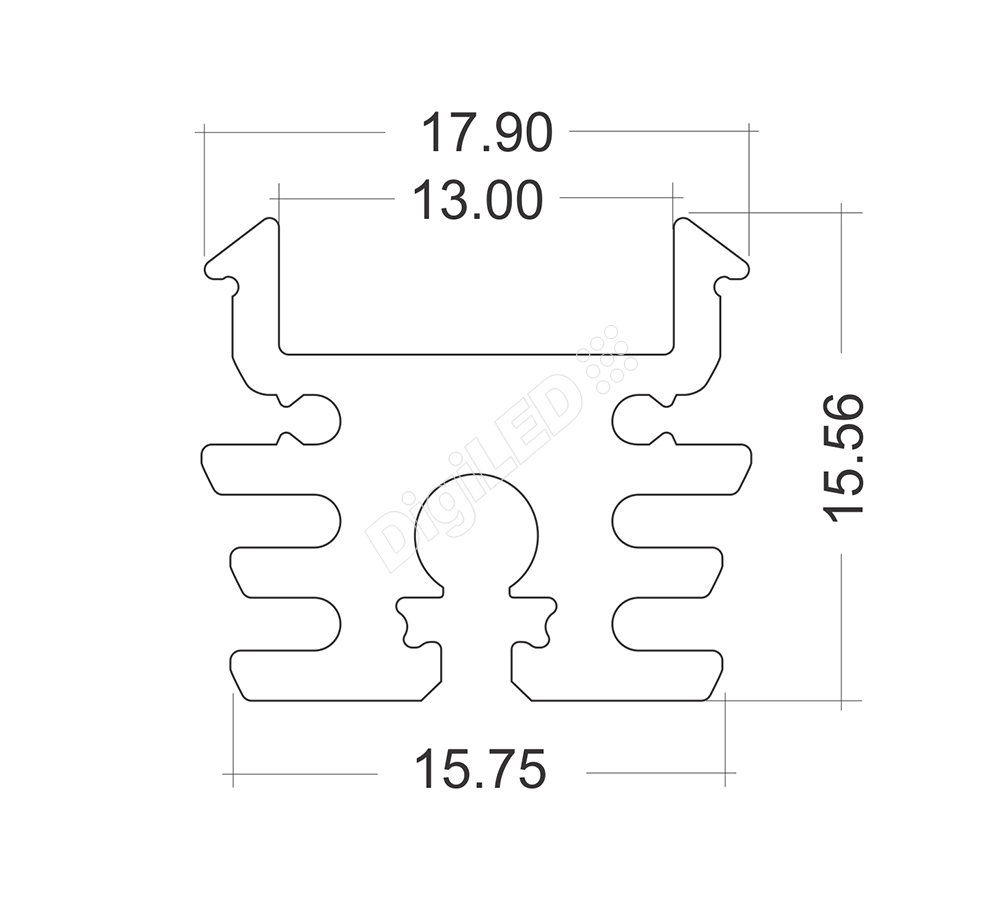

  • Compact cross-section (15.56 x 17.9 mm)
  • Can be expanded with extensive accessories (optional)

Applications

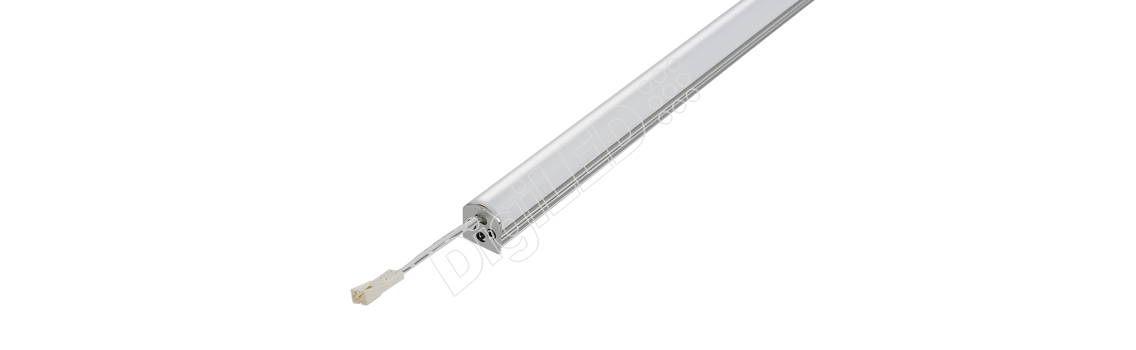

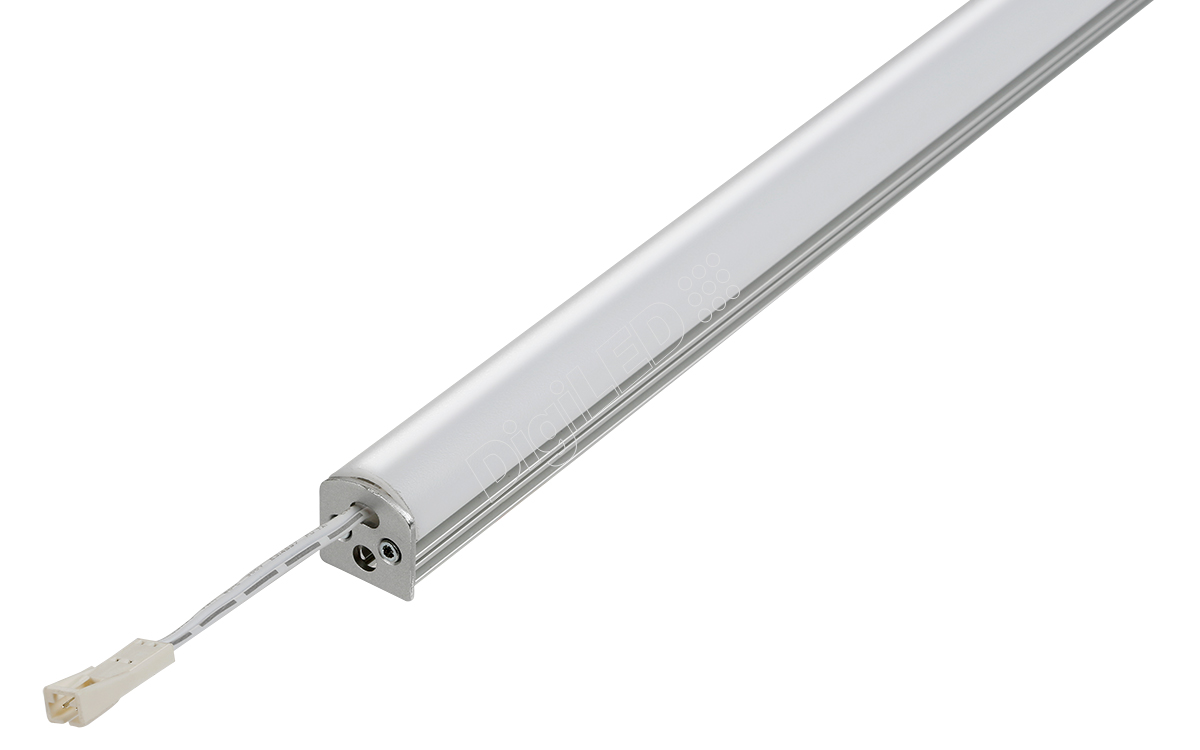

This is a medium size aluminum profile (we call it also our “High Performance Profile” because of ability to carry LED tapes with higher power) for LED Strips/modules with max. 28W/m power.

  • Cabinet Lighting
  • Kitchen lighting
  • Architectural lighting
  • Directional lighting with Lenses
  • Furniture Lighting
  • General lighting with covers
  • Ultra-Bright lighting applications

Specifications

Part No Cover V in Length Mm CCT Watts LED PCB PROFILE
Z22-CW Frosted 12 - 24 V DC 1000 mm CW/ NW/ WW 14.4 to 24 OSRAM 60 LED/M AL Z22W

Accessories For Z22-CW Profile

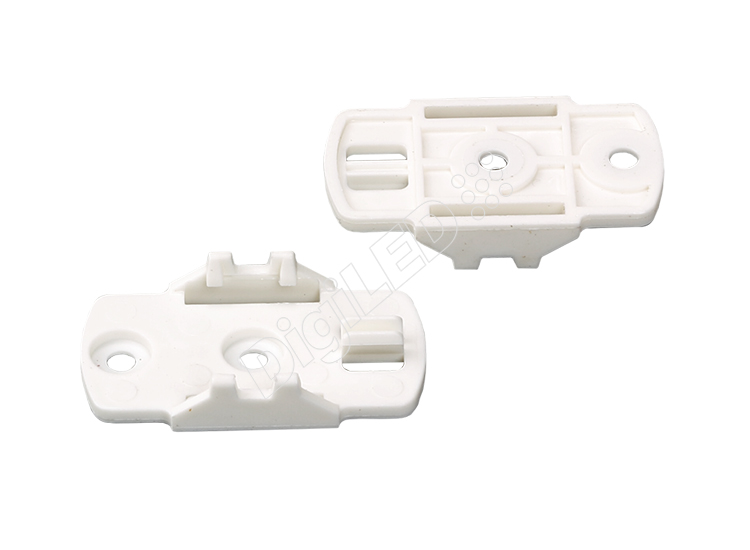

0 Degree Fixing Plate

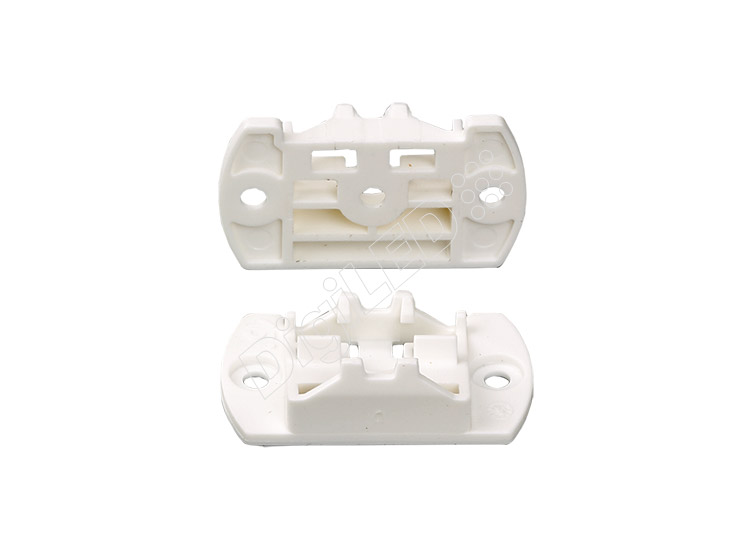

15 Degree Fixing Plate

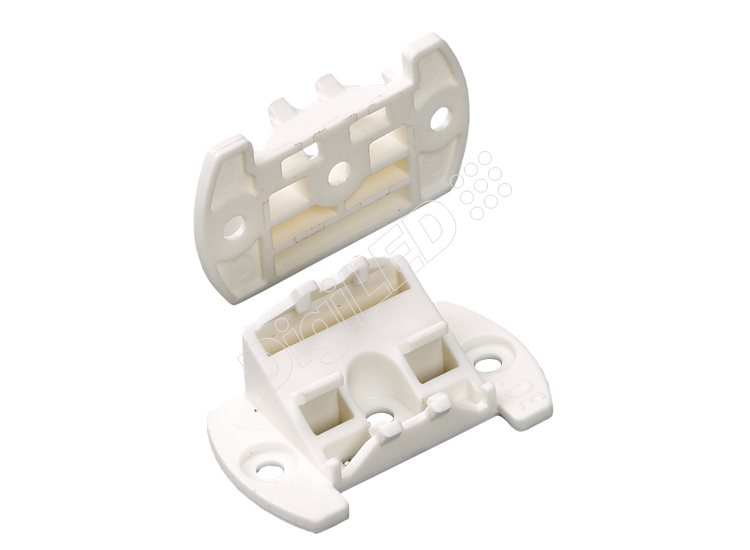

30 Degree Fixing Plate

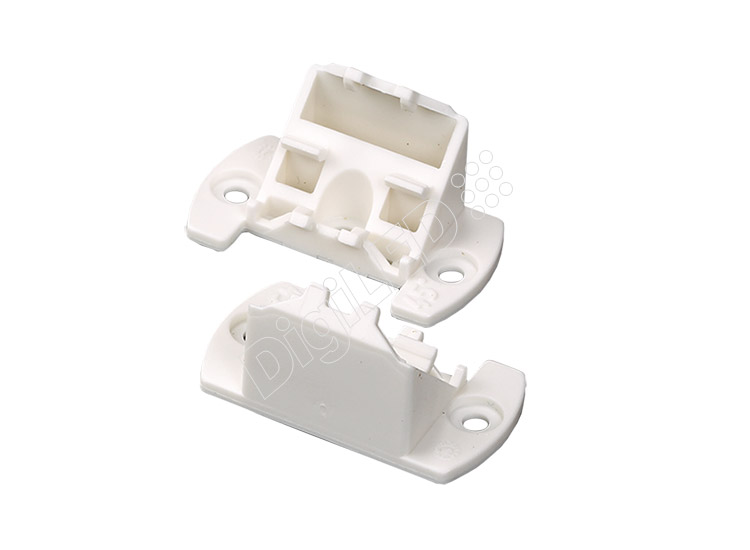

45 Degree Fixing Plate

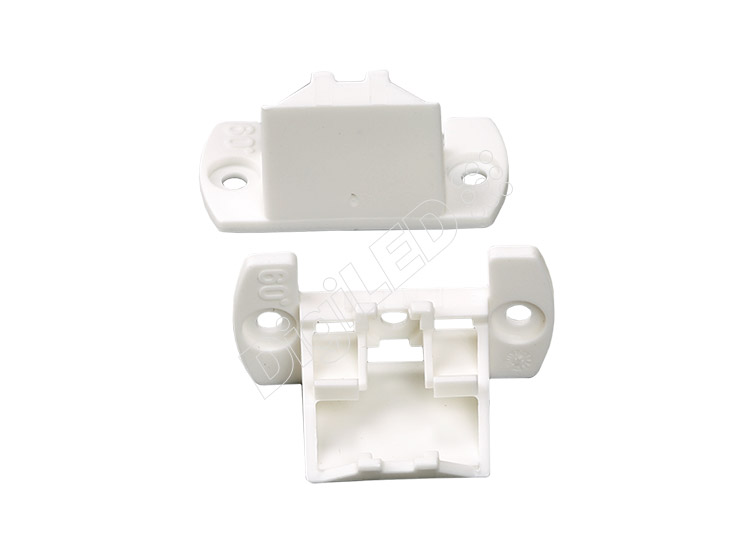

60 Degree Fixing Plate

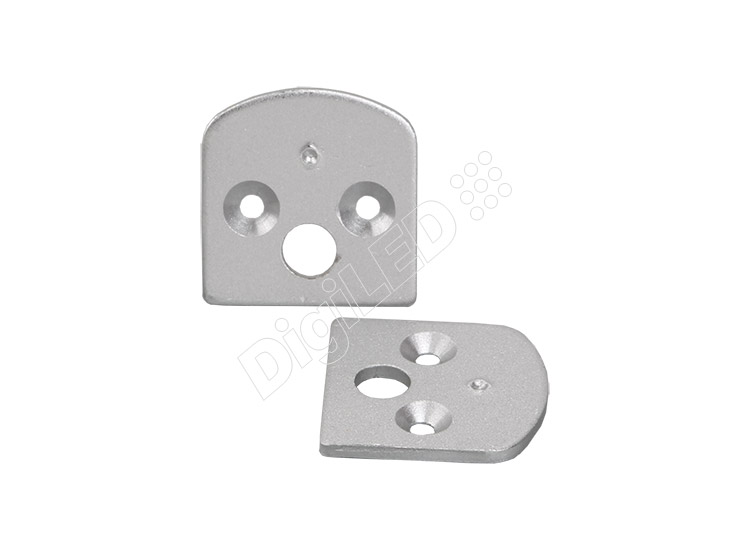

End Cap

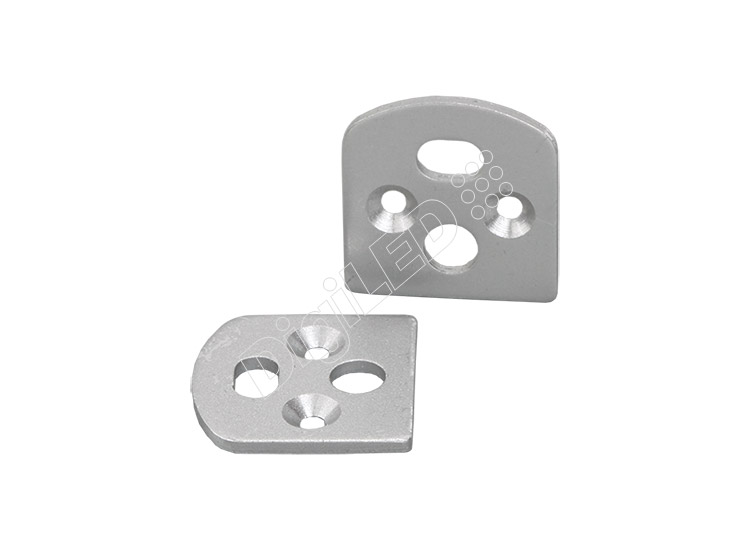

End Cap With Cable Entry
