Features

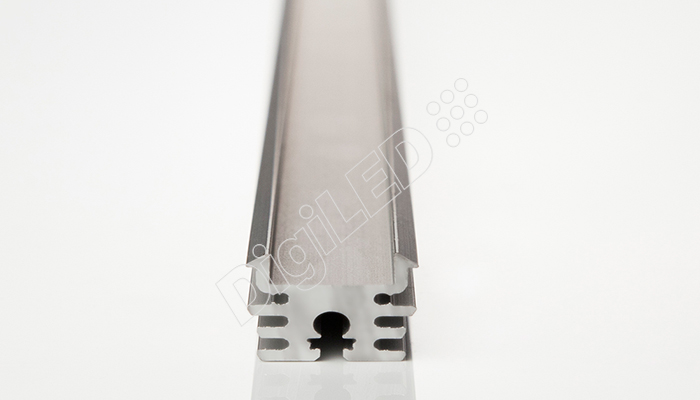

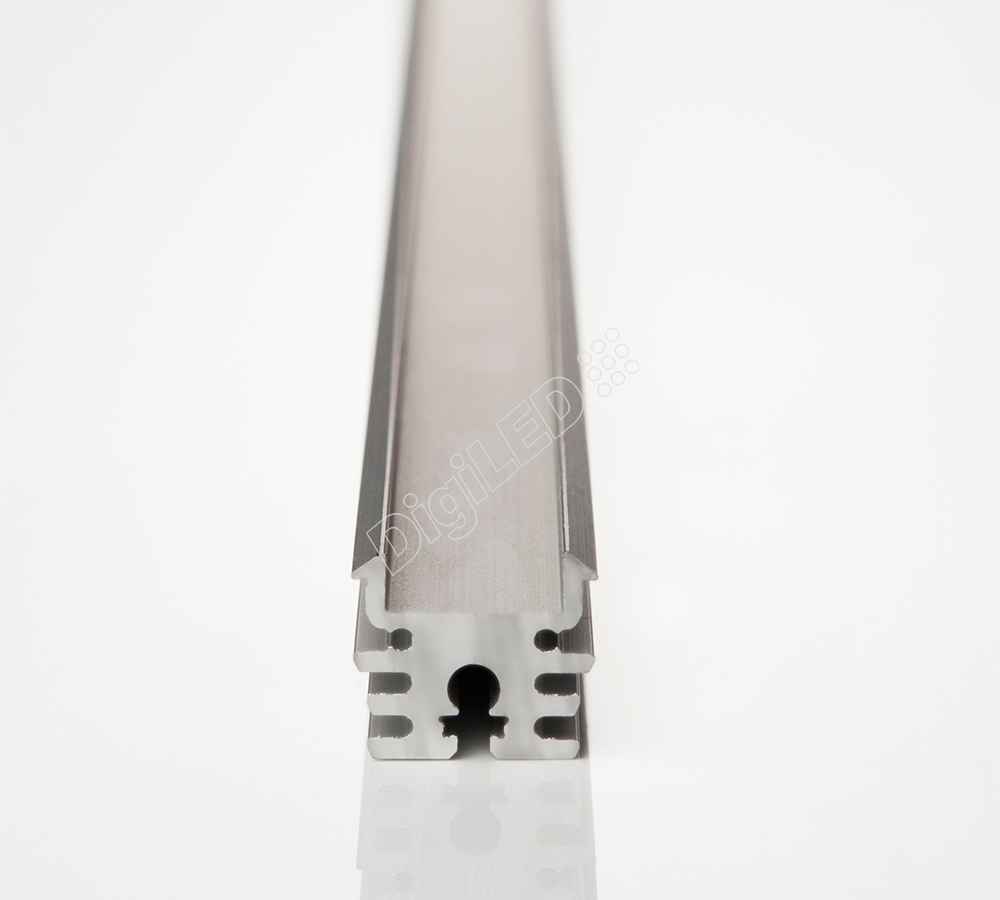

  • Aluminium mounting plate for LED modules up to a width of 12 mm
  • Use in combination with different lenses is possible
  • Aluminium, anodised natural

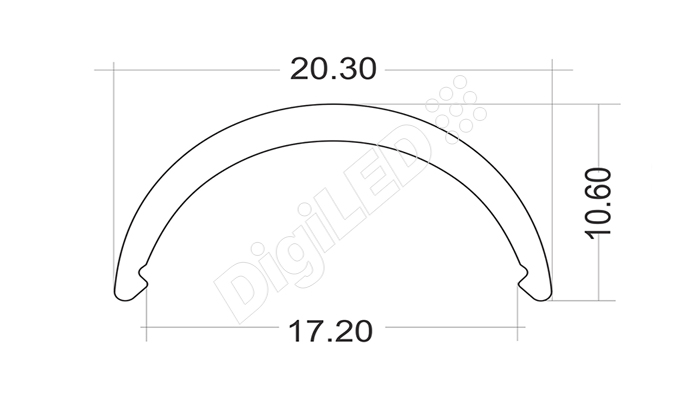

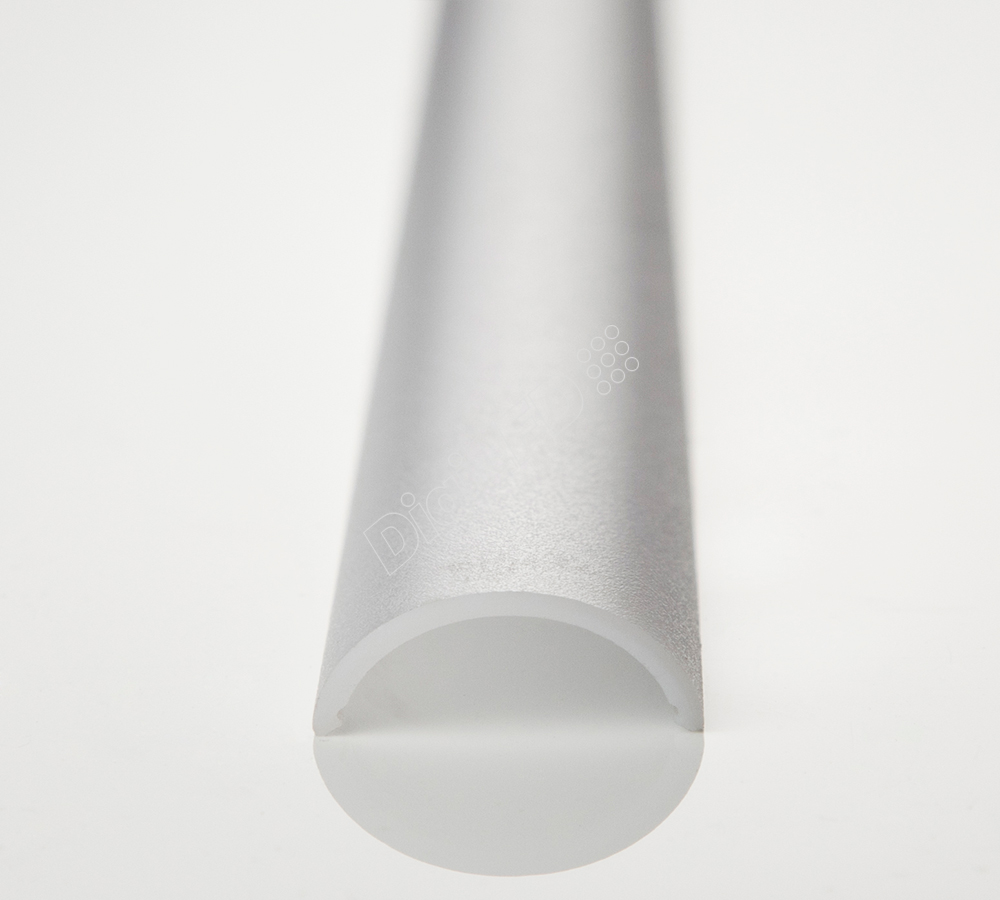

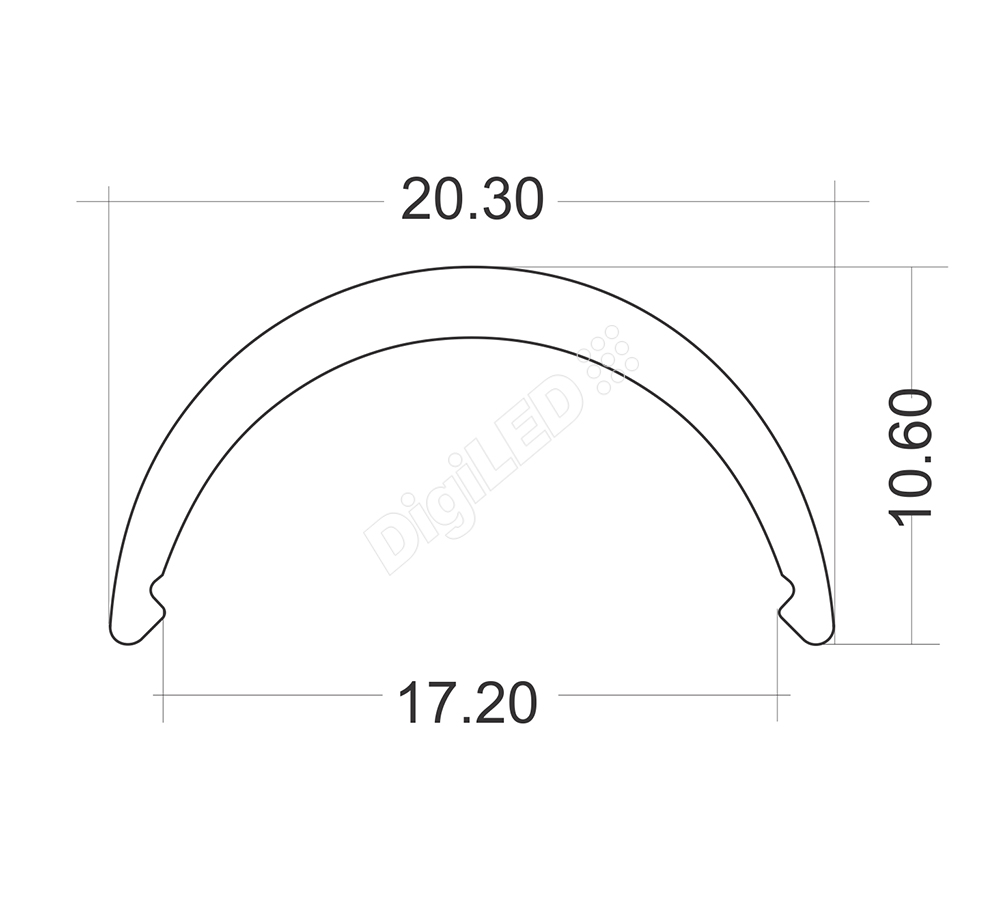

  • Mounting unit for plastic cover
  • Installation with Fixing Plates

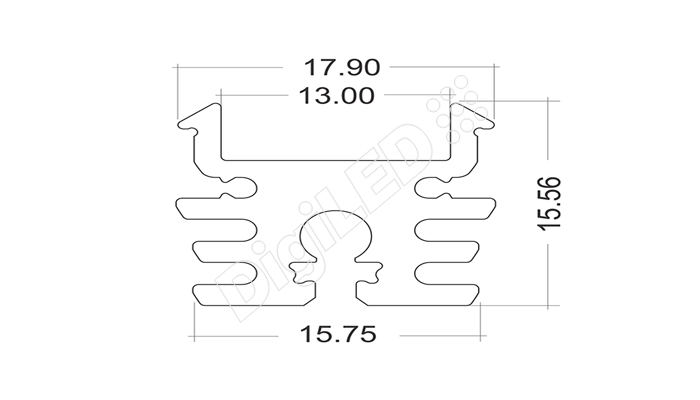

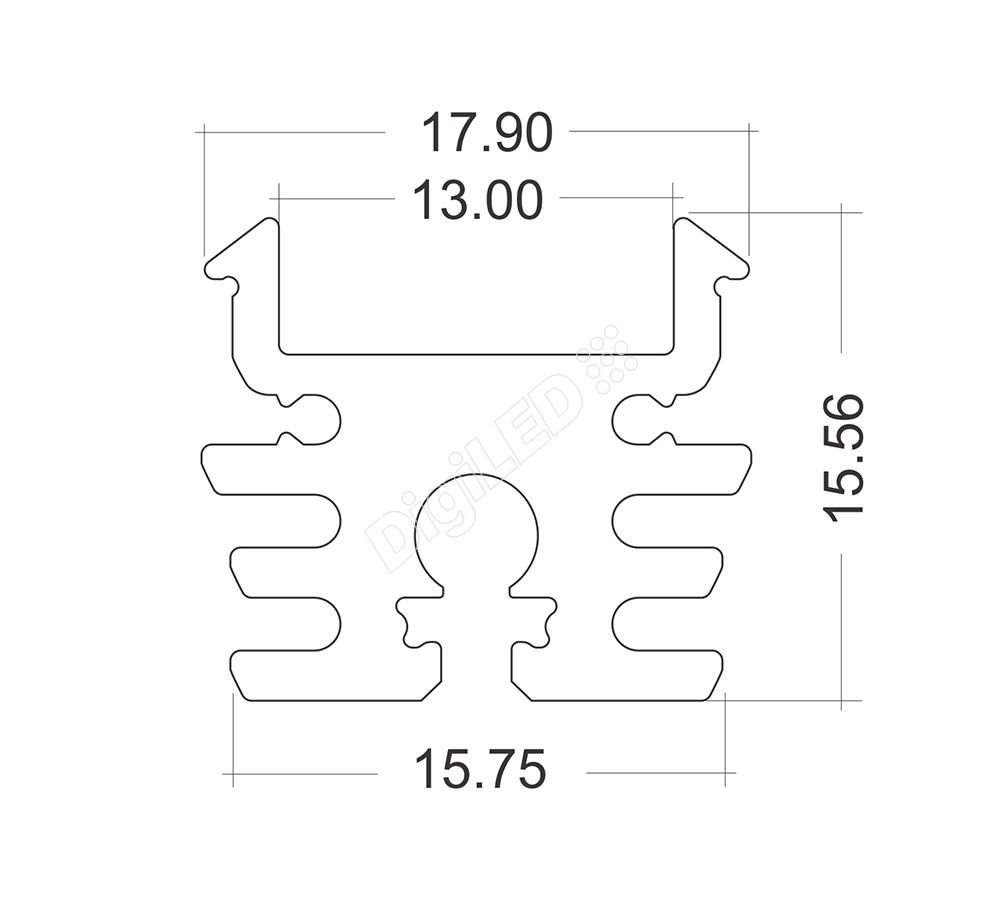

  • Compact cross-section (9 x 18 mm)
  • Can be expanded with extensive accessories

Applications

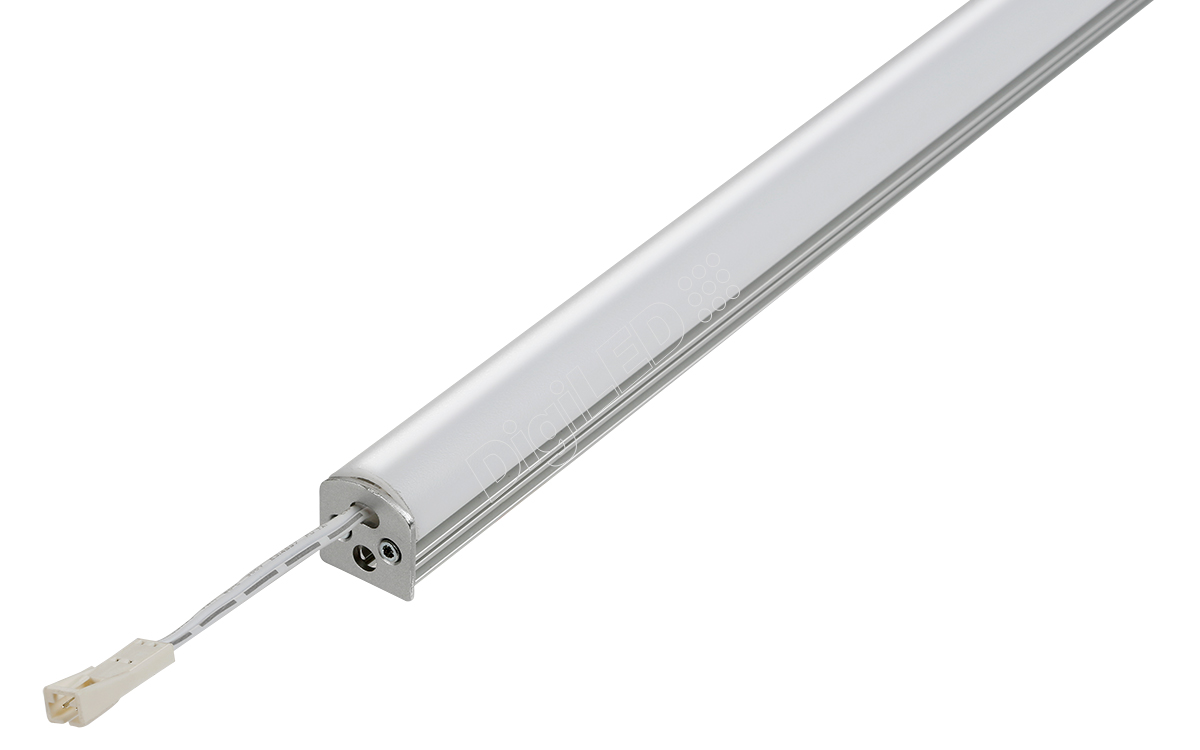

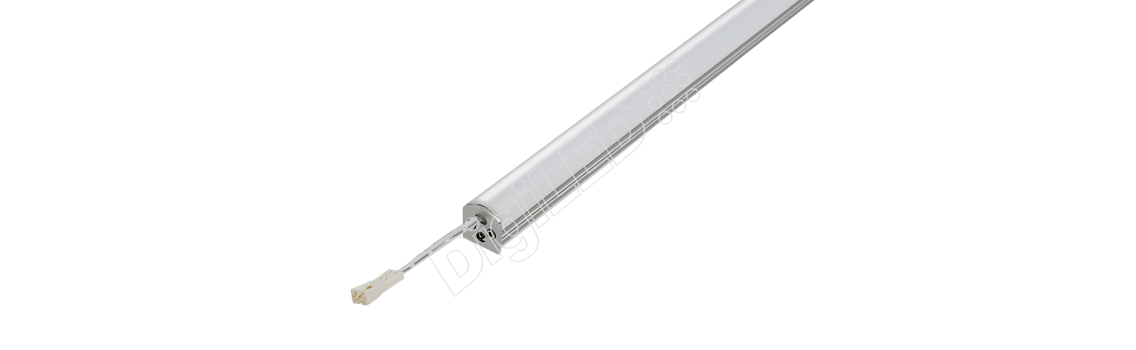

Small size aluminum profile (we call it also our “High Efficiency Profile” because of low price of profile and plastic end caps) for LED strips/modules with max. 22W/m power.

  • Cabinet Lighting
  • Kitchen lighting
  • Architectural lighting
  • Directional lighting with Lenses
  • Furniture Lighting
  • General lighting with covers
  • Ultra-Bright lighting applications

Specifications

Part No Cover V in Length Mm CCT Watts LED PCB PROFILE
Z2-CW White 12 - 24 V DC 1000 mm CW/ NW/ WW 4.8 to 14.4 OSRAM 60 LED/M AL Z201

Accessories For Z2-CW Profile

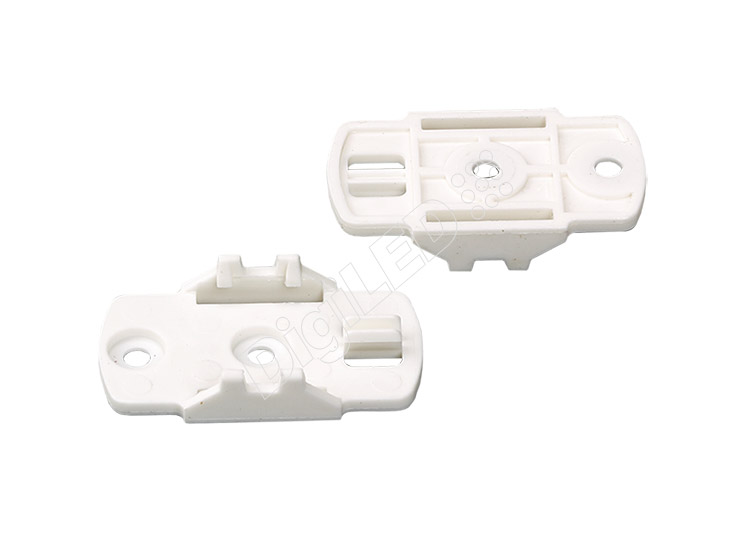

0 Degree Fixing Plate

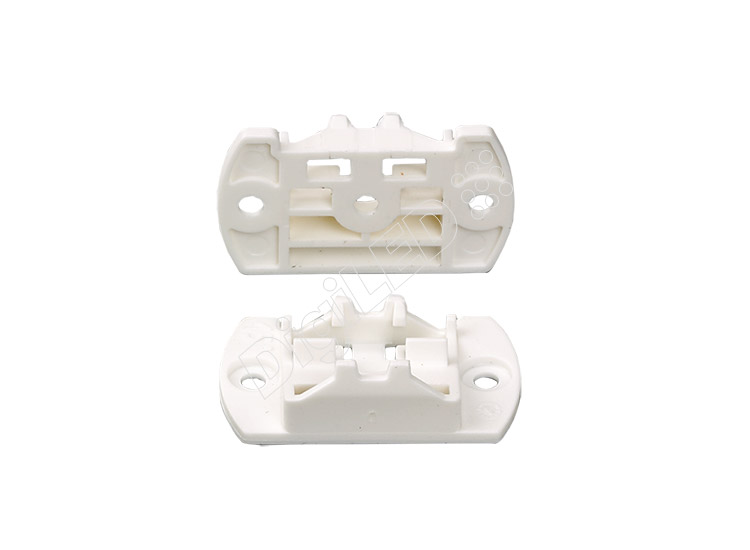

15 Degree Fixing Plate

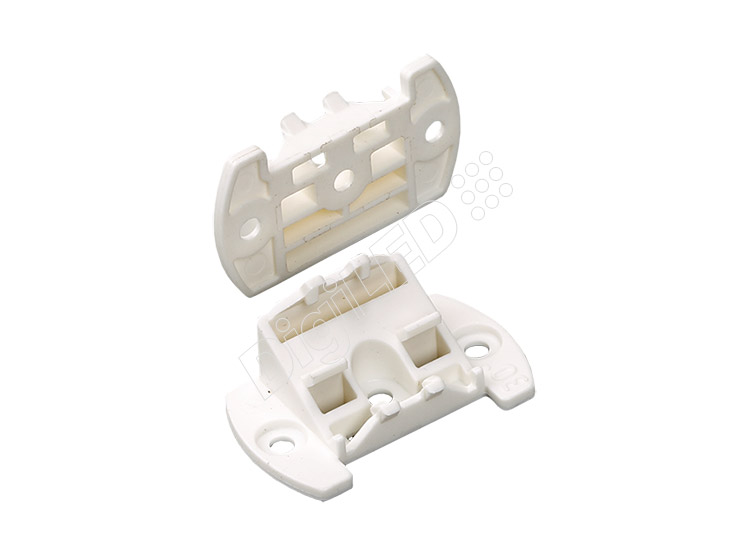

30 Degree Fixing Plate

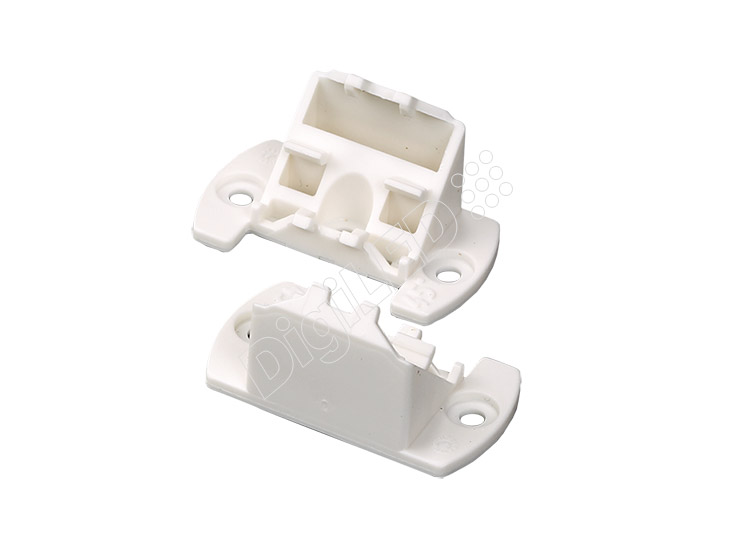

45 Degree Fixing Plate

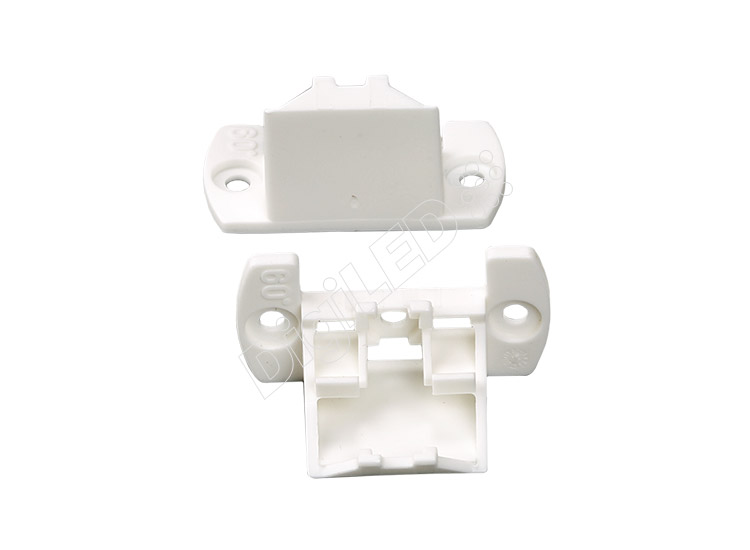

60 Degree Fixing Plate

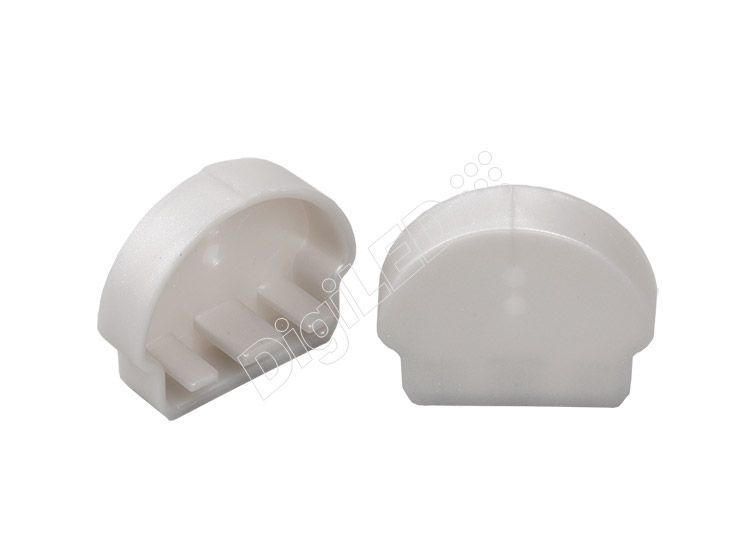

End Cap
