OPERA STRIP

OPERA

2.4 W per Module | 6 LED / Module | 12 Volt DC
and Constant current chip incorporated

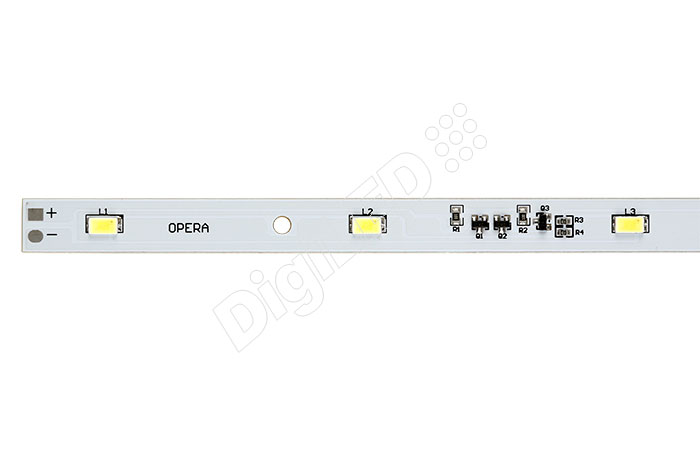

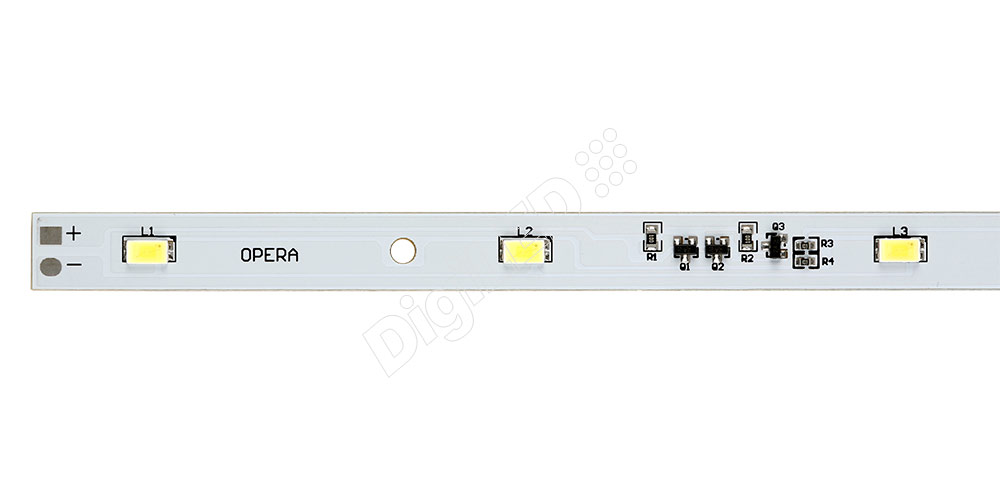

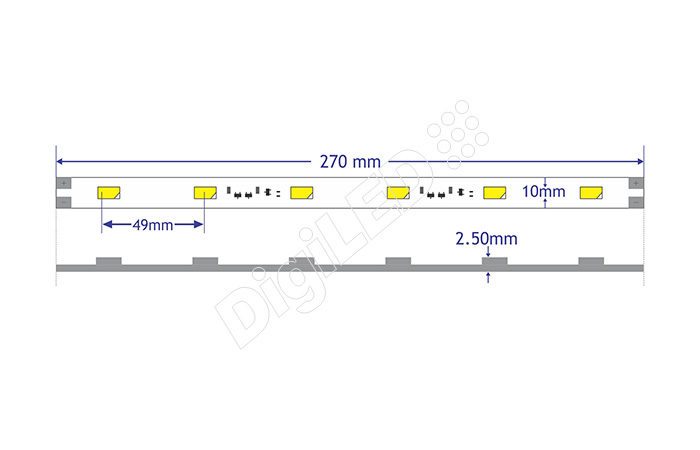

LED Rigid Strip Strip Top View Strip Diagram

Advantages

  • High brightness single color led strip
  • 5630 SMT package
  • High luminous intensity
  • Slim design
  • High reliability
  • Solid state, high shock, vibration resistant
  • Maintenance free, easy installation, long life
  • Very low power consumption and low heat
  • Good thermal conductivity
  • Easy to pack, ship and install

LED SPECIFICATIONS

  • 38-45 Lm
  • Package size: 5.6 X 3.0 X 0.87 mm
  • High brightness chip LED SMD (top view) type
  • High luminous intensity

Specifications

LED COLORS SIZE INPUT VOLTAGE CURRENT BEAM ANGLE OPERATING TEMPERATURE CUTTABLE SIZE PCB POWER
6 LED / module CW/ NW/ WW 10 mm W x 270 mm L x 1.6 mm H DC 12 VOLT 0.2 A 1200 -200~ +600 270 mm FR4 2.4 Watt / Module
