Ex Line

Standard Specifications : CC 35.00 W/ 1.2 METER

Note

  • Standard Sizes : 300 MM, 600 MM, 1200 MM, 2400 MM

Applications

  • Economical Suspended
  • Surface Commercial Linear Lighting for Office
  • Residence etc.

Specifications

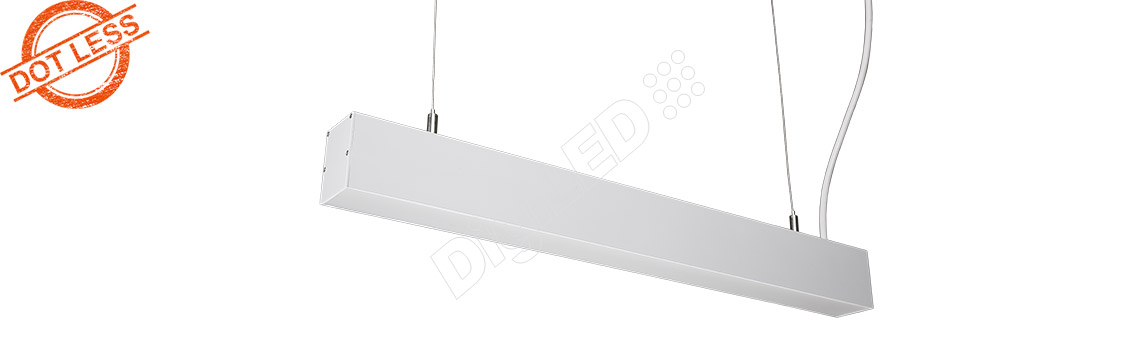

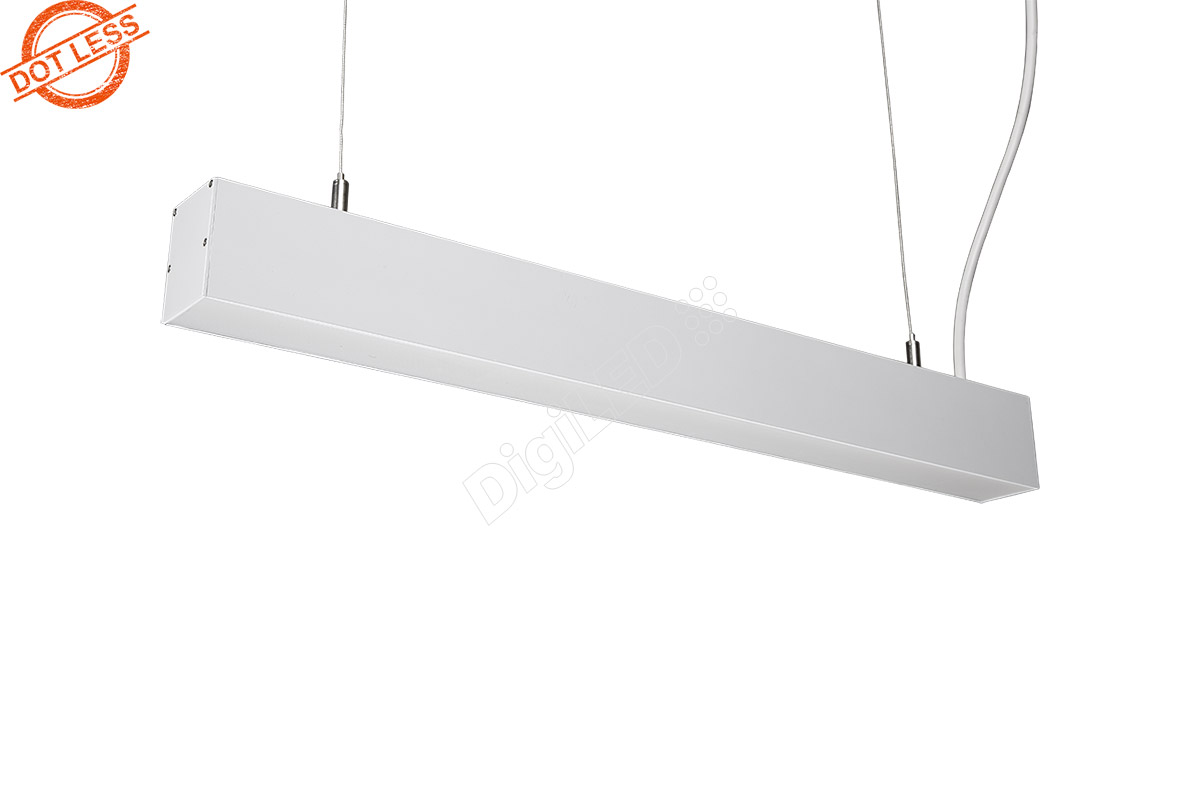

Ex Line SUSPENDED LINEAR LIGHT

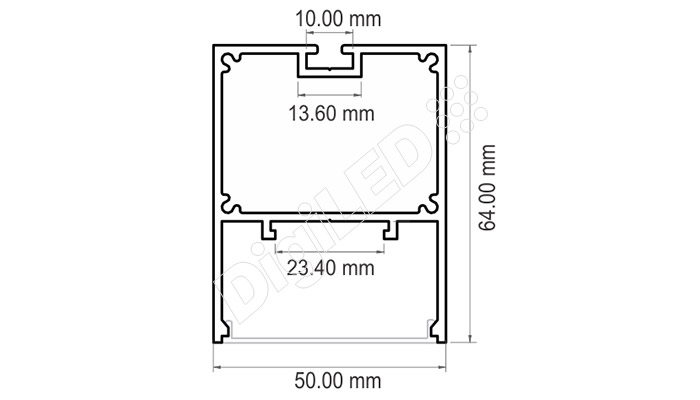

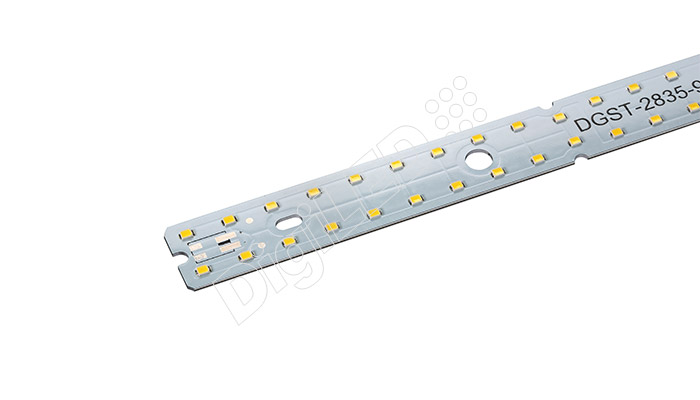

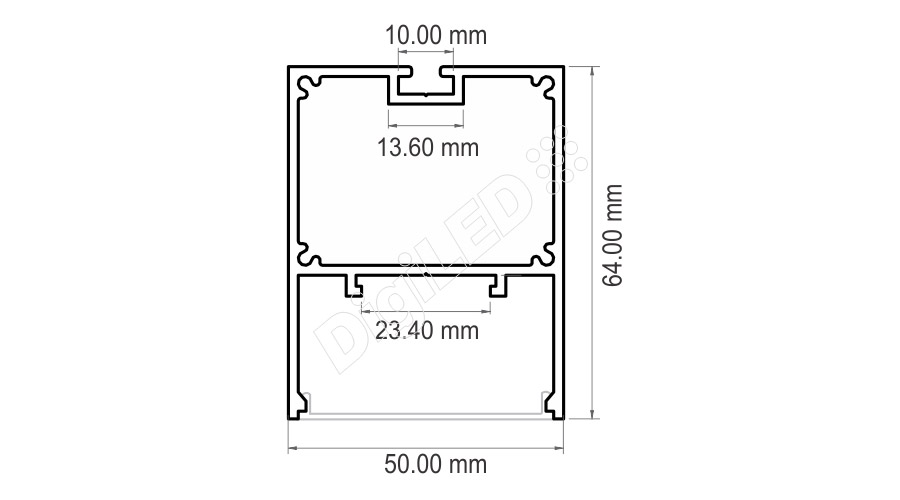

Profile Size [W X H] Led package CRI LM/LED Input Power Maximum Watt/m Apx. Weight Kg /m Coating
TOP-5064 50 X 64 2016/ 2835 70 - 85 24 - 31 CC
1000 MA
30 - 35 00 KG IP30

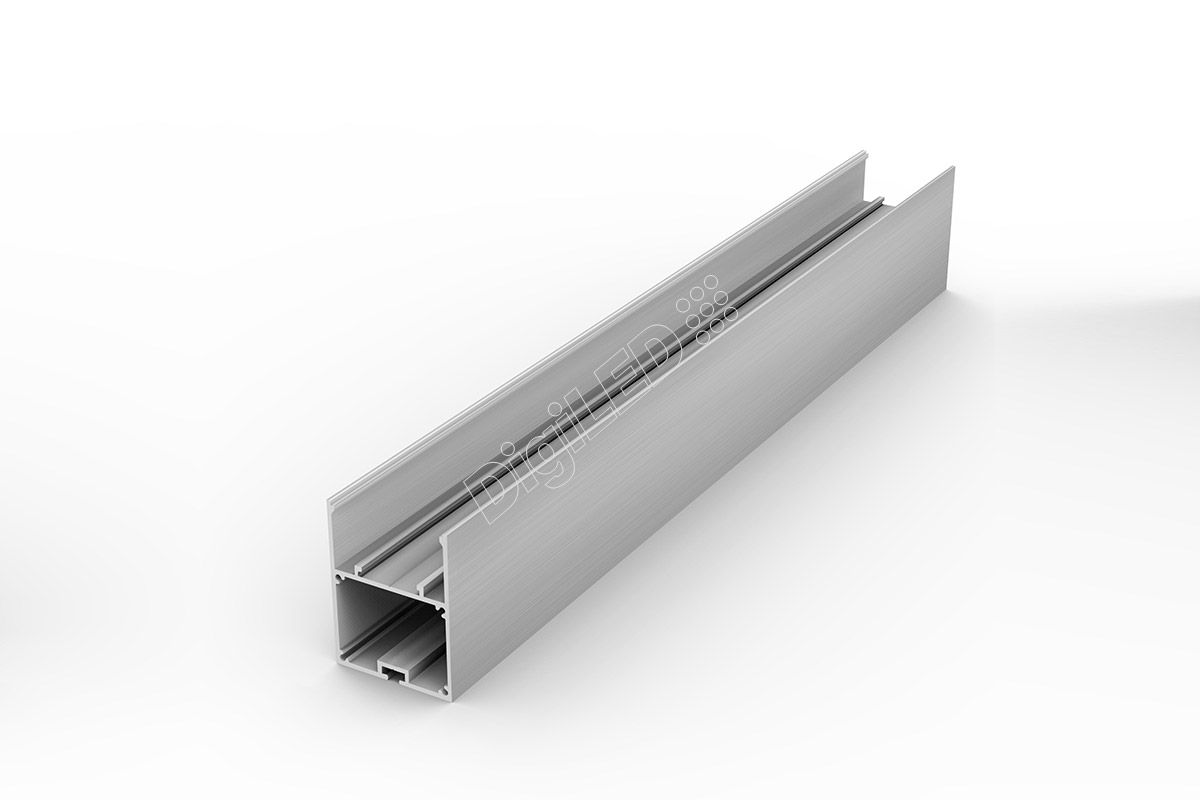

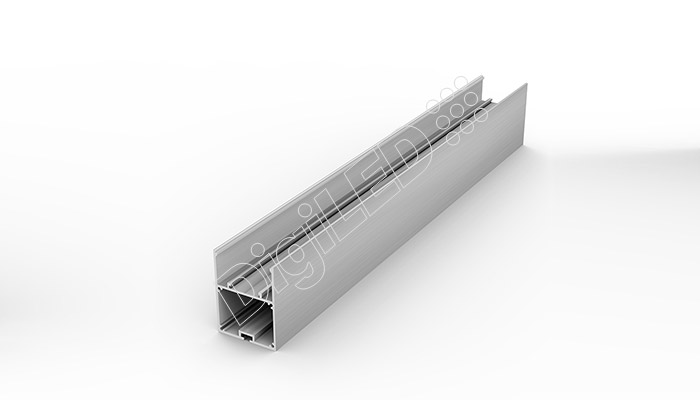

Accessories For Ex Line Profile

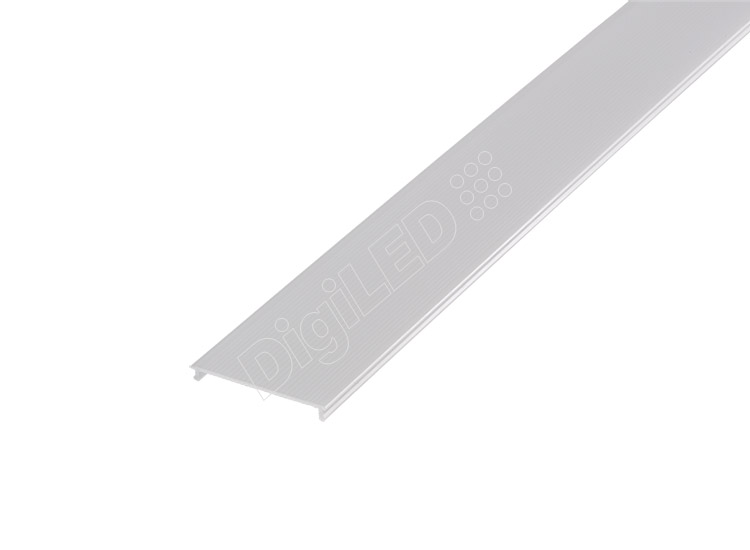

Diffuser

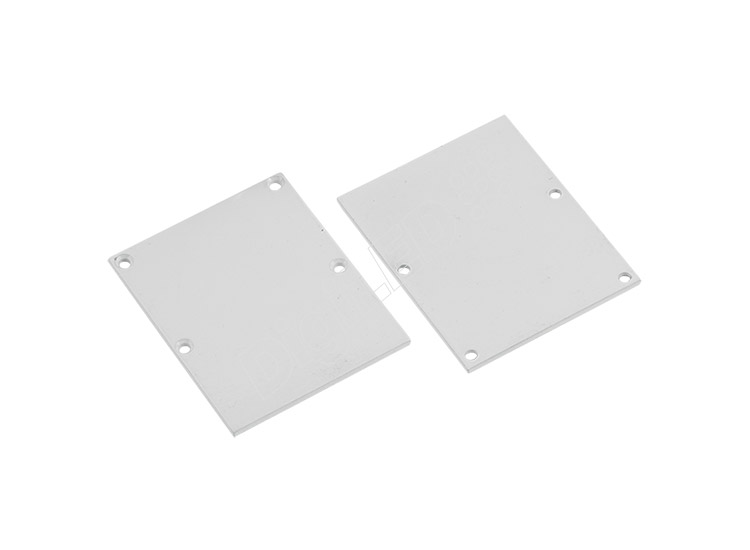

End Caps

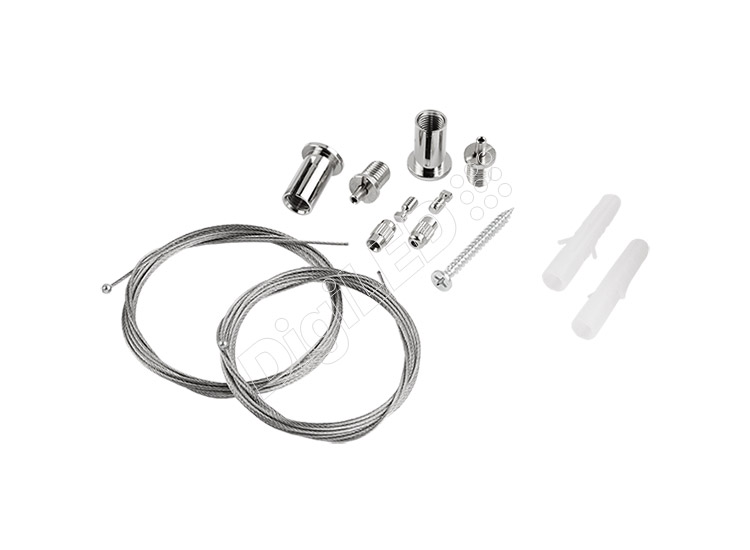

Hanging Rope

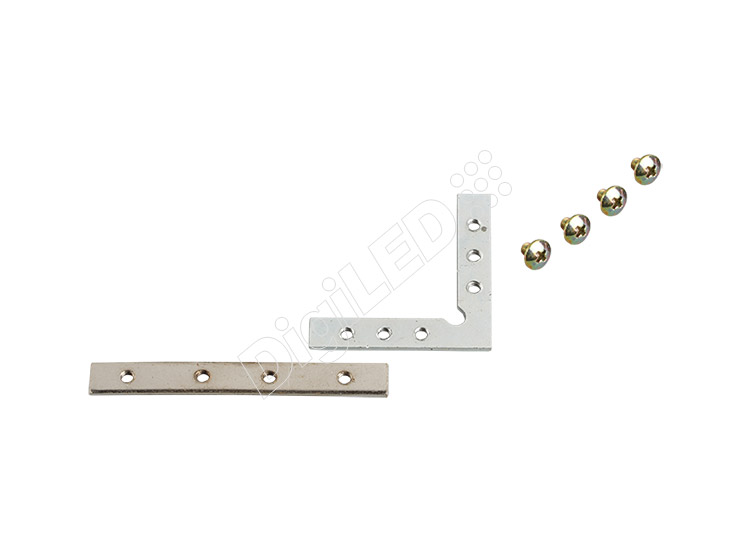

Jointer
