N Line

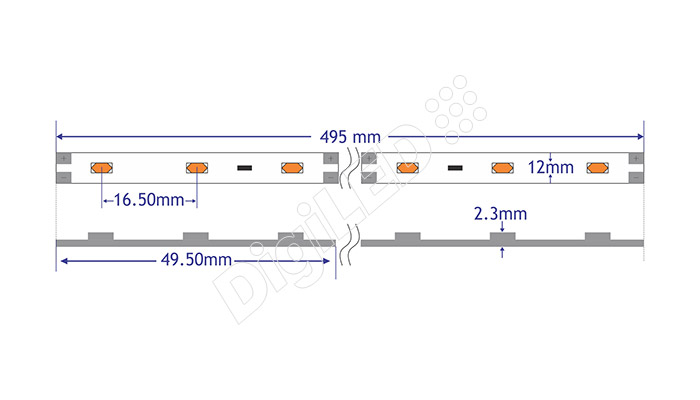

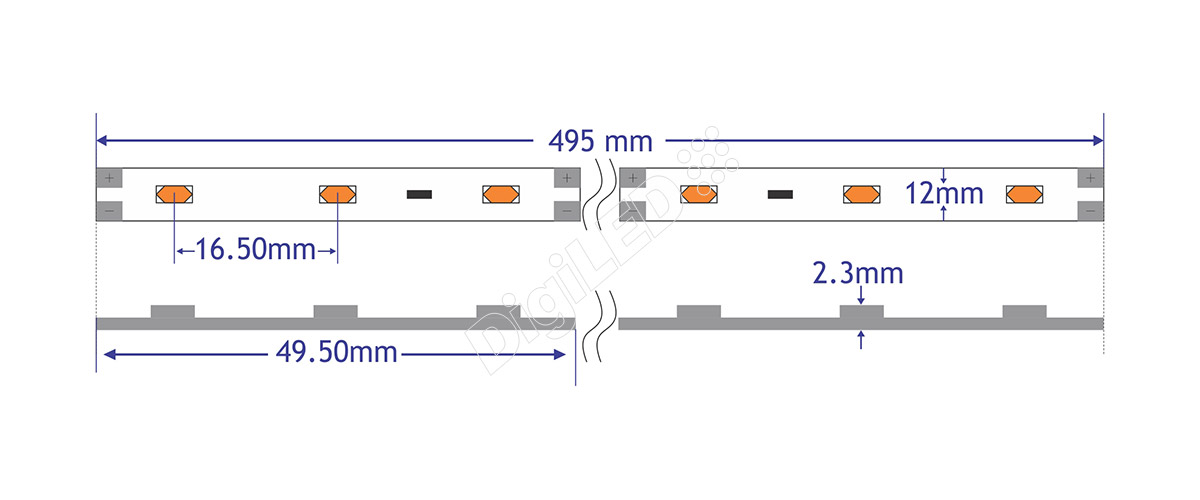

Standard Specifications : CV 24 W/METER

Note

  • Standard Sizes : 500 MM, 1000 MM, 1200 MM, 2000 MM
  • Watts / M : 14.4/ 19.2/ 22

Applications

  • Architectural lighting
  • Decorative
  • Suspended Lighting etc.

Specifications

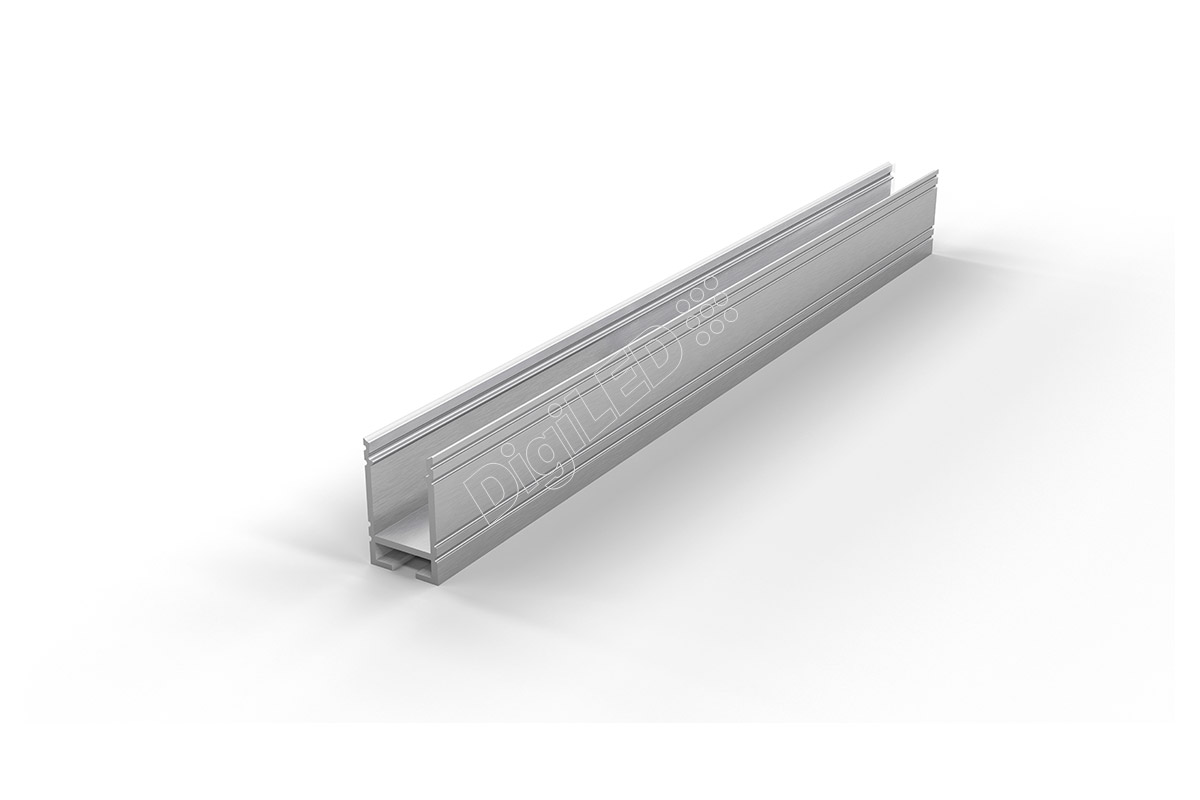

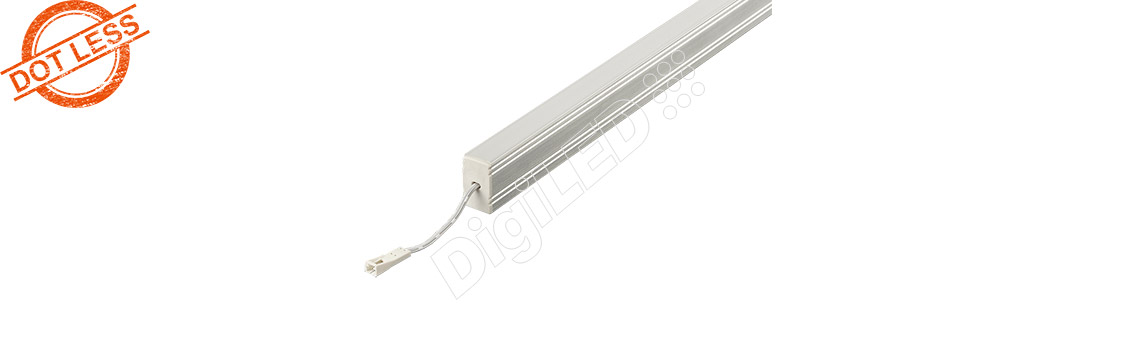

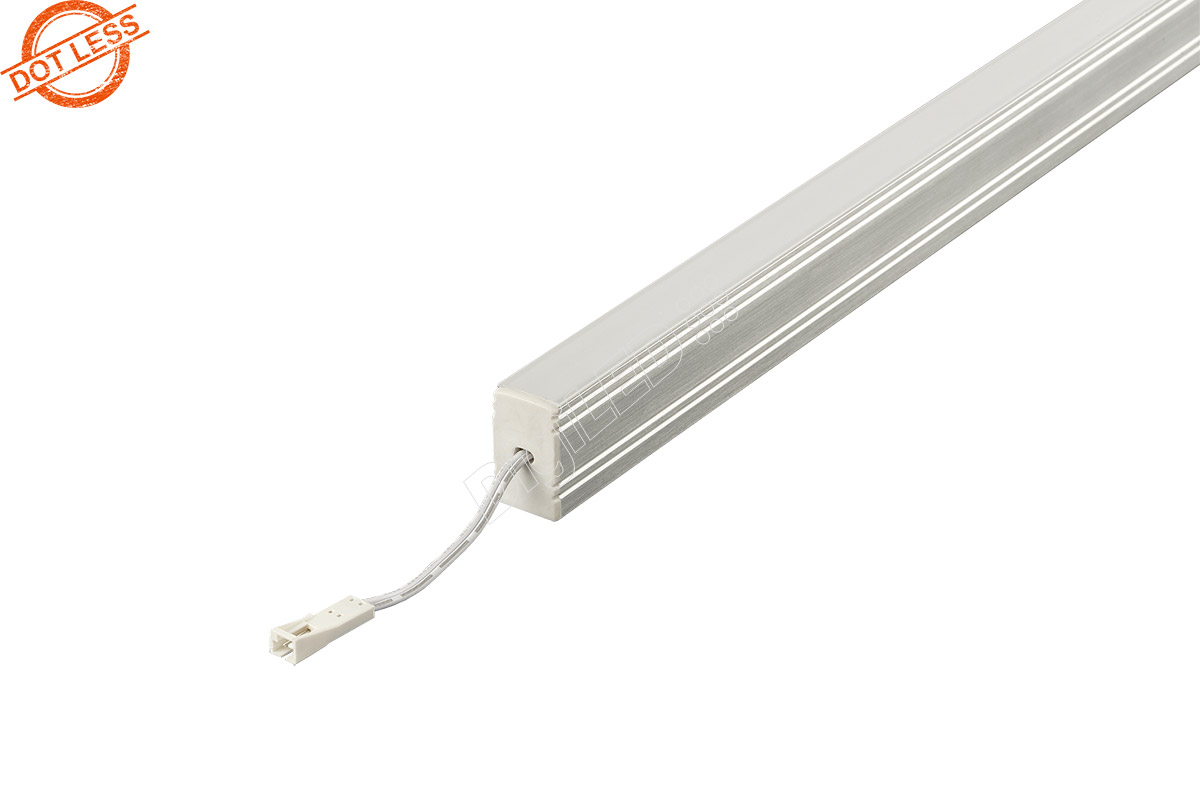

N Line SURFACE LINEAR LIGHT

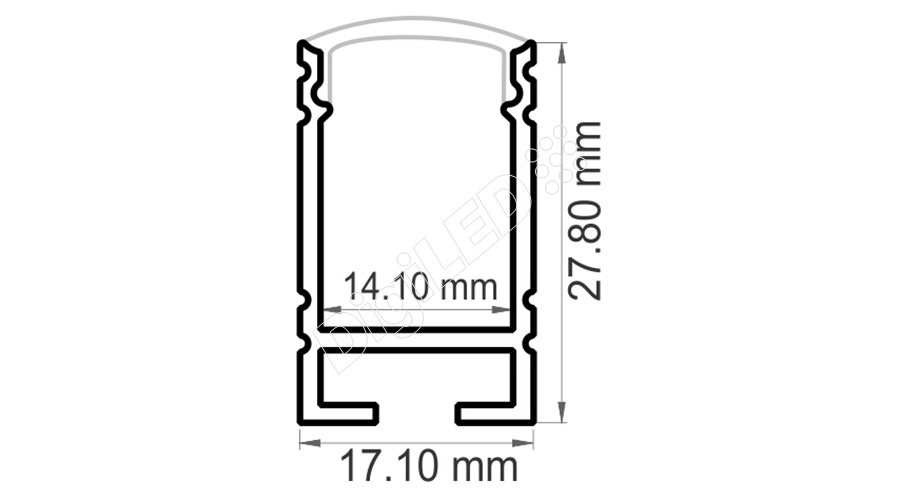

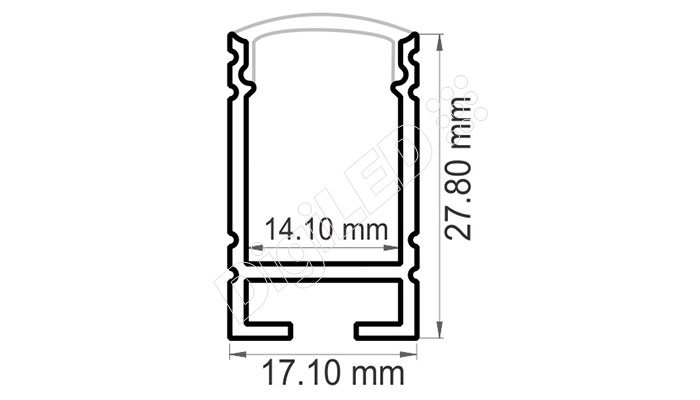

Profile Size [W X H] Led package CRI LM/LED Input Power Maximum Watt/m Apx. Weight Kg /m Coating

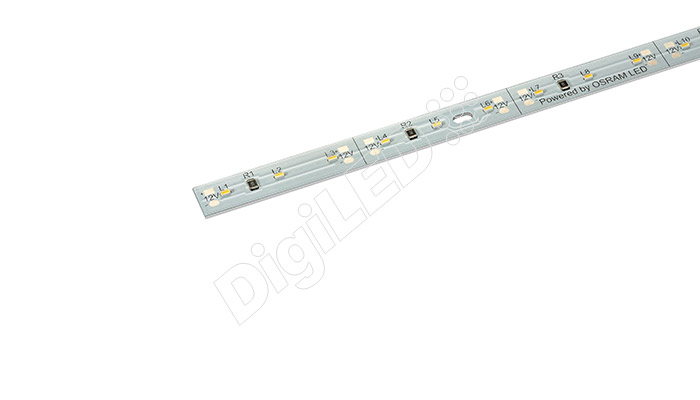

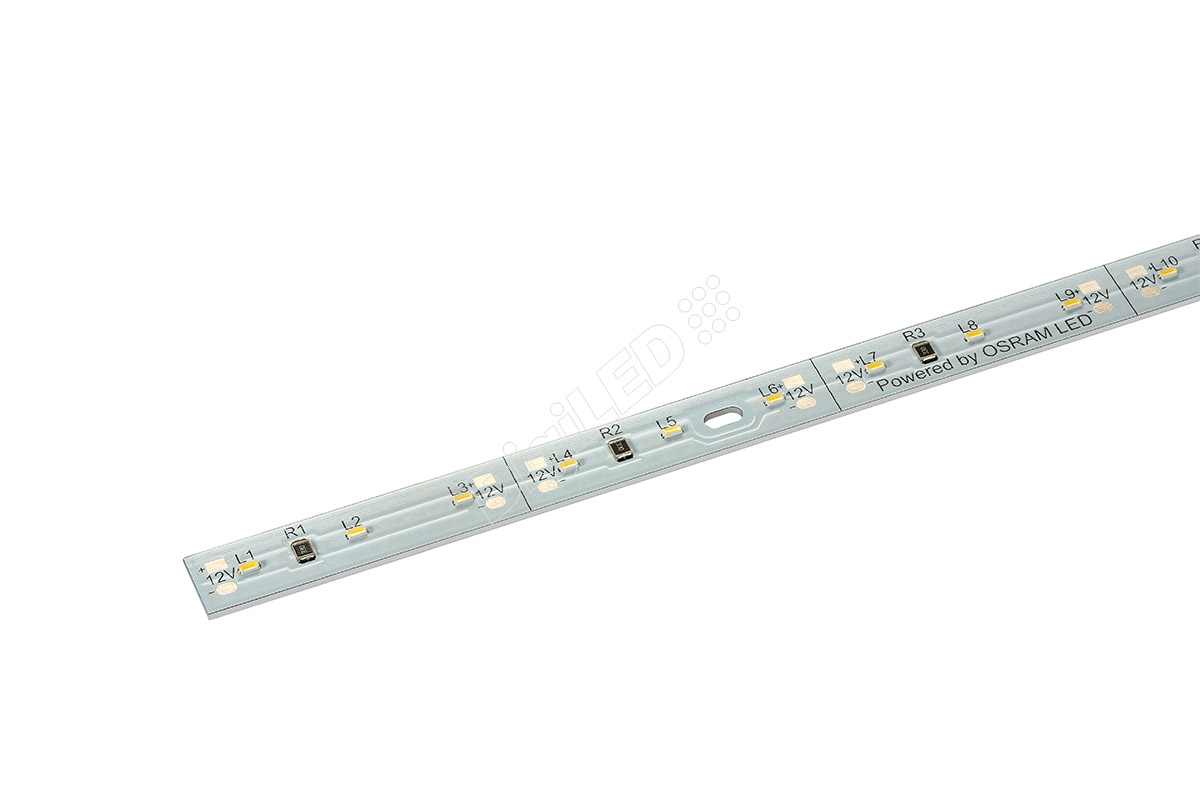

TOP 1828 17.10 X 27.80 2835/ 3014/ 2016/ 5630/ 5730/ 5050 70-85 9-31 CV = 12V DC
CV = 24V DC
22 00 KG IP30 / IP65

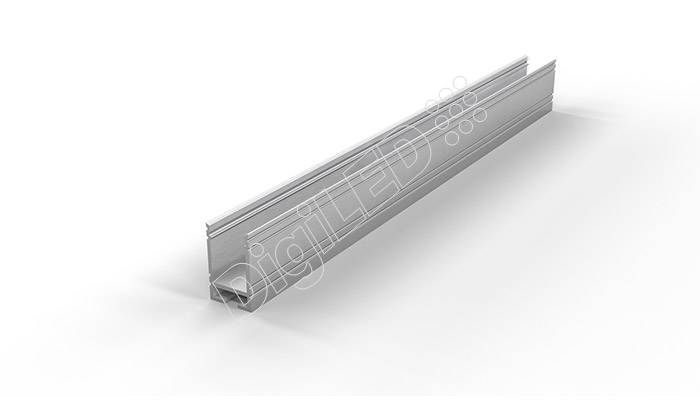

Accessories For N Line Profile

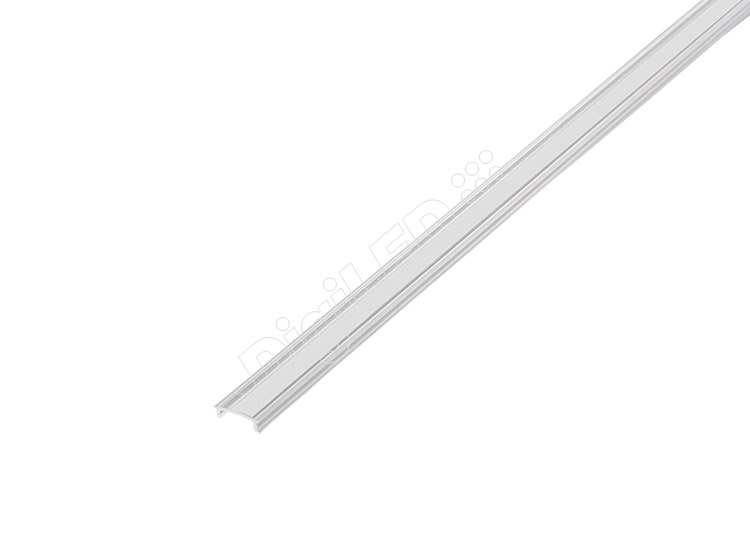

Clear Diffuser

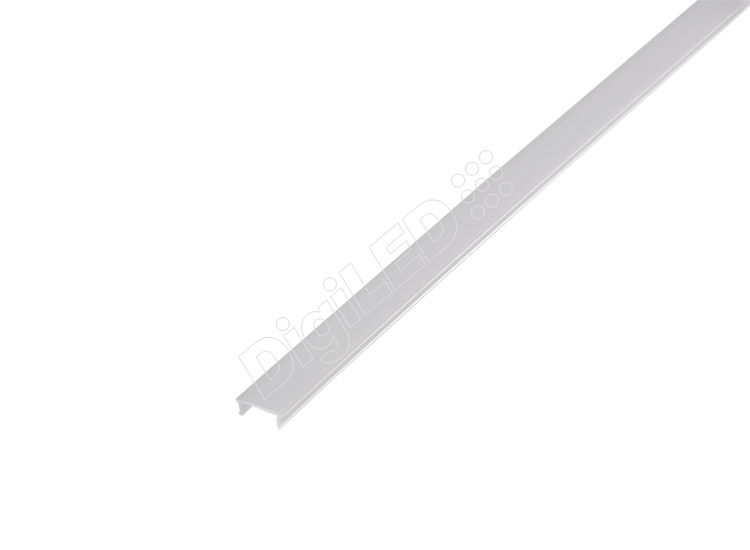

Milky Diffuser

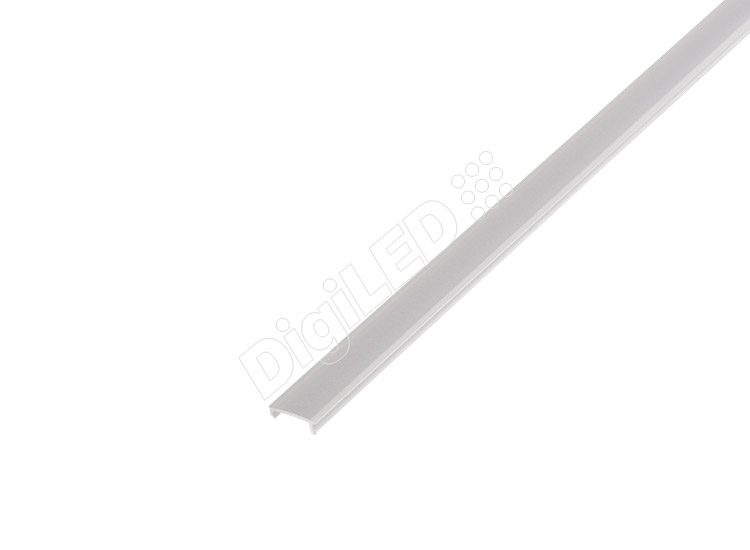

Frosted Diffuser

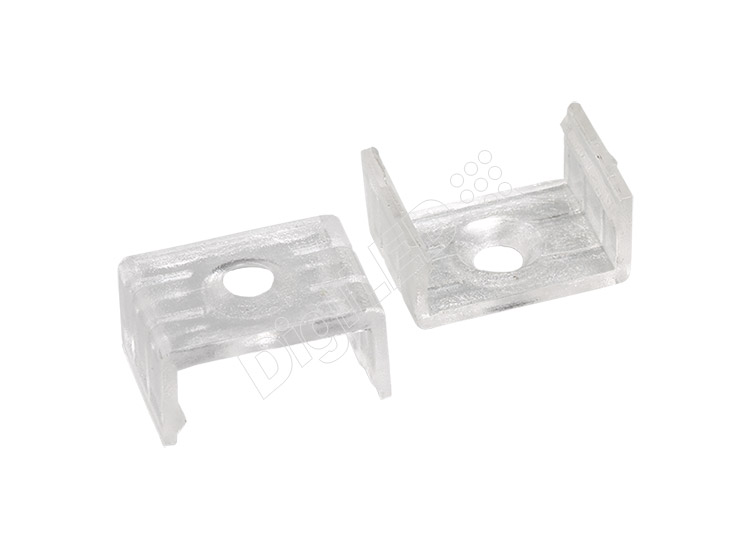

Mounting Clip

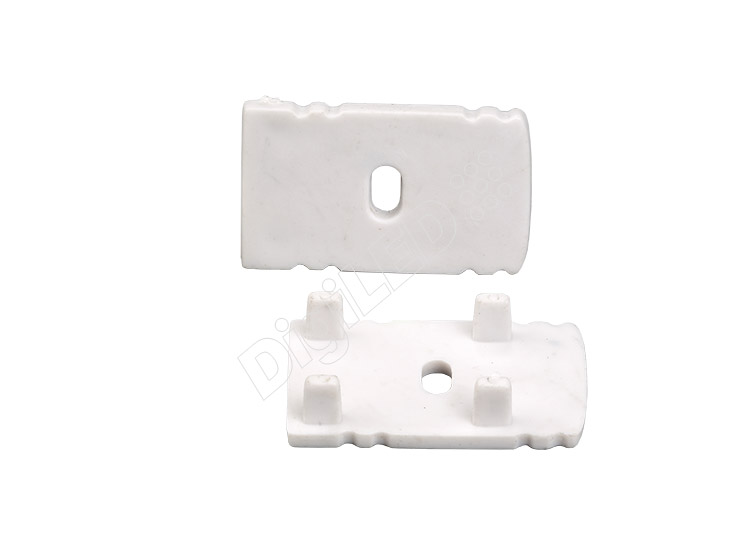

End Caps

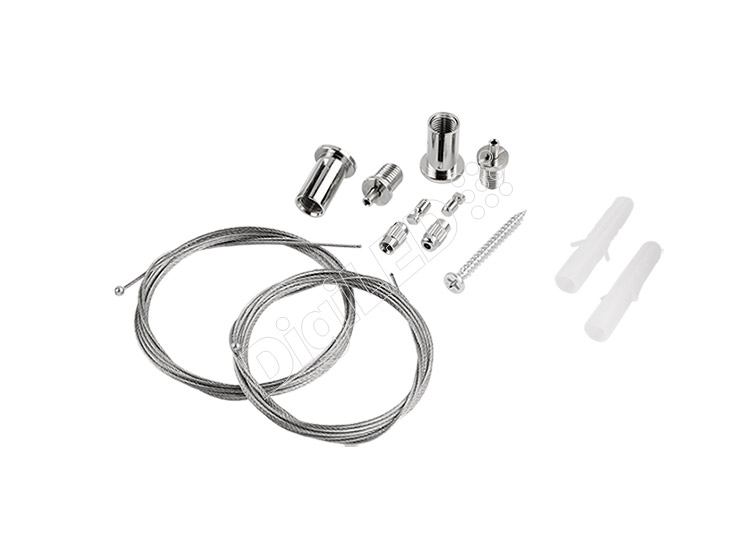

Hanging Clip
