DGST-1224-5630-18OS STRIP

DGST-1224-5630-18OS

11.52 Watt/Meter | 36 LED/Meter | 12/24 Volt DC

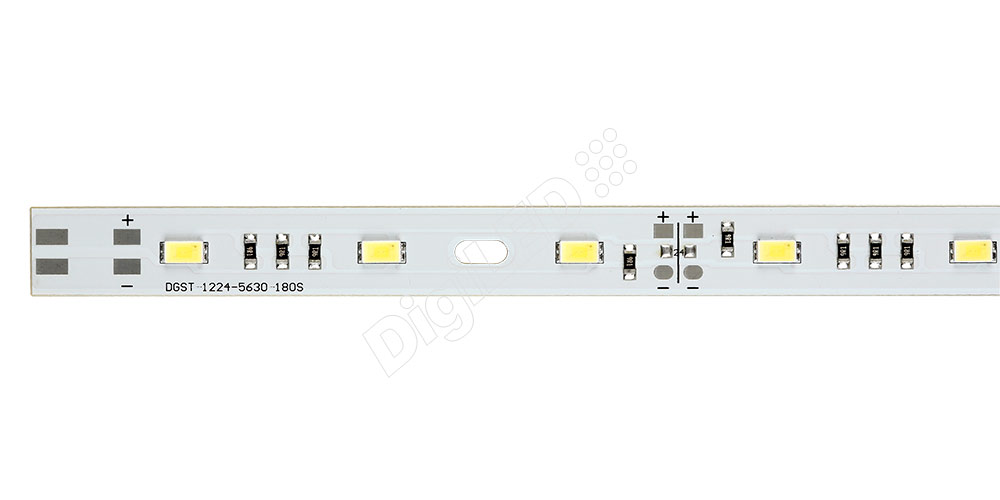

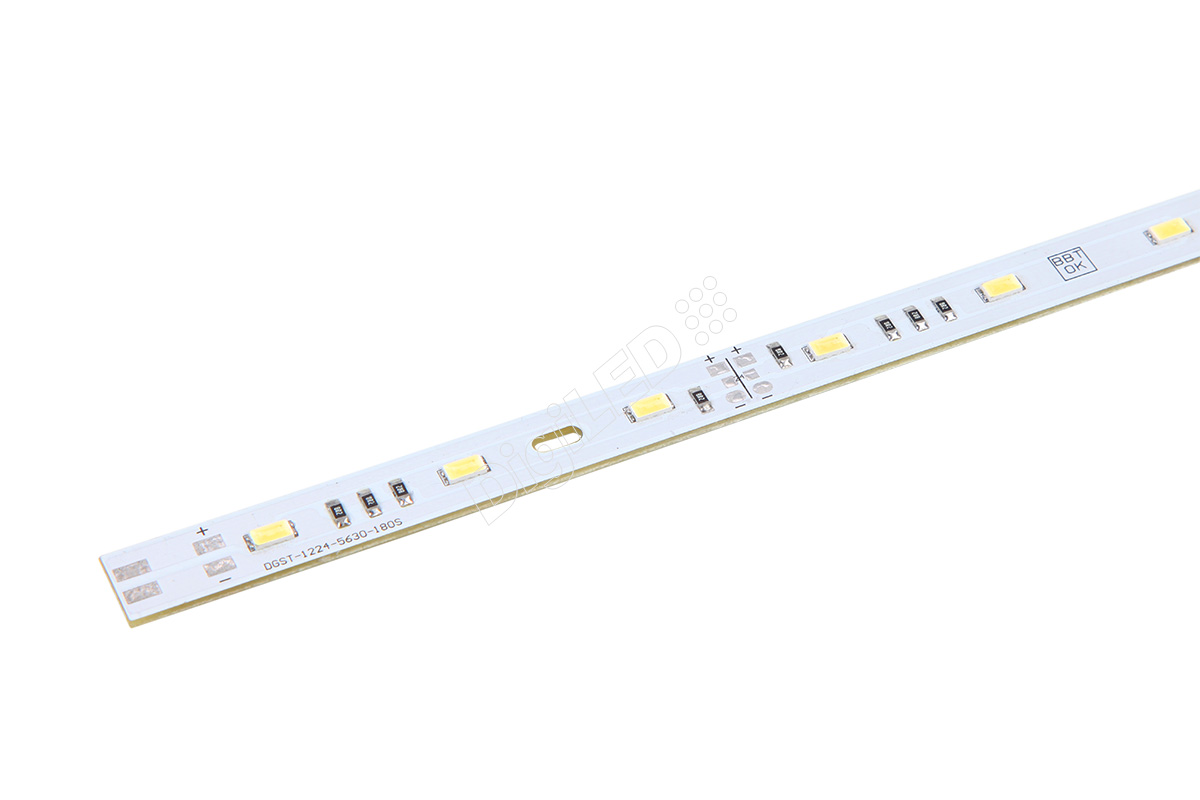

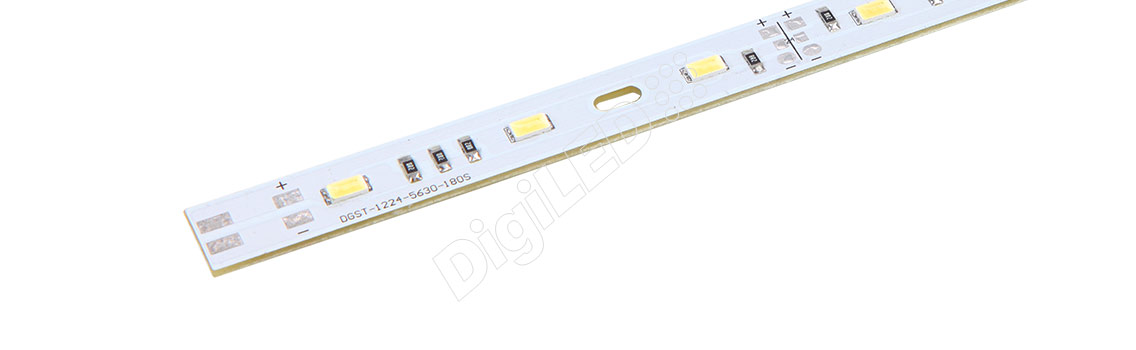

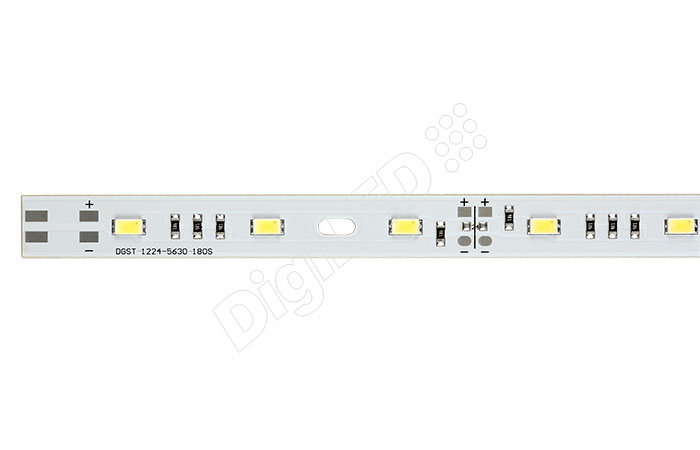

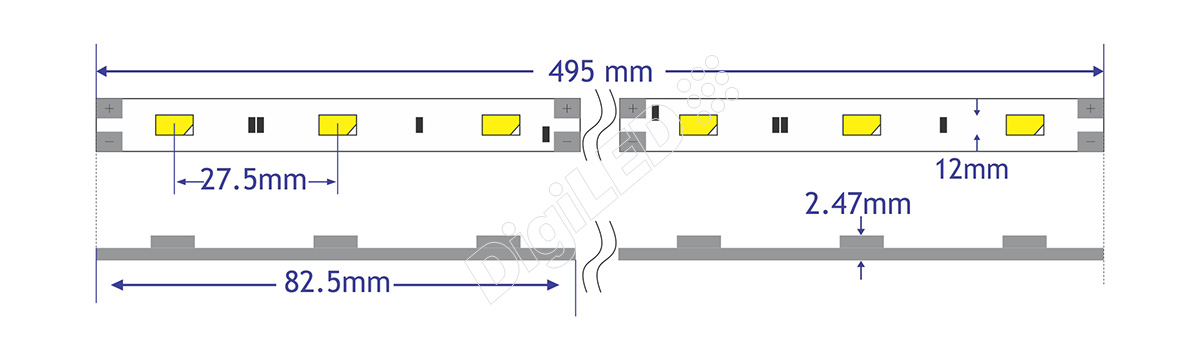

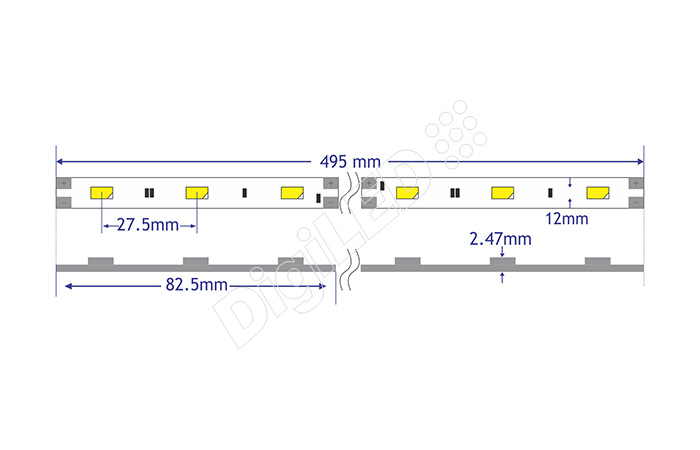

LED Rigid Strip Strip Top View Strip Diagram

Advantages

  • High brightness single color led strip
  • 5630 OSRAM SMT package
  • High luminous intensity
  • Slim design
  • High reliability
  • Solid state, high shock, vibration resistant
  • Maintenance free, easy installation, long life
  • Very low power consumption and low heat
  • Good thermal conductivity
  • Easy to pack, ship and install

LED SPECIFICATIONS

  • 38-45 Lm
  • Package size: 5.6 X 3.0 X 0.87 mm
  • High brightness chip LED SMD (top view) type
  • High luminous intensity

Note: This LED strip is must be used with proper heat sink.

Specifications

LED COLORS SIZE INPUT VOLTAGE CURRENT BEAM ANGLE OPERATING TEMPERATURE CUTTABLE SIZE PCB POWER
18 LED / module CW/ NW/ WW 12 mm W x 495 mm L x 1.6 mm H DC 12 VOLT / DC 24 VOLT 0. 48 A / 0. 24 A 1200 -200~ +600 82.5 mm / 165 mm FR4 5.76 Watt / Module
