DGST-6350-RGB STRIP

DGST-6350-RGB

14.4 Watt/Meter | 60 LED / Meter | 12 Volt DC

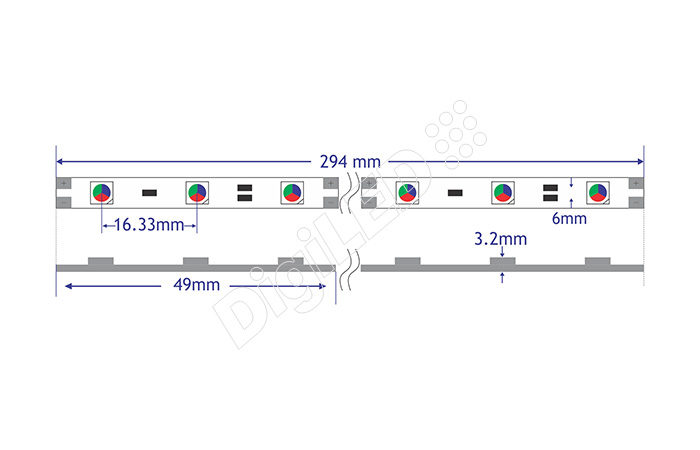

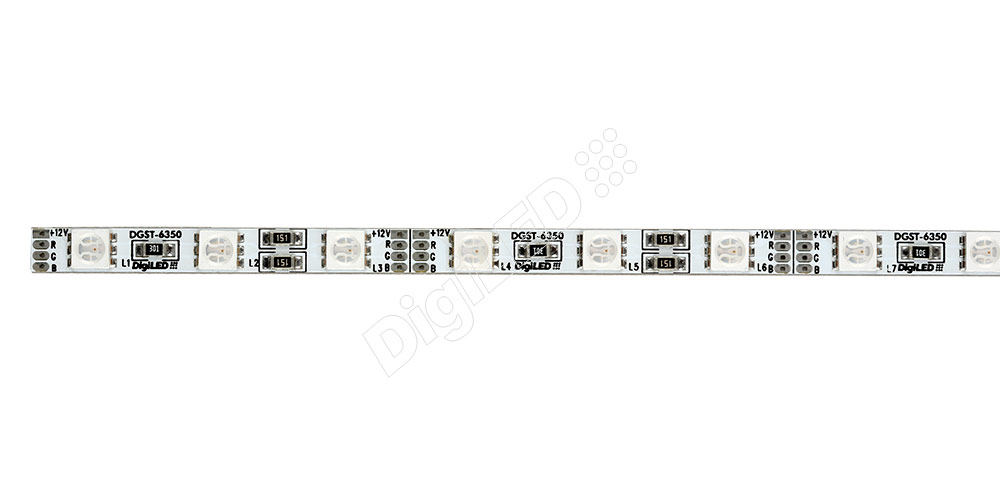

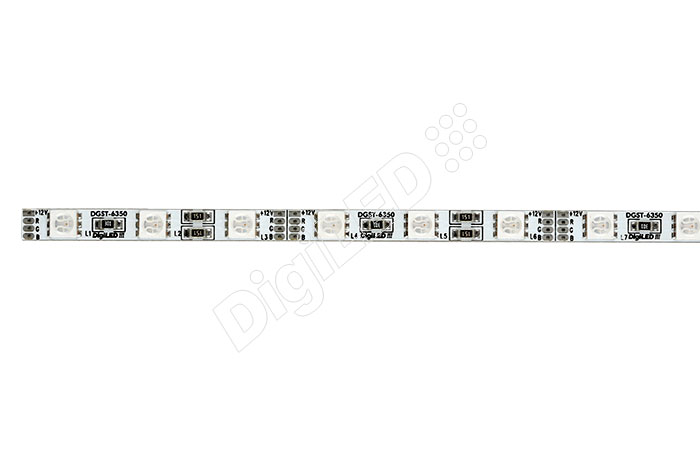

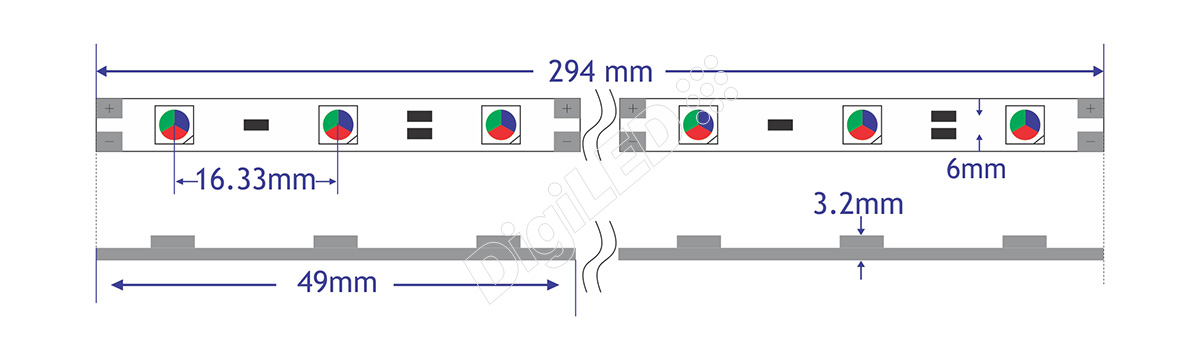

LED Rigid Strip Strip Top View Strip Diagram

Advantages

  • High brightness single color led strip
  • 5050 SMT package [RGB 20mA each]
  • High luminous intensity
  • Slim design
  • High reliability
  • Solid state, high shock, vibration resistant
  • Maintenance free, easy installation, long life
  • Very low power consumption and low heat
  • Good thermal conductivity
  • Easy to pack, ship and install

LED SPECIFICATIONS

  • 18-20 Lm
  • Package size: 5.0 X 5.0 X 1.4 mm
  • High brightness 3 chip LED SMD (top view) type
  • High luminous intensity

Specifications

LED COLORS SIZE INPUT VOLTAGE CURRENT BEAM ANGLE OPERATING TEMPERATURE CUTTABLE SIZE PCB POWER CONTROLLER
18 LED / module RGB 6 mm W x 294 mm L x 1.6 mm H DC 12 VOLT 0.36 A 1200 -200~ +600 49 mm FR4 4.32 Watt / Module Standard RGB Controller
