DGST-1550-PC-RGB-1DIGITAL STRIP

DGST-1550-PC-RGB-1DIGITAL

11.52 Watt/Meter | 48 LED / Meter | 12 Volt DC

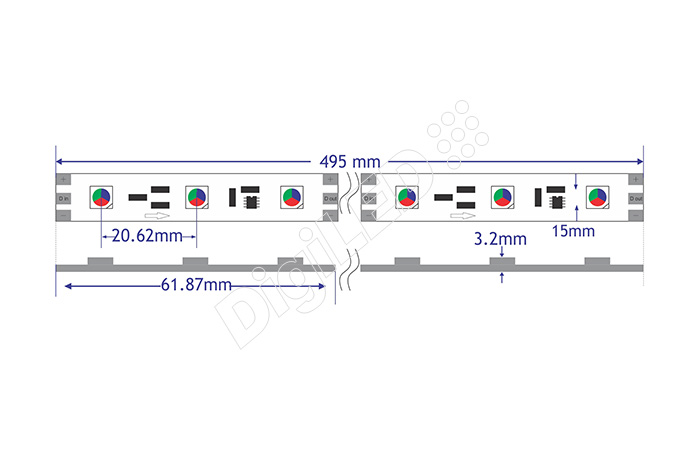

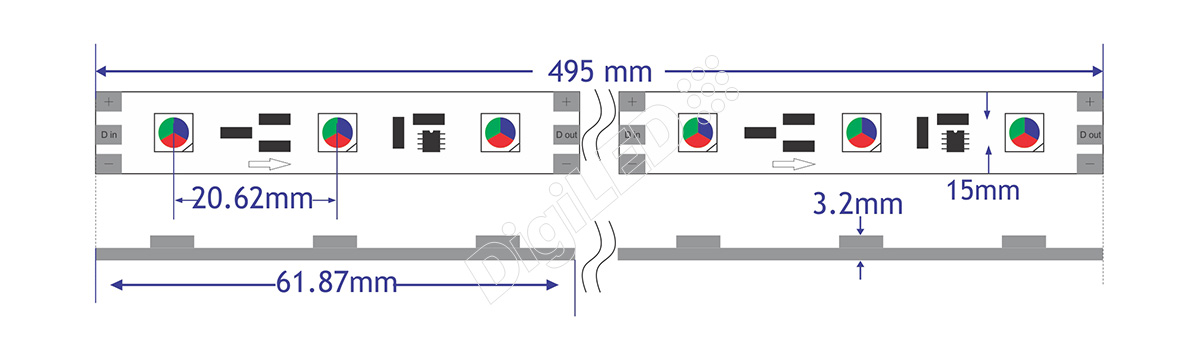

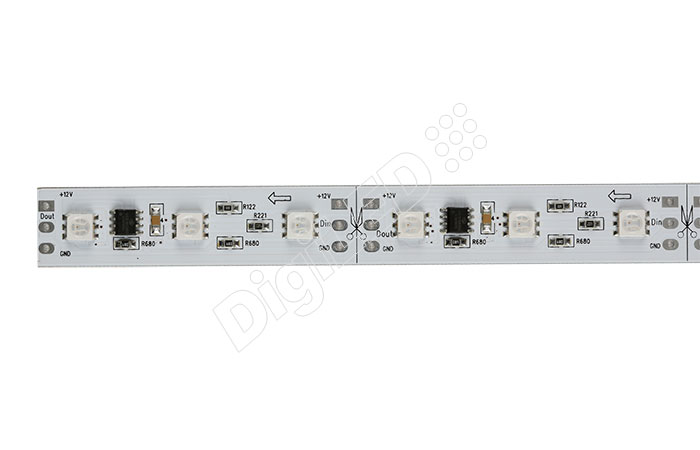

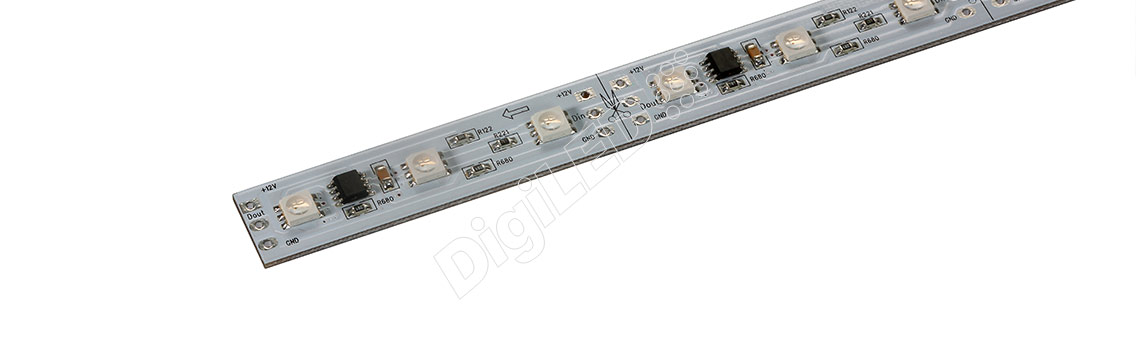

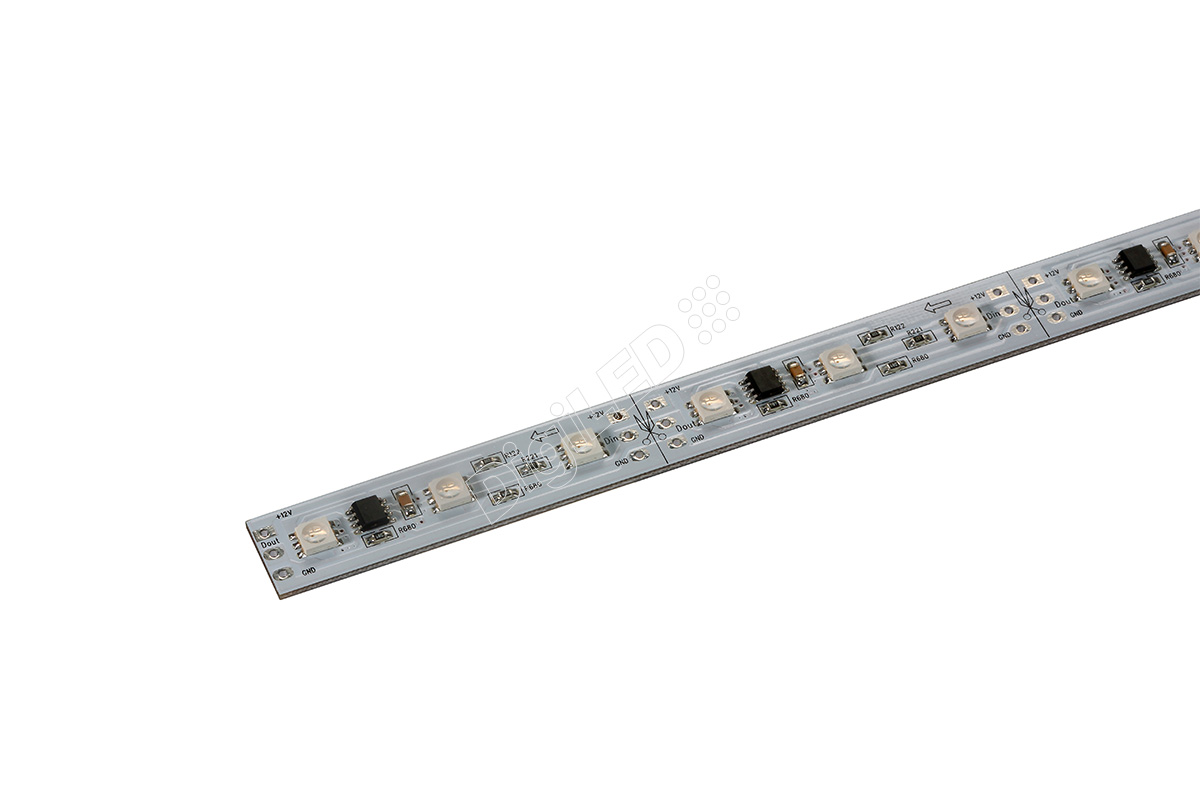

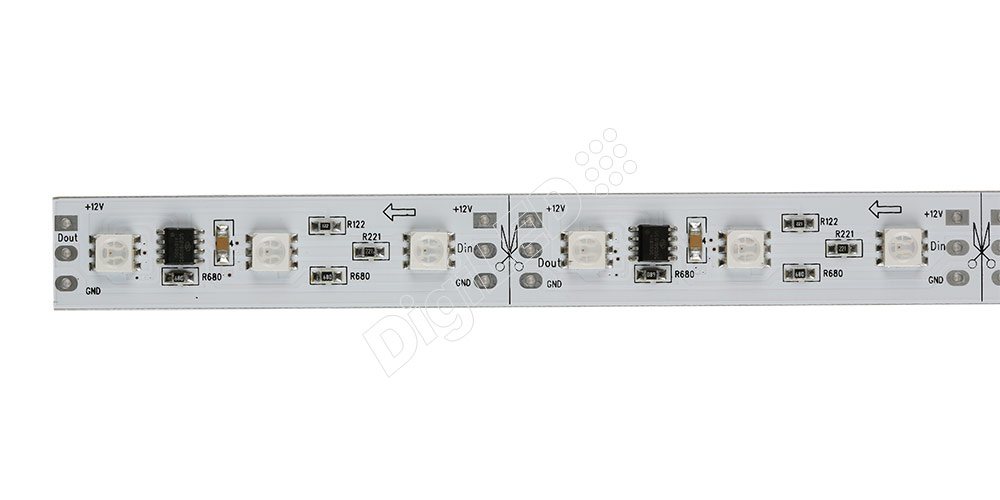

LED Rigid Strip Strip Top View Strip Diagram

Advantages

  • High brightness RGB full color led strip
  • Point control with DMX & standard RGB controller
  • 5050 SMT package [RGB 20 mA each
  • High luminous intensity
  • Slim design
  • High reliability
  • Solid state, high shock, vibration resistant
  • Maintenance free, easy installation, long life
  • Very low power consumption and low heat
  • Good thermal conductivity
  • Easy to pack, ship and install

LED SPECIFICATIONS

  • 18-20 Lm
  • Package size: 5.0 X 5.0 X 1.4 mm
  • High brightness 3 chip LED SMD (top view) type
  • High luminous intensity

Specifications

LED COLORS SIZE INPUT VOLTAGE CURRENT BEAM ANGLE OPERATING TEMPERATURE CUTTABLE SIZE PCB POWER CONTROLLER
24 LED / module RGB point control with UCS1903B 15 mm W x 495mm L x 1.6 mm H DC 12 VOLT 0.48 A 1200 -200~ +600 61.87 mm FR4 5.76 Programmable RGB Controller & DMX
