3528-V9 STRIP

Item Code : 3528-V9

5.76 Watt/Meter | 72 LED/Meter | 12 Volt DC

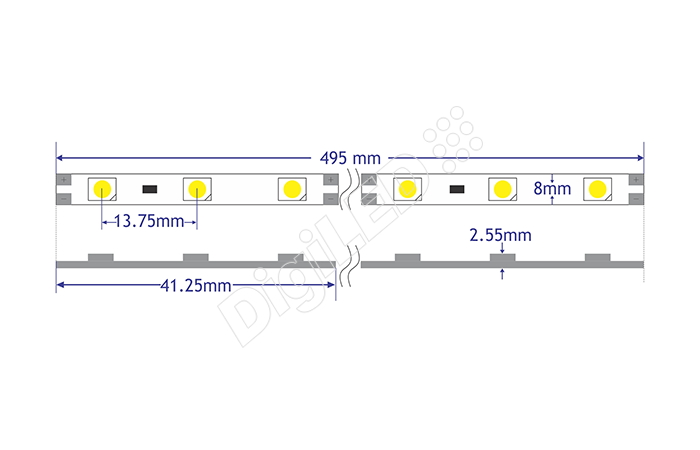

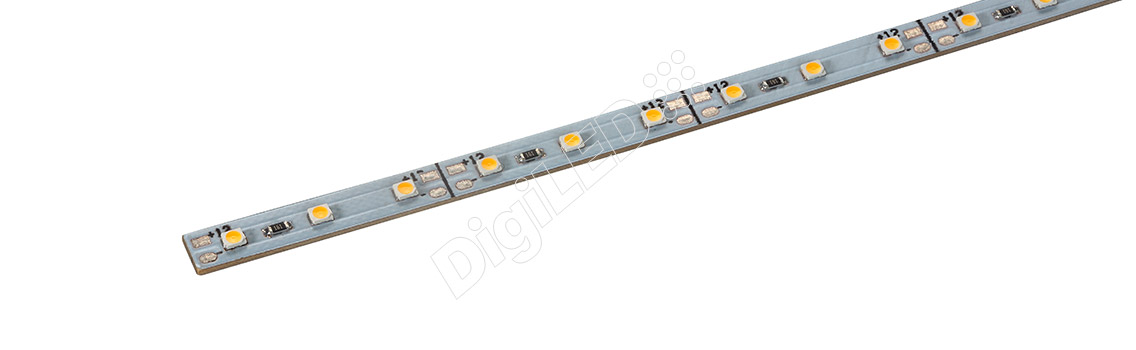

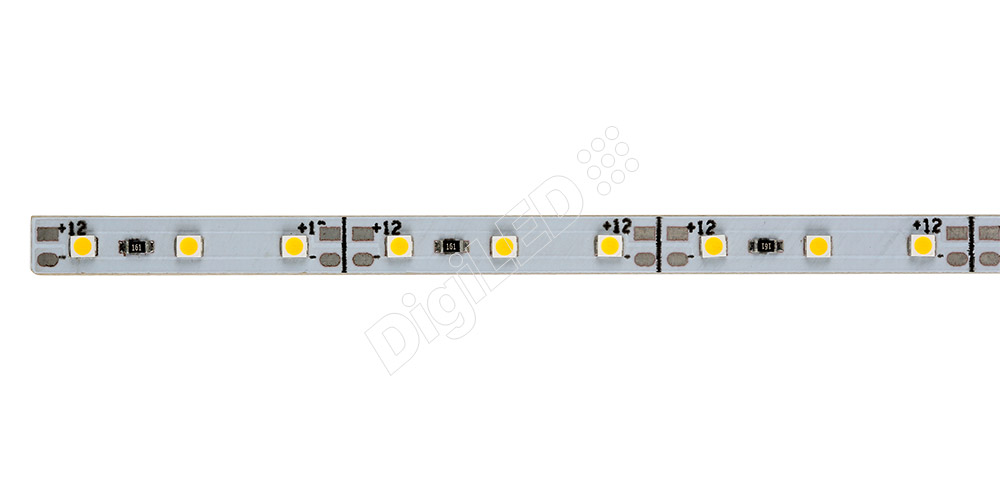

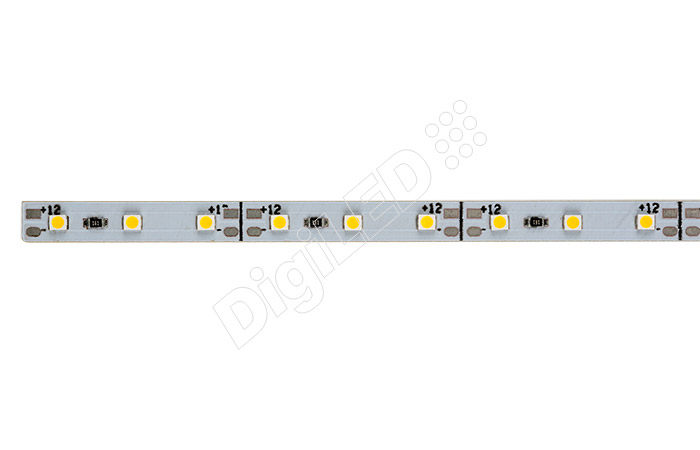

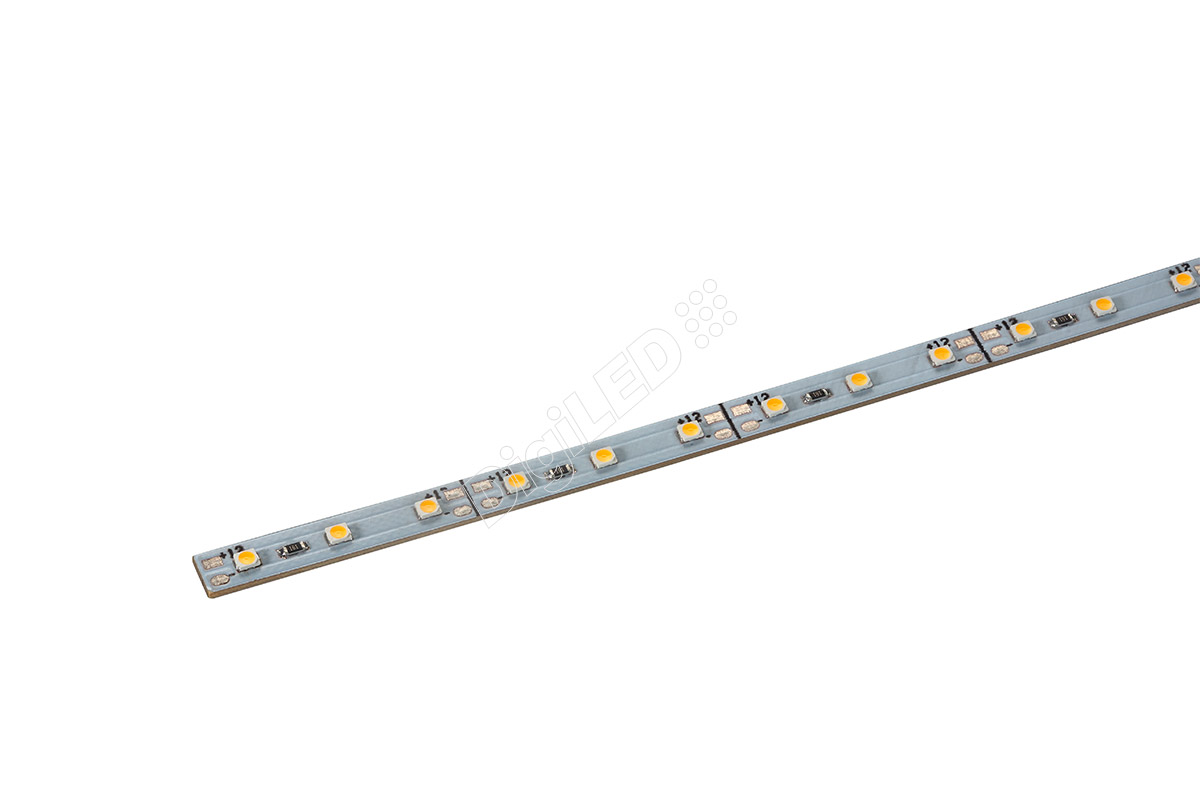

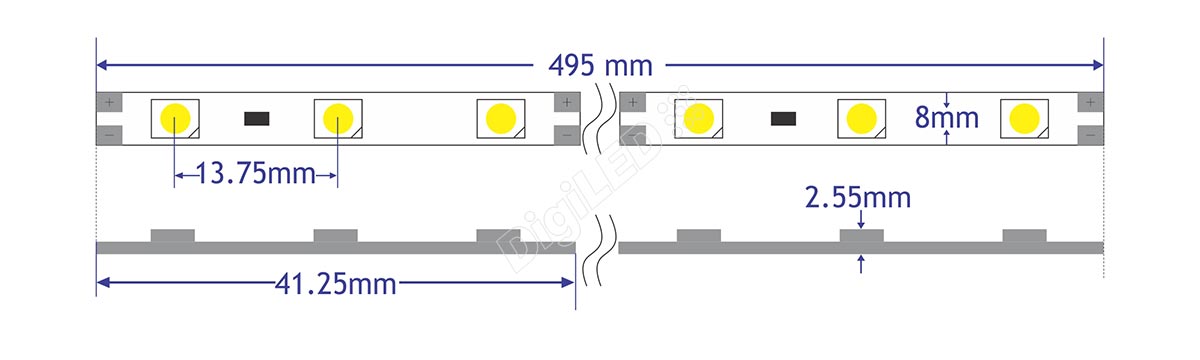

LED Rigid Strip Strip Top View Strip Diagram

Advantages

  • High brightness single color led strip
  • 3528 SMT package
  • High luminous intensity
  • Slim design
  • High reliability
  • Solid state, high shock, vibration resistant
  • Maintenance free, easy installation, long life
  • Very low power consumption and low heat
  • Good thermal conductivity
  • Easy to pack, ship and install

LED SPECIFICATIONS

  • 7-9 Lm
  • Package size: 3.5 X 2.8 X 0.95 mm
  • High brightness 1 chip LED SMD (top view) type
  • High luminous intensity

Specifications

LED COLORS SIZE INPUT VOLTAGE CURRENT BEAM ANGLE OPERATING TEMPERATURE PCB POWER
36 LED / module CW/ NW/ WW/ R/ G/ B/ A 8 mm W x 495 mm L x 1.6 mm H DC 12 VOLT 0. 24 A 1200 -200~ +600 FR4 2.88 Watt / Module
