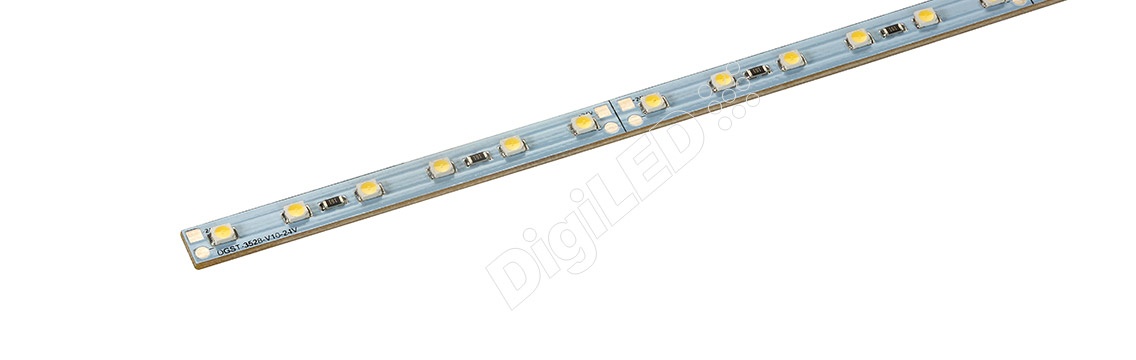

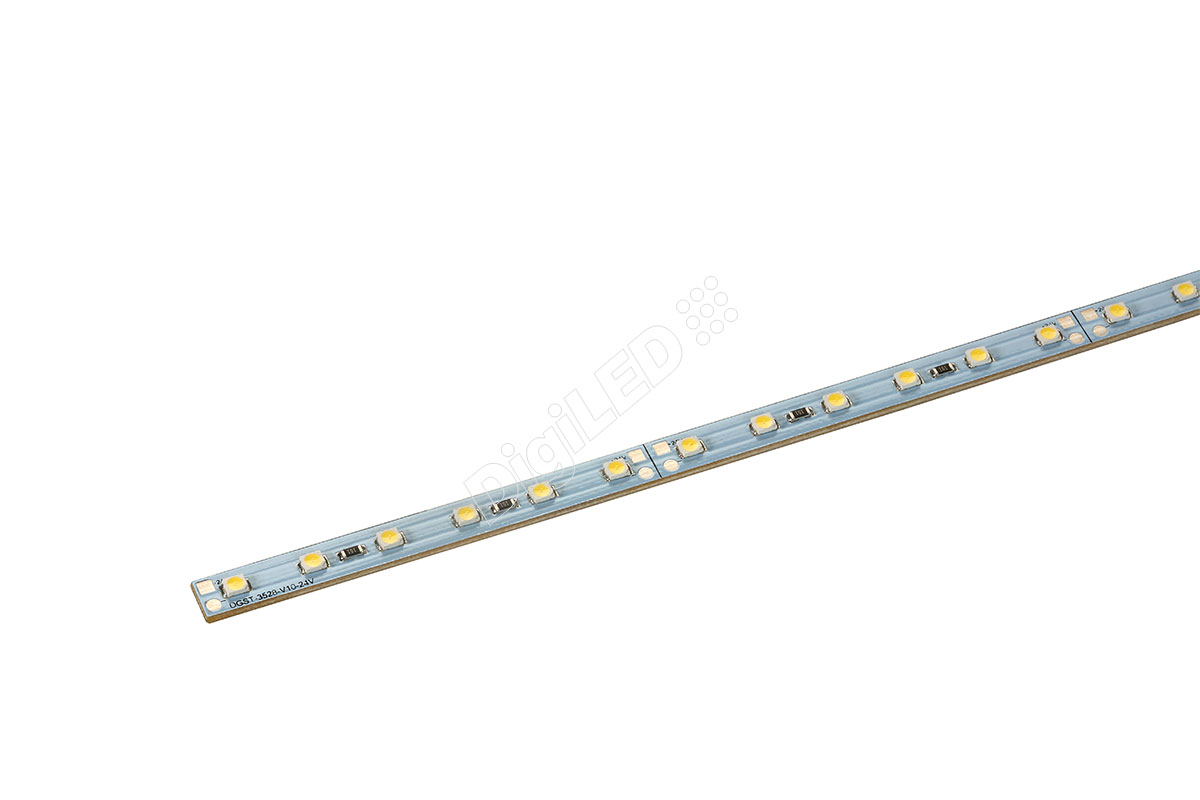

3528-V10 STRIP

Item Code : 3528-V10

6.72 Watt/Meter | 84 LED/Meter | 24 Volt DC

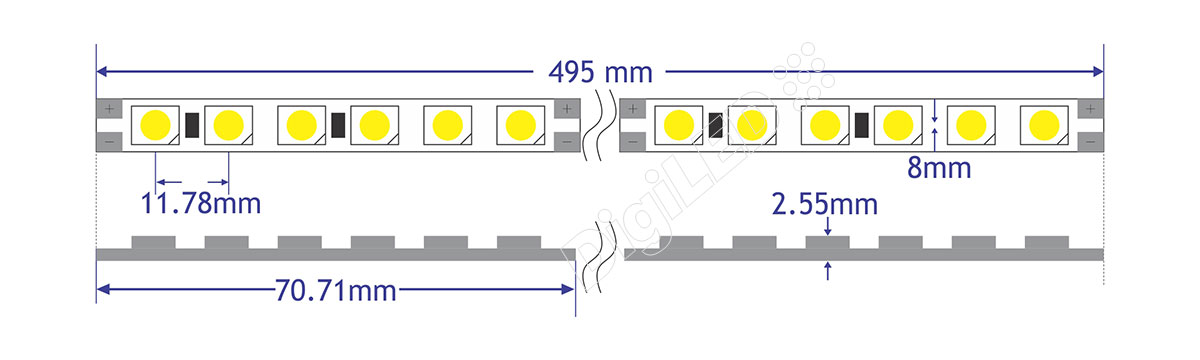

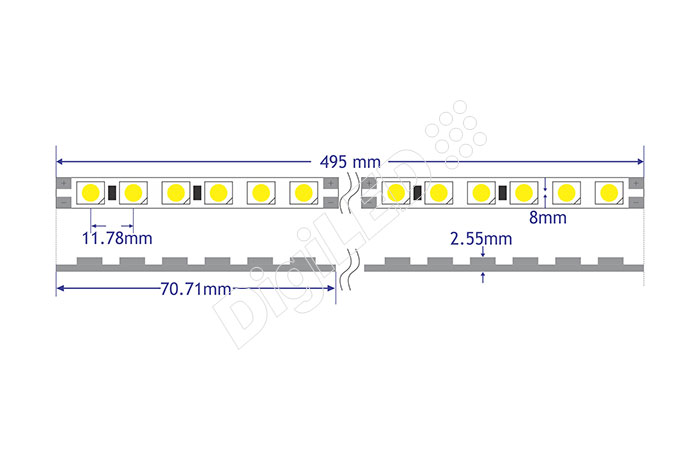

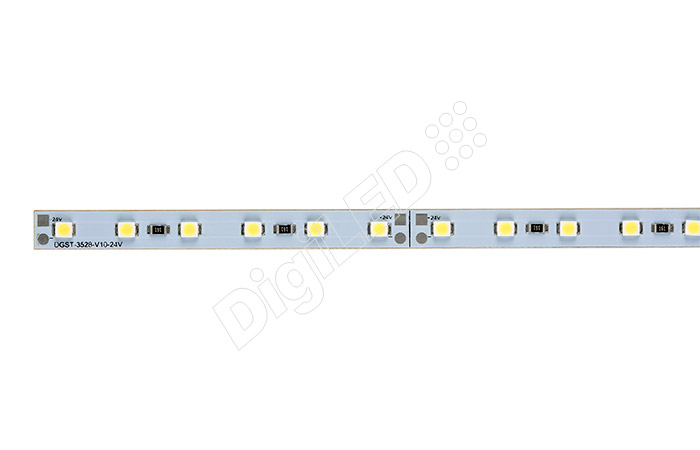

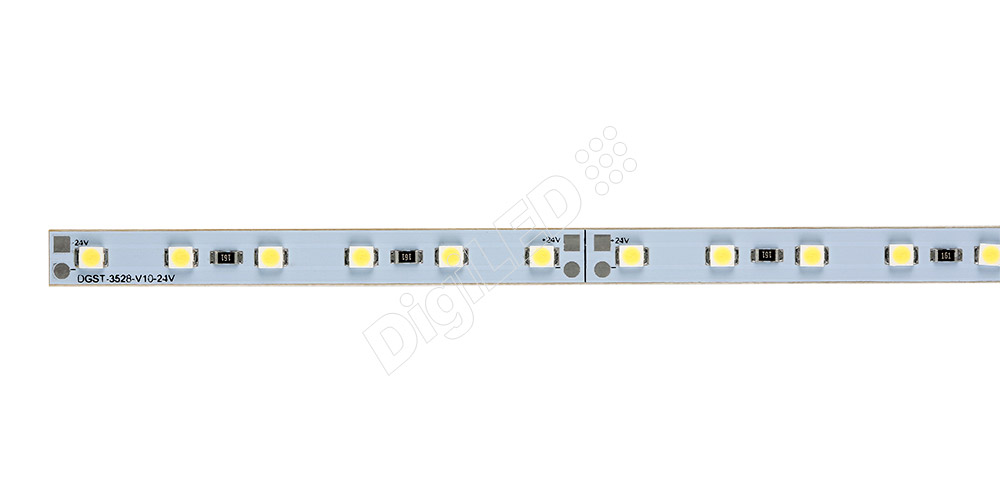

LED Rigid Strip Strip Top View Dimension

Advantages

  • High brightness single color led strip
  • 3528 SMT package
  • High luminous intensity
  • Slim design
  • High reliability
  • Solid state, high shock, vibration resistant
  • Maintenance free, easy installation, long life
  • Very low power consumption and low heat
  • Good thermal conductivity
  • Easy to pack, ship and install

LED SPECIFICATIONS

  • 7-9 Lm
  • Package size: 3.5 X 2.8 X 0.95 mm
  • High brightness 1 chip LED
  • SMD (top view) type
  • High luminous intensity

Specifications

LED COLORS SIZE INPUT VOLTAGE CURRENT BEAM ANGLE OPERATING TEMPERATURE PCB POWER
42 LED / module CW/ NW/ WW/ R/ G/ B/ A 8 mm W x 495 mm L x 1.6 mm H DC 24 VOLT 0. 14 A 1200 -200~ +600 FR4 3.36 Watt / Module
