DGST-2835-30AL STRIP

DGST-2835-30AL

19.2 Watt/Meter | 60 LED / Meter | 12 Volt DC

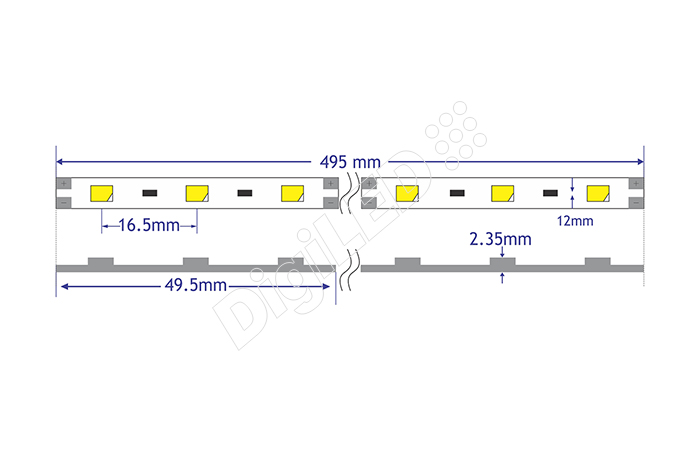

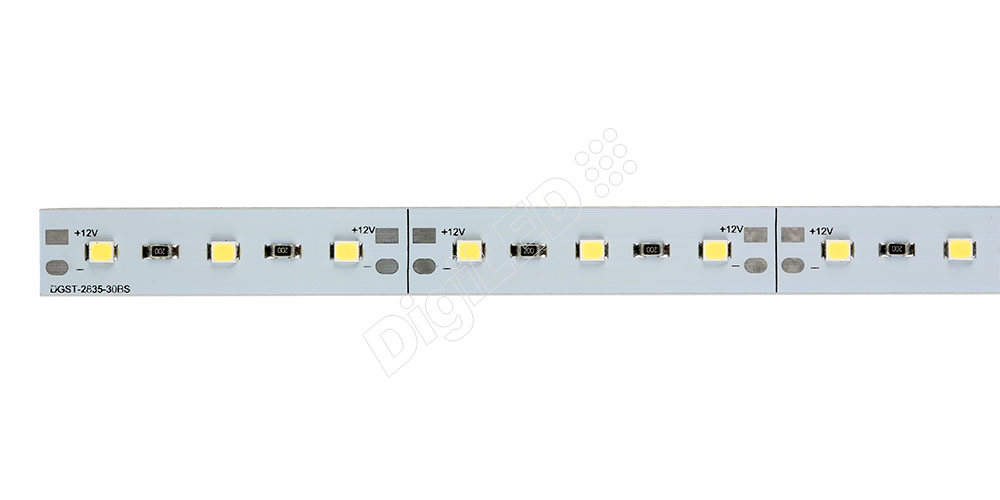

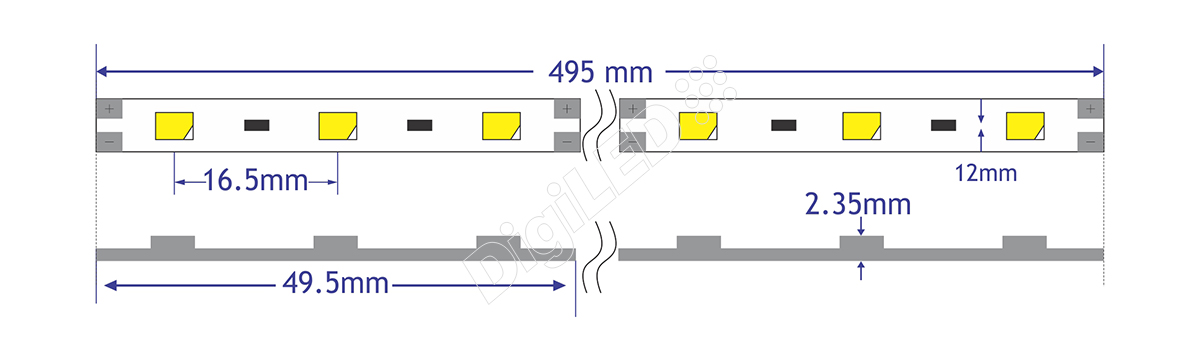

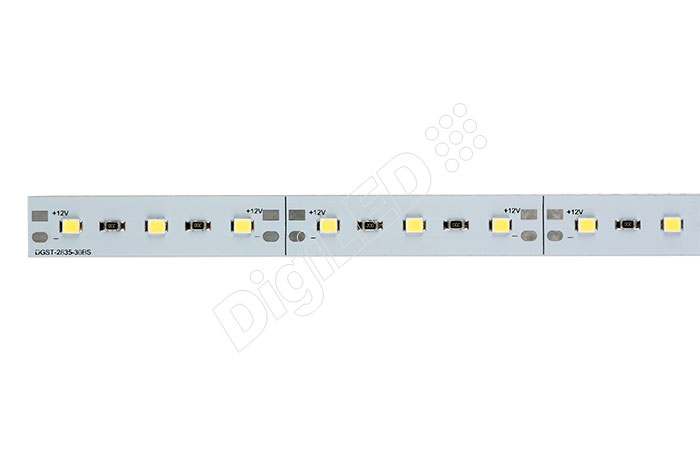

LED Rigid Strip Strip Top View Strip Diagram

Advantages

  • High brightness single color led strip
  • 2835 SMT package [60 mA]
  • High luminous intensity
  • Slim design
  • High reliability
  • Solid state, high shock, vibration resistant
  • Maintenance free, easy installation, long life
  • Very low power consumption and low heat
  • Good thermal conductivity
  • Easy to pack, ship and install

LED SPECIFICATIONS

  • 25-28 Lm
  • Package size: 2.8 X 3.5 X 0.75 mm
  • High brightness 1 chip LED
  • SMD (top view) type
  • High luminous intensity

Specifications

LED COLORS SIZE INPUT VOLTAGE CURRENT BEAM ANGLE OPERATING TEMPERATURE CUTTABLE SIZE PCB POWER
30 LED / module CW/ NW/ WW 12 mm W x 495 mm L x 1.6 mm H DC 12 VOLT 0.8 A 1200 -200~ +600 49.5 mm ALU 9.6 Watt / Module
