DGST-2835-24AEN-24 STRIP

DGST-2835-24AEN-24

11.52 Watt/Meter | 48 LED / Meter | 24 Volt DC

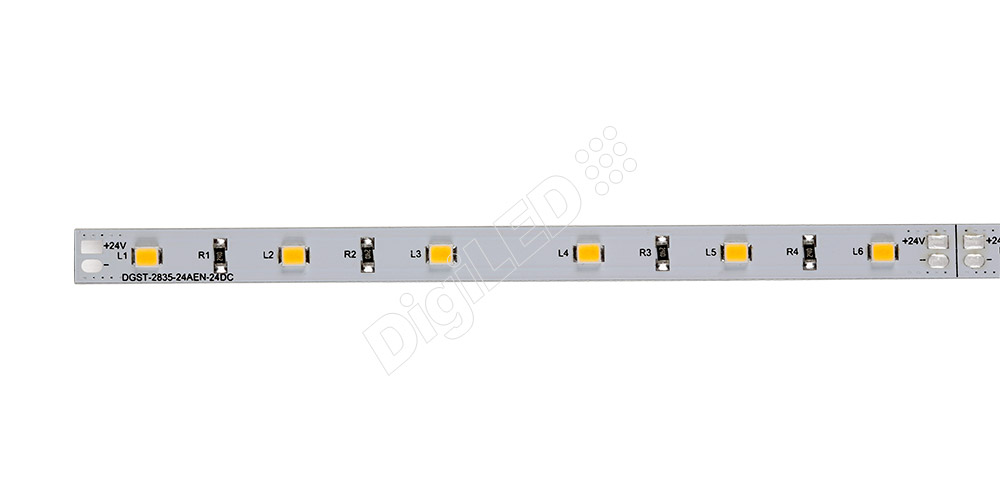

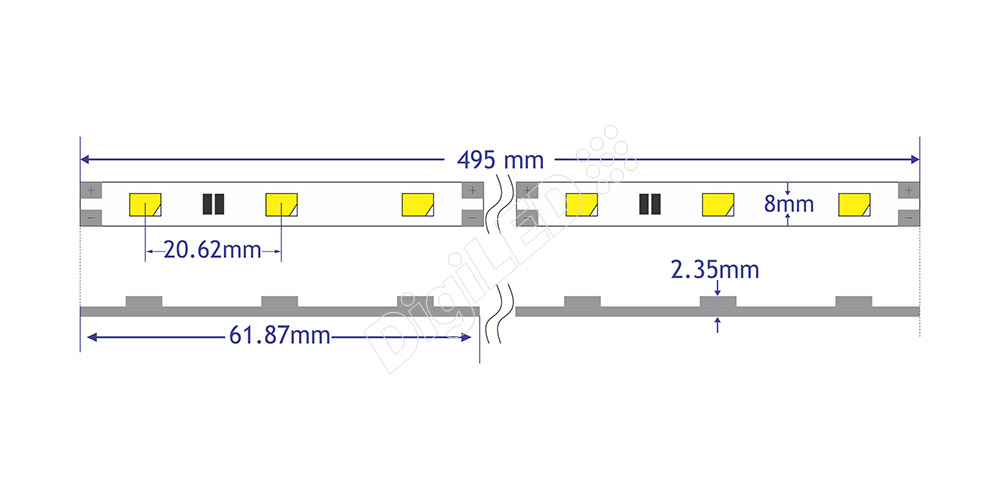

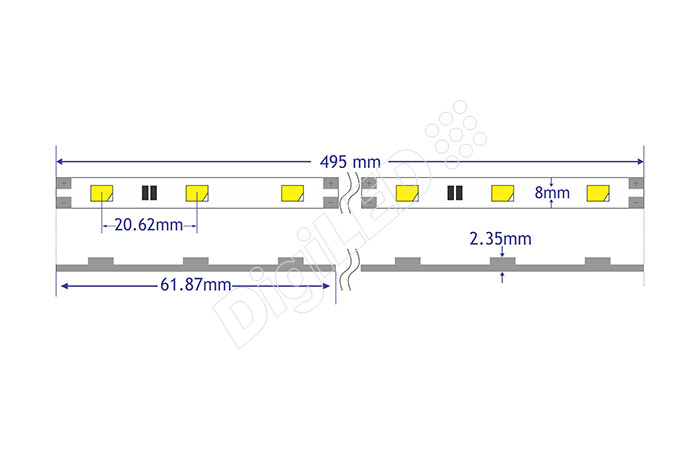

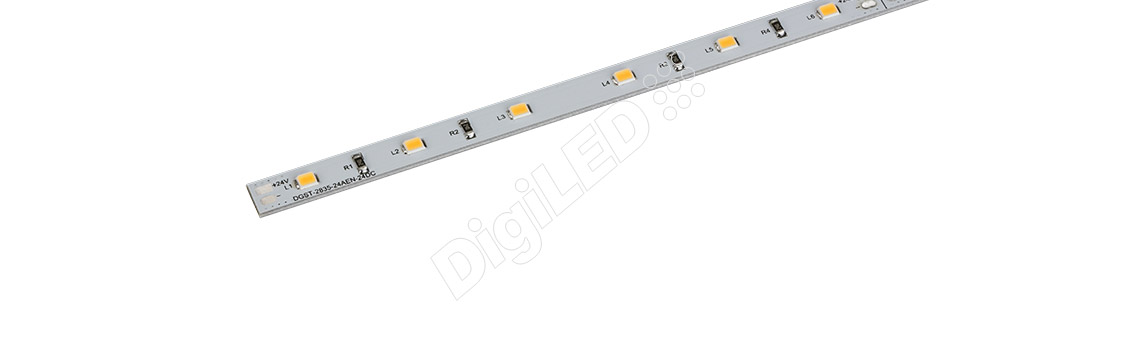

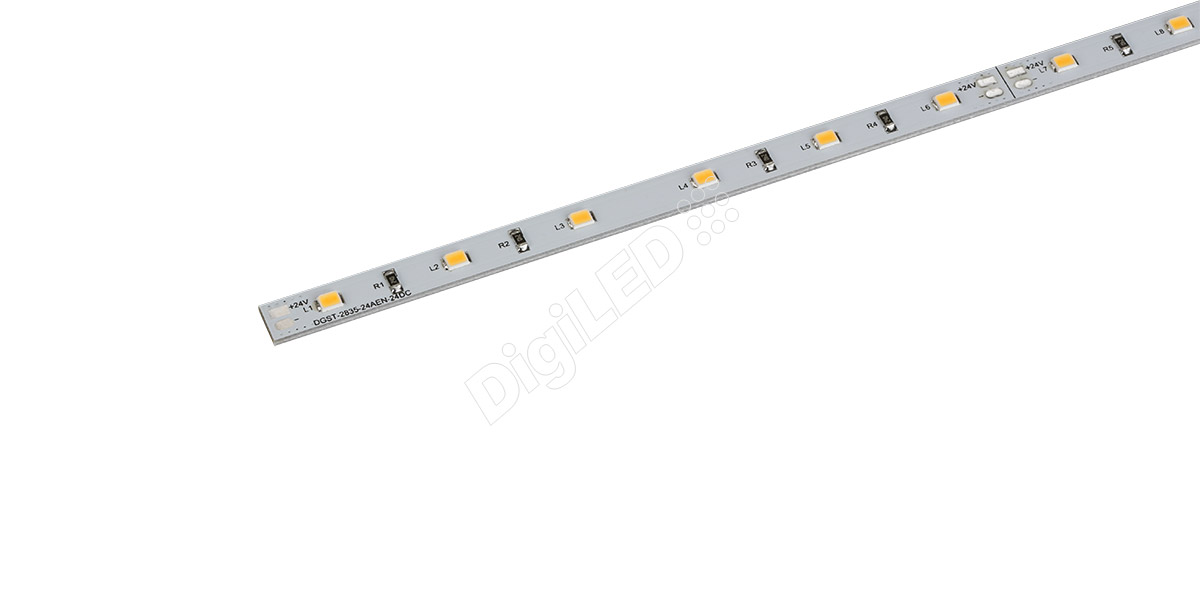

LED Rigid Strip Strip Top View Strip Diagram

Advantages

  • High brightness single color led strip
  • 2835 SMT package [60 mA]
  • High luminous intensity
  • Slim design
  • High reliability
  • Solid state, high shock, vibration resistant
  • Maintenance free, easy installation, long life
  • Very low power consumption and low heat
  • Good thermal conductivity
  • Easy to pack, ship and install

Application

  • Hotels, resorts & Restaurants
  • Conference Halls and Galleries
  • Sign & display, Light box, edge lighting
  • Casinos, bars, Clubs & Entertainment
  • Museums and Cinemas, smart Homes
  • Educational Institutes, Training Centre's
  • Retail shops, Malls & food plaza's
  • Luxury showrooms & Studios
  • Architectural decorative lighting

LED SPECIFICATIONS

  • 22-24 Lm
  • Package size: 2.8 X 3.5 X 0.75 mm
  • High brightness
  • SMD (top view) type
  • High luminous intensity

Specifications

LED COLORS SIZE INPUT VOLTAGE CURRENT BEAM ANGLE OPERATING TEMPERATURE CUTTABLE SIZE PCB POWER
24 LED / module CW/ NW/ WW 8 mm W x 495 mm L x 1.6 mm H DC 24 VOLT 0.24 A 1200 -200~ +600 123.75 mm FR4 5.76 Watt / Module
