DGST-1050-30S STRIP

Item Code : DGST-1050-30S

14.4 Watt/Meter | 60 LED/Meter | 12 Volt DC

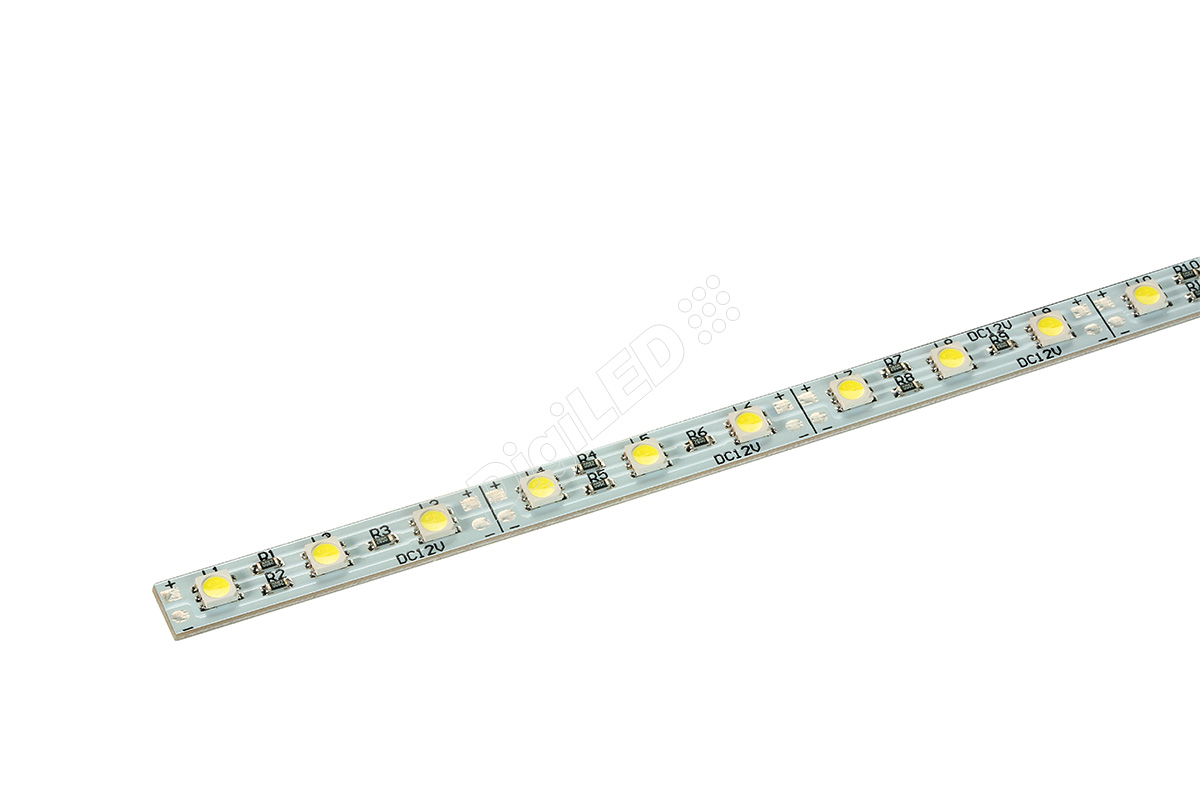

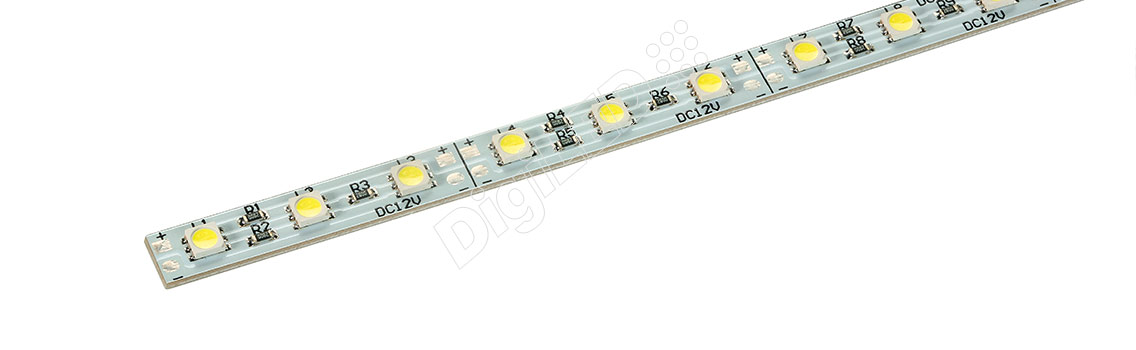

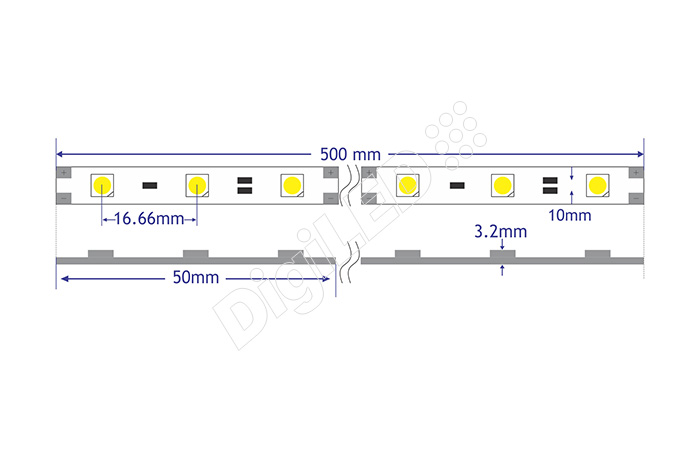

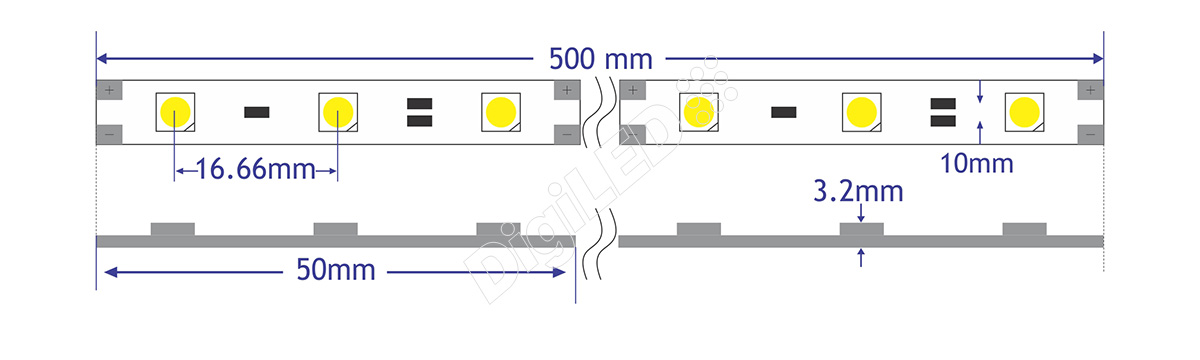

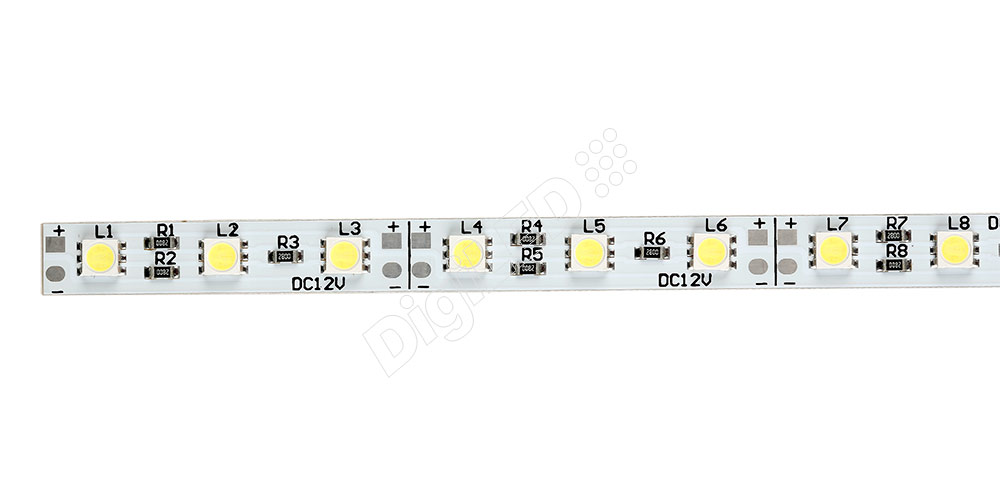

LED Rigid Strip Strip Top View Strip Diagram

Advantages

  • High brightness single color led strip
  • 5050 SMT package [60mA]
  • High luminous intensity
  • Slim design
  • High reliability
  • Solid state, high shock, vibration resistant
  • Maintenance free, easy installation, long life
  • Very low power consumption and low heat
  • Good thermal conductivity
  • Easy to pack, ship and install

LED SPECIFICATIONS

  • 18-20 Lm
  • Package size: 5.0 X 5.0 X 1.4 mm
  • High brightness 3 chip LED SMD (top view) type
  • High luminous intensity

Specifications

LED COLORS SIZE INPUT VOLTAGE CURRENT BEAM ANGLE OPERATING TEMPERATURE CUTTABLE SIZE PCB POWER
30 LED / module CW/ NW/ WW/ R/ G/ B/ A 10 mm W x 500 mm L x 1.6 mm H DC 12 VOLT 0.6 A 1200 -200~ +600 50 mm FR4/ Aluminum 7.2 Watt / Module
