DGST-1050-15S STRIP

Item Code : DGST-1050-15S

7.2 Watt/Meter | 30 LED/Meter | 12 Volt DC

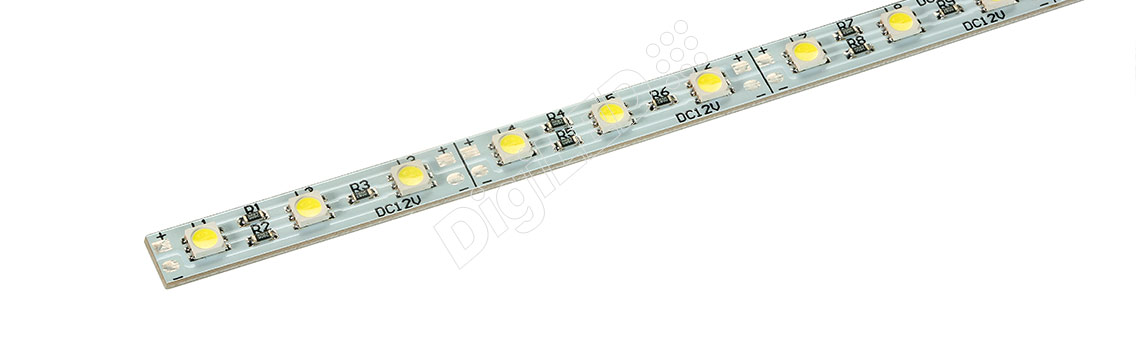

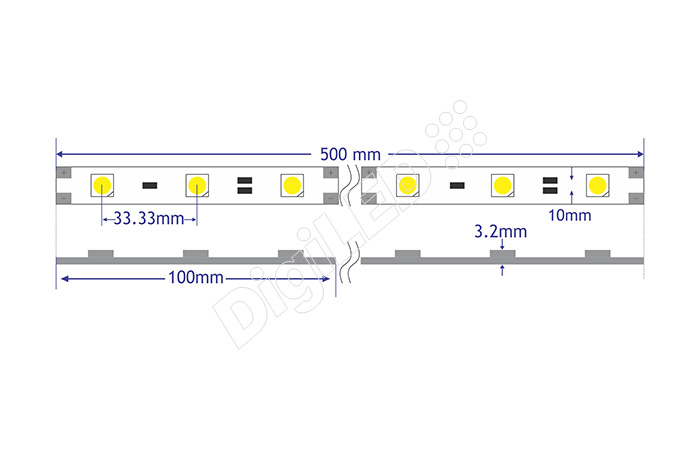

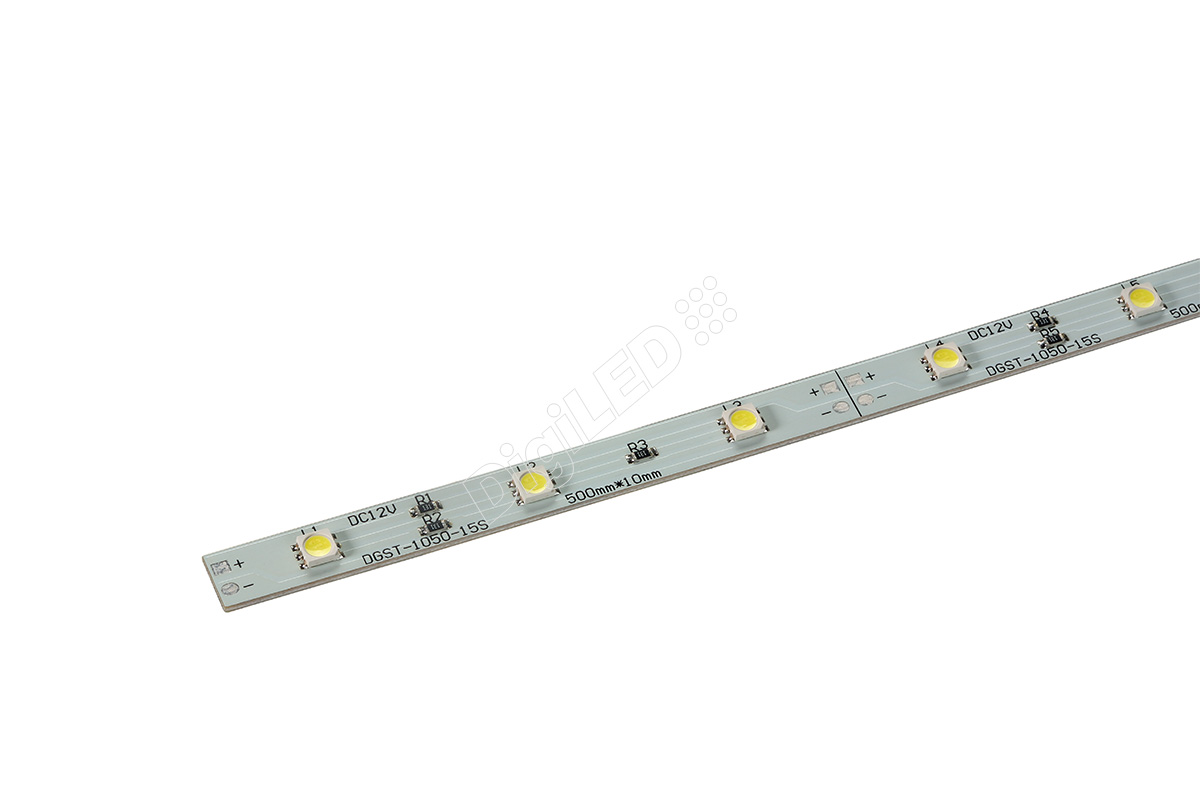

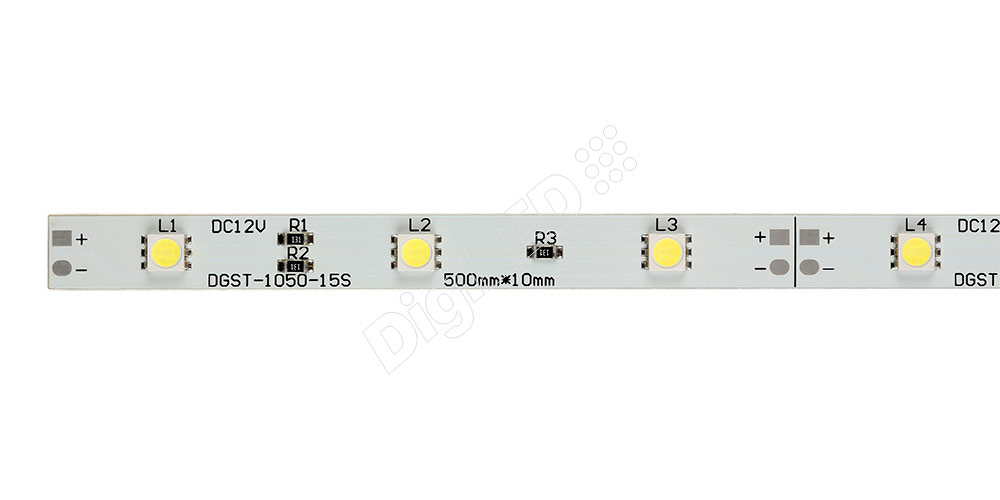

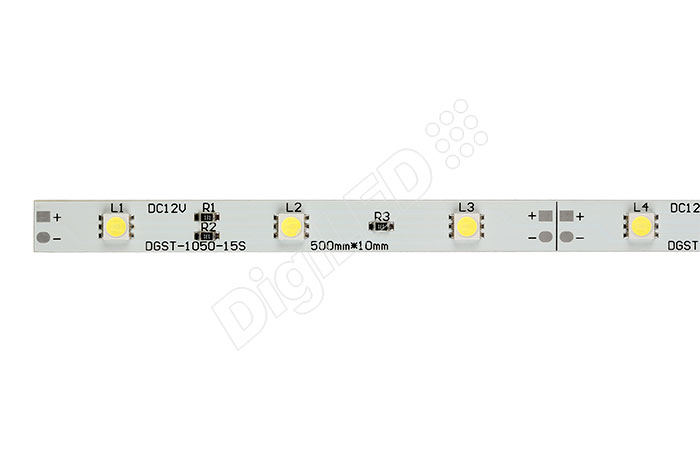

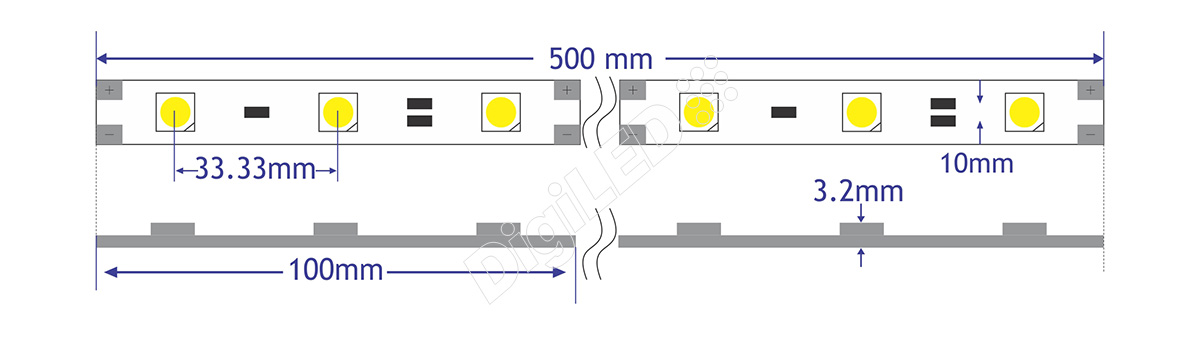

LED Rigid Strip Strip Top View Strip Diagram

Advantages

  • High brightness single color led strip
  • 5050 SMT package [60mA]
  • High luminous intensity
  • Slim design
  • High reliability
  • Solid state, high shock, vibration resistant
  • Maintenance free, easy installation, long life
  • Very low power consumption and low heat
  • Good thermal conductivity
  • Easy to pack, ship and install

LED SPECIFICATIONS

  • 18-20 Lm
  • Package size: 5.0 X 5.0 X 1.4 mm
  • High brightness 3 chip LED SMD (top view) type
  • High luminous intensity

Specifications

LED COLORS SIZE INPUT VOLTAGE CURRENT BEAM ANGLE OPERATING TEMPERATURE CUTTABLE SIZE PCB POWER
15 LED / module CW/ NW/ WW/ R/ G/ B/ A 10 mm W x 500 mm L x 1.6 mm H DC 12 VOLT 0.3 A 1200 -200~ +600 100 mm FR4 3.6 Watt / Module

Our Products

DGST-1050-15S

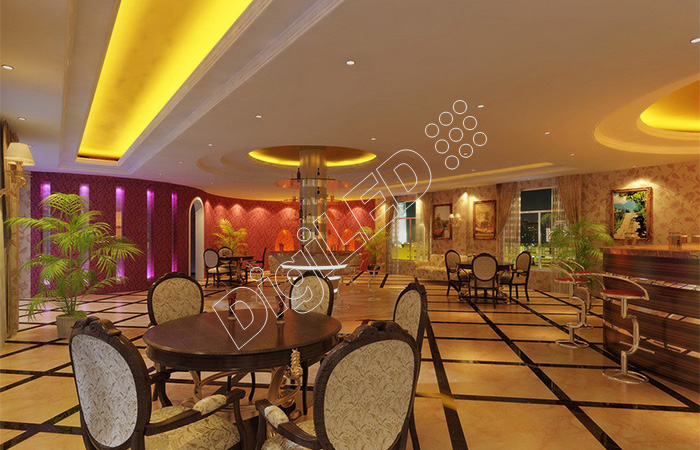

DGST-1050-30S

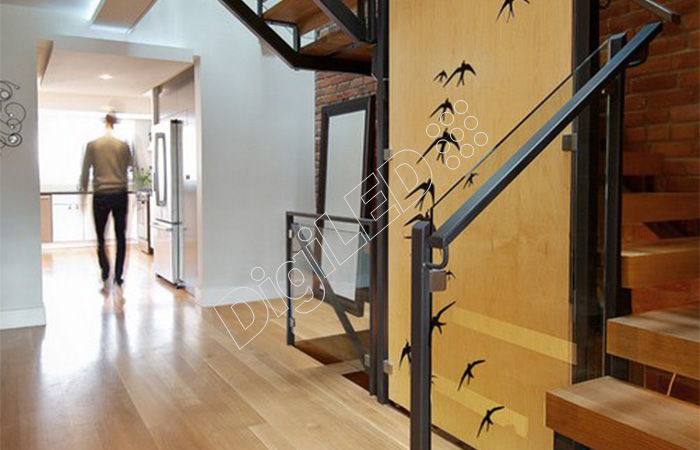

DT5050L18-DC24
