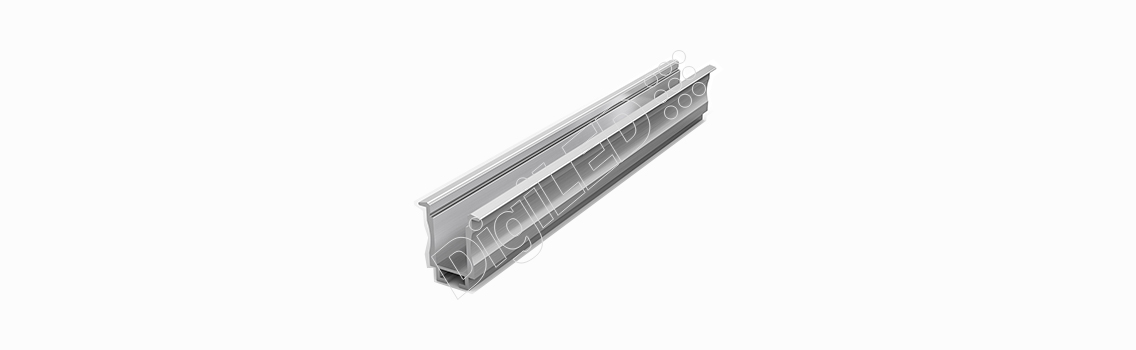

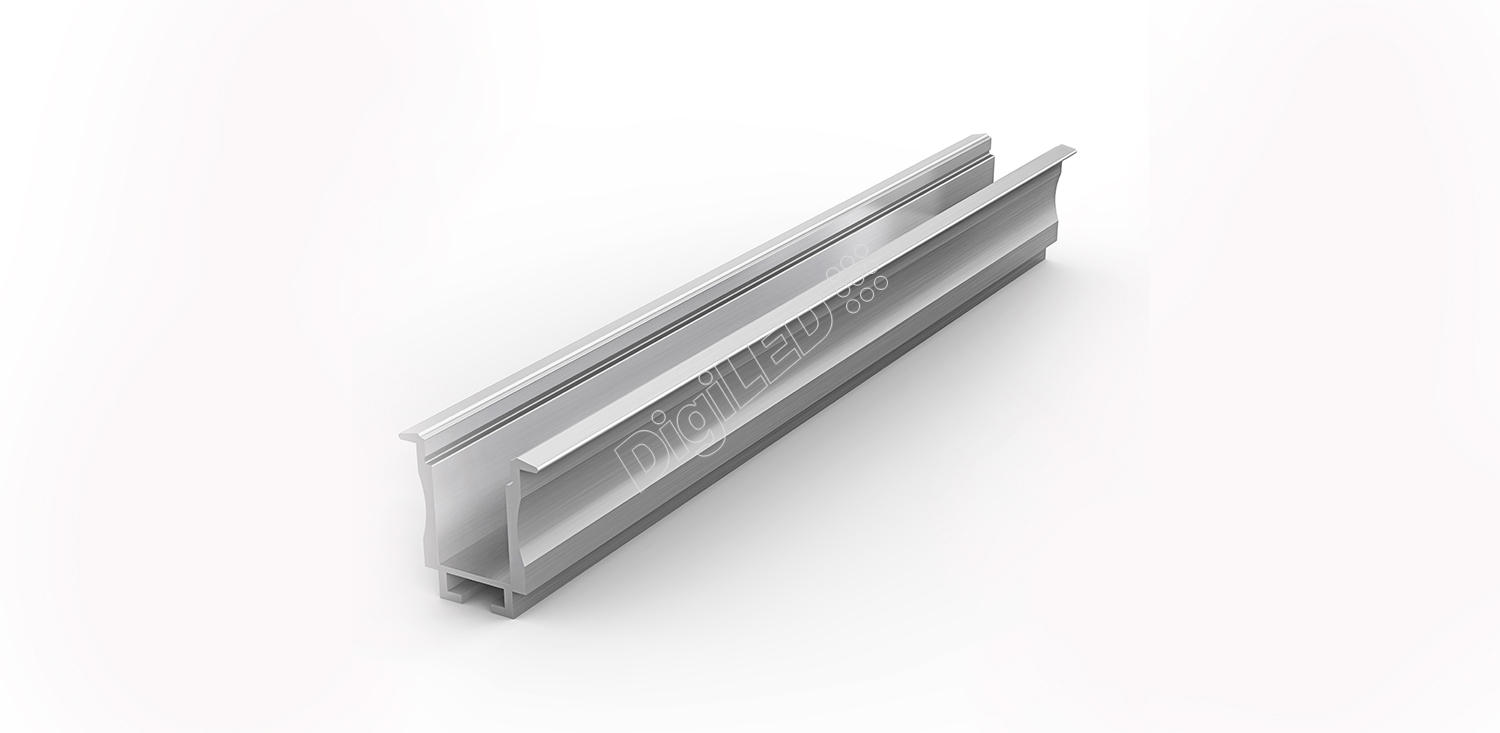

This 17.20 mm deep profile is made from high quality aluminum. It is perfect solution for “Recessed LED lighting”. It gives directional and uniform linear light on the surfaces, ceilings etc. and can be recessed in furniture, POP etc. it’s the best choice for recessed lighting applications. Further with the use of linear lens cover, the lighting angle can be still narrow and can be made directional. What’s more; it also can be used as recessed linear light with absolutely no led dots on milky diffuser to highlight specific areas in ceiling, retail stores, residences etc. Anodized finish provides maximum protection against the elements, preventing rust and corrosion, and making them perfectly suitable for rough indoor or outdoor use.


  • Deep recessed LED profile
  • Perfect for dot less highlighting appearance
  • Excellent heat sink properties

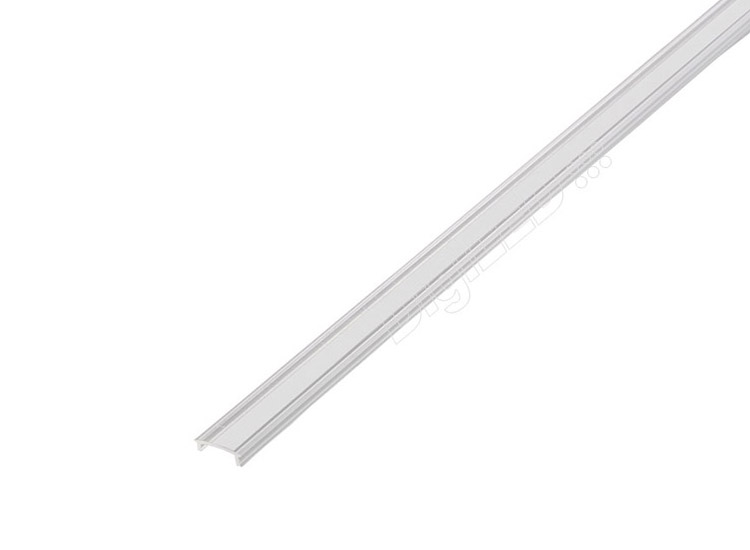

  • Milky, Frosted or Clear Covers available
  • Easy installation of the LED strips

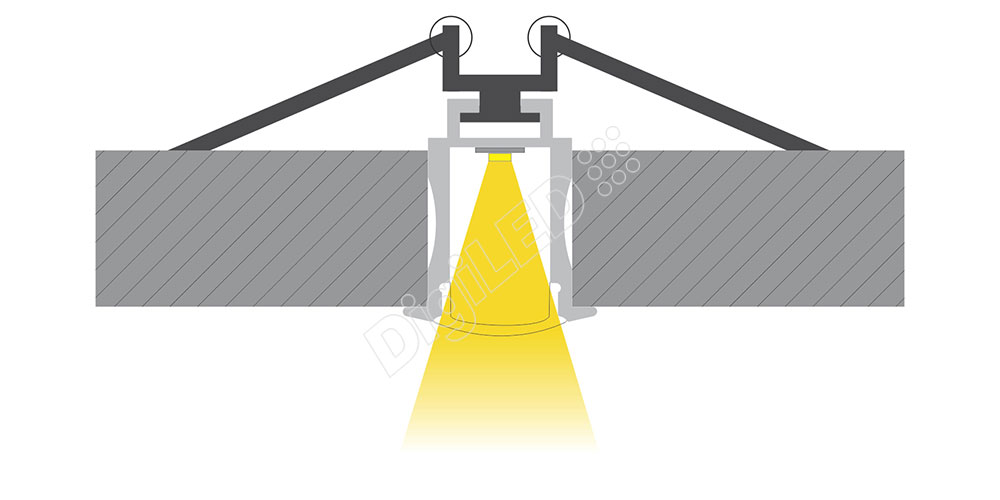

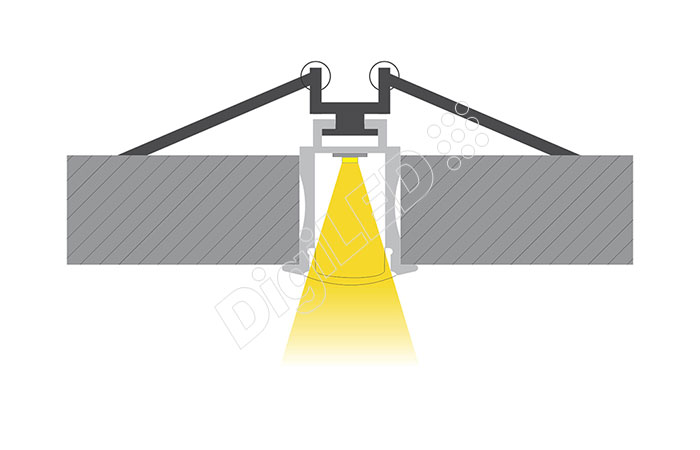

  • Easy and fast mounting
  • 3 years Warranty

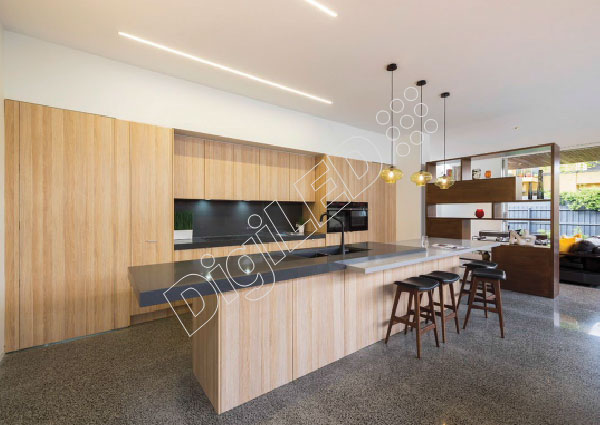

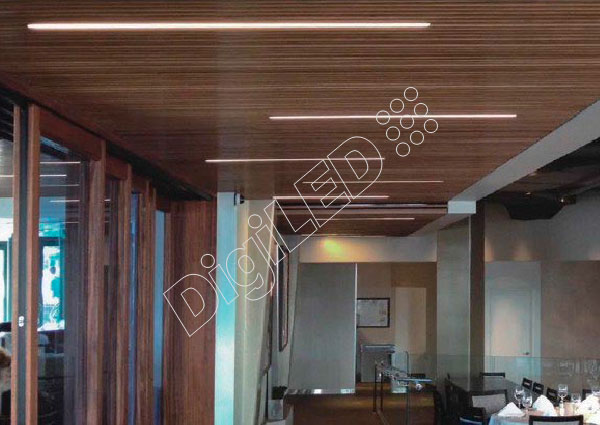

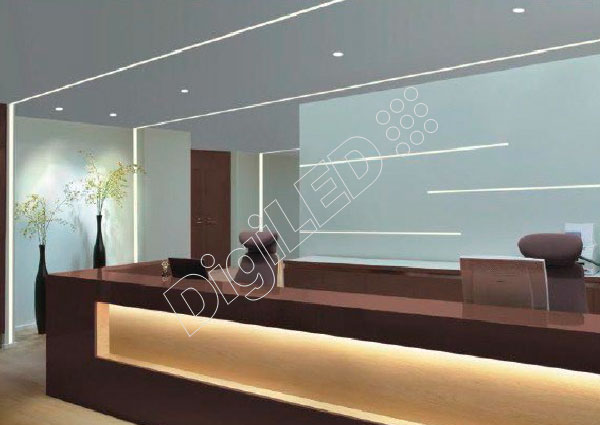

Application Areas

  • Ceiling recessed lighting
  • Under cabinet lighting
  • Decorative lighting
  • Bedroom lighting
  • Retail Lighting
  • Furniture lighting
  • Interior accent lighting
  • Exhibition stands

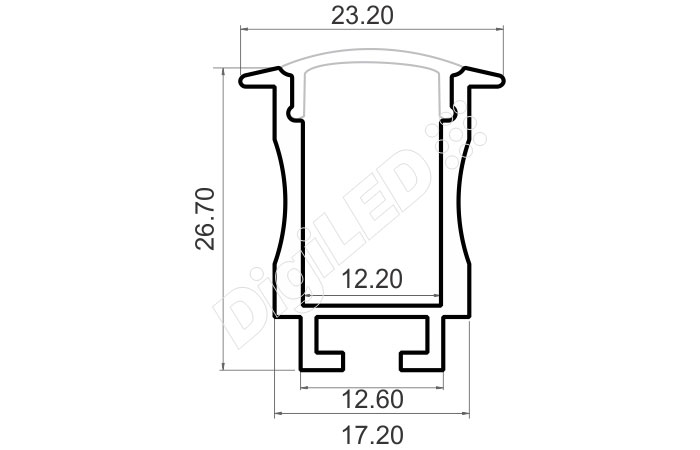

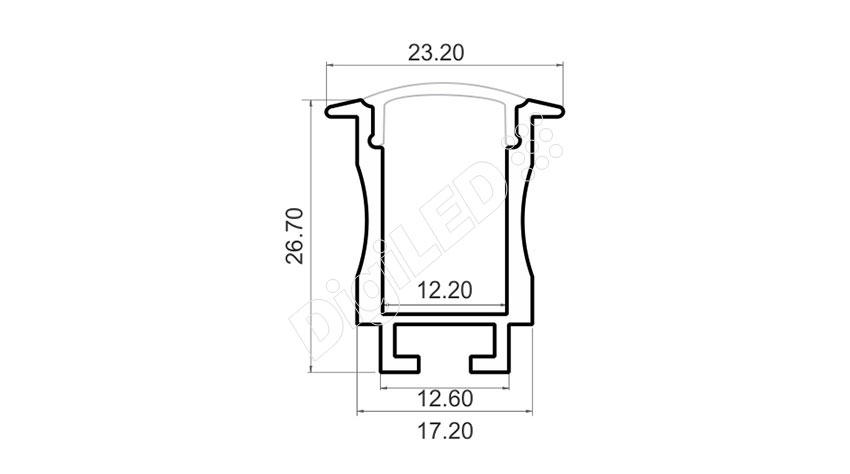

Material Size Max PCB size possible Max length Diffuser Recommended watts/meter Finish
Aluminum 26.70 mm x 23.20 mm Up to 12mm 2000 mm Press fit [optional] 4 - 20w max Raw/anodized or Powder coated

Accessories For Tubex Profile

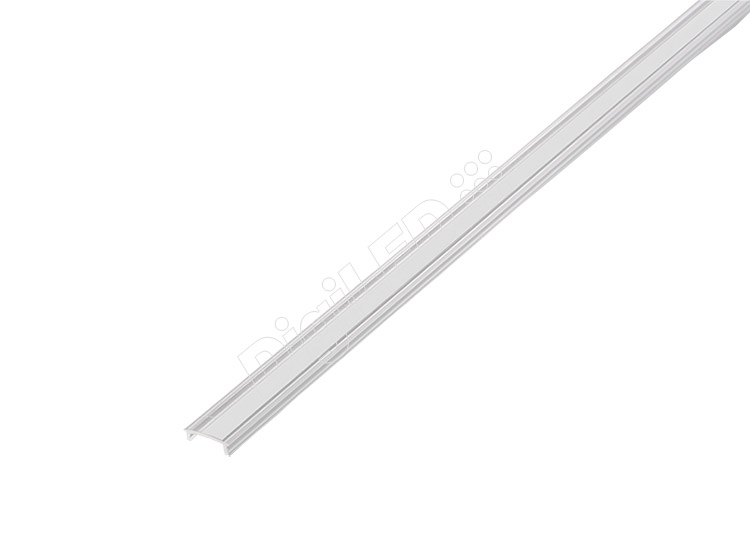

Clear Diffuser

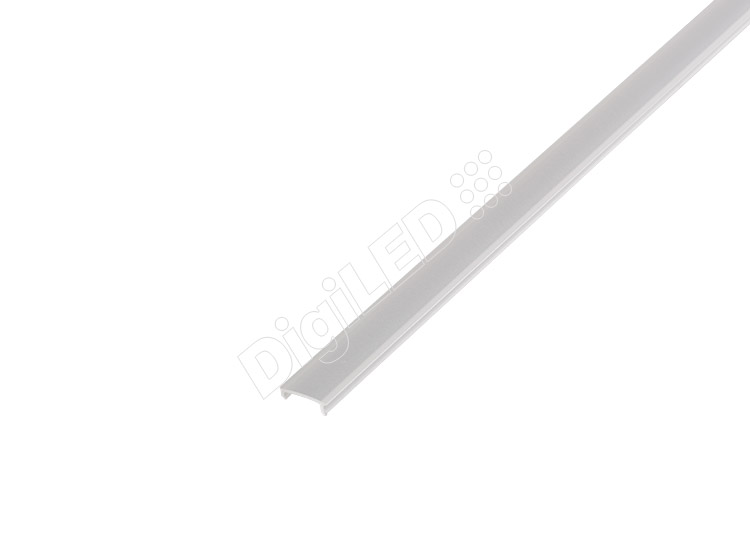

Frosted Diffuser

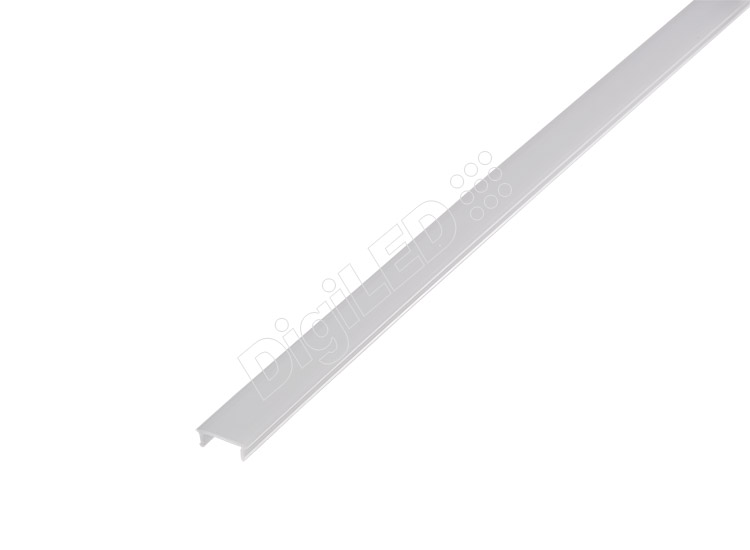

Milky Diffuser

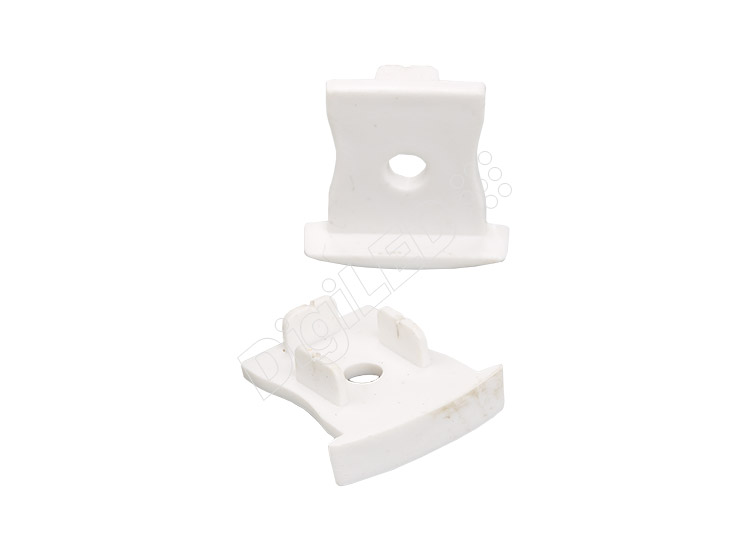

End Caps



Application Name
Application Name
Application Name
