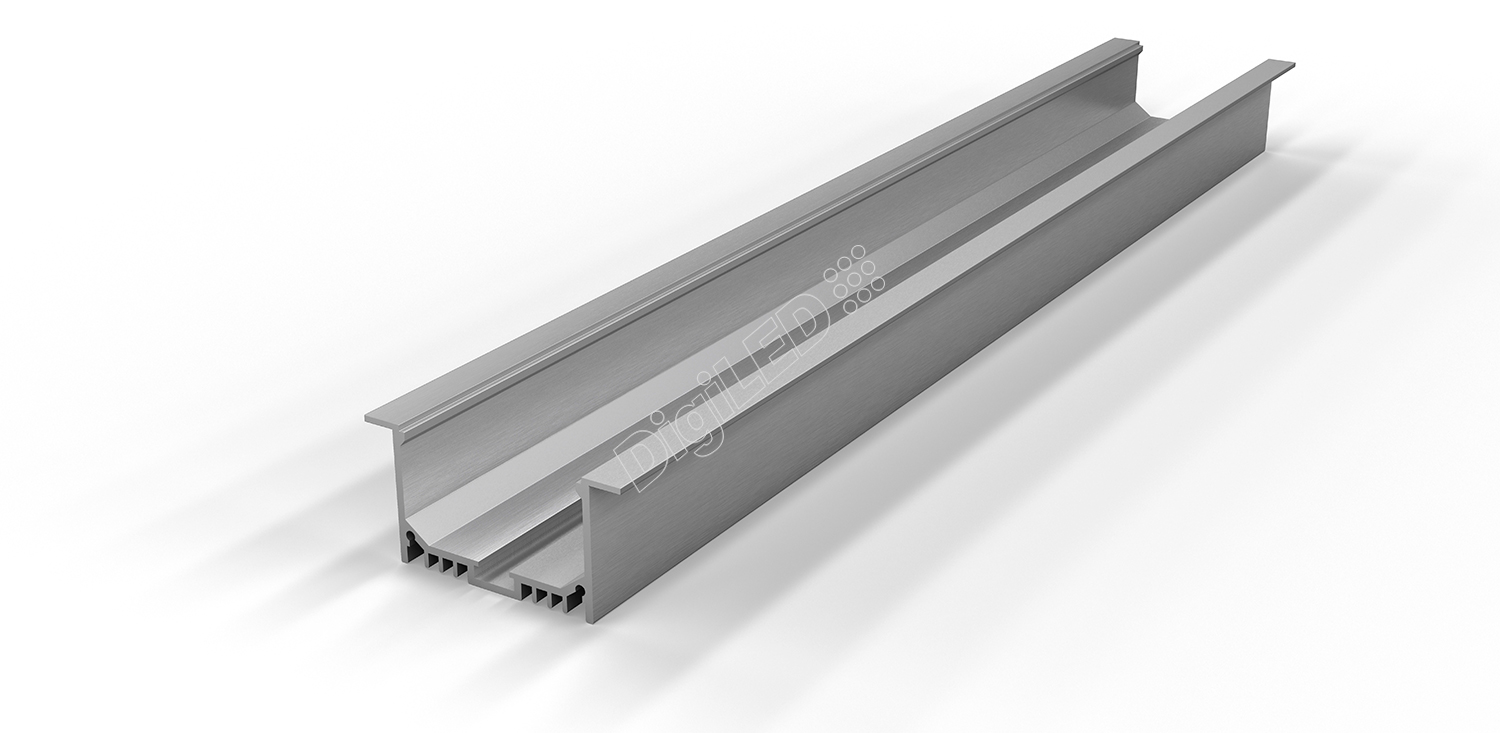

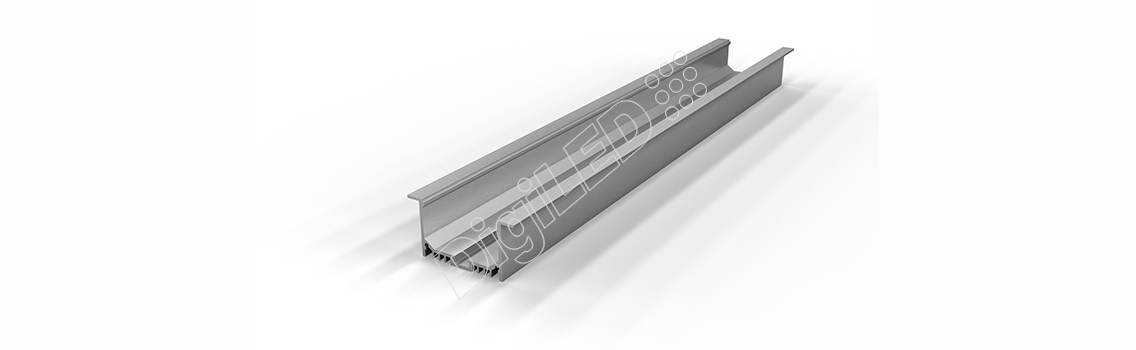

Helios

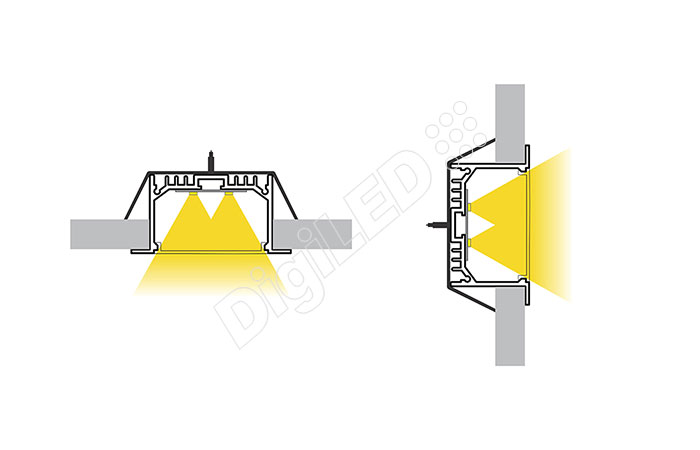

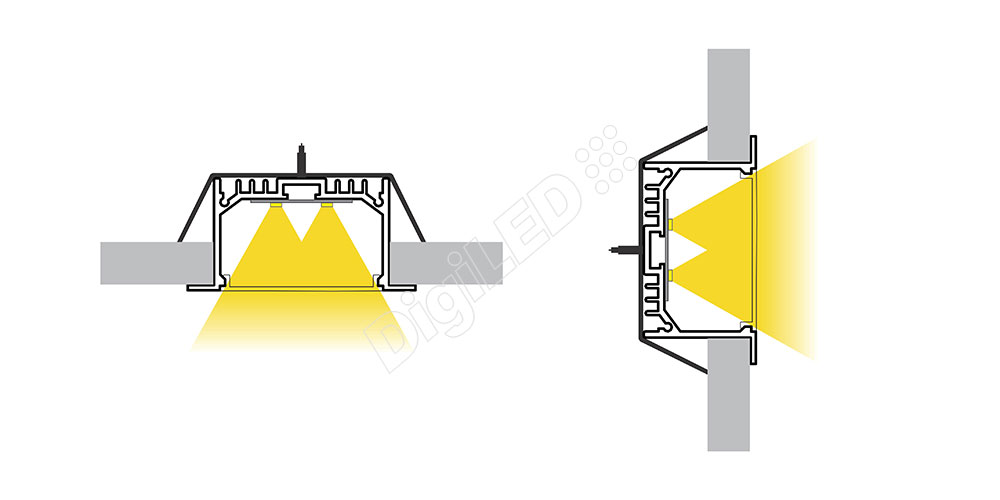

A very new concept of modern cost saving lighting, come with Helios. Very elegant and efficient profile by DigiLED, designed for celling and wall recessed applications. Sutabile for lighting and decorative lighting, Helios is excellent heat sink medium for LED strip lighting. It can be customized for linear or square or other shapes for office and other commercial applications. The aluminum profiles protect the lights from being damaged or broken. They also protect from moisture and from unwanted handling of the lights.

Advantages

  • Recessed profile
  • Excellent heat sink providing long life and reliability for LED
  • Milky diffuser available
  • Easy installation of the LED strips
  • 3 years Warranty
  • Easy and fast mounting using spring bracket

Application Areas

  • Office Lighting
  • Decorative lighting
  • Edge Lighting
  • Residential lighting

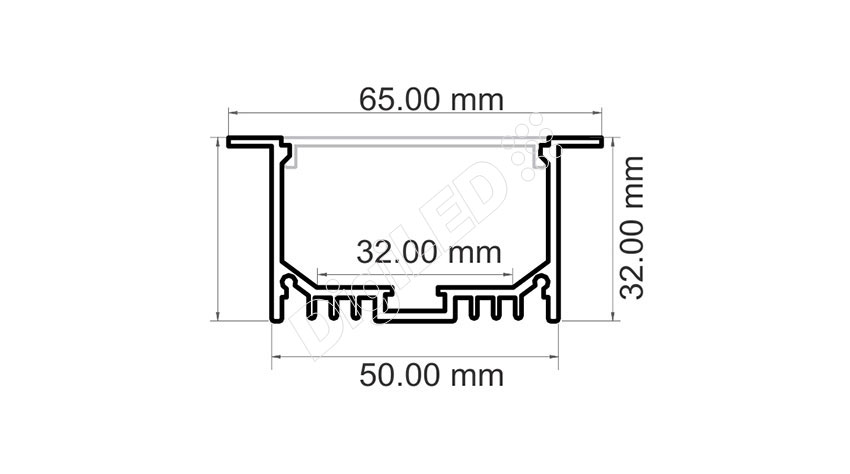

Specifications

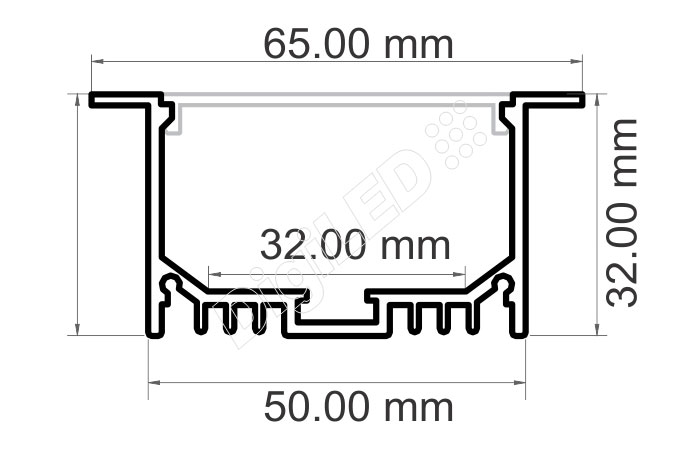

Material Size Max PCB size possible Max length Diffuser Recommended watts/meter Finish
Aluminum 65 mm x 32 mm 32mm 2000 mm Press fit [optional] 30w Raw/anodized or Powder coated

Accessories For Helios Profile

Diffuser

End Caps

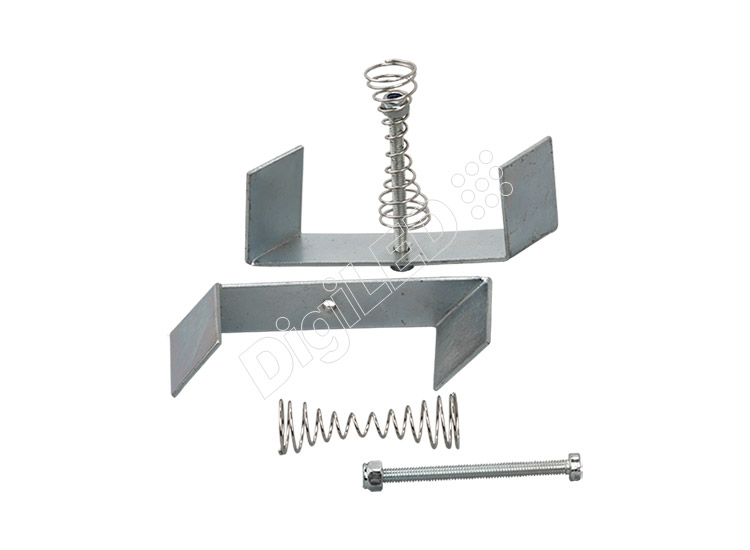

Mounting Extension

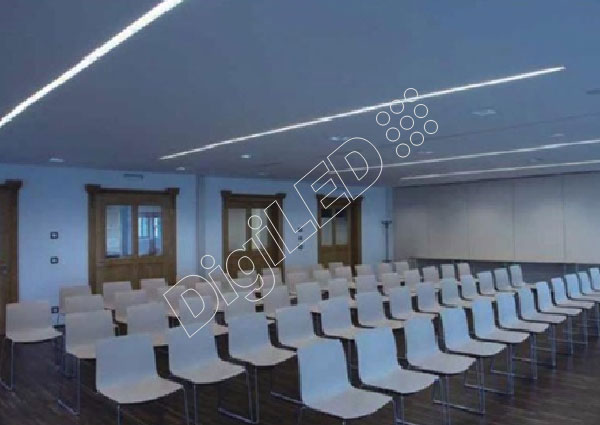

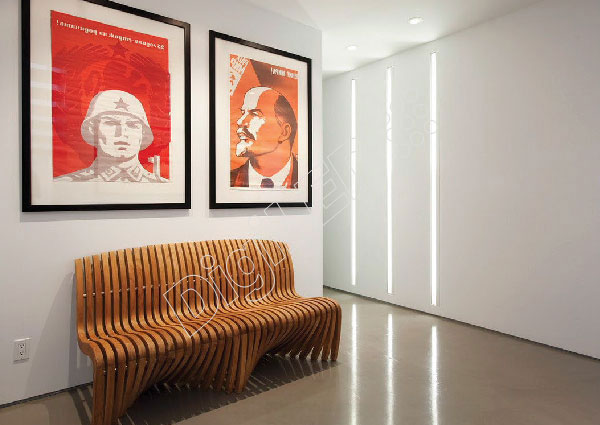

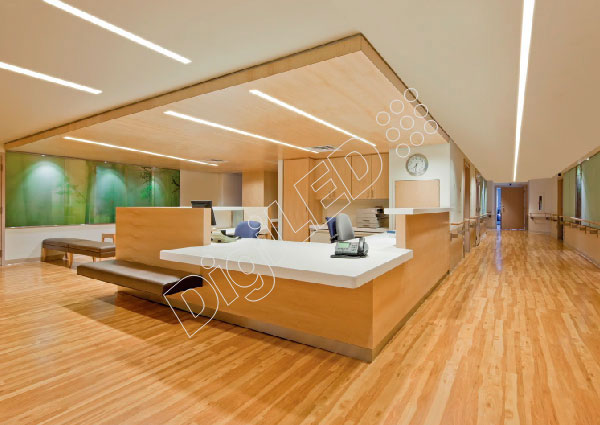

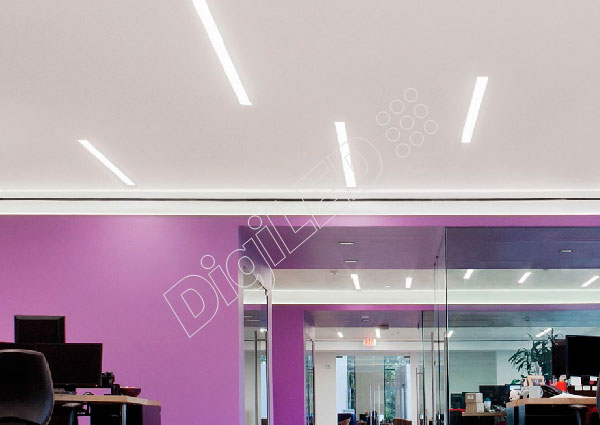

Application

Application Name
Application Name
Application Name
Application Name
