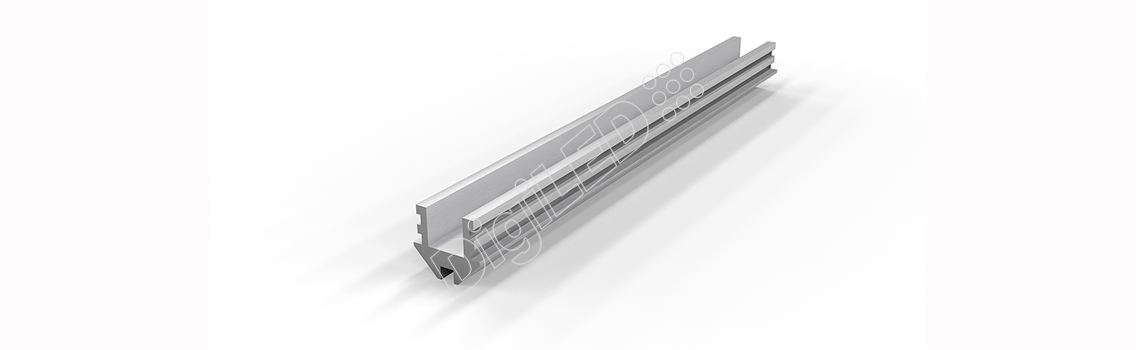

Slim 45

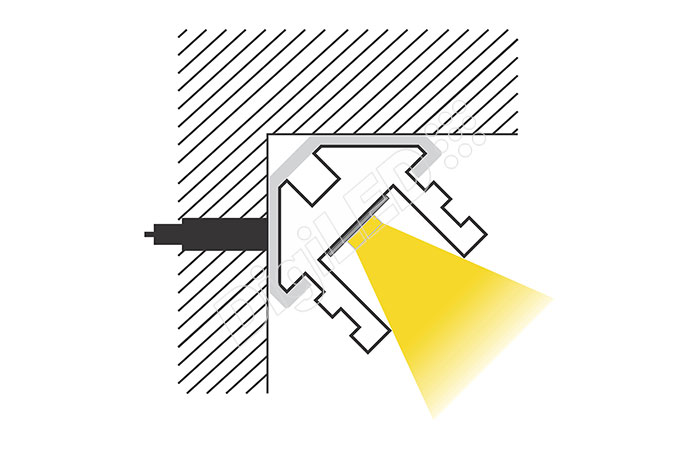

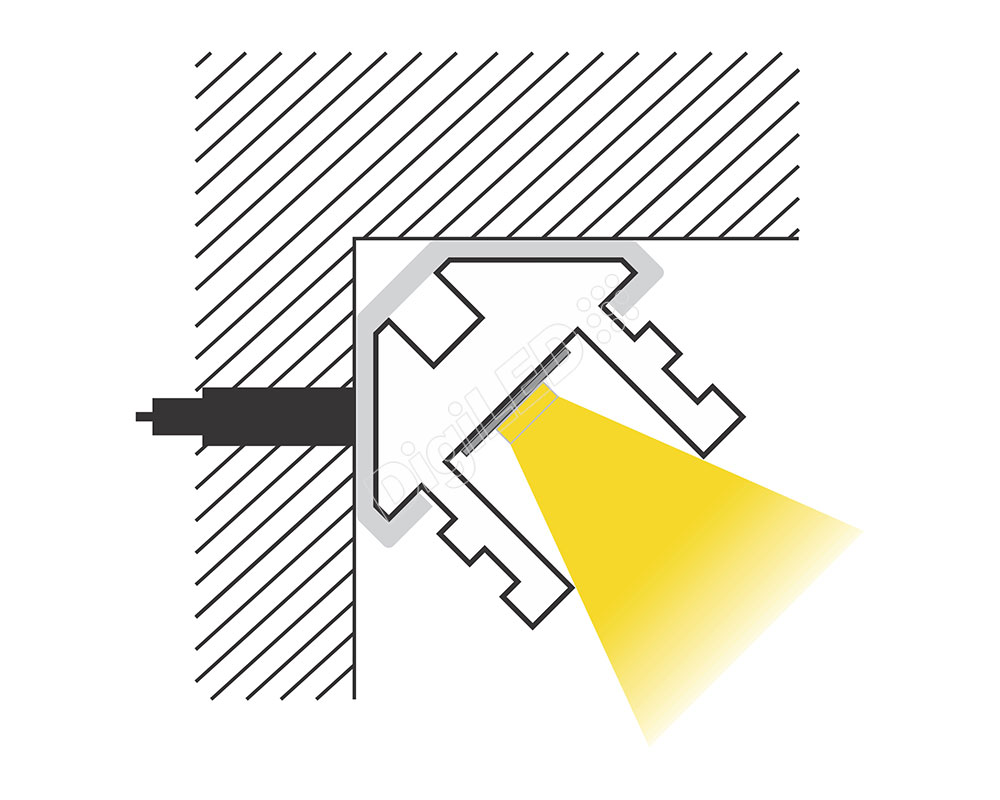

This LED housing is designed for DISPLAY CASES and LED light strips that have a width of 4mm or less. The shape is designed to discretely mount in an L corner, and provide maximum lighting for a variety of applications without showing hot spots. The anodized finish provides maximum protection against the elements, preventing rust and corrosion. The light is directed in 45 degree to the objects required to be lighten up.


  • Mounts to All 90 degree Corners
  • Protects LED Light Strips to be damaged from incorrect handling
  • No LED hot spots visible due to its angular light
  • Excellent heat sink providing long life and reliability for LED
  • Easy installation
  • 3 years Warranty
  • Easy and fast mounting in corners by tape or bracket

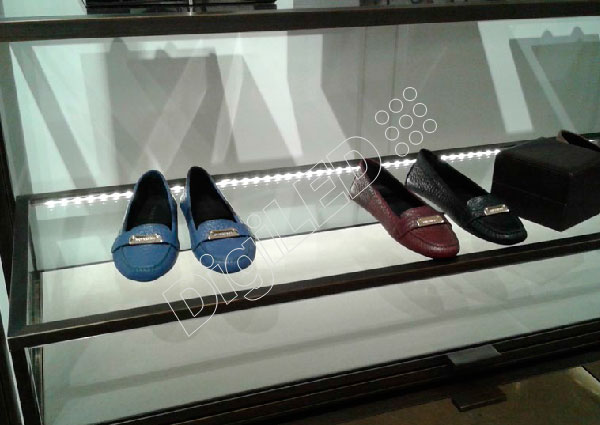

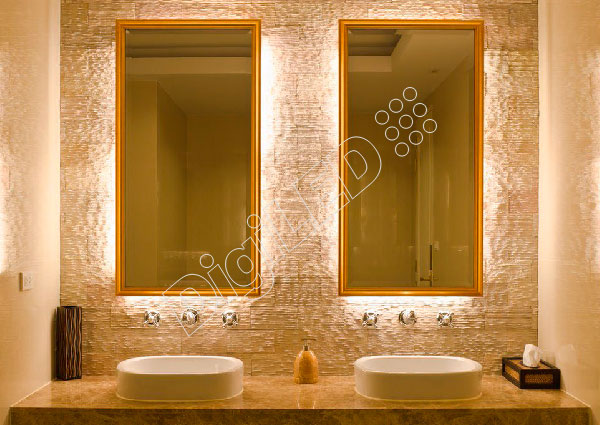

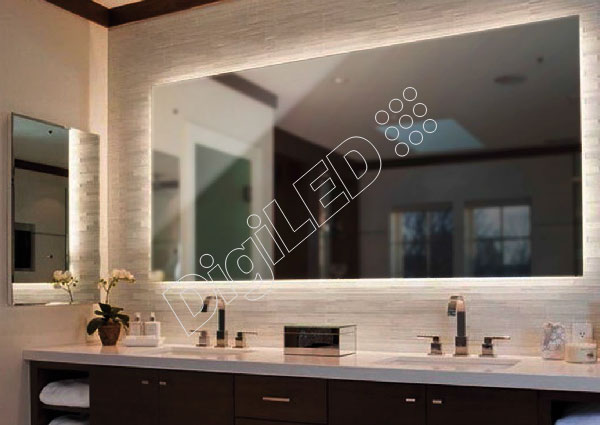

Application Areas

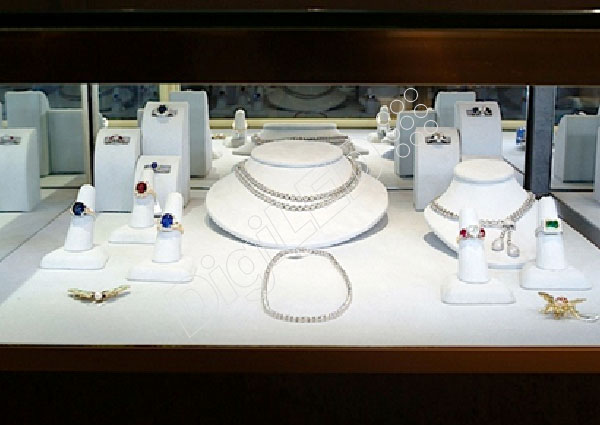

  • Jewellery Display lighting
  • Bakery cases
  • Under cabinet lighting
  • Kitchen and bedroom lighting
  • Edge Lighting

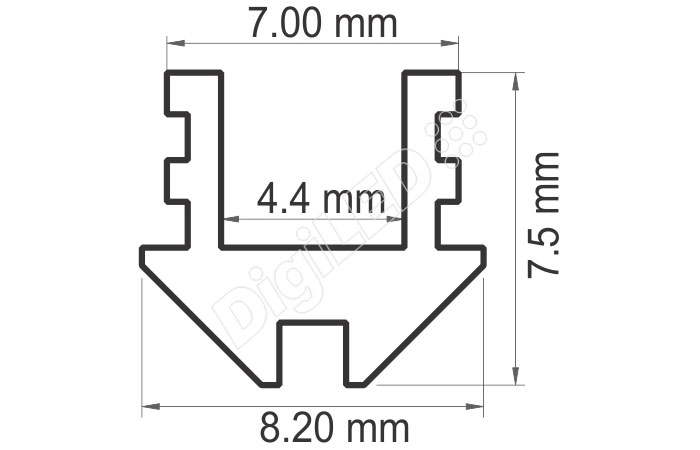

Material Size Max PCB size possible Max length Diffuser Recommended watts/meter Finish
Aluminum 8.2mm x 7.5mm 4mm 2000 mm Not Aapplicable 6w Raw/anodized

Accessories For Slim 45 Profile

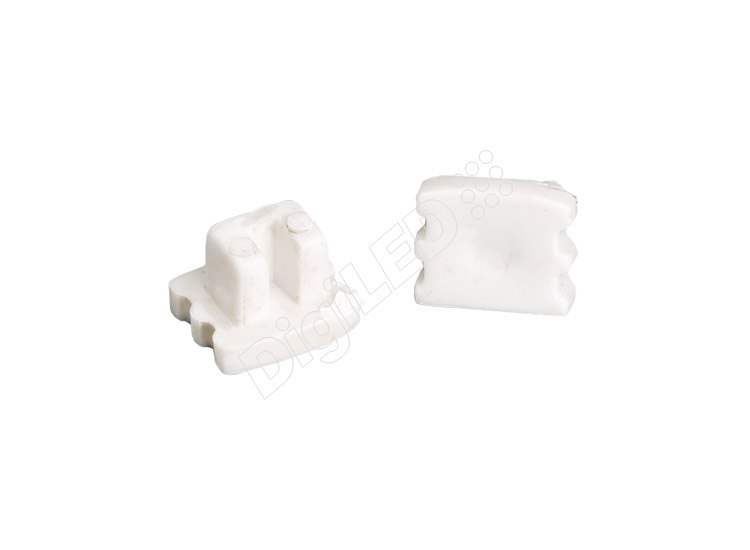

End Caps

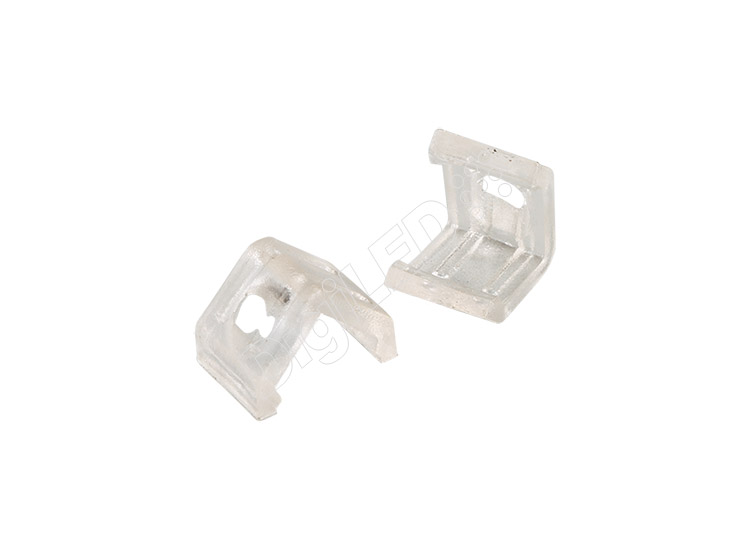

Mounting Caps
