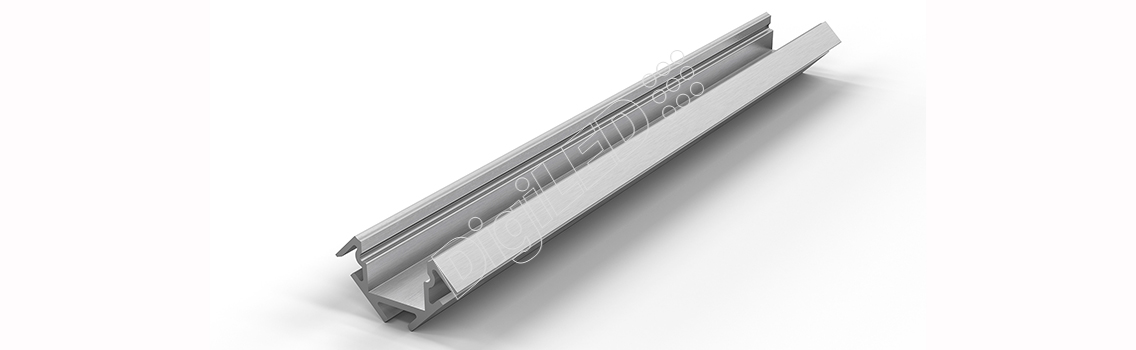

Angular 45

This LED housing is designed for LED light strips that have a width of 12mm or less. The shape is designed to discretely mount in a corner, and provide maximum lighting for a variety of applications. The anodized finish provides maximum protection against the elements, preventing rust and corrosion. Mounting brackets are available to make installation easy, and create a solid fixture for any Corner to mount. Three types of Diffusers [frosted, milky and transparent] are also available to maximize protection of the strip from dust etc. and to control the diffusion of light from the strip.

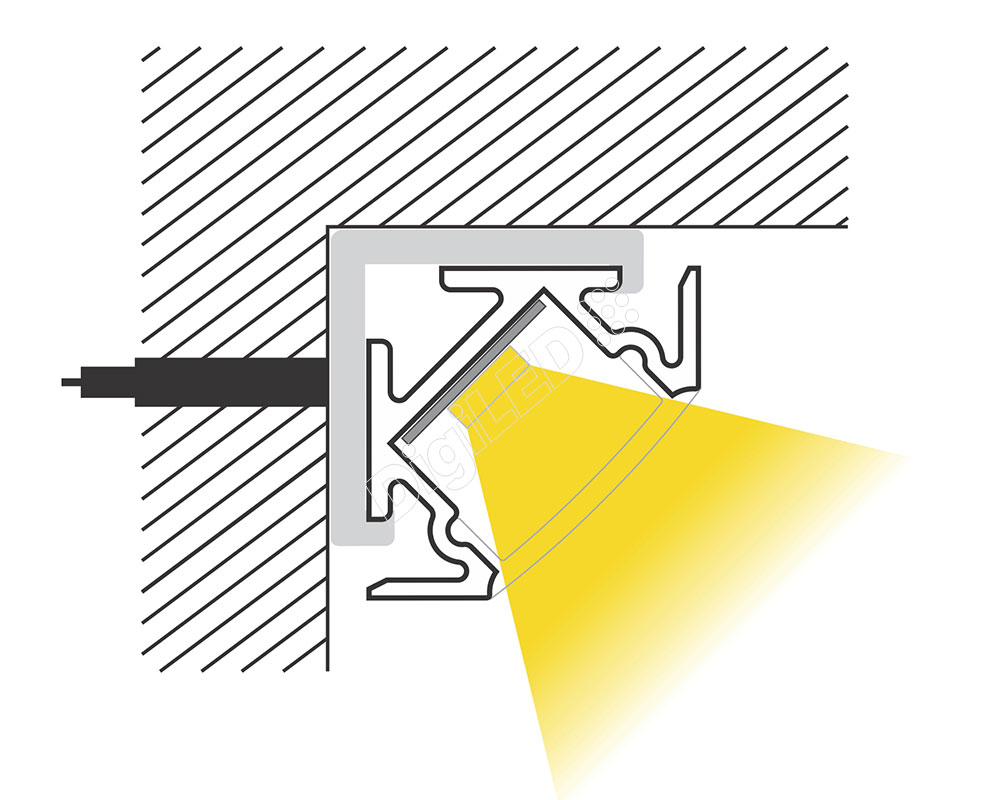

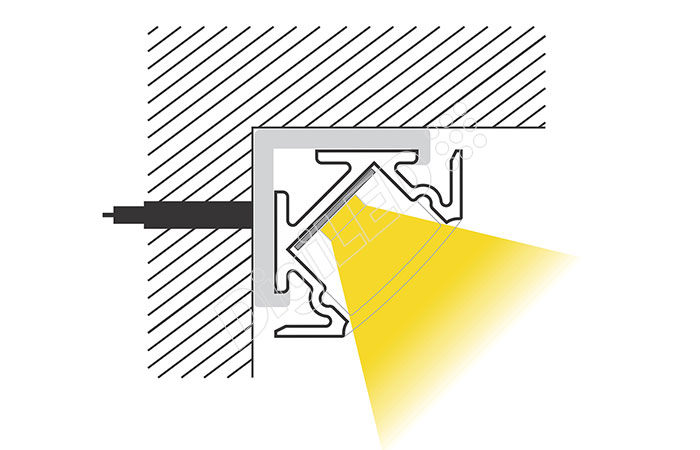

  • Mounts to All 90 degree Corners
  • Power supply Wire can be passed behind the profile
  • Protects LED Light Strips
  • 2 different shape diffusers available
  • Excellent heat sink
  • 3 years Warranty
  • Easy and fast mounting in corners by tape or bracket

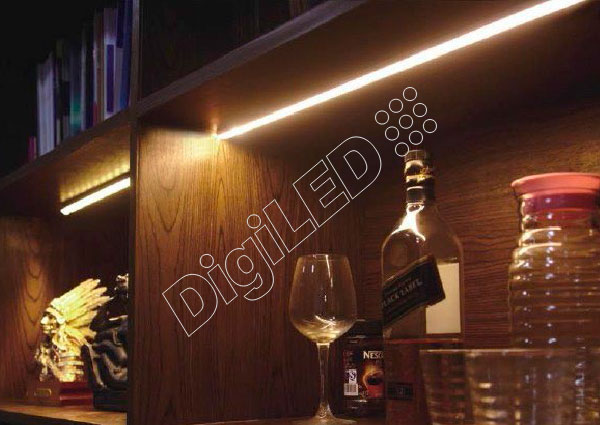

Application Areas

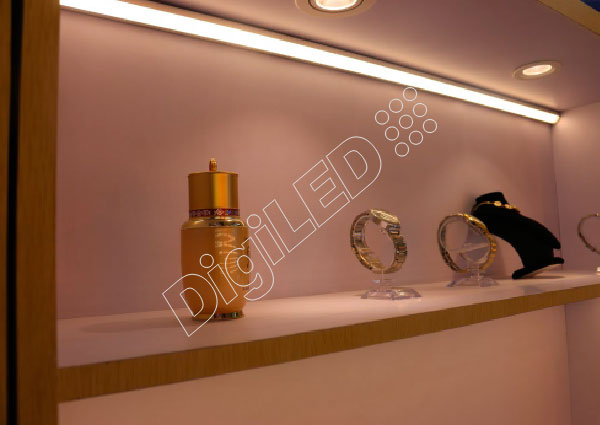

  • Display lighting
  • Ceiling cove lighting
  • Closet lighting
  • Under cabinet lighting
  • Decorative lighting
  • Kitchen and bedroom lighting

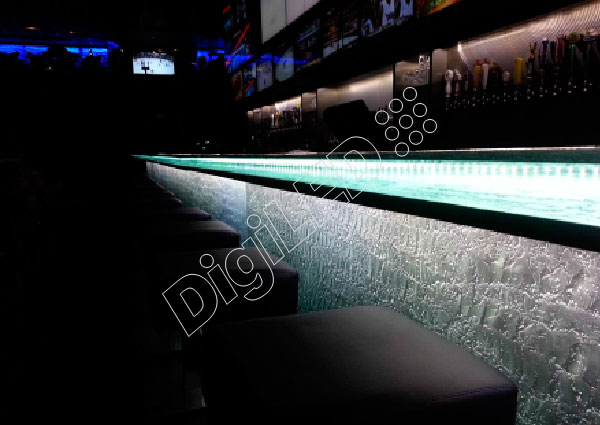

  • Edge Lighting

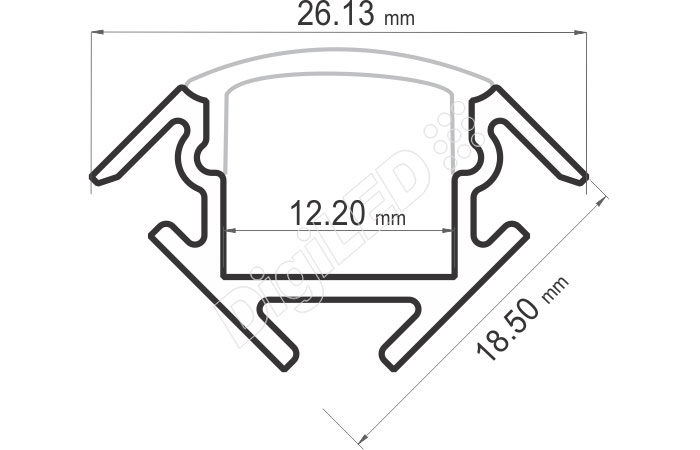

Material Size Max PCB size possible Max length Diffuser Recommended watts/meter Finish
Aluminum 28.50mm x 26.13mm 12mm 2000 mm Press fit [optional] 20w Raw/anodized

Accessories For Angular 45 Profile

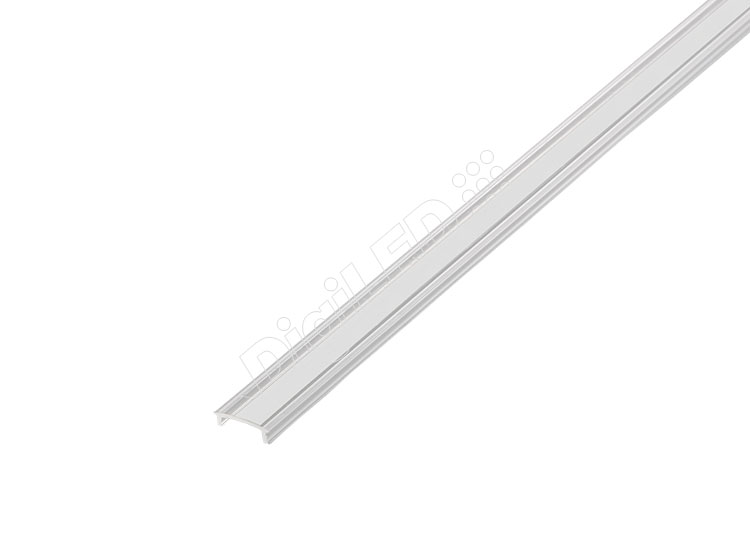

Clear Diffuser

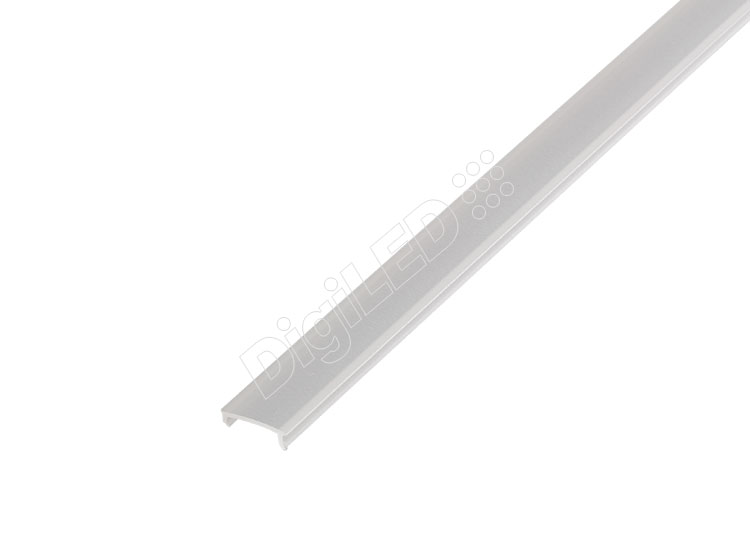

Frosted Diffuser

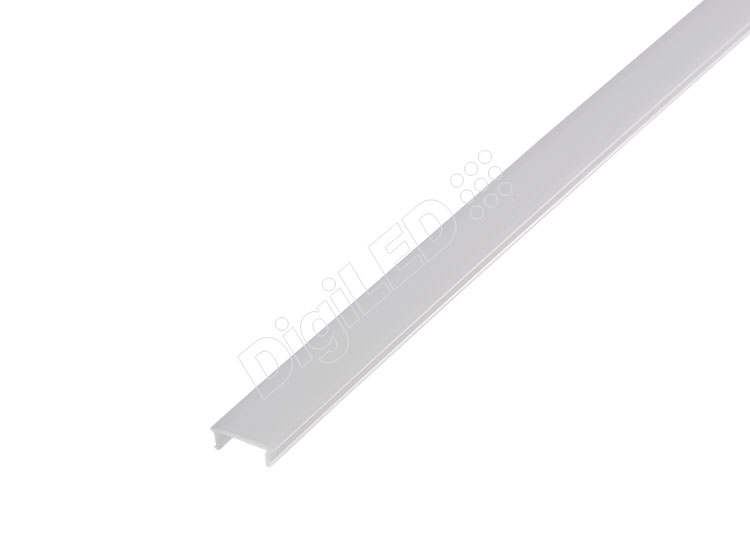

Milky Diffuser

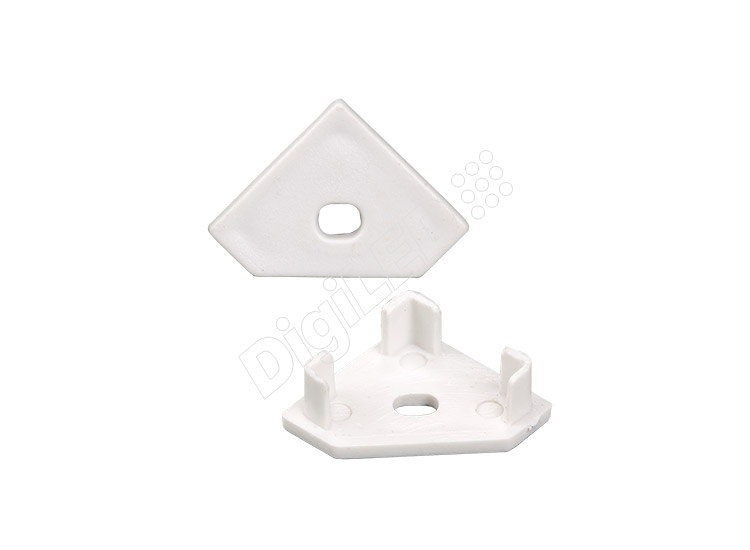

End Caps

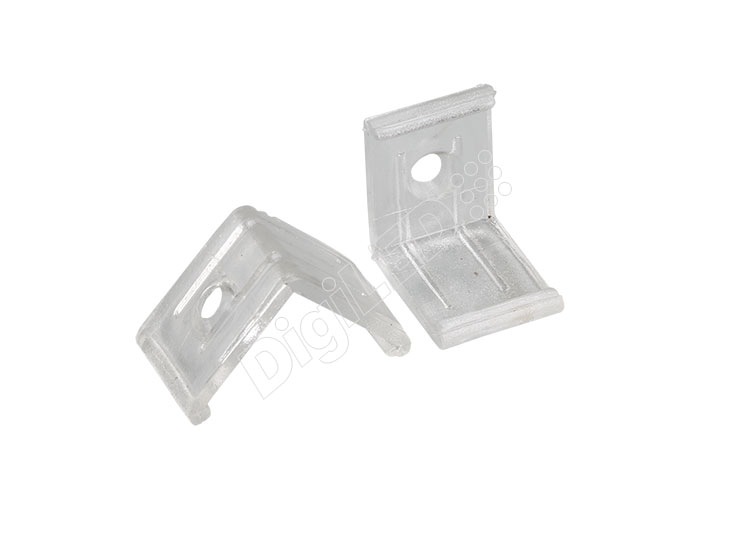

Mounting Caps
