Pluto

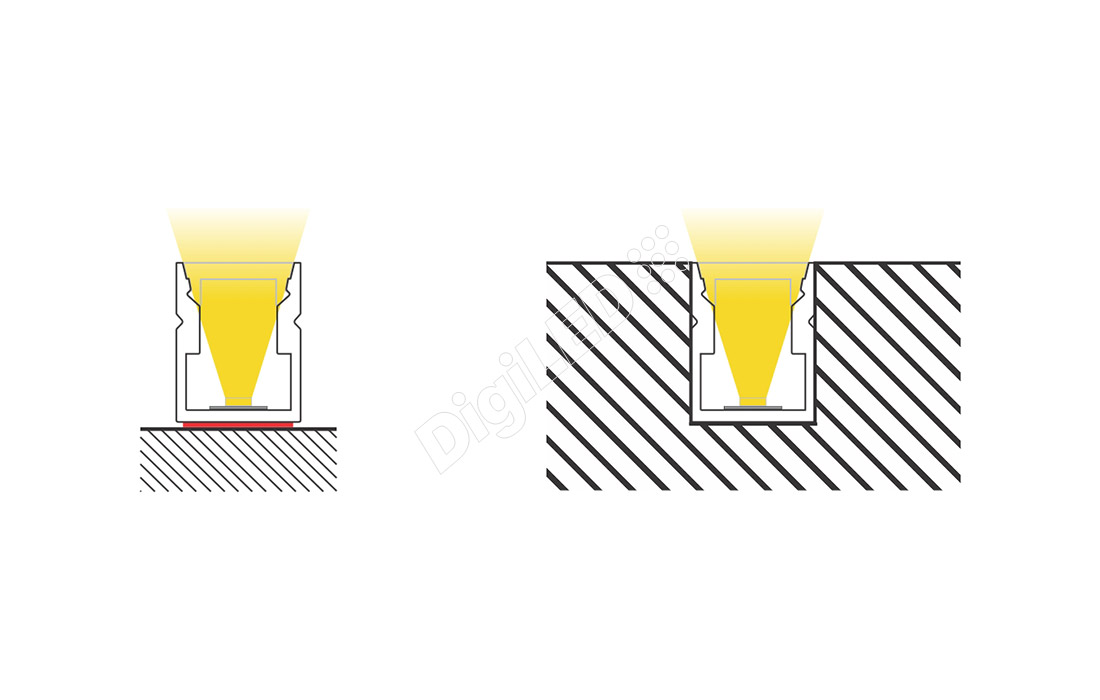

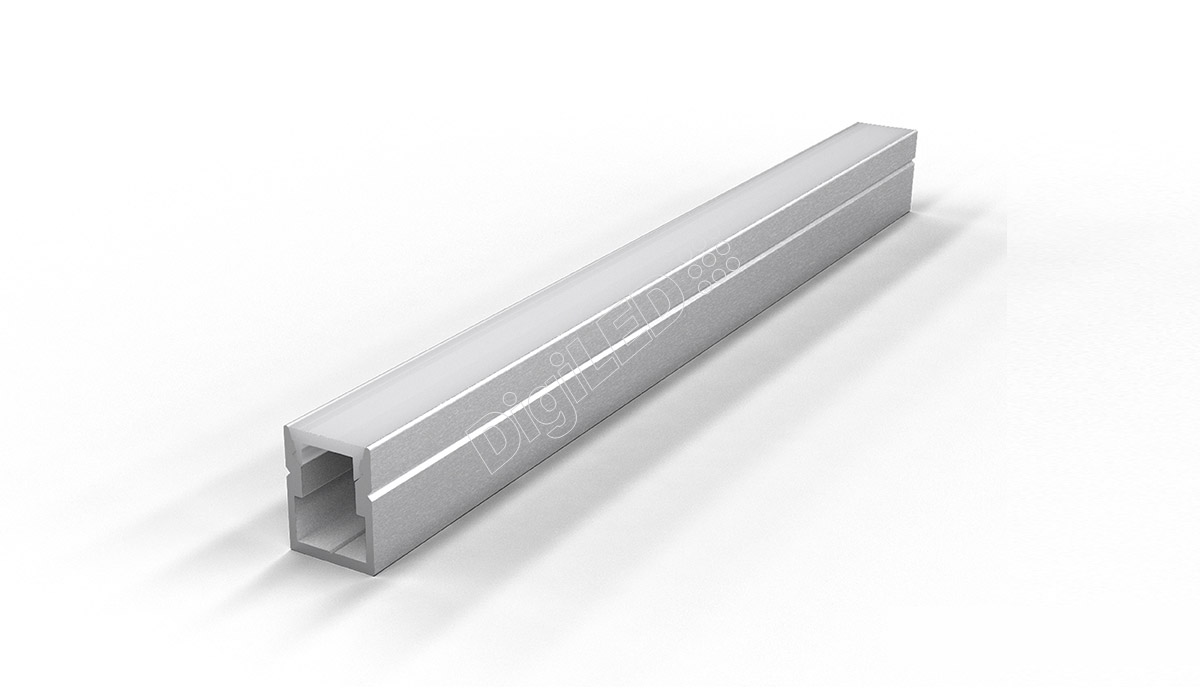

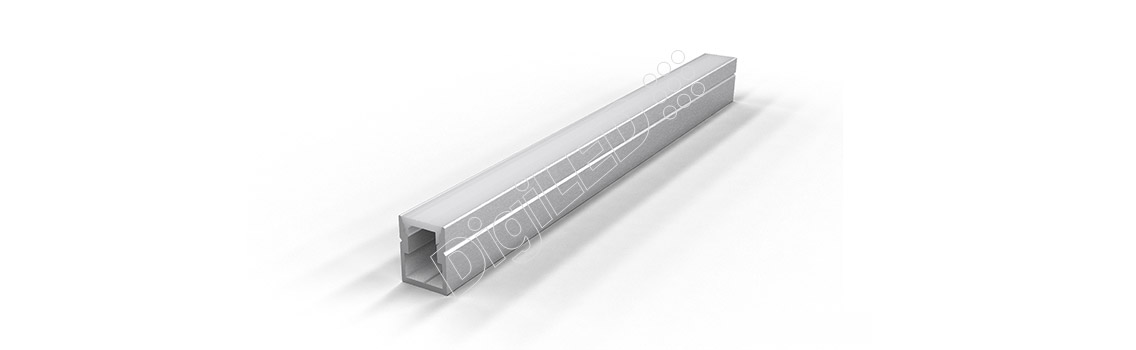

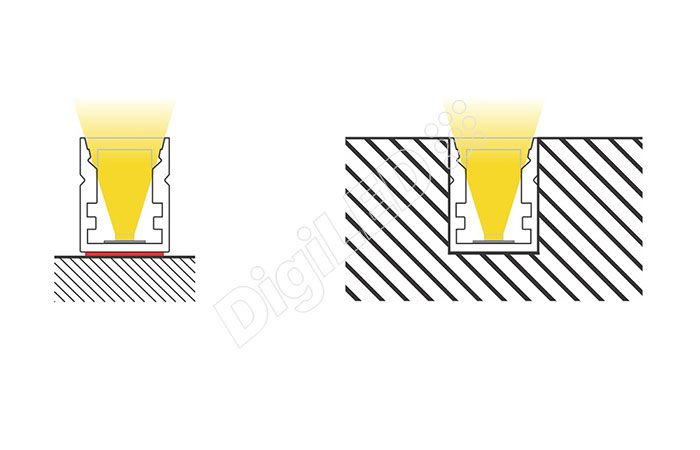

Slim and perfect profile with flat diffuser can enhance the beauty of your home, shop or office. LED strips can be installed with proper thermally conductive tape or glue. Accessories are available for mounting and installation requirements. Pluto also can be recessed into wood or MDF other soft materials to give seamless continuous light. This profile permits the best dissipation of heat and good thermal stability. It is the perfect solution linear illumination for direct lighting applications.

Advantages

  • Surface/recess dotless lighting profile
  • Good heat sink providing long life and reliability for LED
  • Excellent for thin decorative lighting
  • Milky diffuser with homogeneous light
  • Easy installation of the LED strips
  • 3 years Warranty
  • Easy and fast mounting with mounting clip

Application Areas

  • Furniture decorative lighting

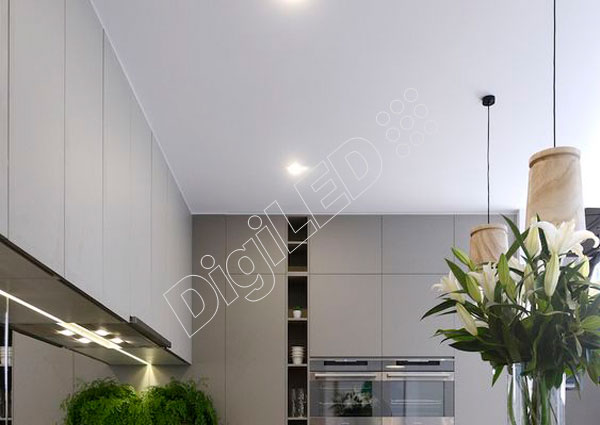

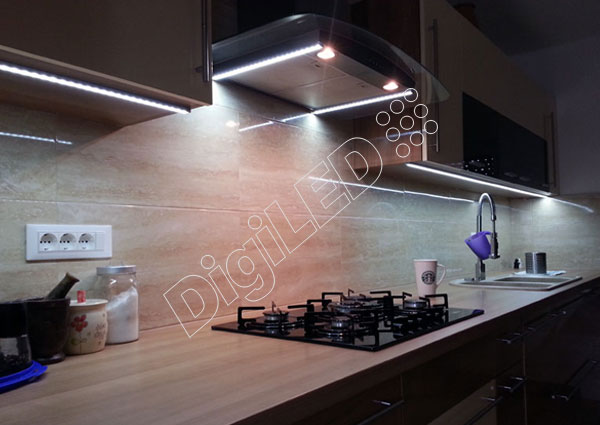

  • Under cabinet lighting
  • Decorative lighting
  • Kitchen and bedroom lighting

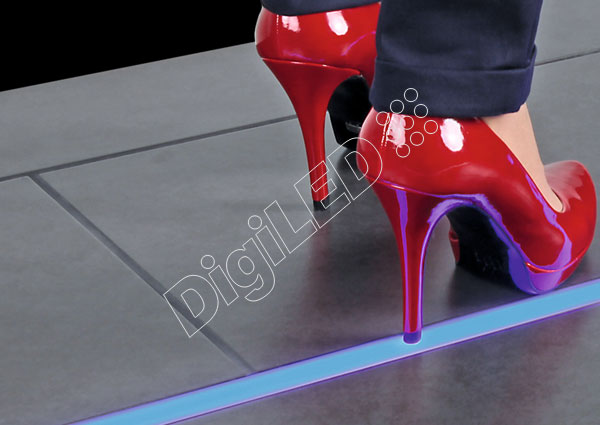

  • Edge Lighting

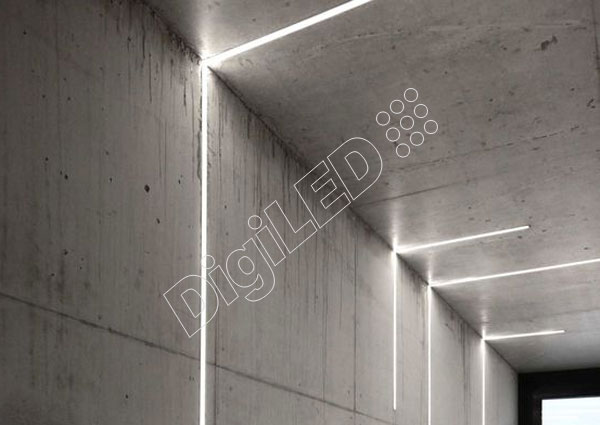

  • Architectural decorative lighting
  • Exhibition display

Specifications

Material Size Max PCB size possible Max length Diffuser Recommended watts/meter Finish

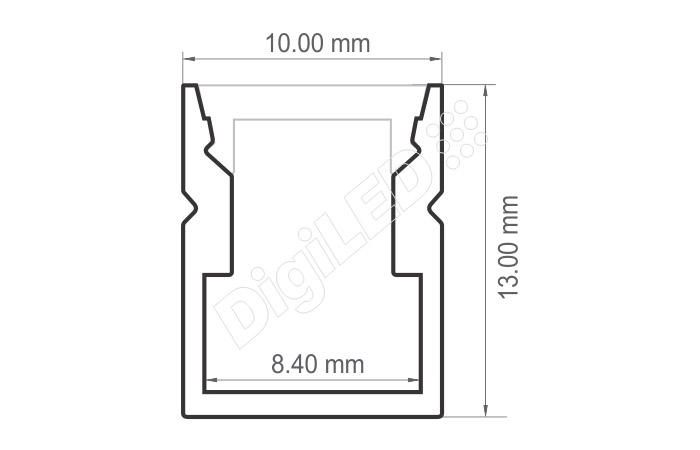

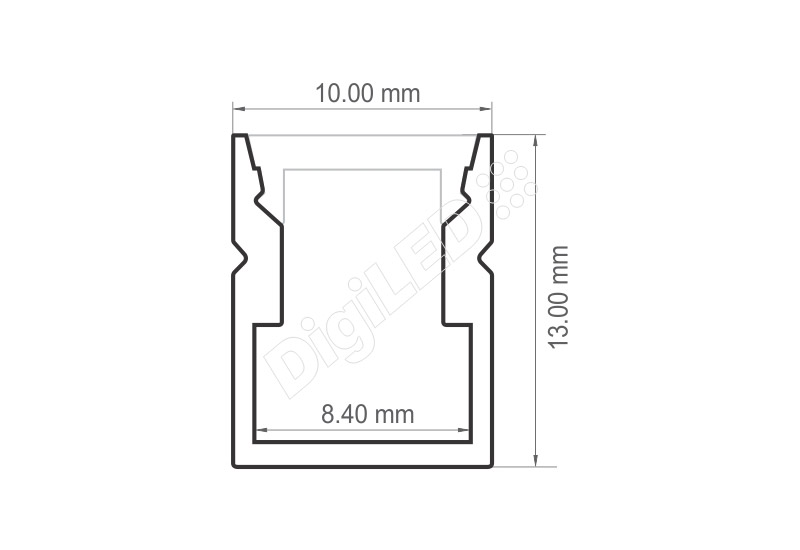

Aluminum 9 mm x 13 mm 8 mm 2000 mm Press fit 14.4w Raw/anodized or Powder coated

Accessories For Pluto Profile

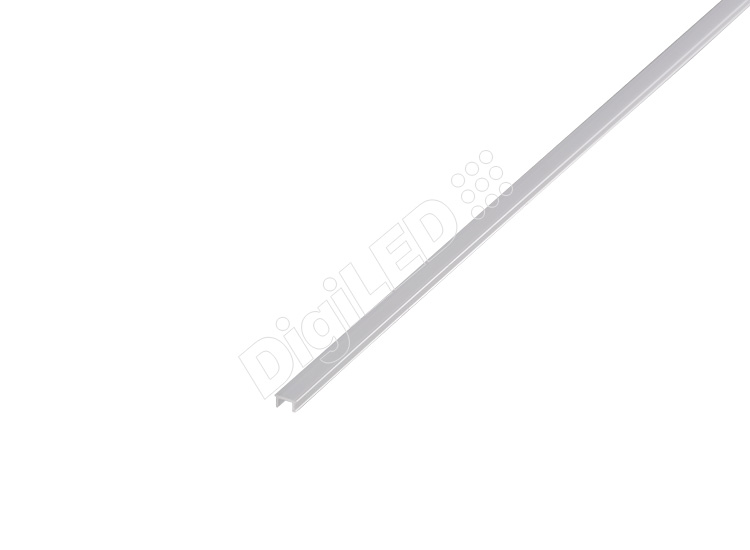

Diffuser

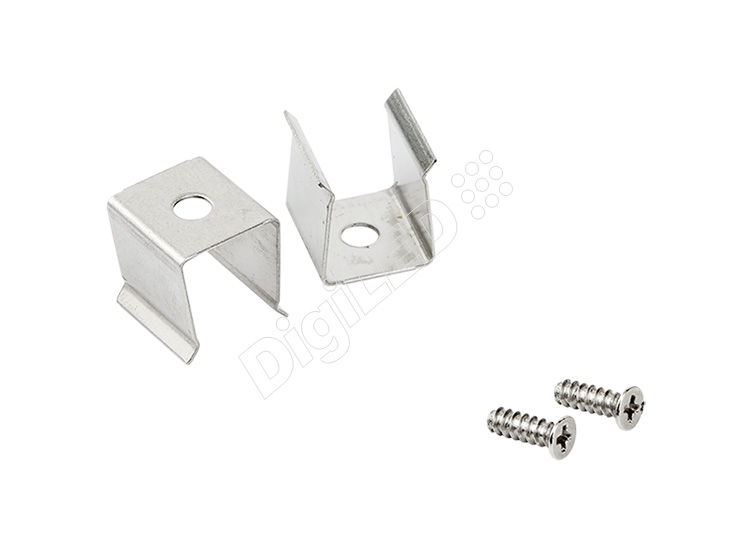

Metal Clips

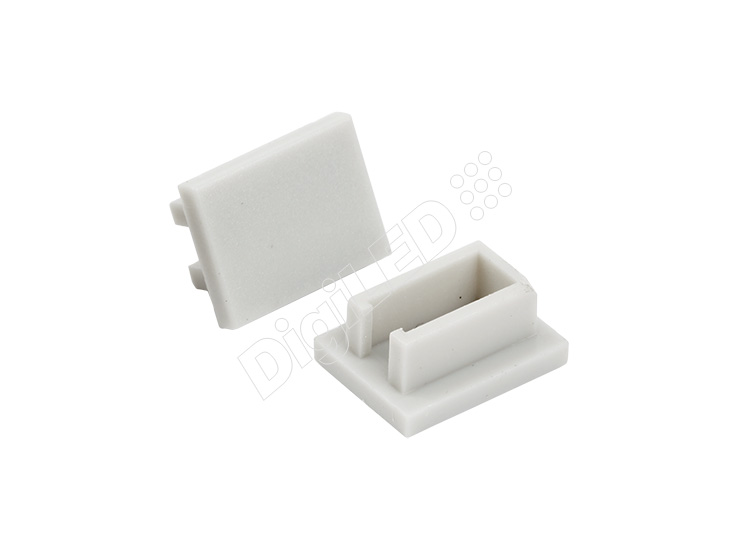

End Caps

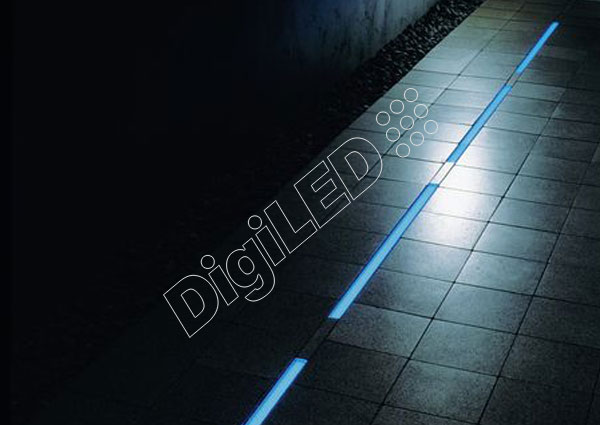

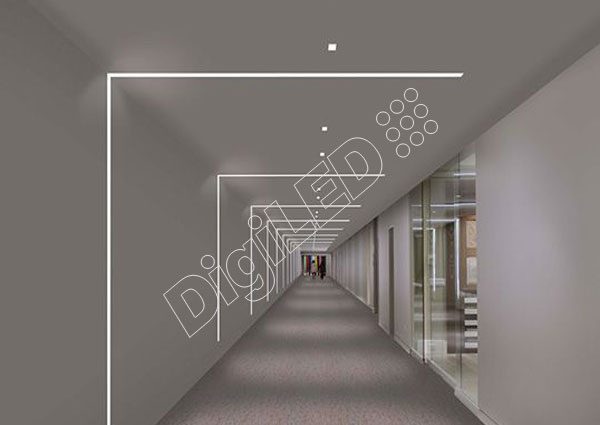

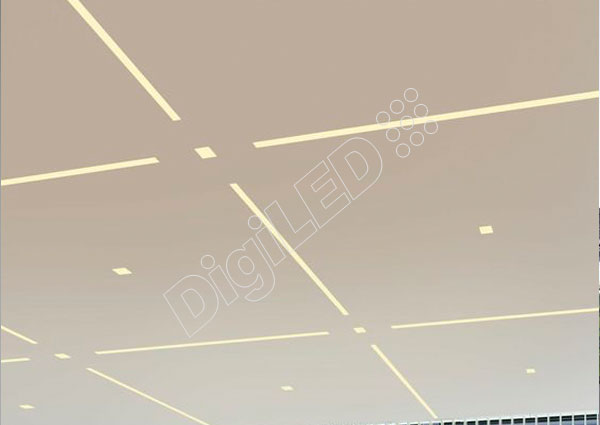

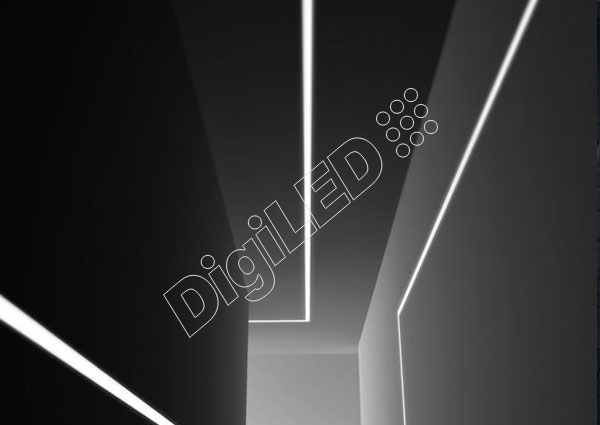

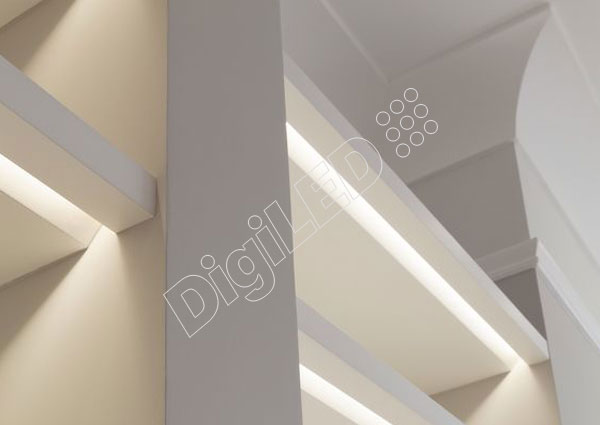

Application

Application Name
Application Name
Application Name
Application Name
Application Name
Application Name
Application Name
Application Name
Application Name
