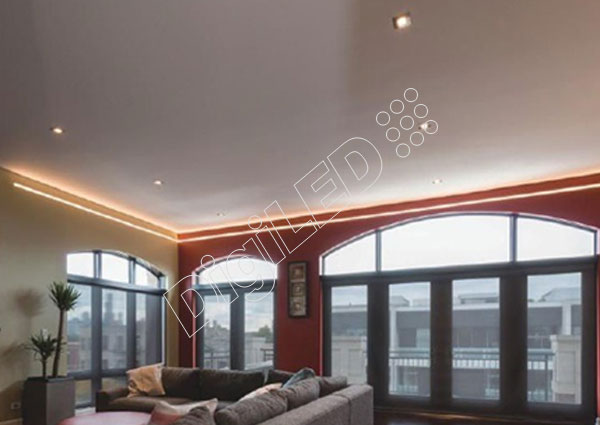

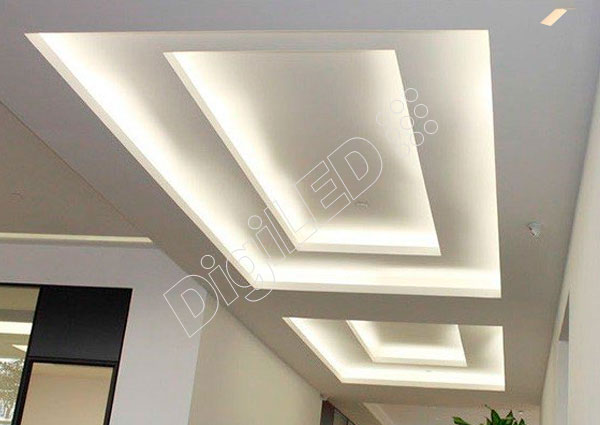

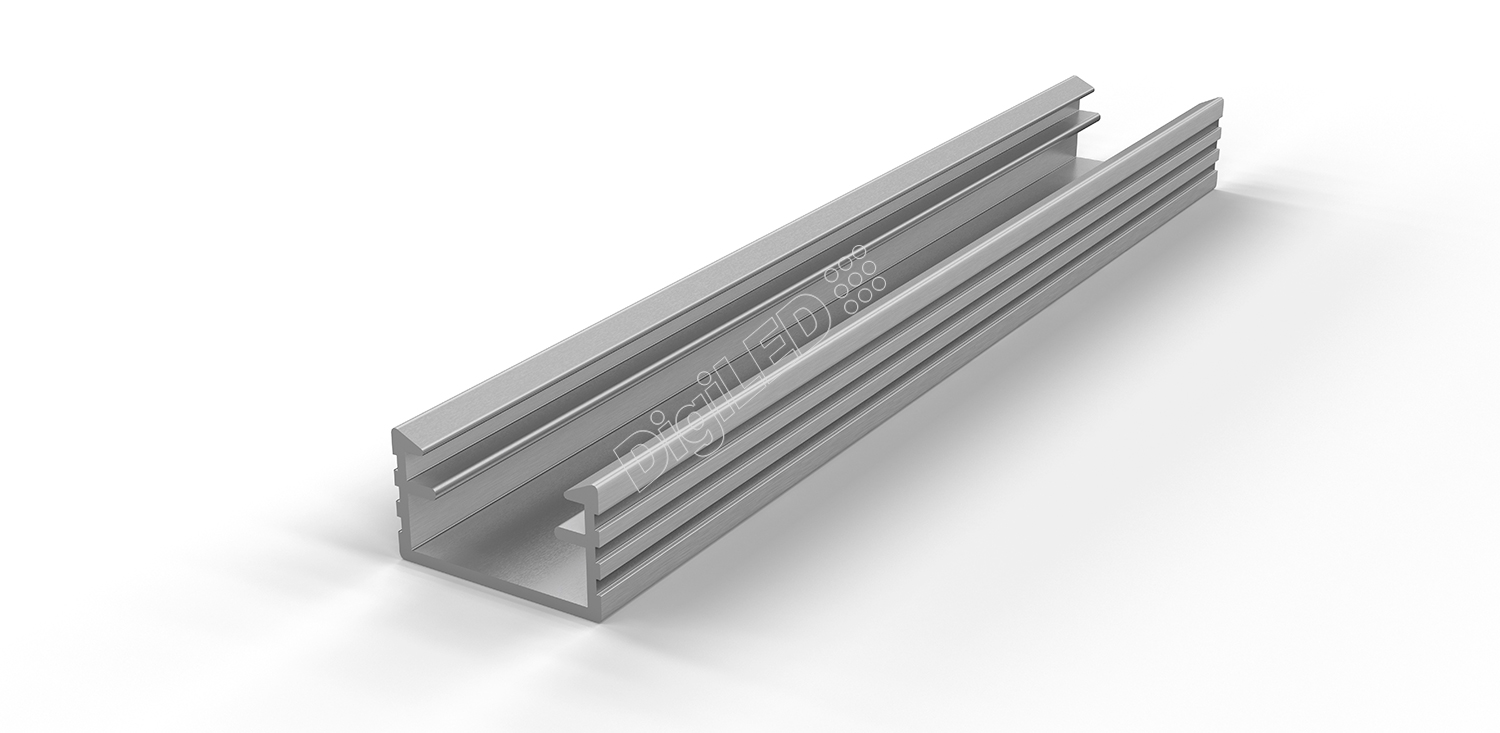

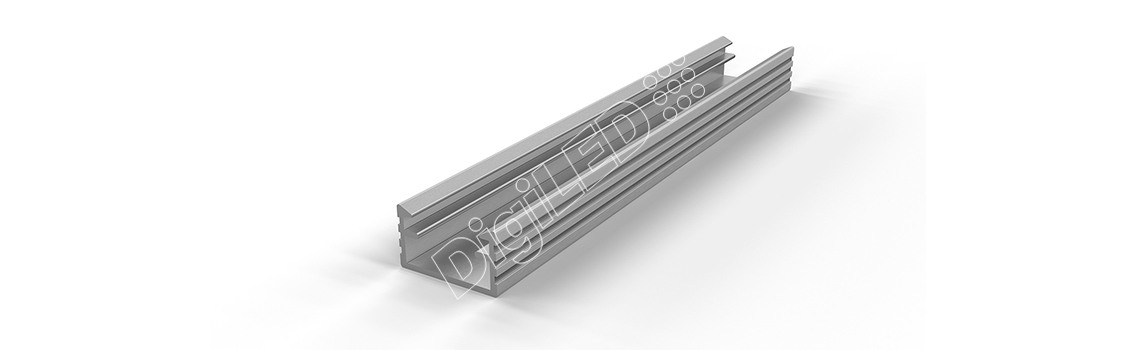

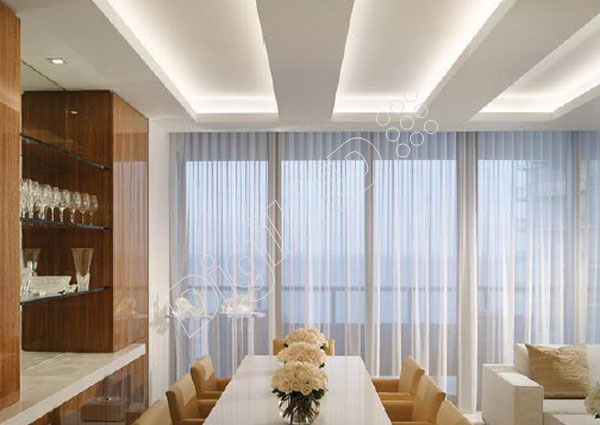

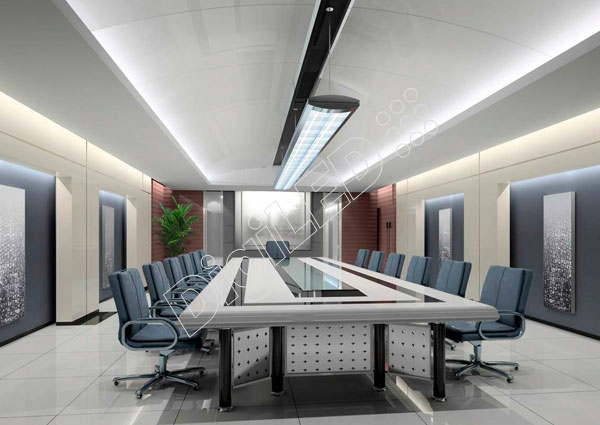

This profile is designed for low cost applications with slid-in diffuser. It can be used with various types of LED strips less than 12 mm wide. This profile is common type of profile for LED linear applications and can be used for multipurpose linear lighting for economy demand. The aluminum profiles gives strength to the lights from being damaged or broken. They also protect from moisture and from unwanted handling of the lights.
Material | Size | Max PCB size possible | Max length | Diffuser | Recommended watts/meter | Finish |
---|---|---|---|---|---|---|

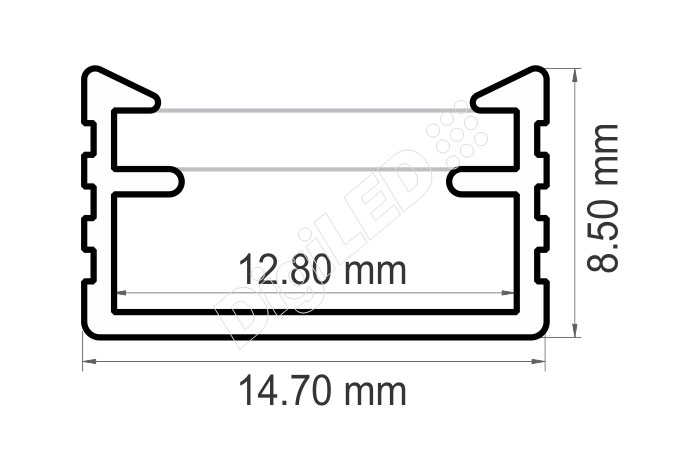

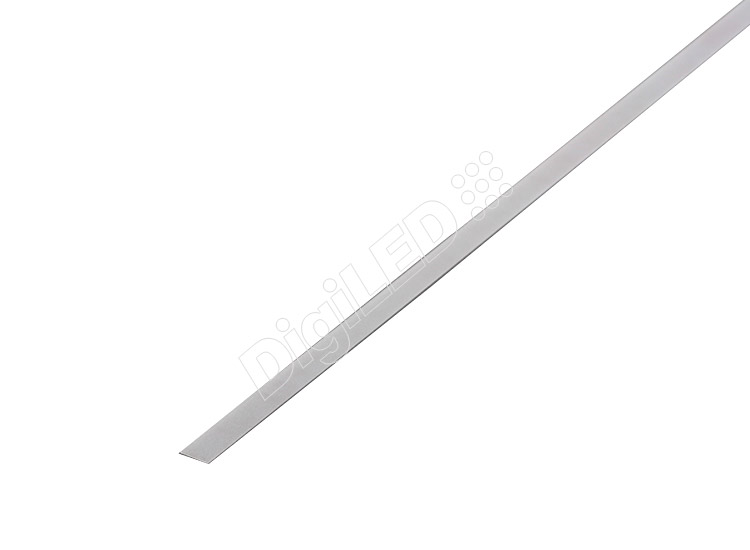

Aluminum | 12.80 mm x 8.50 mm | 12mm | 2000 mm | Slide-in [optional] | 15w | Raw/anodized |
