DGST-RGBW-60 OSRAM

DGST-RGBW-60 OSRAM

12 Watt/Meter (RGB-60) | 7.2 WATT/METER ( MONO-60) | 60 LED/Meter | 12 Volt DC

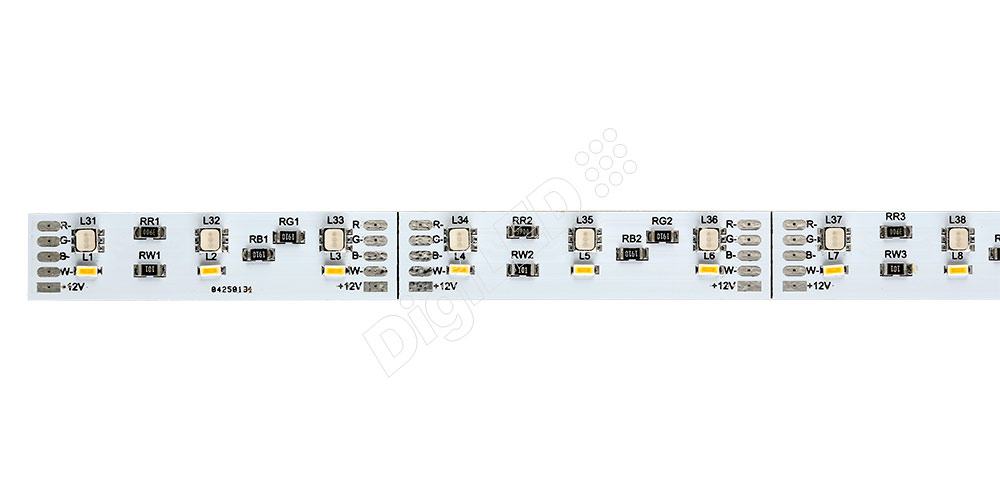

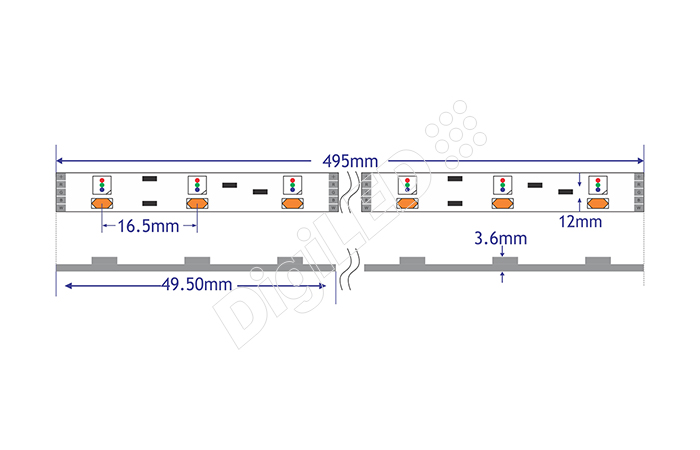

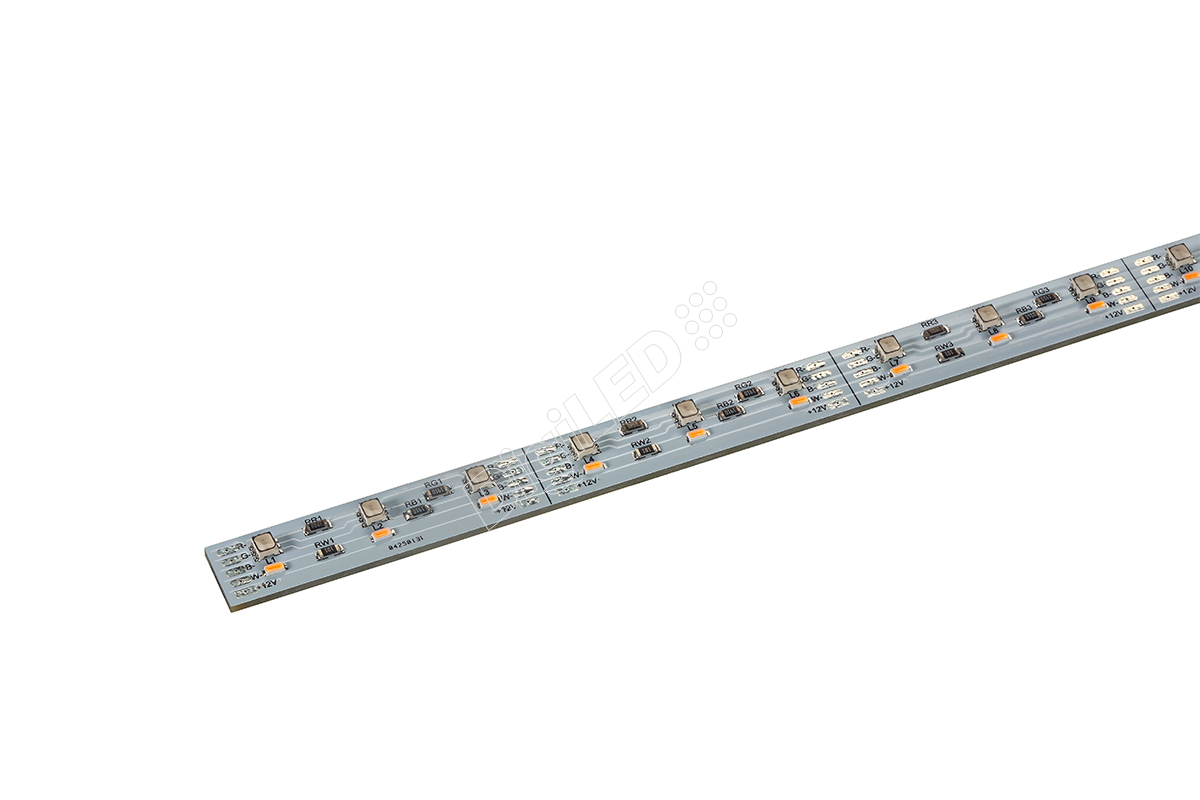

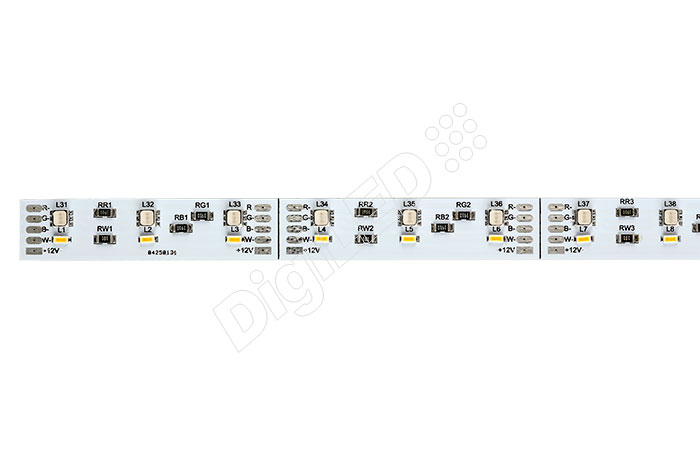

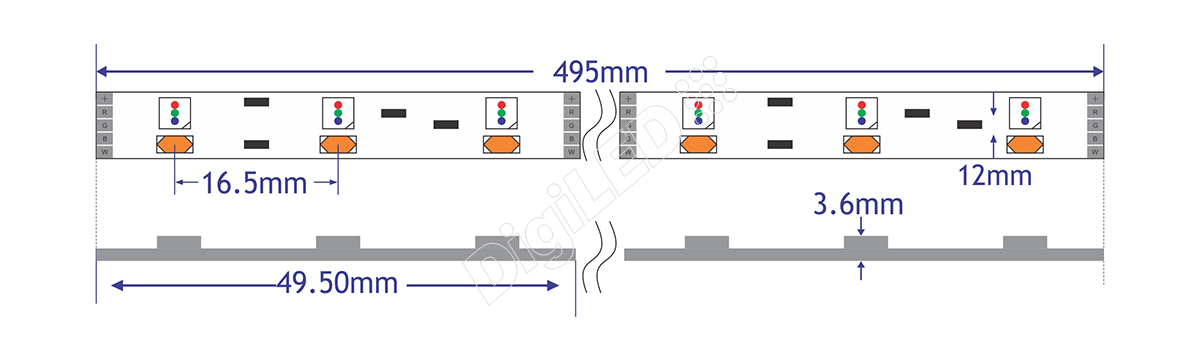

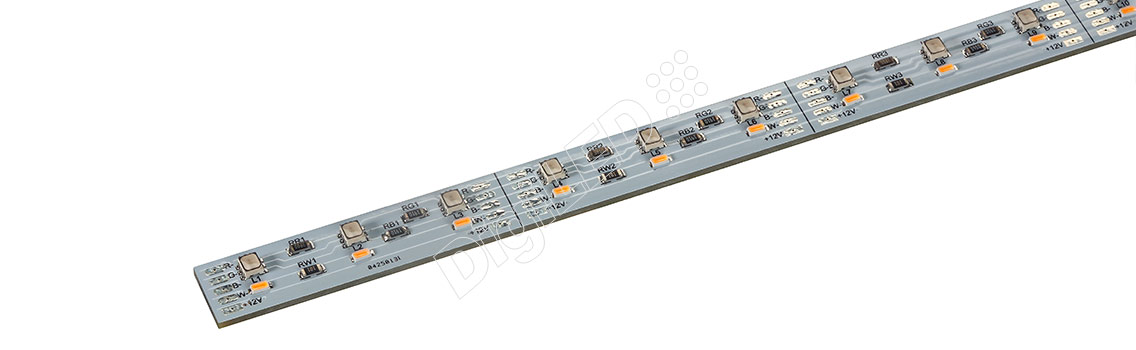

LED Rigid Strip Strip Top View Strip Diagram

Advantages

  • High brightness single color led strip
  • 3535 SMT package
  • High luminous intensity
  • Slim design
  • High reliability
  • Solid state, high shock, vibration resistant
  • Maintenance free, easy installation, long life
  • Very low power consumption and low heat
  • Good thermal conductivity
  • Easy to pack, ship and install

LED SPECIFICATIONS

  • 18-20 Lm
  • Package size: 3.5 X 3.5 X 2 mm
  • High brightness 1 chip LED
  • SMD (top view) type
  • High luminous intensity

Specifications

LED COLORS SIZE INPUT VOLTAGE CURRENT BEAM ANGLE OPERATING TEMPERATURE CUTTABLE SIZE PCB POWER
30 LED / module RGBW / RGBWW 12 mm W x 495 mm L x 1.6 mm H DC 12 VOLT 0.8 A 1200 -200~ +600 49.5 mm FR4 9.6 Watt / Module
