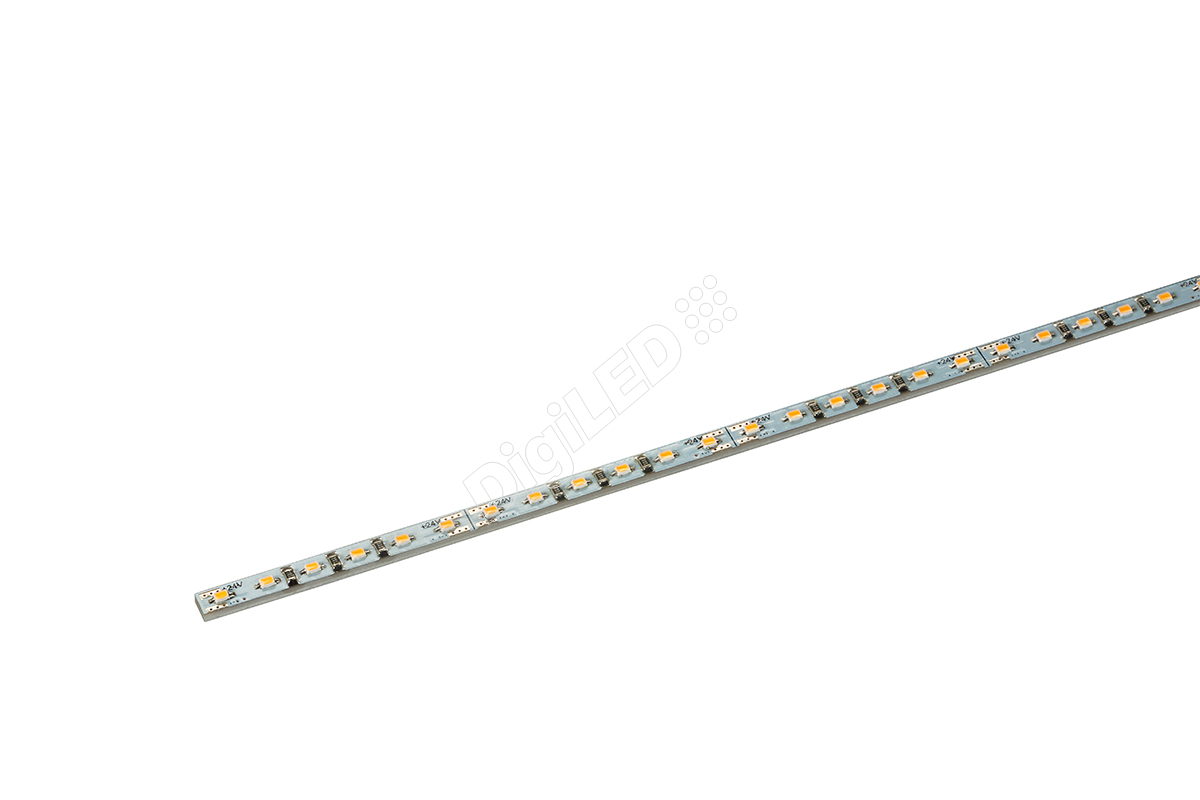

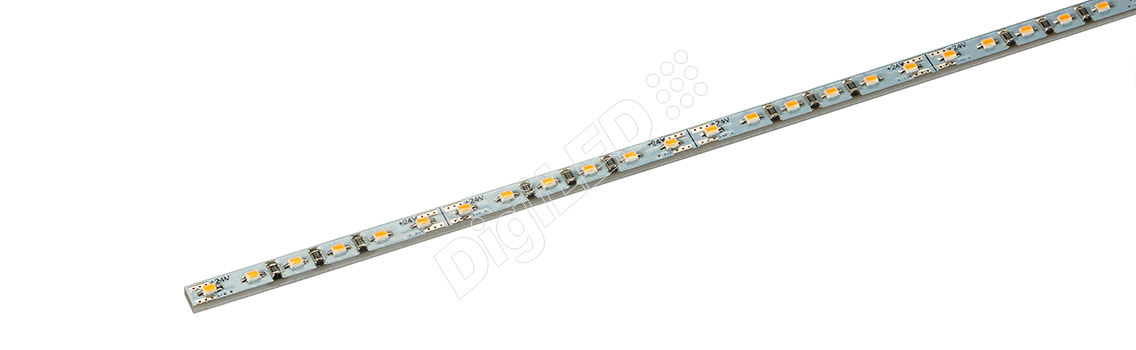

DGST-OSE2-144-5 STRIP

DGST-OSE2-144-5

9.6 Watt/Meter | 144 LED / Meter | 24 Volt DC

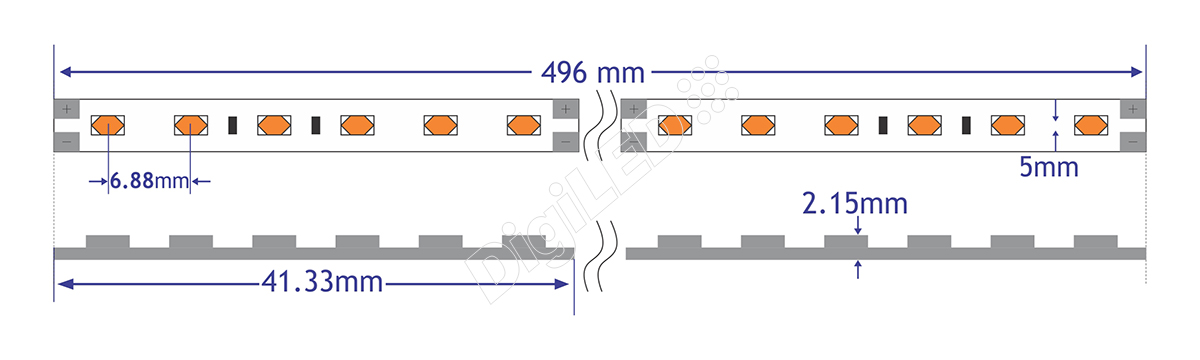

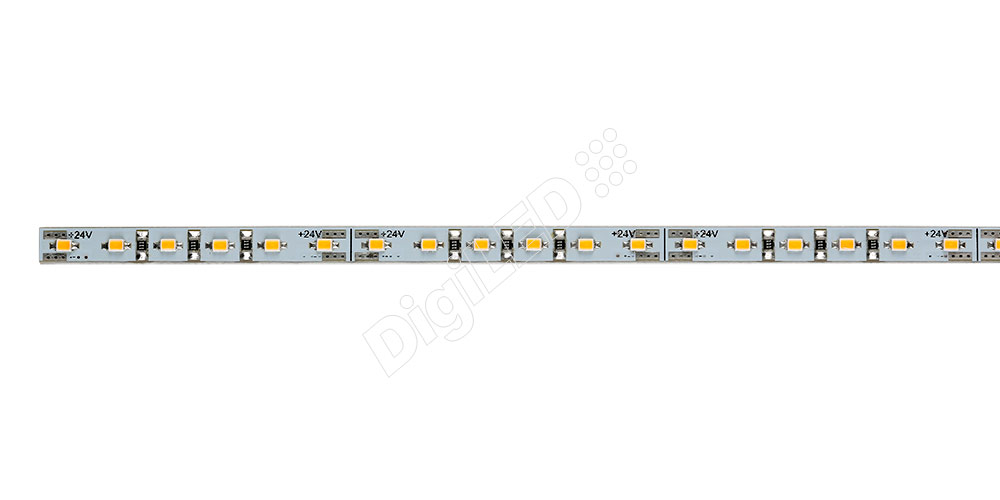

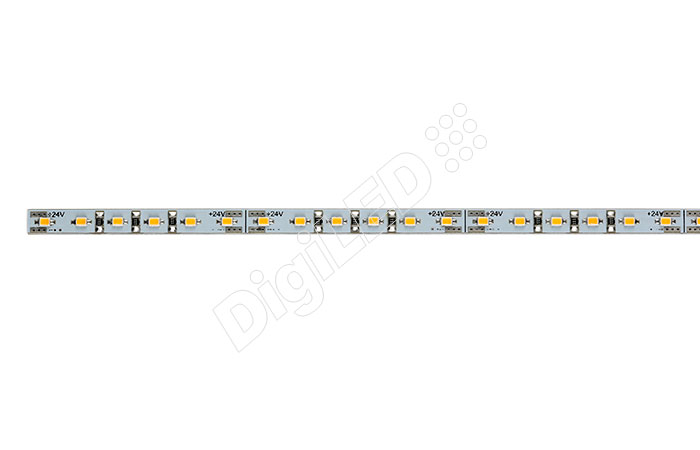

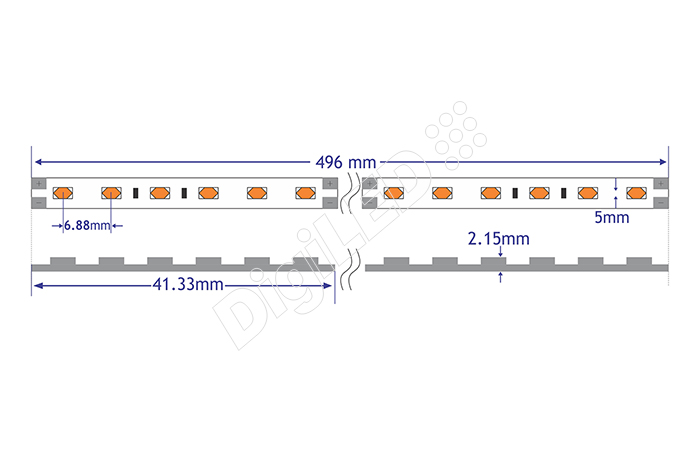

LED Rigid Strip Strip Top View Strip Diagram

Advantages

  • High brightness single color led strip
  • 2016 SMT package
  • High luminous intensity
  • Slim design
  • High reliability
  • Solid state, high shock, vibration resistant
  • Maintenance free, easy installation, long life
  • Very low power consumption and low heat
  • Good thermal conductivity
  • Easy to pack, ship and install

LED SPECIFICATIONS

  • 25-28 Lm
  • Package size: 2.0 X 1.6 X 0.55 mm
  • High brightness 1 chip LED
  • SMD (top view) type
  • High luminous intensity

Specifications

LED COLORS SIZE INPUT VOLTAGE CURRENT BEAM ANGLE OPERATING TEMPERATURE CUTTABLE SIZE PCB POWER
72 LED / module CW/ NW/ WW 5 mm W x 495 mm L x 1.6 mm H DC 24 VOLT 0.2 A 1200 -200~ +600 41.25 mm FR4 4.8 Watt / Module
