DGST-5630CC-PL6

DGST-5630CC-PL6

30-45 Watt/Set | 100 LED/Set | 30-34 Volt DC

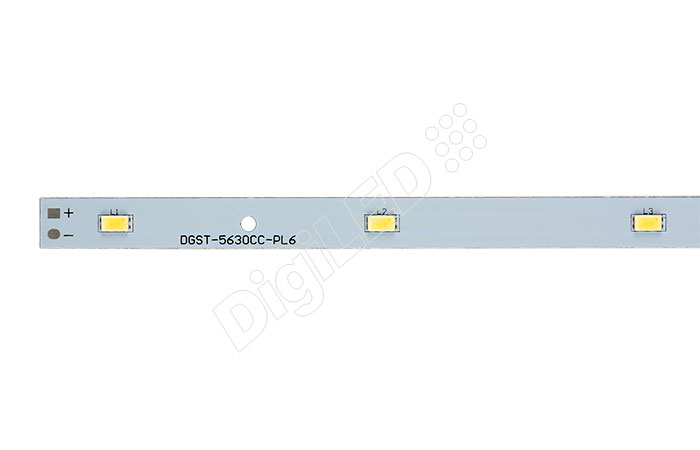

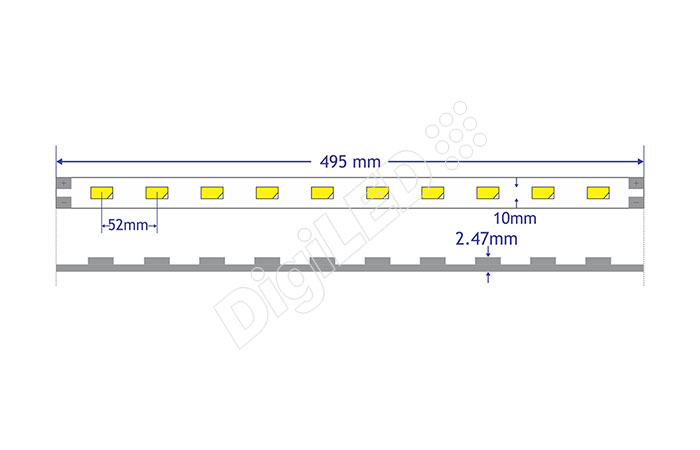

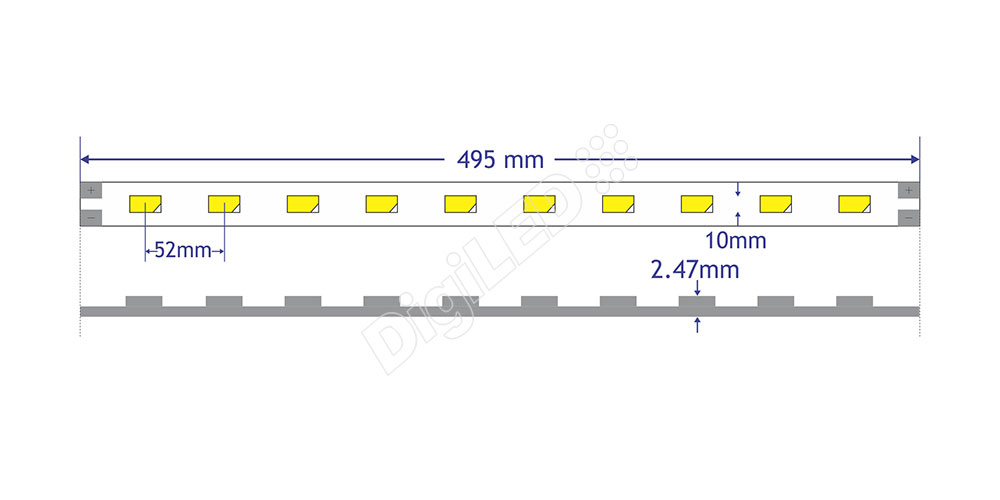

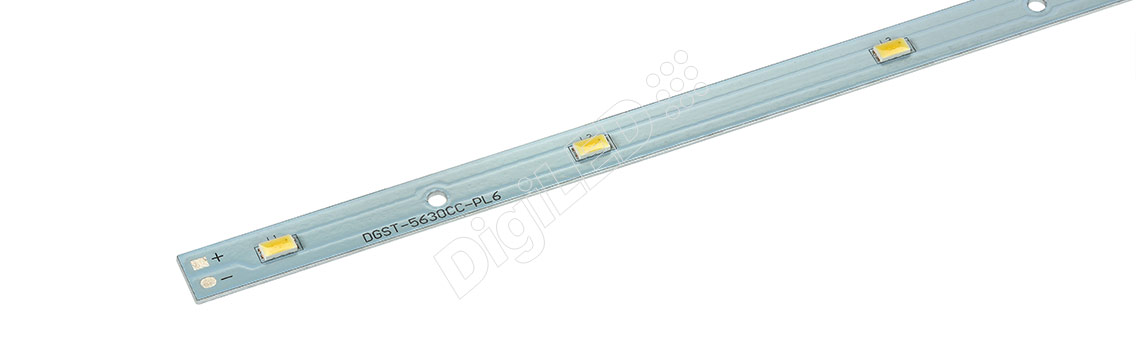

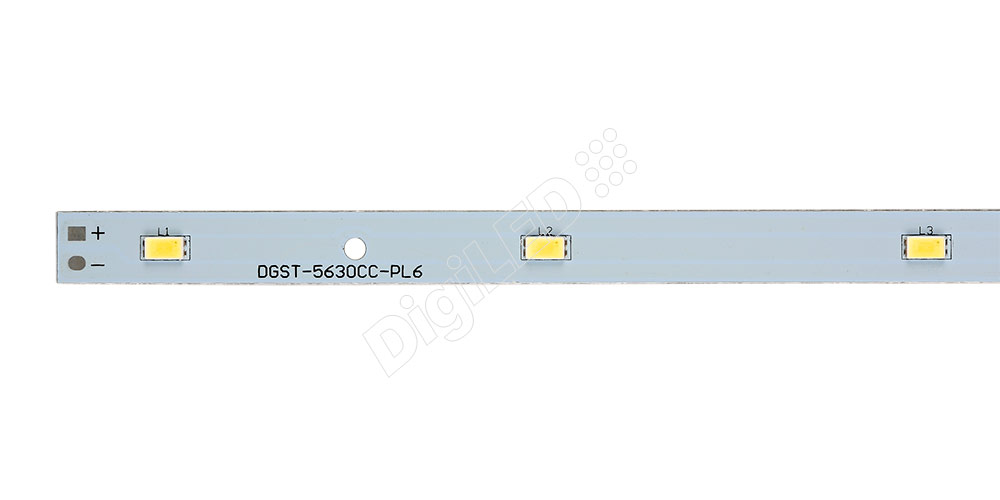

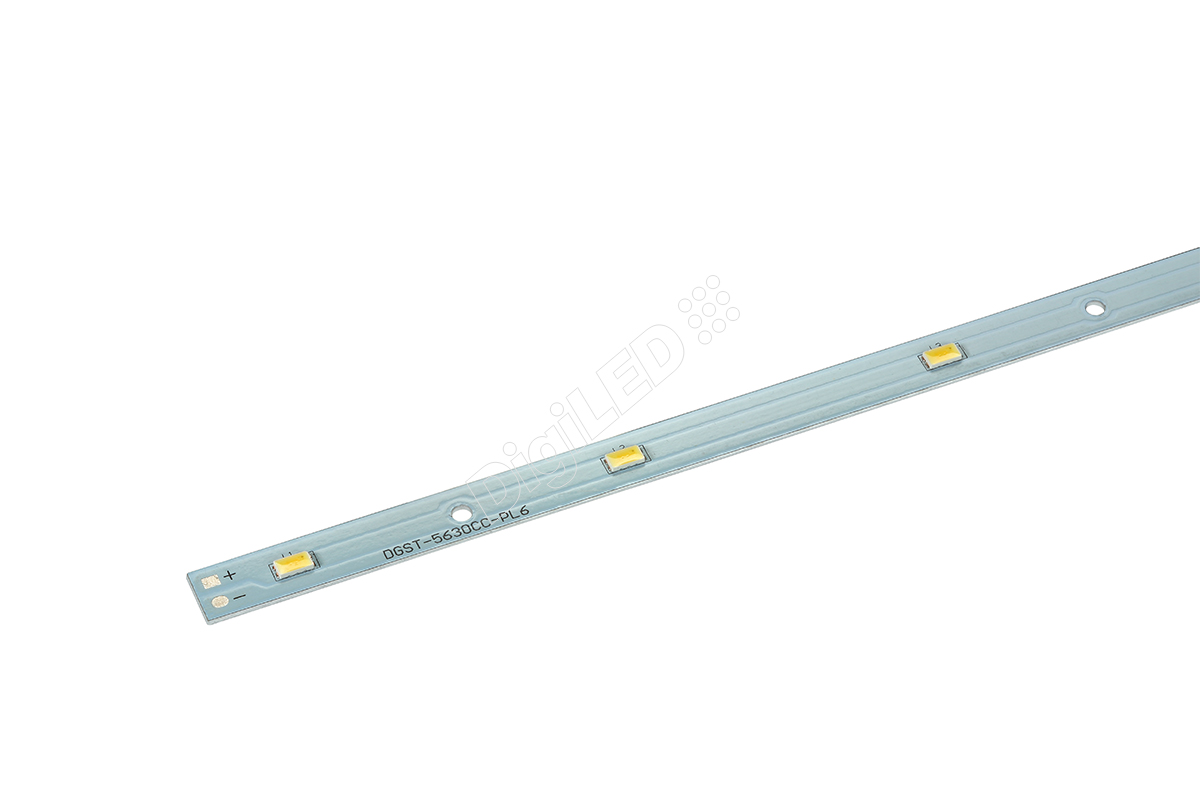

LED Rigid Strip Strip Top View Strip Diagram

Advantages

  • High brightness single color led strip
  • 5630 OSRAM SMT package
  • High luminous intensity
  • Slim design
  • High reliability
  • Solid state, high shock, vibration resistant
  • Maintenance free, easy installation, long life
  • Very low power consumption and low heat
  • Good thermal conductivity
  • Easy to pack, ship and install

LED SPECIFICATIONS

  • 38-45 Lm
  • Package size: 5.6 X 3.0 X 0.87 mm
  • High brightness 1 chip LED
  • SMD (top view) type
  • High luminous intensity

Specifications

LED COLORS SIZE INPUT VOLTAGE CURRENT BEAM ANGLE OPERATING TEMPERATURE CUTTABLE SIZE PCB POWER
10 LED / module CW/ NW/ WW 10 mm W x 495 mm L x 1.6 mm H DC 30-34 VOLT 100 mA - 140 mA 1200 -200~ +600 495 mm Aluminum 30w-45w watt/set of 10 strips
