DGST-3014E3-30HP-12V STRIP

Item Code : DGST-3014E3-30HP

7.2 Watt/Meter, 14.4 Watt/Meter, 19.2 Watt/Meter, 22 Watt/Meter
60 LED/Meter | 12 Volt DC

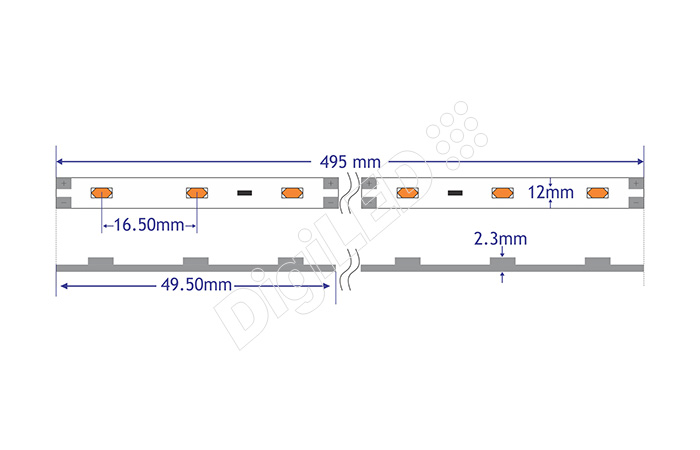

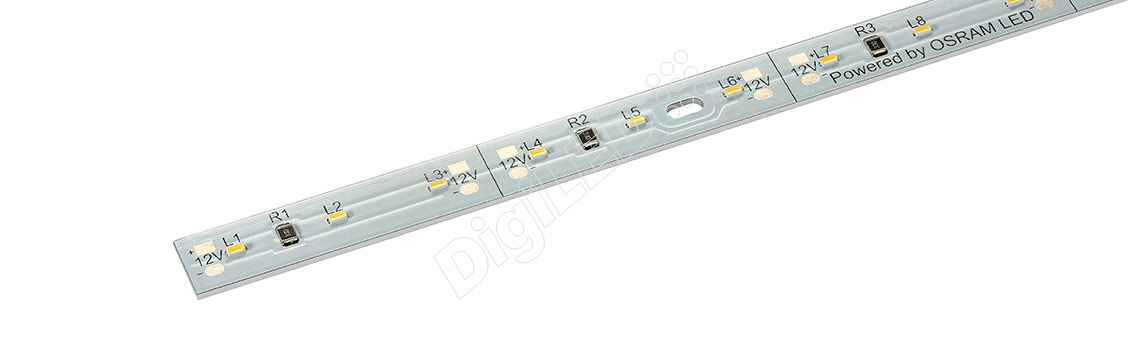

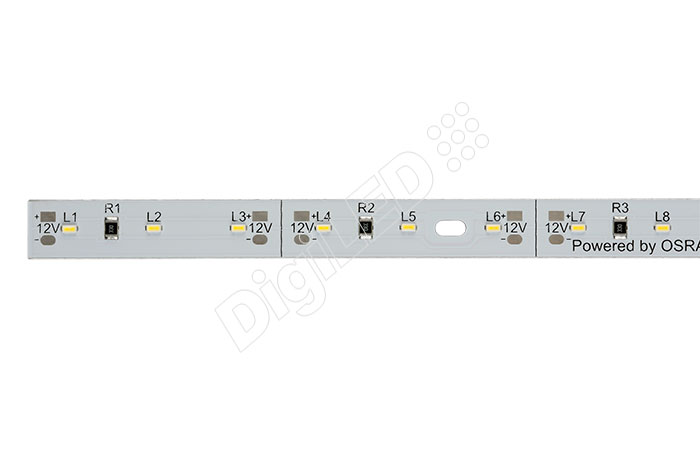

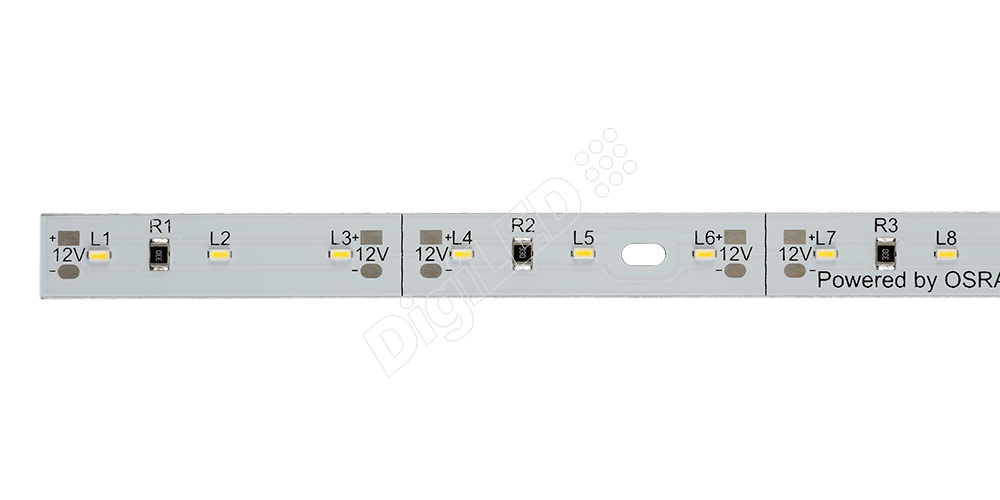

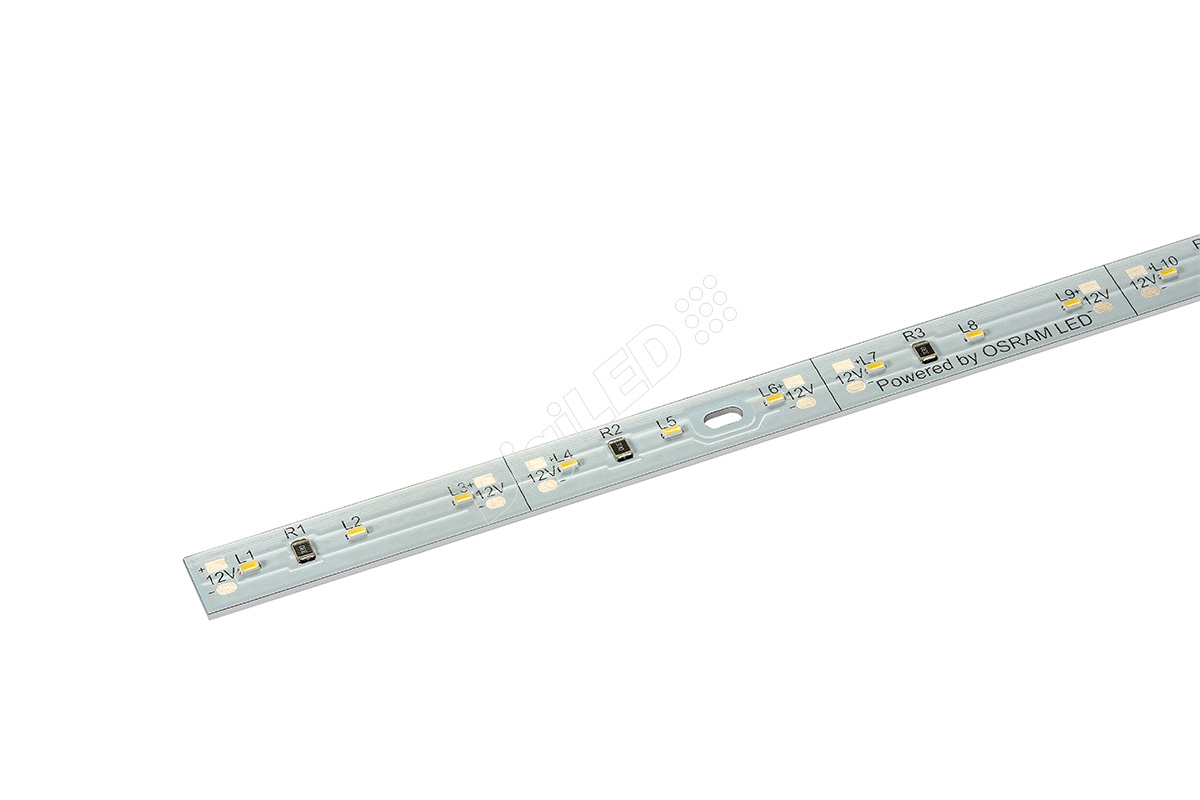

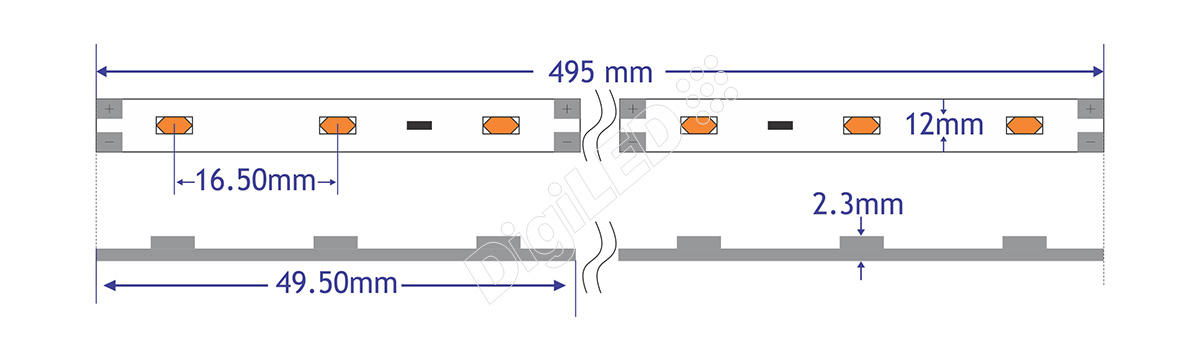

LED Rigid Strip Strip Top View Strip Diagram

Advantages

  • High brightness single color led strip
  • 3014 OSRAM SMT package with 134 LM/Watt @5000K [GW JCLMS1.EC]
  • High luminous intensity
  • Slim design
  • High reliability
  • Solid state, high shock, vibration resistant
  • Maintenance free, easy installation, long life
  • Very low power consumption and low heat
  • Good thermal conductivity
  • Easy to pack, ship and install

LED SPECIFICATIONS

  • 28-30 Lm @ 65mA
  • Package size: 3.0 X 1.4 X 0.7 mm
  • High brightness chip LED SMD (top view) type
  • High luminous intensity

Specifications

LED COLORS SIZE INPUT VOLTAGE CURRENT BEAM ANGLE OPERATING TEMPERATURE CUTTABLE SIZE PCB POWER
30 LED / module CW/ NW/ WW 12 mm W x 495 mm L x 1.6 mm H DC 12 VOLT Adjustable as per project req. 1200 -200~ +600 49.5 mm Aluminum, 1.6 mm
[High W/mK]		 4.8 to 22 Watt[ Per Meter ]
