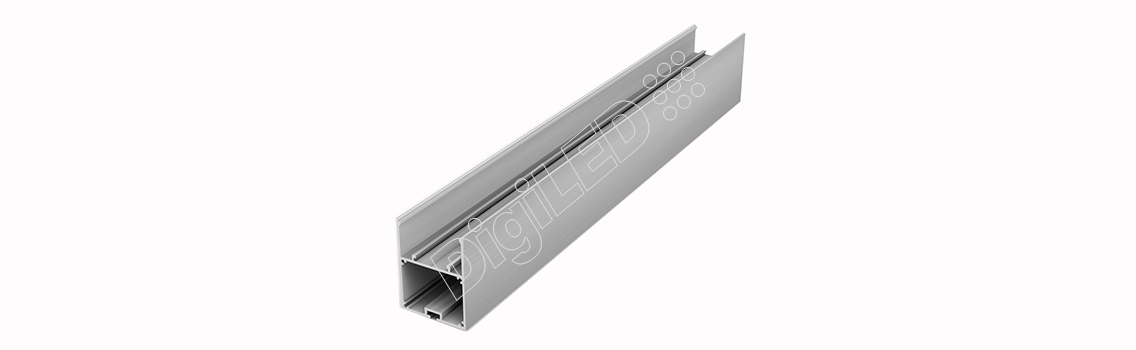

TOP 5064

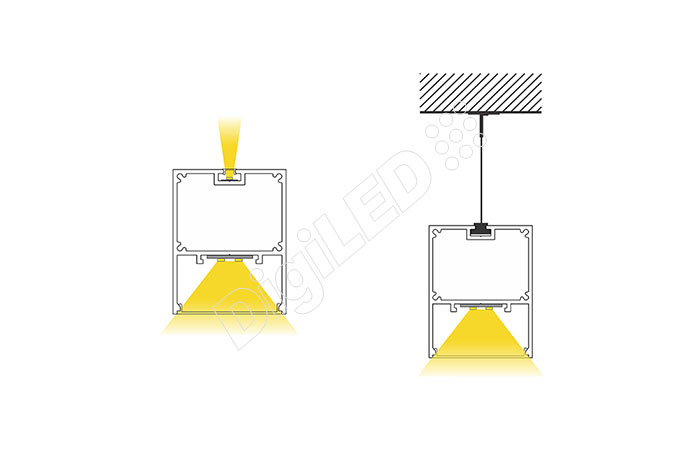

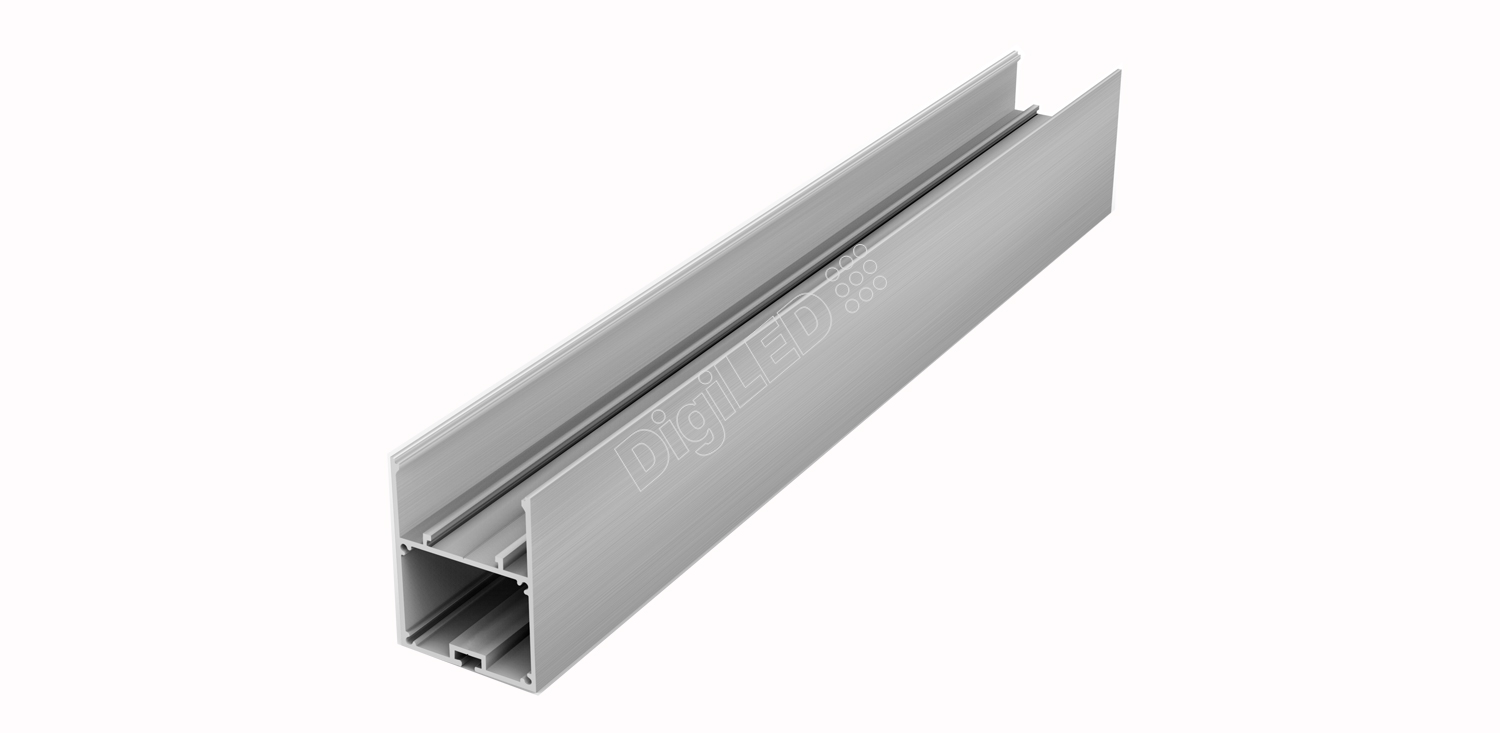

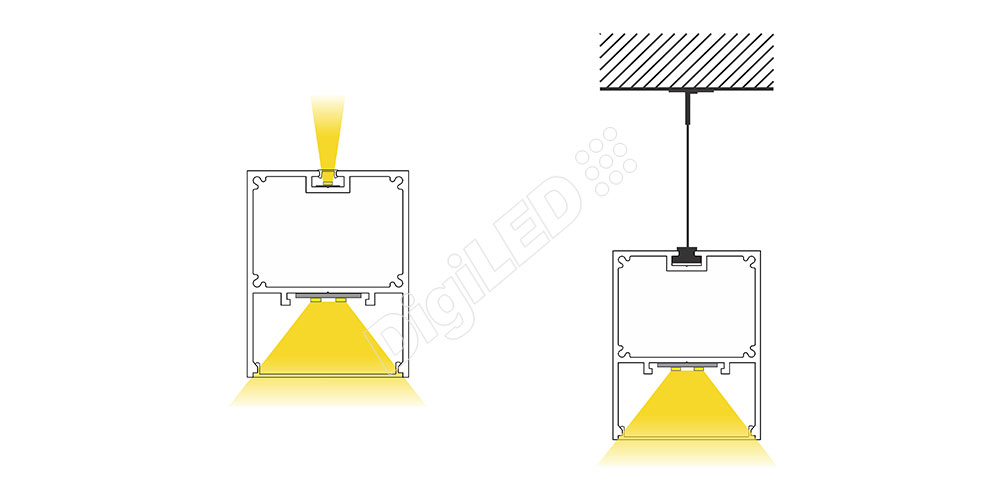

Top5064 profile is designed for high heights and suspended use. The driver can be installed inside the profile and can be accessed easily for maintenance. This profile is design to give down as well as up light with diffusers. LED Profiles protect the LED strip while also acting as a heat sink to help maintaining the LED life. Installation is designed to be as simple as possible. This profile is economic and comes with milky standard diffuser which can be installed and removed very easily.


  • Up and down light
  • Inbuilt driver provision

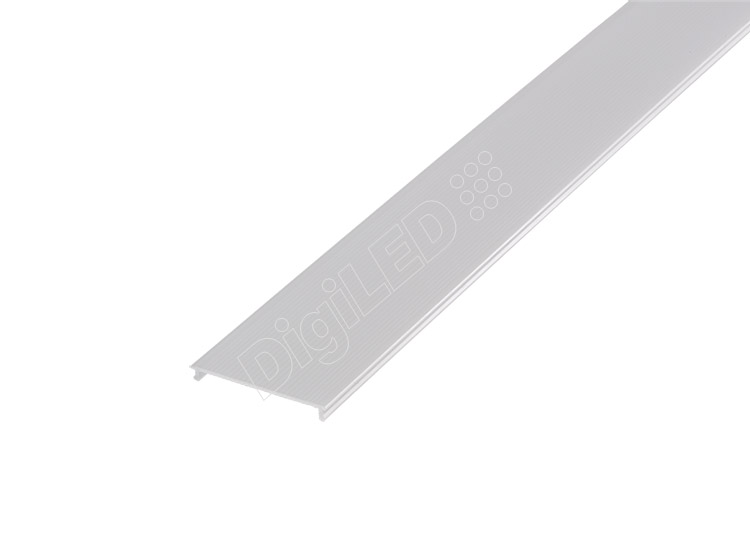

  • Milky Standard diffuser
  • Easy maintenance due to press-fit diffuser
  • 3 years Warranty

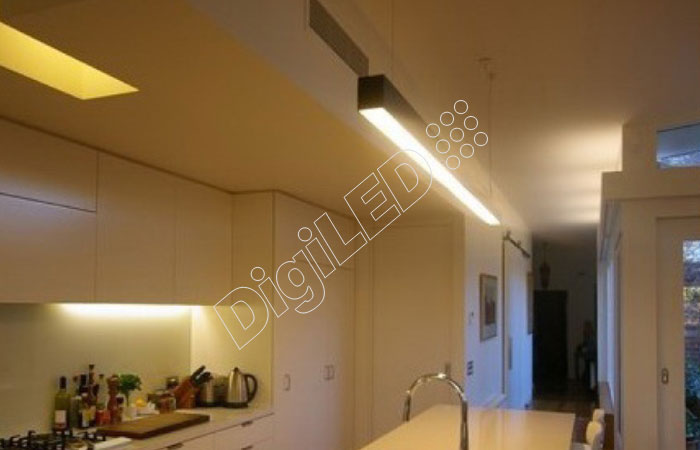

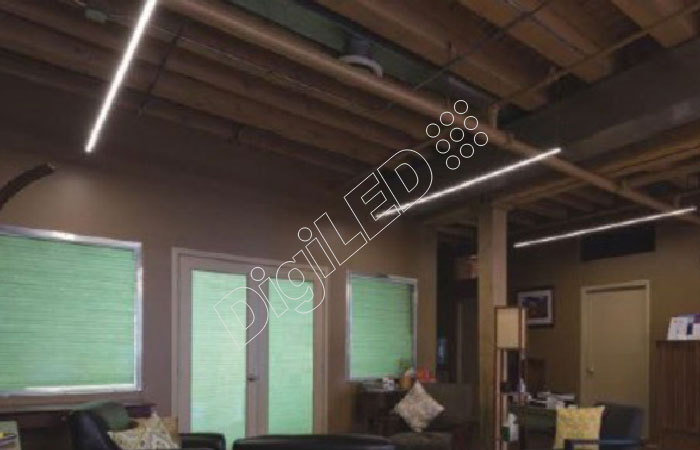

Application Areas

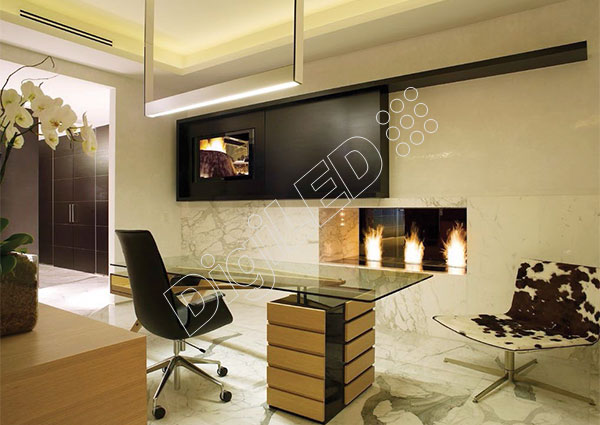

  • Office Lighting

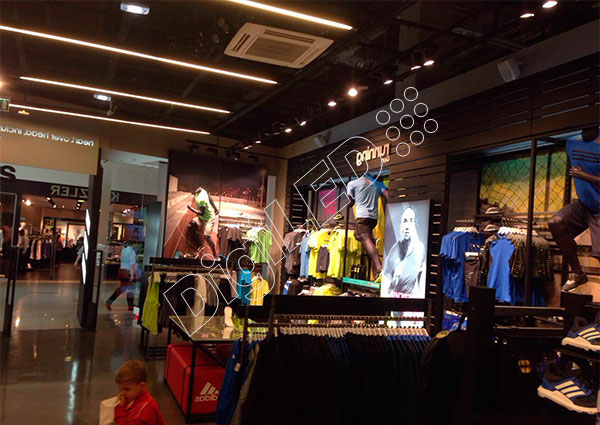

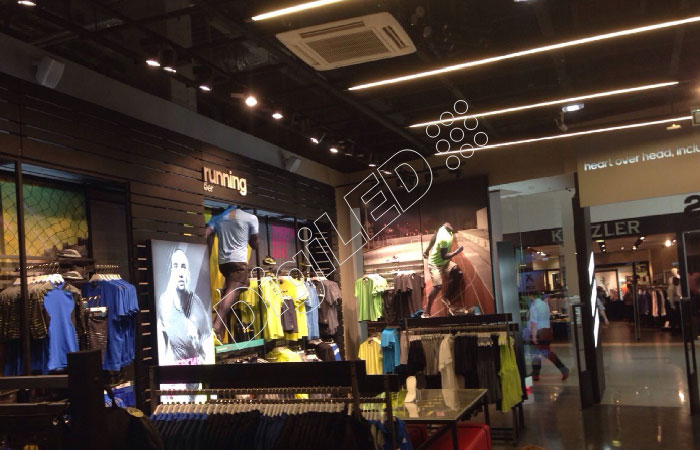

  • Retail lighting
  • Store interior lighting
  • Conference rooms

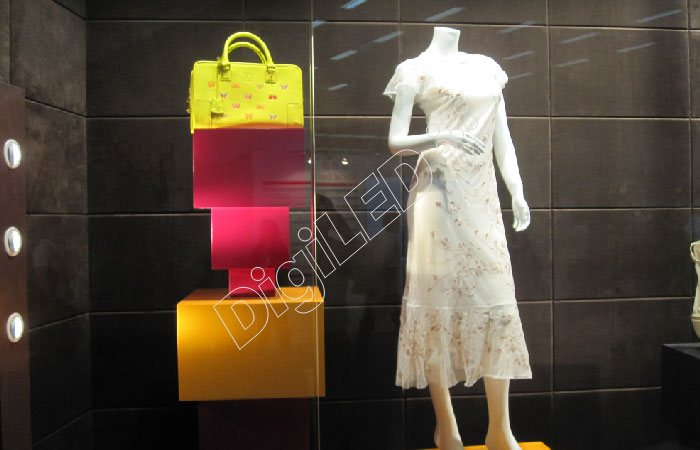

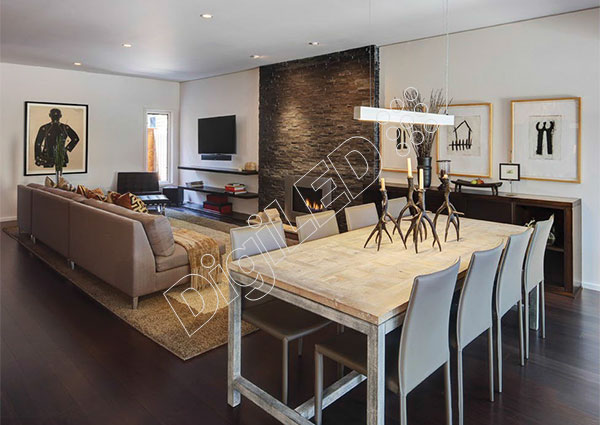

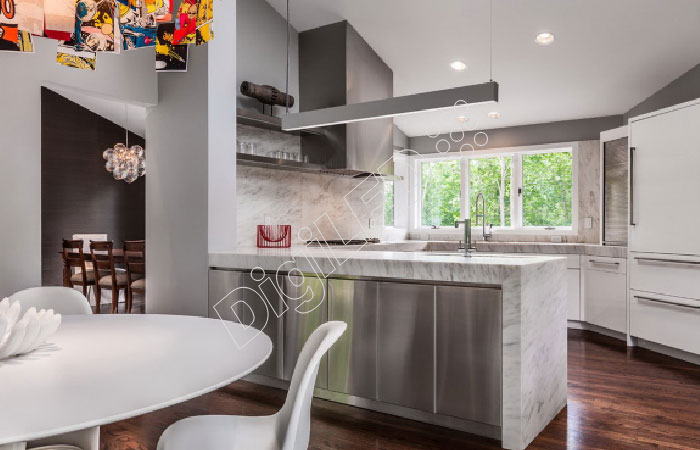

  • Decorative lighting
  • Warehouse lighting

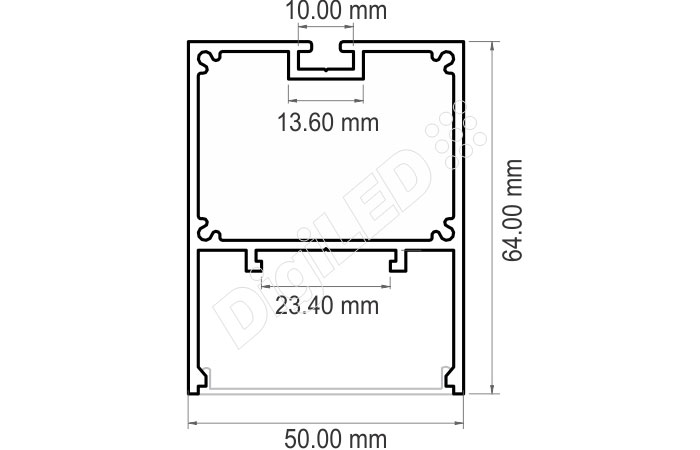

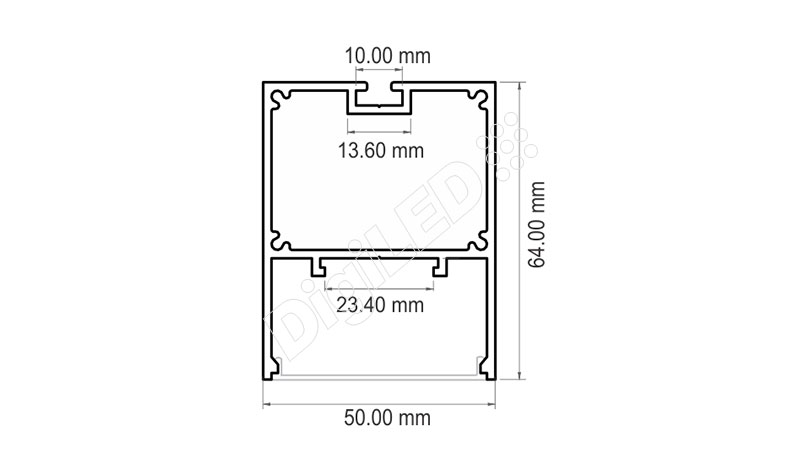

Material Size Max PCB size possible Max length Diffuser Recommended watts/meter Finish
Aluminum 54mm x 64mm 26mm 2400 mm Press fit Milky 40w Raw/anodized or Power Coated

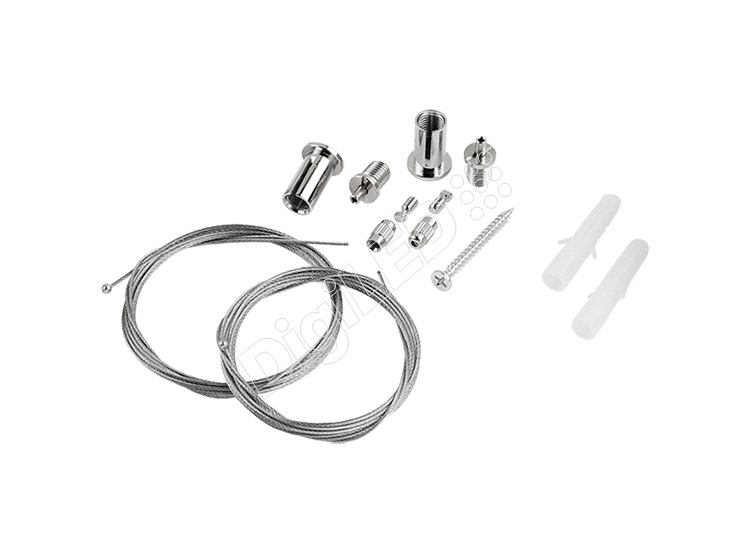

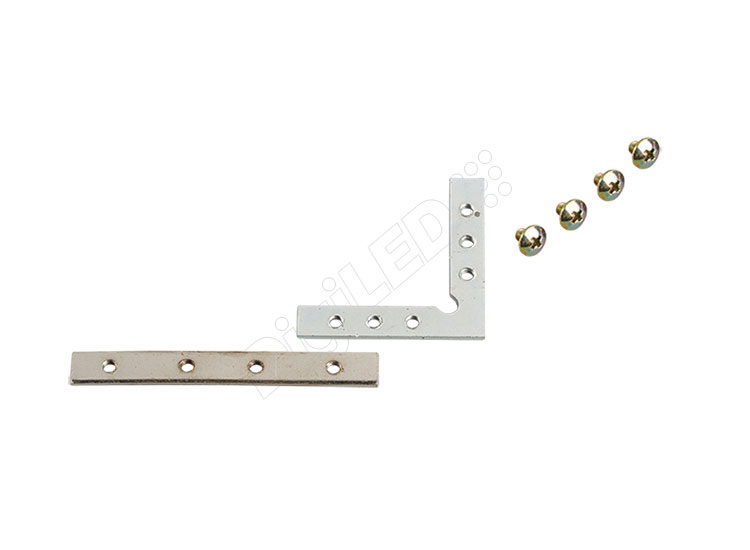

Accessories For TOP 5064 Profile

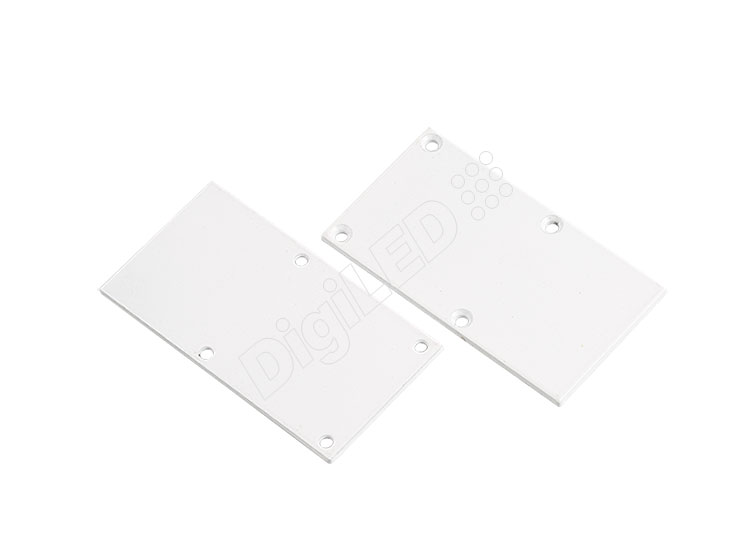

End Caps




Application Name
Application Name
Application Name
