Features

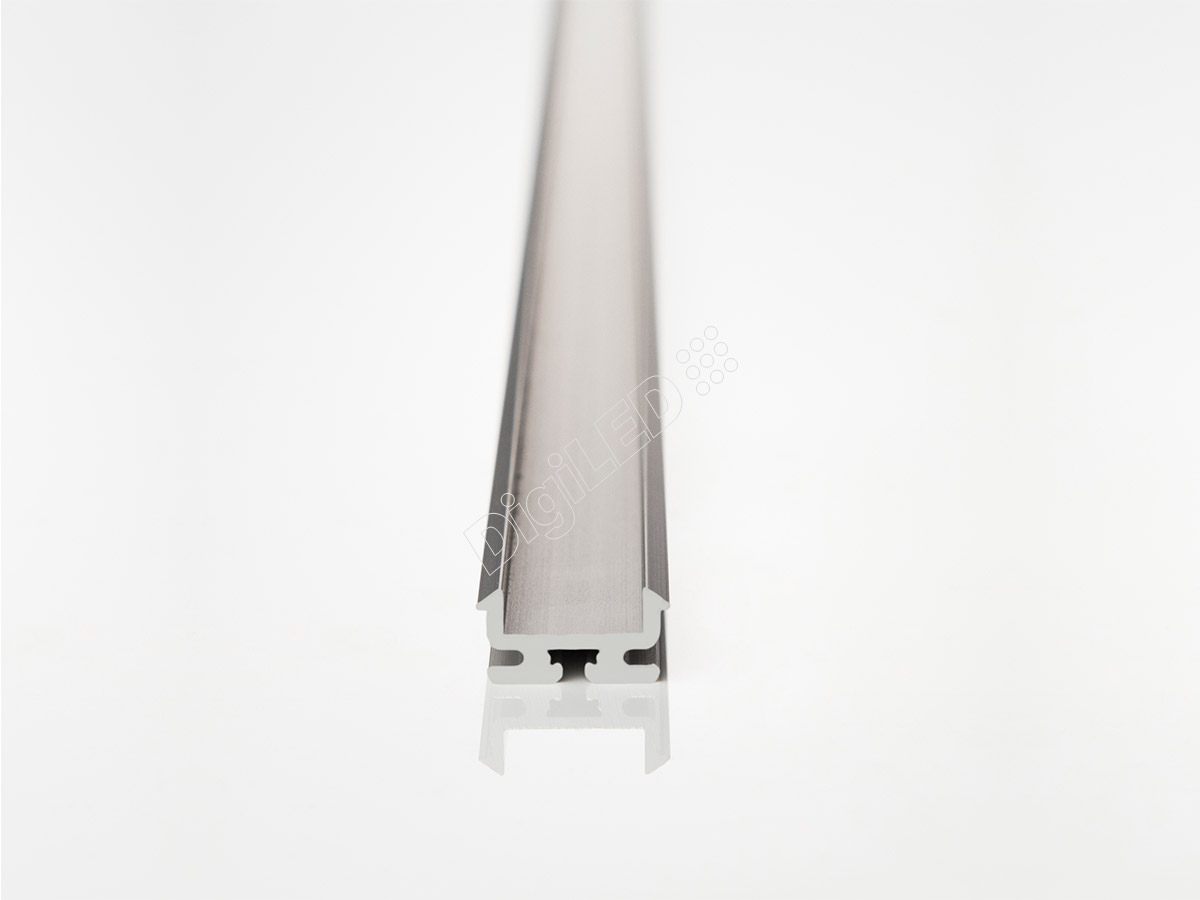

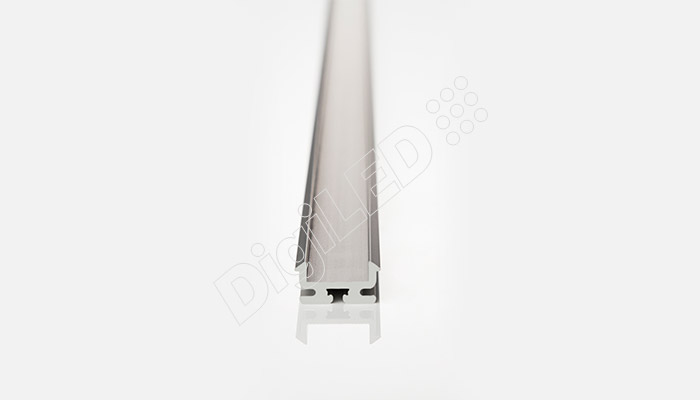

  • Aluminium mounting plate for LED modules up to a width of 12 mm

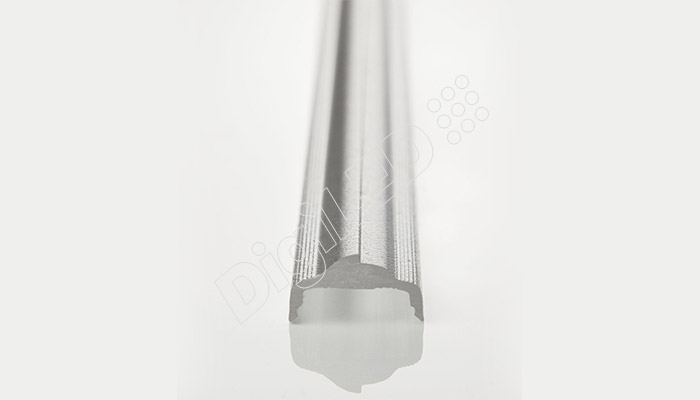

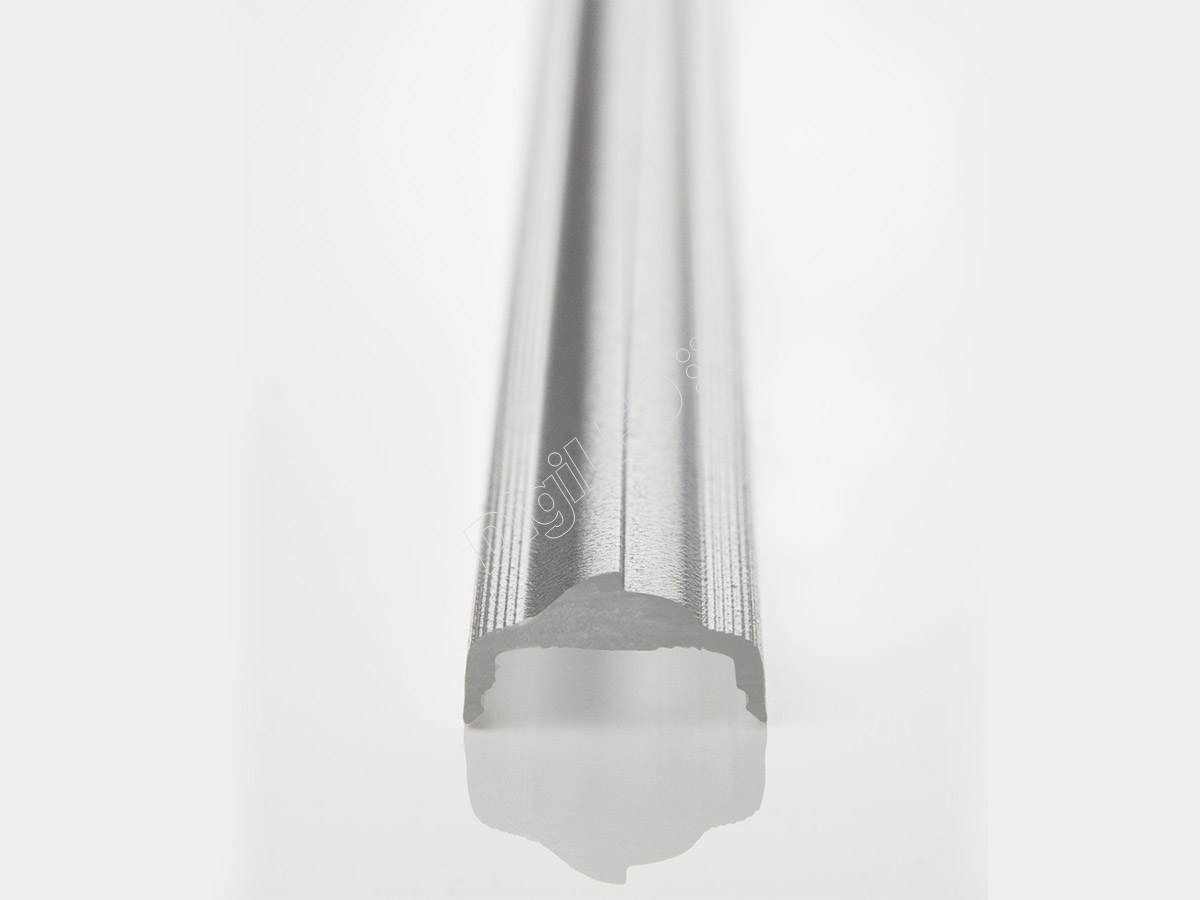

  • Use in combination with different lenses is possible
  • Aluminium, anodised natural
  • Installation with Fixing Plates
  • Mounting unit for plastic cover

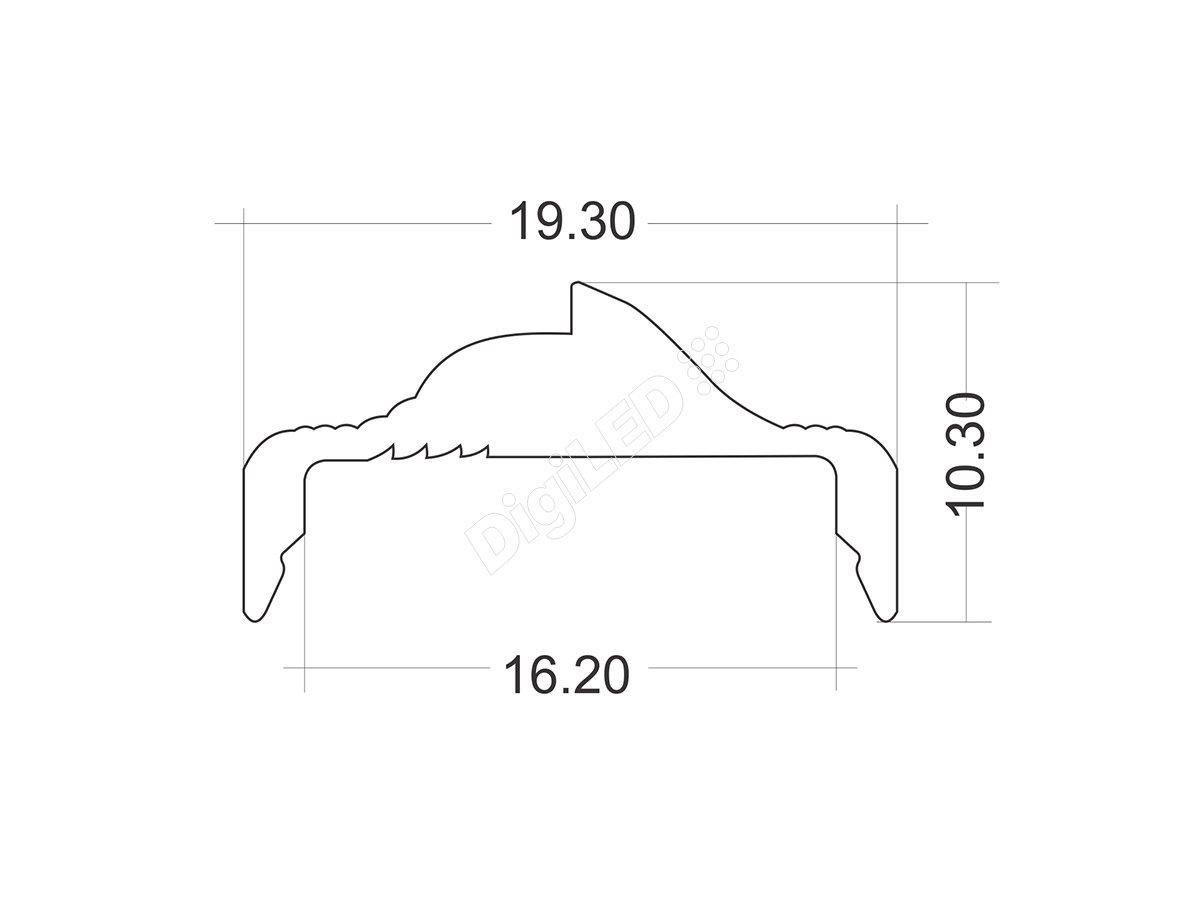

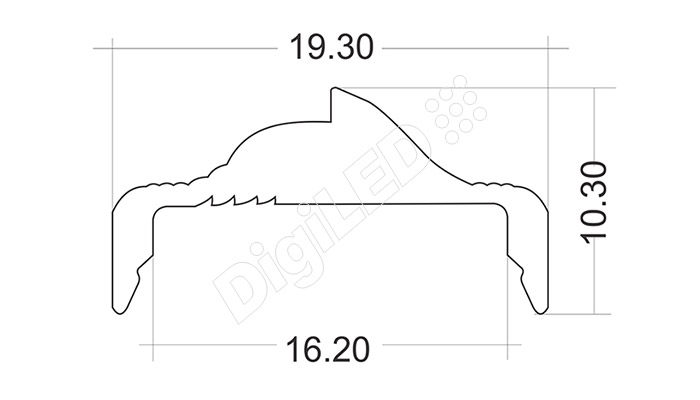

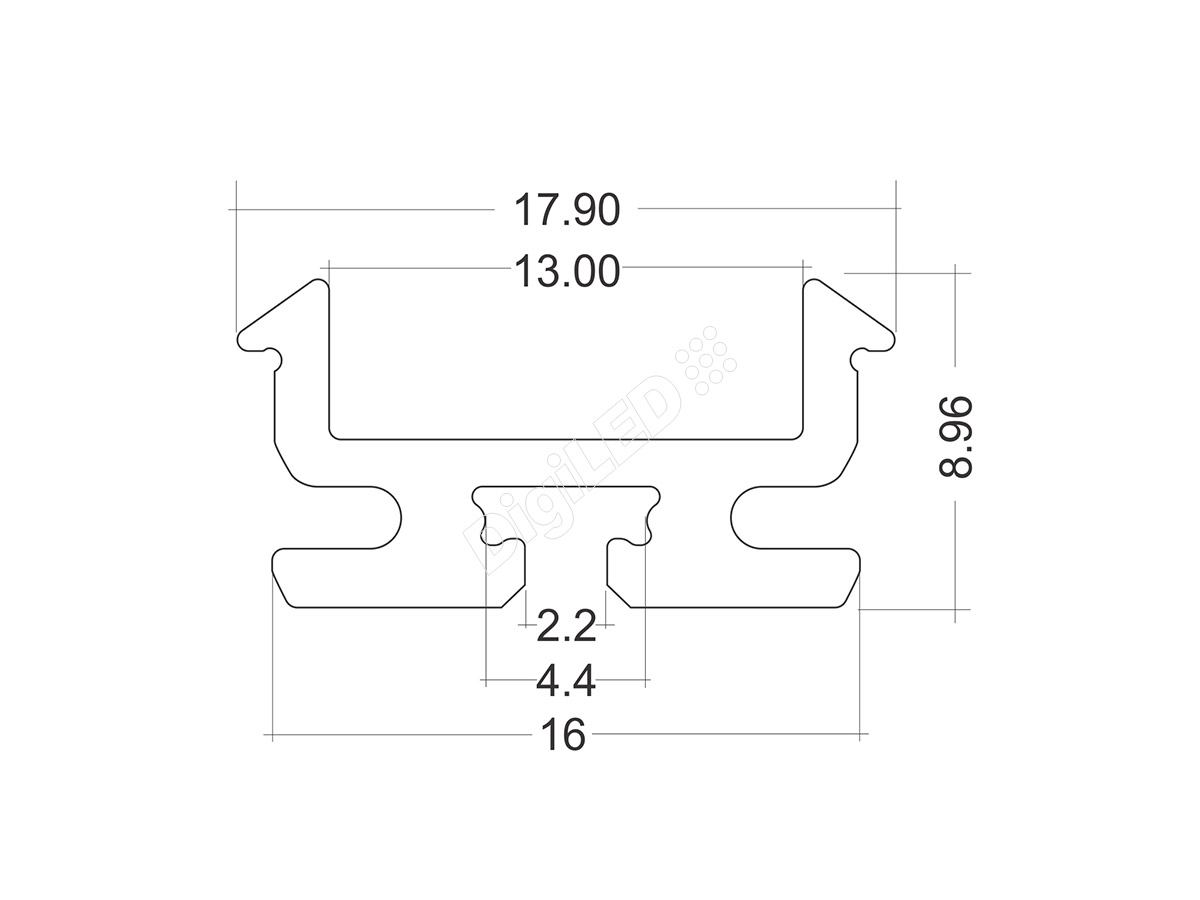

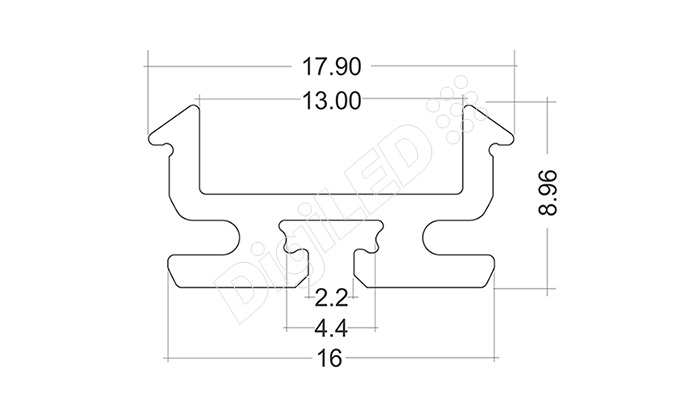

  • Compact cross-section (9 x 18 mm)
  • Can be expanded with extensive accessories

Applications

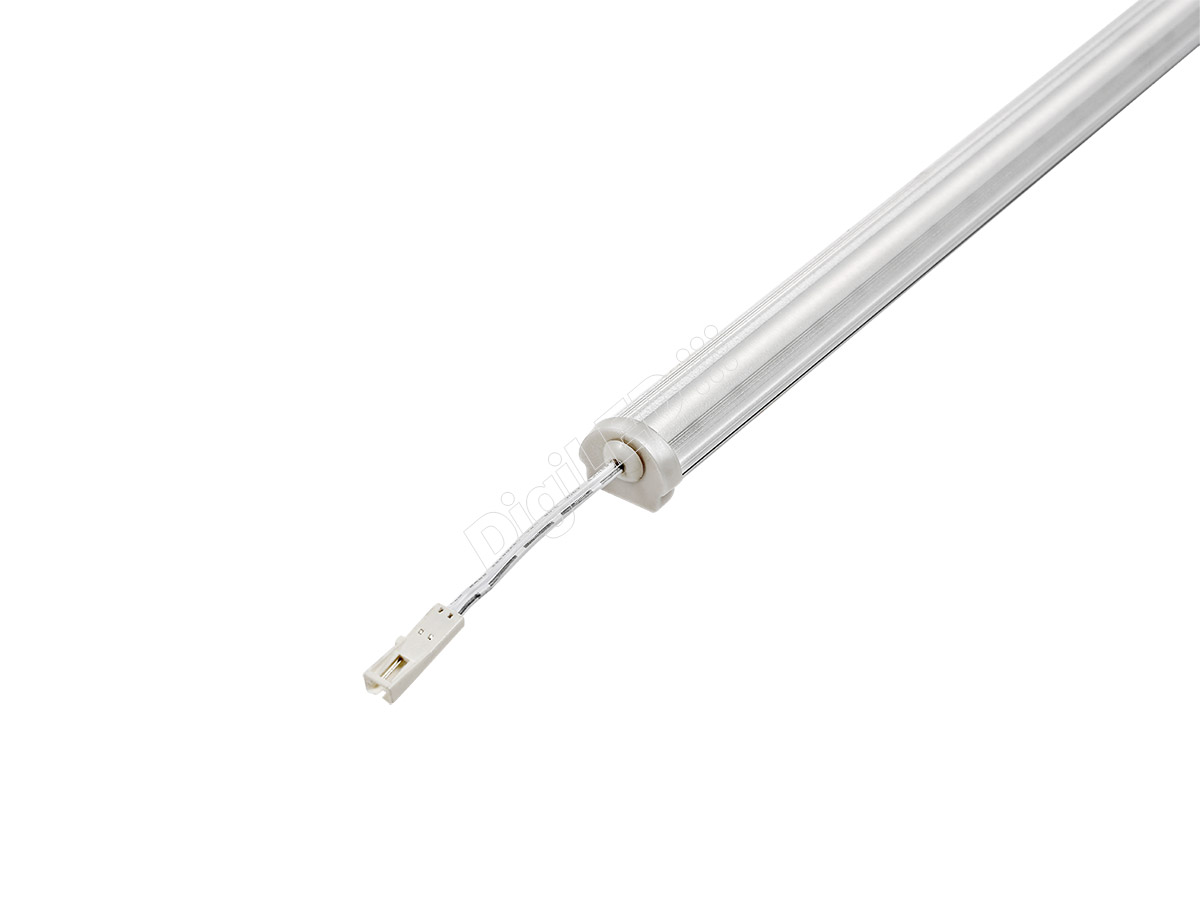

Small size aluminum profile (we call it also our “High Efficiency Profile” because of low price of profile and plastic end caps) for LED strips/modules with max. 22W/m power.

  • Cabinet Lighting
  • Kitchen lighting
  • General lighting with standard covers
  • Architectural lighting
  • Directional lighting with Lenses
  • Furniture Lighting

Specifications

Part No Lens V in Length Mm CCT Watts LED PCB PROFILE

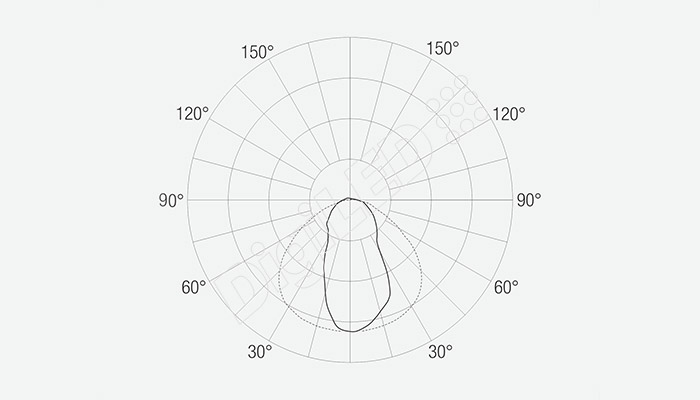

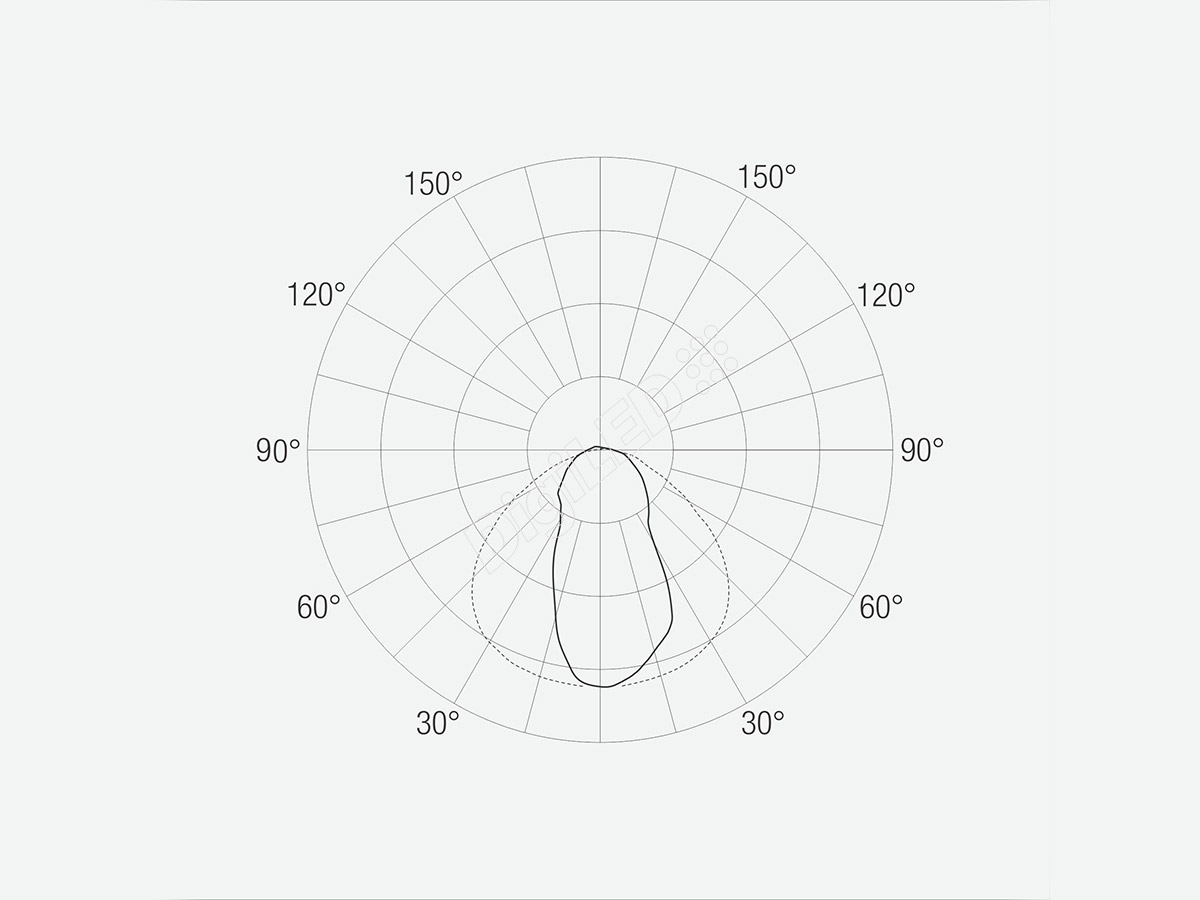

Z2-ASY ASYMMERIC 12 - 24 V DC 1000 mm CW/ NW/ WW 4.8 to 14.4 OSRAM 60 LED/M AL Z201

Accessories For Z2-ASY Profile

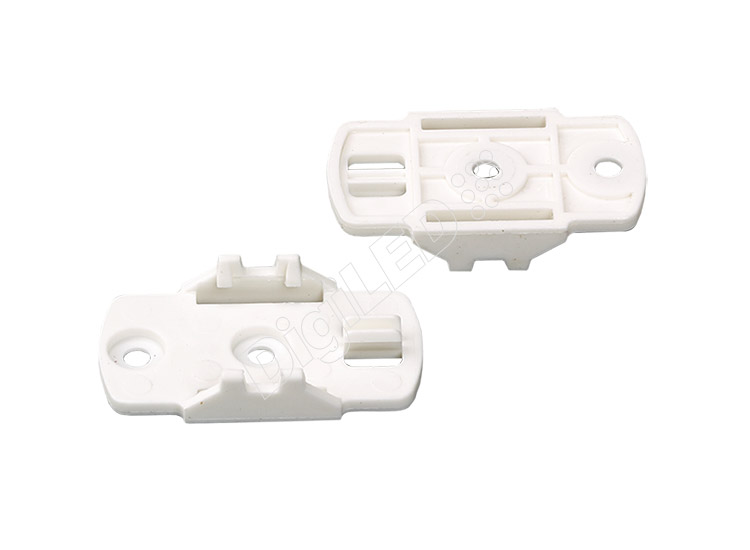

0 Degree Fixing Plate

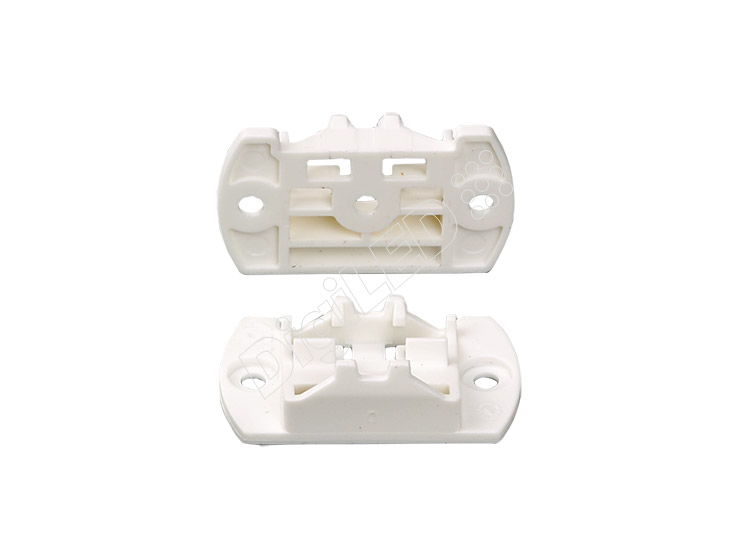

15 Degree Fixing Plate

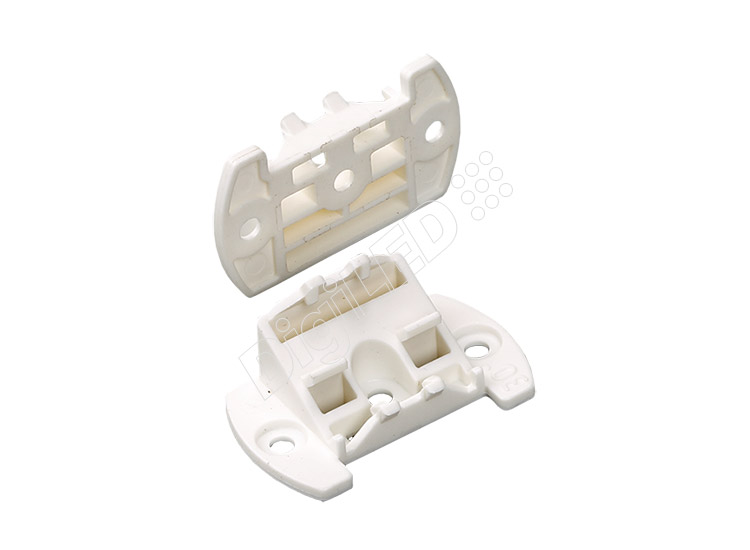

30 Degree Fixing Plate

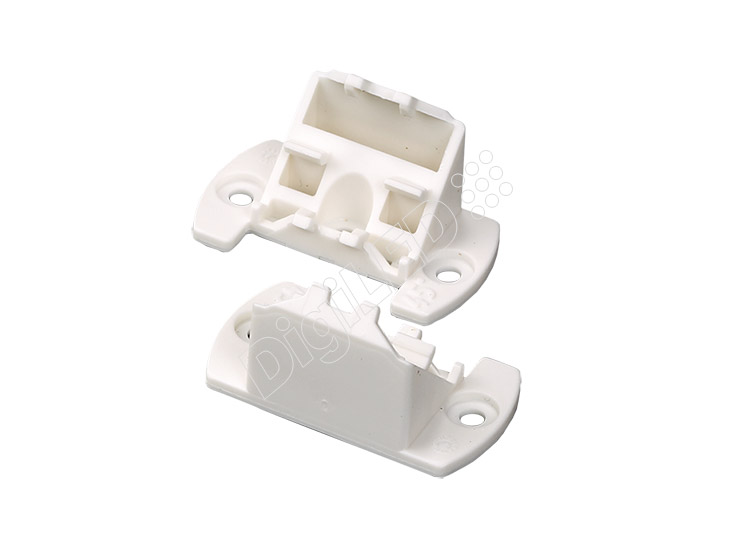

45 Degree Fixing Plate

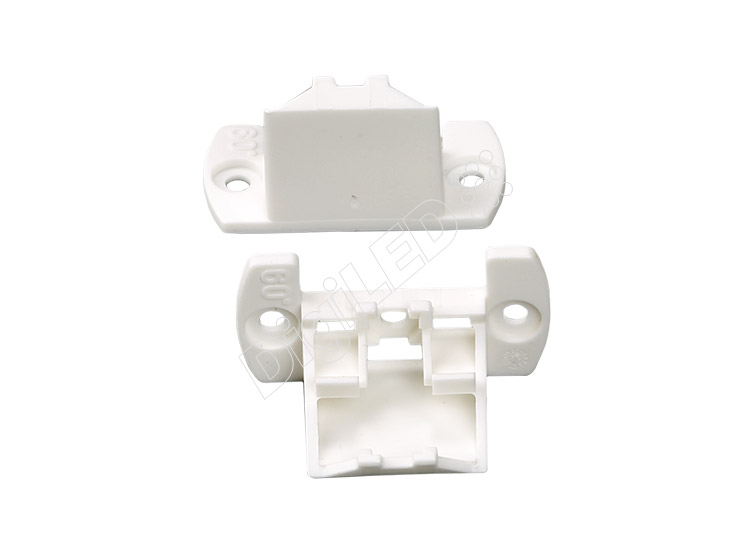

60 Degree Fixing Plate

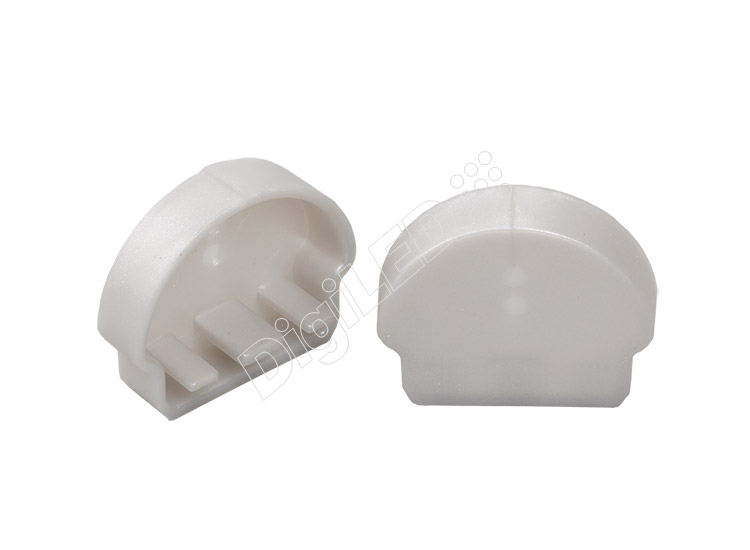

End Cap
